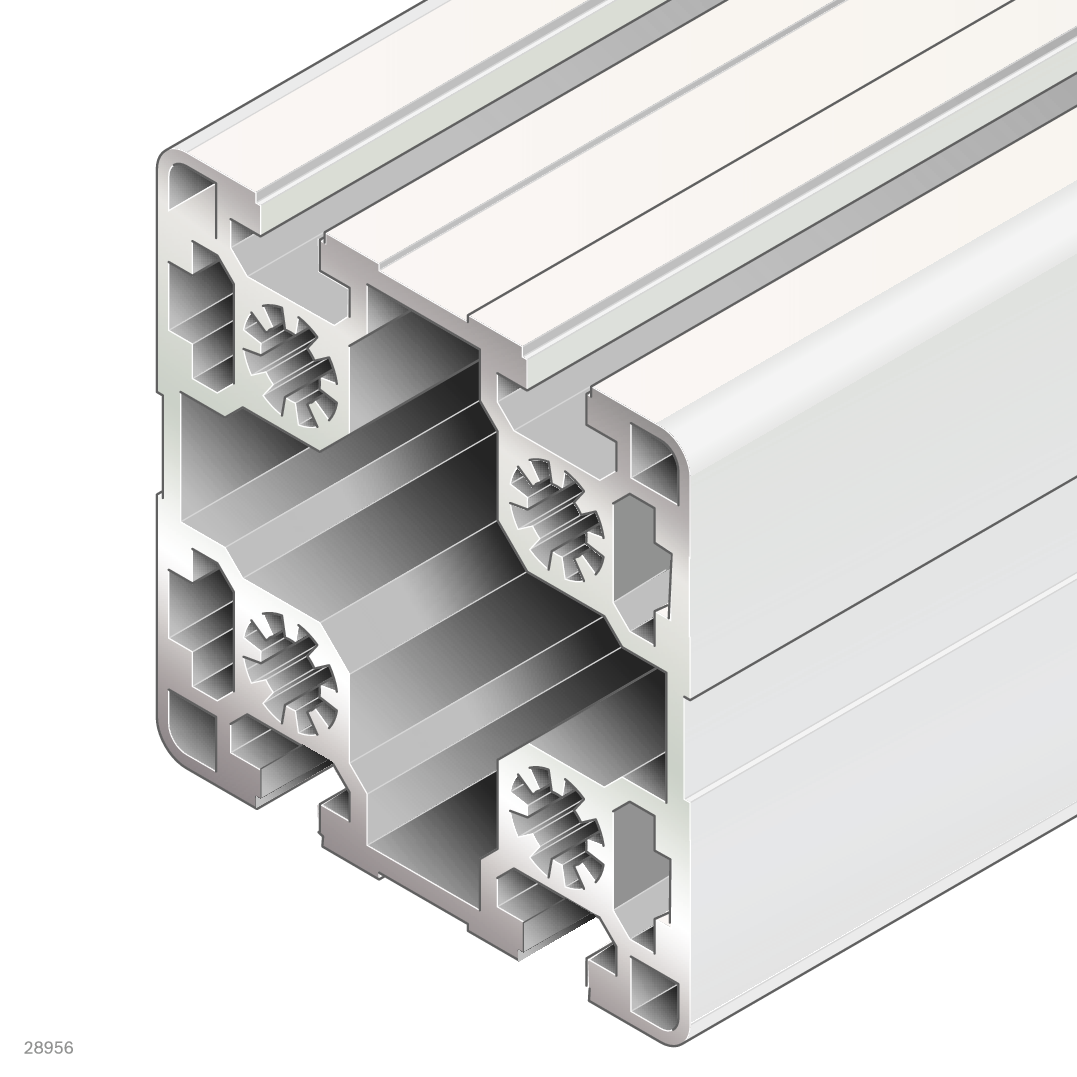

Strut Profile 90x90L 4N, Length 6070 mm, Anodized Aluminum - Bosch Rexroth 3842538301
Datasheet (PDF)
The product may differ from the illustration
Heavy-duty aluminum strut profile with 90x90L cross-section and 4 open slots (profile type 4N) for large-scale machine frames and structural assemblies. The anodized surface provides lasting corrosion resistance; the 45 mm modular dimension ensures full compatibility with the Bosch Rexroth 90 series profile system. Supplied as a single rod in standard length 6070 mm, mass 6.5 kg/m.

Strut Profile 90x90L 4N, Length 6070 mm, Anodized Aluminum - Bosch Rexroth 3842538301

BOSCH REXROTH Original product
Net price (excl. VAT)
€568.42
Excl. 19% VAT , excl. Shipping Cost
Available Fast shipping
Item BRR-3842538301
Manufacturer no. 3842538301
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842538301
Country of originGermany
Customs tariff number76042100
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842538301

The strut profile 90x90L 4N is the primary structural element for large frames, machine bases, and workstation systems built on the Bosch Rexroth aluminum profile system. Four open slots (profile type 4N, slot width 10) on all four faces provide unrestricted attachment points for connectors, brackets, and accessories - with no additional machining required.

  • Four open slots (slot 10) on all sides for multi-directional connection without additional machining
  • 45 mm modular dimension - fully compatible with the complete Bosch Rexroth 90 series modular system
  • Anodized aluminum: durable corrosion protection, attractive natural finish
  • High structural stiffness: area moment of inertia lx 227.4 cm⁴ / ly 214.7 cm⁴; moment of resistance Wx 50.5 cm³ / Wy 47.7 cm³
  • Supplied as single rod, length 6070 mm; total weight 40.711 kg

Technical data

PropertyValue
Cross-section90x90L 4N
Dimensions90 x 90 mm
Length [L]6070 mm
Profile type4N
Open slots4
Profile slot10
Modular dimension45 mm
MaterialAluminum, anodized
ColorNatural
Profile surface [A]24.2 cm²
Mass [m]6.5 kg/m
Weight (rod)40.711 kg
Area moment of inertia [lx]227.4 cm⁴
Area moment of inertia [ly]214.7 cm⁴
Moment of resistance [Wx]50.5 cm³
Moment of resistance [Wy]47.7 cm³
Torsional moment of inertia [It]122 cm⁴
Moment of torsion resistance [Wt]22.2 cm³
Condition on deliverySingle rod in standard length
Packaging unit1
Recommended accessoriesCover cap 90x90L signal gray, Cover cap 90x90L black
More Information
Manufacturer Nr. 3842538301
Manufacturer Bosch Rexroth
Country of Manufacture Germany
Weight 40.711000
Lenght 6070 mm
Note Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet.
HS-Code 76042100
GPSR manufacturer information Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticity Original product
Condition of article New
