Strut Profile 30x30 2NVS, Anodized Aluminum, L=6070 mm, Pack of 20 - Bosch Rexroth 3842557209

BOSCH REXROTH Original product
Net price (excl. VAT)
€1,792.46
Excl. 19% VAT , excl. Shipping Cost
Available Fast shipping
Item BRR-3842557209
Manufacturer no. 3842557209
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842557209
Country of originGermany
Customs tariff number76042100
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842557209

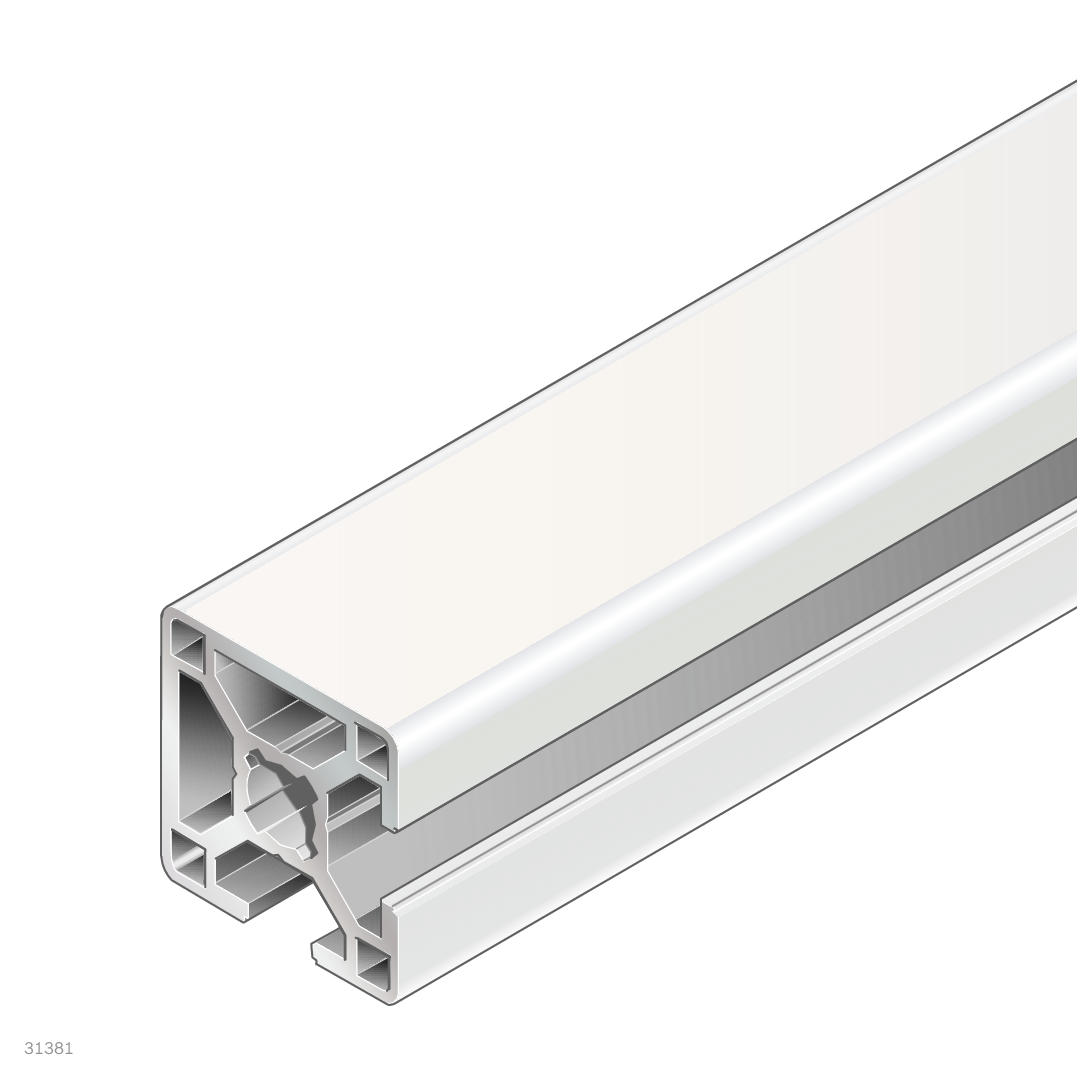

Strut Profile 30x30 2NVS, Anodized Aluminum, L=6070 mm, Pack of 20 - Bosch Rexroth 3842557209
The product may differ from the illustration
Anodized aluminum strut profile with a 30x30 mm cross-section and 2NVS profile type for building assembly workstations, guards and conveyor frames on a 30 mm modular grid. Supplied as a packaging unit of 20 profiles at 6070 mm standard length, slot size 8, two open slots. Mass per profile: 1 kg, total pack weight: 128 kg.
Frequently Bought Together
Total price

The Bosch Rexroth strut profile 30x30 2NVS is an anodized aluminum structural profile with a square 30x30 mm cross-section and two open slots (slot size 8). It integrates into the Bosch Rexroth modular assembly system on a 30 mm grid, enabling bolt-free connections and flexible adaptation of frames, workstations, and protective enclosures. Each order covers a packaging unit of 20 profiles in standard length 6070 mm.

  • Anodized aluminum surface - corrosion-resistant for long-term use in industrial environments
  • Two open slots allow connection hardware to be positioned anywhere along the profile without drilling
  • Slot size 8 compatible with the full range of Bosch Rexroth connectors and accessories
  • Defined section properties enable reliable static calculations for load-bearing structures
  • Pack of 20 streamlines project ordering and warehouse handling

Technical data

PropertyValue
Cross-section30x30 mm
Profile type2NVS
Profile slot8
Open slots2
Modular dimension30 mm
Length [L]6070 mm
Delivery unit20 pcs (packaging unit, standard length)
MaterialAluminum, anodized
ColorNatural
Mass per profile [m]1 kg
Pack weight128 kg
Profile surface [A]3.5 cm²
Area moment of inertia X [lx]3.1 cm⁴
Area moment of inertia Y [ly]3.1 cm⁴
Moment of resistance X [Wx]2 cm³
Moment of resistance Y [Wy]2 cm³
Torsional moment of inertia [It]1.7 cm⁴
Moment of torsion resistance [Wt]1.1 cm³
Recommended accessoriesCover cap 30x30 black, Cover cap 30x30 signal gray, Cover cap with hole 30x30 black, Cover cap with hole 30x30 signal gray
More Information
Manufacturer Nr. 3842557209
Manufacturer Bosch Rexroth
Country of Manufacture Germany
Weight 128.000000
Lenght 6070 mm
Note Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet.
HS-Code 76042100
GPSR manufacturer information Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticity Original product
Condition of article New
Download
File Icon Bosch Rexroth. Katalog Mechanik-Grundelemente (de) (30.56 MB)
File Icon Bosch Rexroth. TSplus Modular Conveyors for Flexible Manufacturing (en) (12.02 MB)
File Icon Bosch Rexroth. Catalog Basic Mechanic Elements (en) (30.55 MB)
File Icon Bosch Rexroth. Aluminum Structural Framing System (en) (29.62 MB)
File Icon Bosch Rexroth. Transfersystem TS 5 (de) (40.69 MB)
File Icon Bosch Rexroth. Transfer system TS 5 (en) (43.75 MB)
File Icon Bosch Rexroth Éléments mécaniques de base (fr) (36.36 MB)
