Strut Profile 90x180L, 3x6070 mm, Anodized Aluminum, ESD-Suitable - Bosch Rexroth 3842557226
Datasheet (PDF)

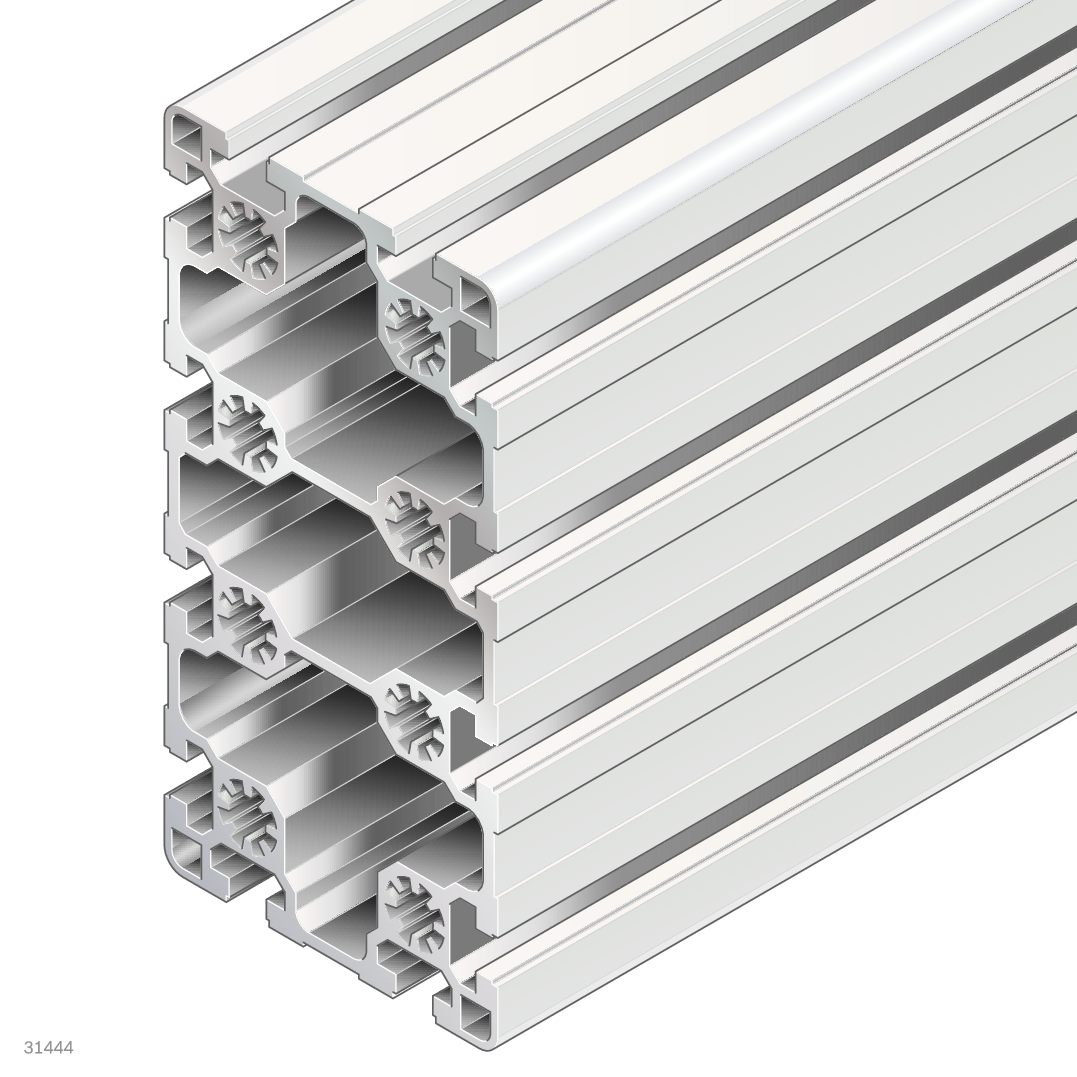

The product may differ from the illustration
Heavy-duty strut profile in cross-section 90x180L, made from anodized aluminum, supplied as a packaging unit of 3 bars at 6070 mm each. Twelve open slots (profile slot 10, modular dimension 45 mm) and a high area moment of inertia (lx = 1380 cm⁴) make it suited for demanding structural frames. All core bores are pre-drilled M12; custom finishing options (DI, DIS, MT, MTS, MI, MIS, DG) available on request.

Strut Profile 90x180L, 3x6070 mm, Anodized Aluminum, ESD-Suitable - Bosch Rexroth 3842557226

BOSCH REXROTH Original product
Net price (excl. VAT)
€2,552.03
Excl. 19% VAT , excl. Shipping Cost
Available Fast shipping
Item BRR-3842557226
Manufacturer no. 3842557226
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842557226
Country of originSweden
Customs tariff number76042100
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842557226
Frequently Bought Together
Total price

The Bosch Rexroth strut profile 90x180L is an anodized aluminum profile with an asymmetric dual cross-section, designed for load-intensive frame structures in assembly and automation systems. The packaging unit contains 3 bars at 6070 mm each; individual bar mass 12.5 kg, total delivery weight 228 kg.

  • 12 open slots (profile slot 10, modular dimension 45 mm) for flexible attachment of connectors, panels and add-on components
  • High bending stiffness in the x-direction: area moment of inertia lx = 1380 cm⁴, moment of resistance Wx = 153.3 cm³
  • ESD-suitable - safe for use in electrostatically sensitive manufacturing and test environments
  • Standard profile finishing: M12 in all core bores, D17V and LF in slots A/H and B/G
  • Custom finishing available: DI, DIS, MT, MTS, MI, MIS, DG

Technical data

PropertyValue
Cross-section90x180L
Dimensions90x180 mm
Length [L]6070 mm
Delivery unit3 bars
Mass per bar [m]12.5 kg
Total weight228 kg
MaterialAluminum, anodized
ColorNatural
Profile typeStandard
Modular dimension45 mm
Profile slot10
Open slots12
Profile surface [A]42.8 cm²
ESDYes
Area moment of inertia, x-direction [lx]1380 cm⁴
Area moment of inertia, y-direction [ly]401 cm⁴
Torsional moment of inertia [It]429 cm⁴
Moment of resistance, x-direction [Wx]153.3 cm³
Moment of resistance, y-direction [Wy]89.1 cm³
Moment of torsion resistance [Wt]64 cm³
Standard profile finishingM12: all core bores; D17V: slots A/H, B/G; LF: slots A/H, B/G
Customized profile finishingDI / DIS / MT / MTS / MI / MIS / DG
Recommended accessoriesCover cap 90x90, signal gray; Cover cap 90x90, black
More Information
Manufacturer Nr. 3842557226
Manufacturer Bosch Rexroth
Country of Manufacture Sweden
Weight 228.000000
Lenght 6070 mm
Note Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet.
HS-Code 76042100
GPSR manufacturer information Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticity Original product
Condition of article New
