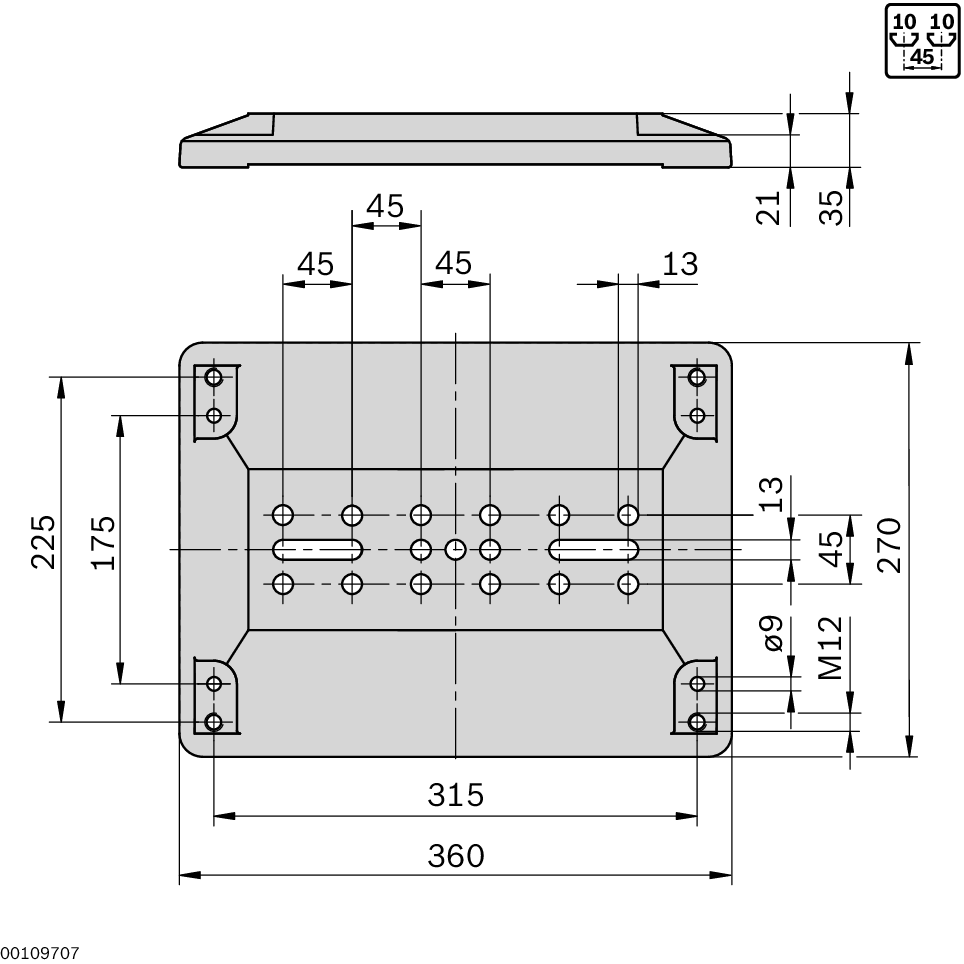

Base plate 35x270x360, gray cast iron, slot 10 - Bosch Rexroth 3842514567
Datasheet (PDF)
The product may differ from the illustration
Painted gray cast iron base plate for floor-mounting aluminum profile structures. Designed for profile slot 10 and a 45 mm modular dimension. Anchored to the floor with a bracket, floor dowel and washer.

Base plate 35x270x360, gray cast iron, slot 10 - Bosch Rexroth 3842514567

BOSCH REXROTH Original product
Net price (excl. VAT)
€122.78
Excl. 19% VAT , excl. Shipping Cost
Item BRR-3842514567
Manufacturer no. 3842514567
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842514567
Country of originGermany
Customs tariff number84842000
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842514567
Frequently Bought Together
Total price

The Bosch Rexroth base plate 35x270x360 provides a stable floor anchorage for strut profile frames and columns in machine and frame construction. It is designed for profiles with slot 10 and a 45 mm modular dimension.

  • Sturdy gray cast iron, painted black
  • Large 270x360 mm footprint for reliable load transfer into the floor
  • For floor mounting with bracket, floor dowel and washer

Technical data

Dimensions (H x W x D)35 x 270 x 360 mm
Modular dimension45 mm
Profile slot10
MaterialGray cast iron, painted
ColorBlack
Required accessoriesBracket, floor dowel 3 842 540 668, washer
Packaging unit1
Weight7.354 kg
More Information
Manufacturer Nr.3842514567
ManufacturerBosch Rexroth
Country of ManufactureGermany
Weight7.354000
ColourBlack
HS-Code84842000
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticityOriginal product
Condition of articleNew
