Return Head LF12S, Anodized Aluminum, Slot 10 - Bosch Rexroth 3842526413

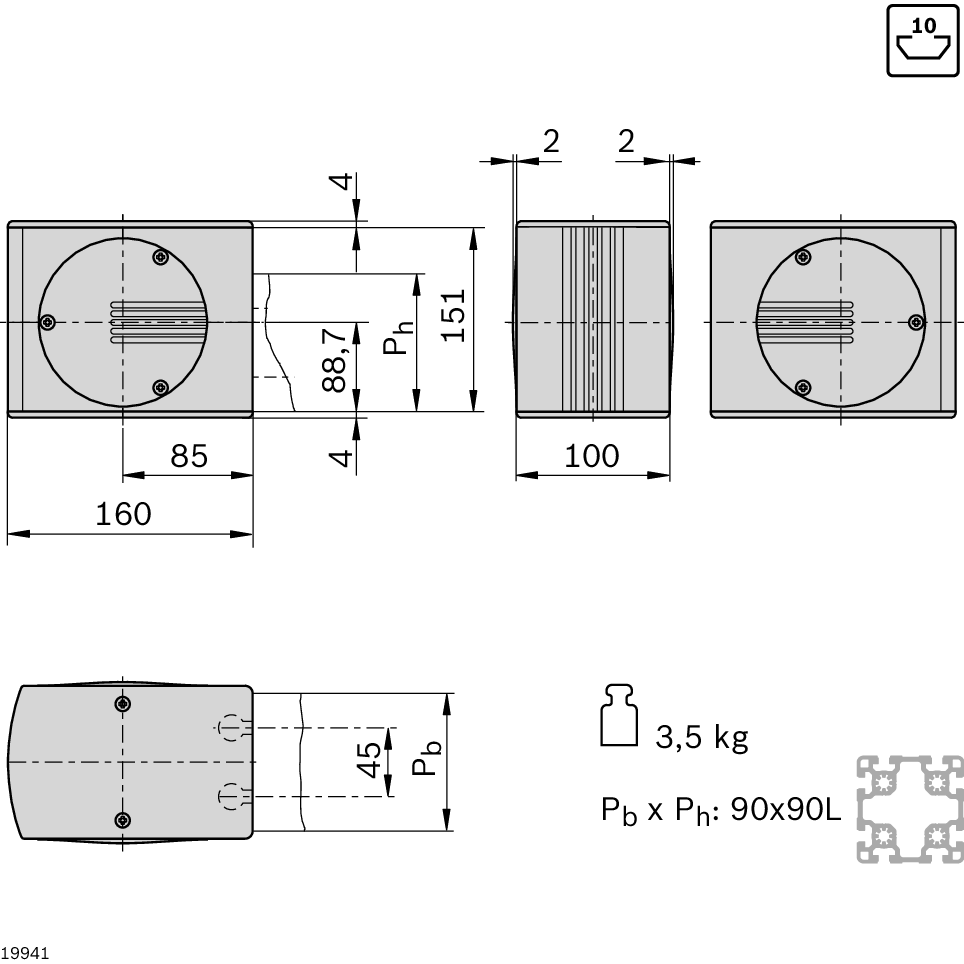

Return Head LF12S, Anodized Aluminum, Slot 10 - Bosch Rexroth 3842526413 Dimensional drawing 3842526413

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Return Head LF12S, Anodized Aluminum, Slot 10 - Bosch Rexroth 3842526413

Bosch Rexroth ✓ Original product Brand new Made in Germany

The return head LF12S forms the deflection unit of the LF12S roller guide for profile slot 10. The housing is made of anodized aluminum with a galvanized steel hollow shaft. Fastening material and ESD cover caps are included in the scope of delivery.

Net
€512.95
excl. VAT
Item BRR-3842526413
Manufacturer no. 3842526413
Save Compare
Question about this item
Datasheet (PDF) 9 documents, all under Downloads
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The return head LF12S is the deflection unit of the Bosch Rexroth LF12S roller guide and is used on profiles with slot 10. It forms the end section where the guide is deflected and suits fixture and special machine construction.

  • Housing in anodized aluminum, corrosion-resistant and lightweight
  • Hollow shaft in galvanized steel
  • ESD cover caps in black PA
  • Complete fastening material included

Technical data

PropertyValue
Profile slot10
Material return headAluminum, anodized
Material hollow shaftSteel, galvanized
Material cover capsPA, black
Fastening material2x flattened round head screw ISO7380-M8x40, 2x bolt D17x18.2-M8, 4x bolt D17x18.2-M8, 2x cover cap D17x44.6 ESD, 2x spring element D20x24x19-M8, 2x hexagon nut ISO4035-M8-04
Scope of deliveryincl. fastening material (FS), cover caps
Weight4.19 kg
ManufacturerBosch Rexroth
Manufacturer Nr.3842526413
HS-Code84313900
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of articleNew
Article authenticityOriginal product
Country of ManufactureGermany
NormDIN EN ISO 4035, DIN EN ISO 7380

Downloads

Datasheet

Catalogue

Other

Questions about this item

Any other question?

Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
