Horizontal Roller Curve 90° R500, VarioFlow Plus 320+ AL - Bosch Rexroth 3842547070
Datasheet (PDF)
The product may differ from the illustration

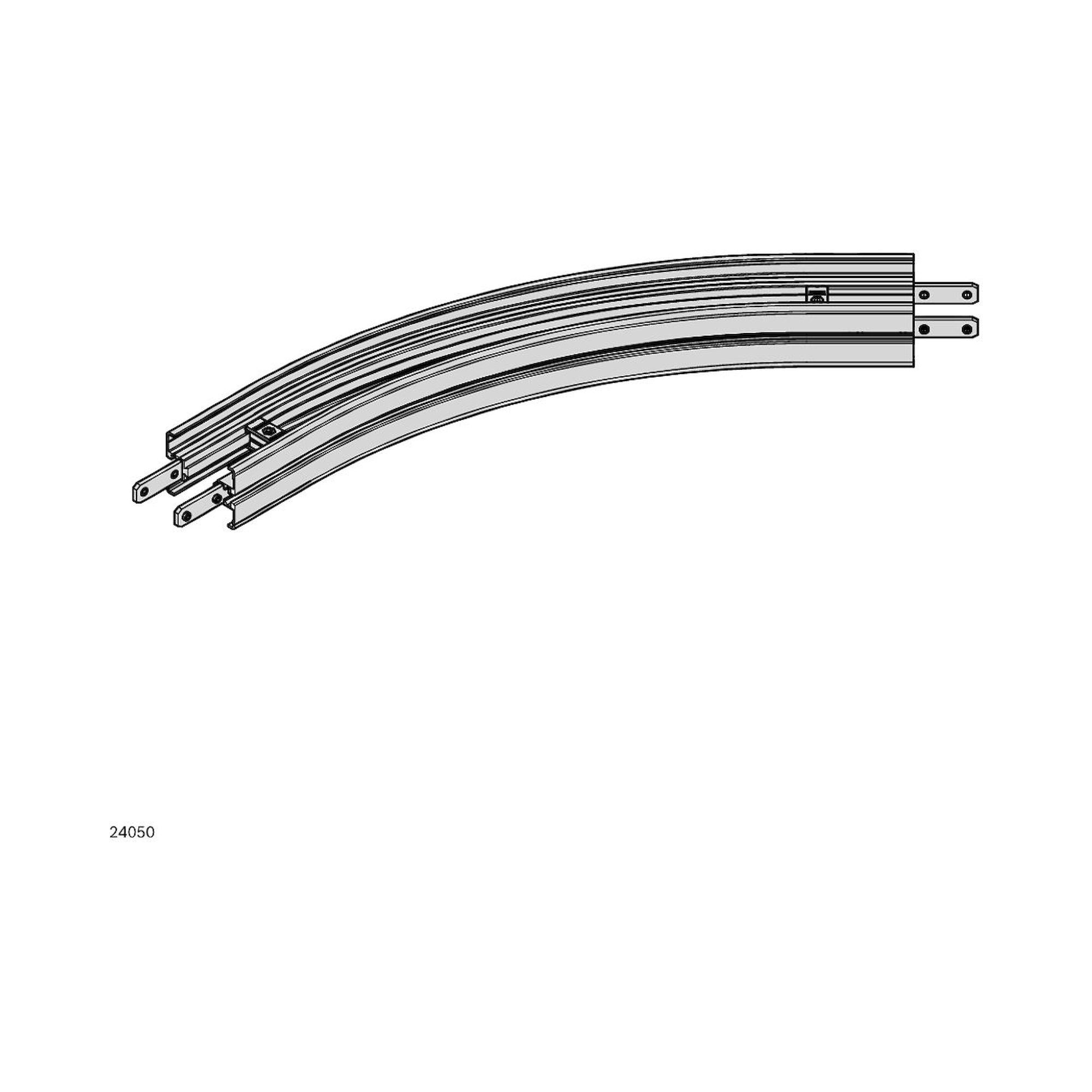

Horizontal 90° roller curve for the VarioFlow plus chain conveyor system in the aluminum design, size 320. It redirects the conveyor chain at radius R500 and ships fully assembled. Fastening material for mounting to the AL section profile is included.

Horizontal Roller Curve 90° R500, VarioFlow Plus 320+ AL - Bosch Rexroth 3842547070

BOSCH REXROTH Original product
Net price (excl. VAT)
€1,105.91
Excl. 19% VAT , excl. Shipping Cost
Item BRR-3842547070
Manufacturer no. 3842547070
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842547070
Country of originGermany
Customs tariff number84313900
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842547070
Frequently Bought Together
Total price

The 320+ AL horizontal curve redirects the conveyor chain in the VarioFlow plus chain conveyor system by 90° and is intended for building conveyor lines in the aluminum design. It is aimed at designers and system integrators who need a horizontal change of direction with radius R500.

  • Roller-guided deflection for low wear and smooth chain travel
  • Anodized aluminum profile with corrosion-resistant ball bearings in non-rusting steel 1.4301/FDA
  • Ships fully assembled, incl. fastening material for mounting to the AL section profile

Technical data

Deflection angle90°
RadiusR500
Size [b]320 mm
Dimension [A]760 mm
Actual chain length2x 0.98 m
Effective sliding rail length5x 0.98 m
ProfileAluminum, anodized
Roller carrierPA 66
Ball bearingNon-rusting steel 1.4301/FDA
ConnectorSteel, galvanized
RollersPA
Delivery stateFully assembled
Scope of deliveryIncl. fastening material for mounting to the AL section profile
Required accessoriesSlide rail (length calculation)
Weight5.468 kg
More Information
ExecutionTEC
Manufacturer Nr.3842547070
ManufacturerBosch Rexroth
Country of ManufactureGermany
Weight0.100000
HS-Code84313900
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticityOriginal product
Condition of articleNew
