Vertical Curve 65+ AL, 5° R500, Assembled - Bosch Rexroth 3842547083
Datasheet (PDF)

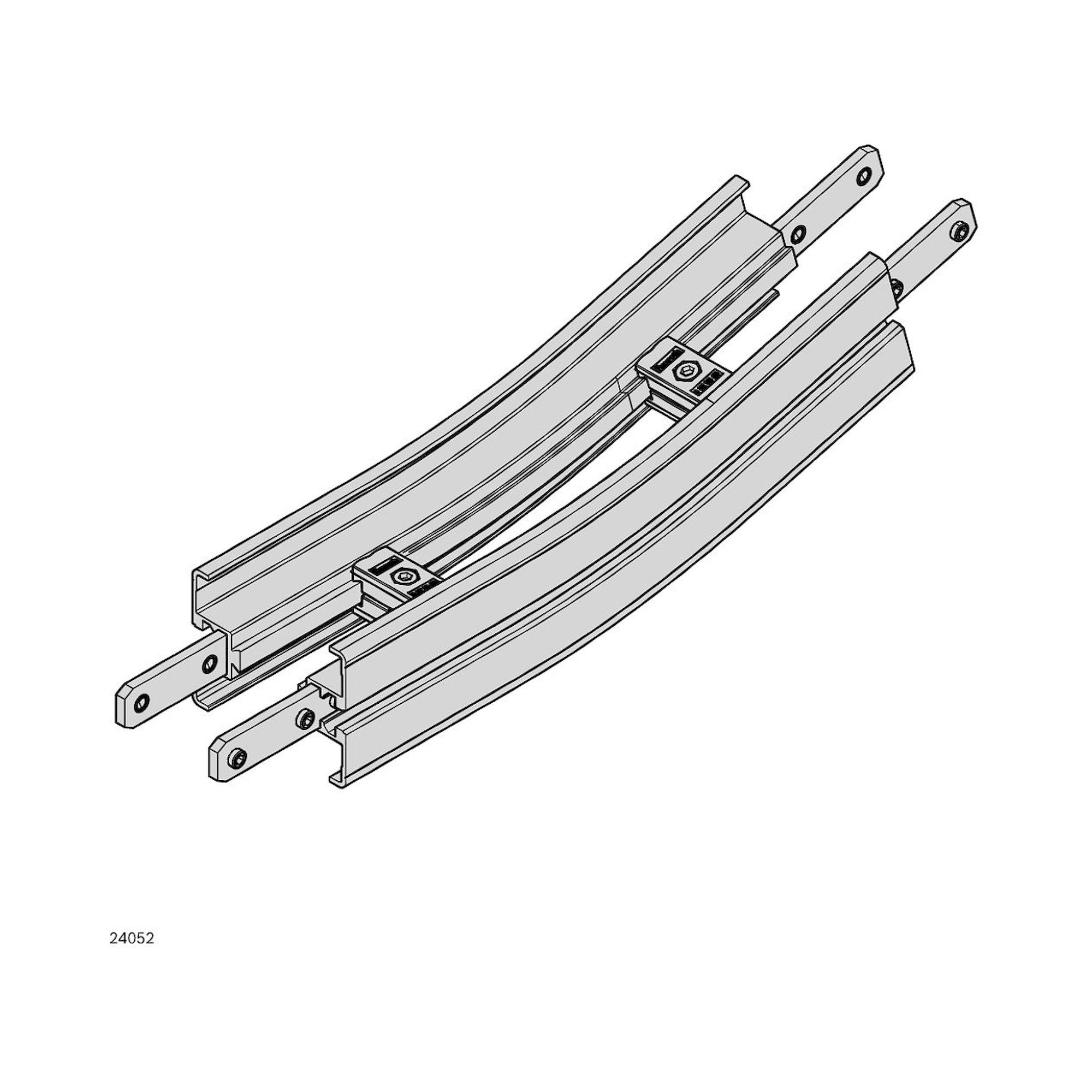

The product may differ from the illustration
Vertical curve for the VarioFlow plus chain conveyor system in the aluminum range, size 65+. It provides a 5° vertical deflection of the conveyor line at radius R500. Supplied fully assembled and including fastening material for mounting to the AL section profile.

Vertical Curve 65+ AL, 5° R500, Assembled - Bosch Rexroth 3842547083

BOSCH REXROTH Original product
Net price (excl. VAT)
€201.44
Excl. 19% VAT , excl. Shipping Cost
Item BRR-3842547083
Manufacturer no. 3842547083
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842547083
Country of originGermany
Customs tariff number84313900
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842547083
Frequently Bought Together
Total price

The vertical curve is a line module for the VarioFlow plus chain conveyor system in the aluminum range, size 65+. It guides the conveyor chain through a 5° vertical deflection and is used to change elevation within a conveyor layout. The module is intended for planners and maintenance staff of unit-load conveyor technology.

  • Vertical deflection of 5° at radius R500
  • Supplied fully assembled for low installation effort
  • Includes fastening material for mounting to the AL section profile
  • Corrosion-protected material combination of aluminum and steel

Technical data

Deflection angle5°
Size b65 mm
Dimension A246.2 mm
RadiusR500
Actual chain length2x 0.24 m
Effective sliding rail length4x 0.24 m
ProfileAluminum, anodized
Profile connectorSteel, galvanized
Cross connectorDiecast aluminum
Support profile from size 160Non-rusting steel 1.4301
Scope of deliveryIncl. fastening material for mounting to the AL section profile
Delivery informationFully assembled
Required accessoriesSlide rail
Weight0.96 kg
More Information
ExecutionTEC
Manufacturer Nr.3842547083
ManufacturerBosch Rexroth
Country of ManufactureGermany
Weight0.960000
HS-Code84313900
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticityOriginal product
Condition of articleNew
