Assembly Kit Lateral Guide 45° Curve, Curve Wheel, VarioFlow plus 90 - Bosch Rexroth 3842547954
Datasheet (PDF)

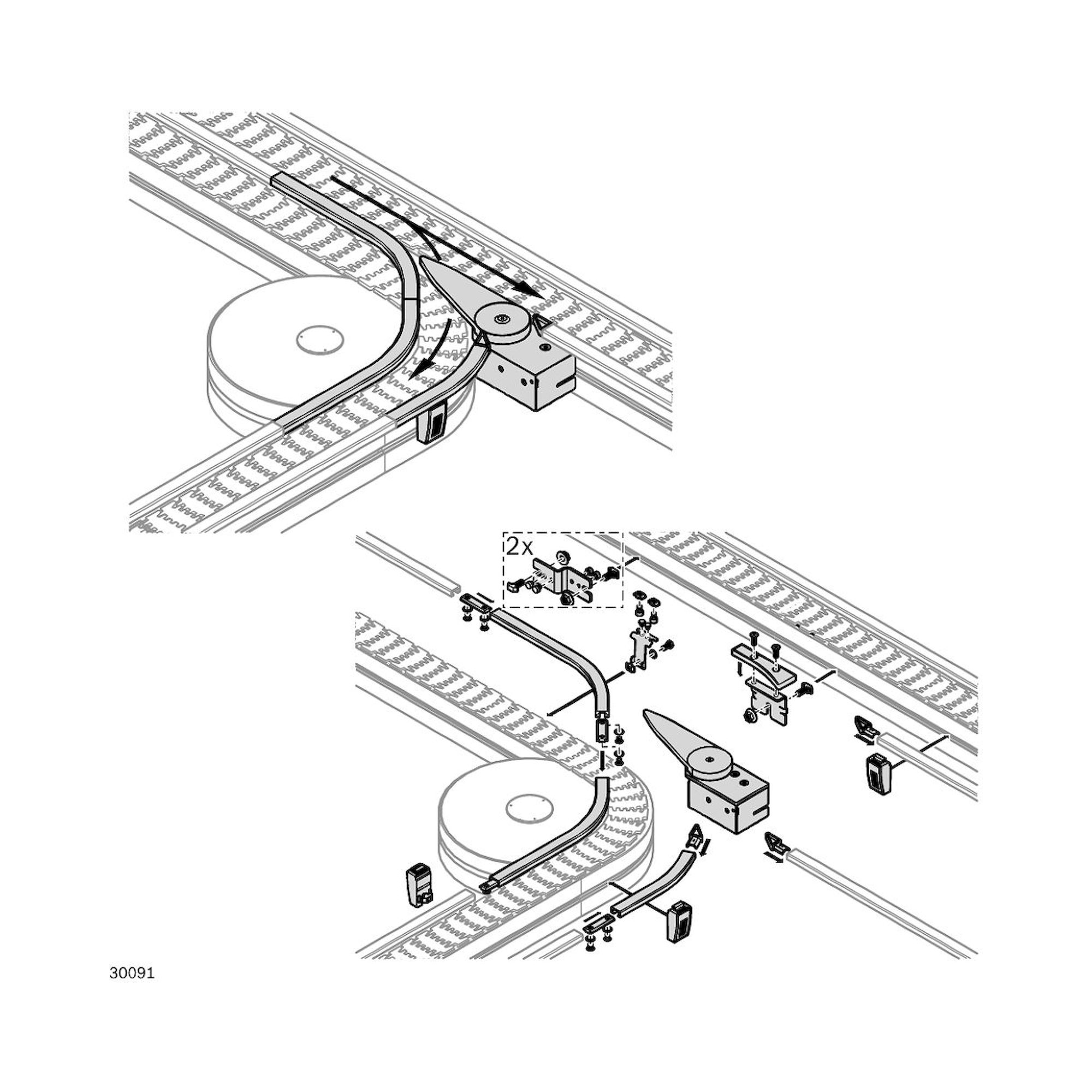

The product may differ from the illustration
Assembly kit for lateral guidance of workpiece pallets in the 45° curve of the VarioFlow plus chain conveyor system, size 90. The curve wheel keeps the pallets on track through the bend. Supplied as a complete kit including fastening parts.

Assembly Kit Lateral Guide 45° Curve, Curve Wheel, VarioFlow plus 90 - Bosch Rexroth 3842547954

BOSCH REXROTH Original product
Net price (excl. VAT)
€329.41
Item BRR-3842547954
Manufacturer no. 3842547954
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842547954
Country of originGermany
Customs tariff number76109090
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842547954

This assembly kit serves as a lateral guide for workpiece pallets in the 45° curve module of the VarioFlow plus chain conveyor system in size 90. The curve wheel keeps the pallets on track through the bend and is intended for building and extending conveyor lines in the workpiece pallet system.

  • fully matched kit including fastening parts, as shown
  • curve wheel and holder made of plastic for smooth pallet travel
  • natural anodized aluminum guide rail and galvanized steel fastening parts

Technical data

Size b90 mm
Guide railAluminum, natural anodized
Guide disc, holderPA, black
Fastening partsSteel, galvanized
Scope of deliveryKit including fastening parts
Weight1.9 kg
More Information
ExecutionTEC
Manufacturer Nr.3842547954
ManufacturerBosch Rexroth
Country of ManufactureGermany
Weight1.900000
HS-Code76109090
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticityOriginal product
Condition of articleNew
