Strut Profile 30x30, Length 6070 mm, Anodized Aluminum, Pack of 20 - Bosch Rexroth 3842557206

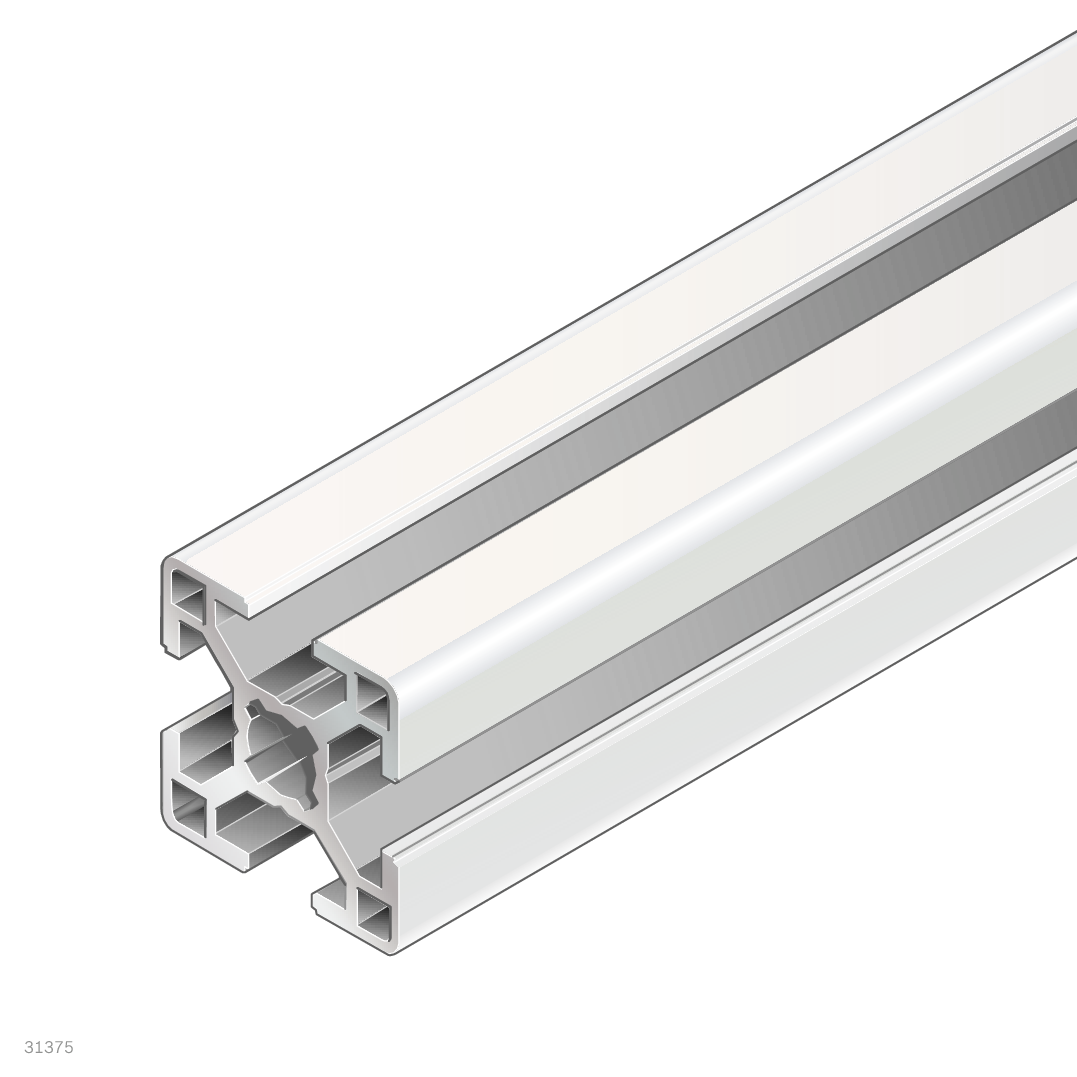

Strut Profile 30x30, Length 6070 mm, Anodized Aluminum, Pack of 20 - Bosch Rexroth 3842557206 Dimensional drawing 3842557206

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Strut Profile 30x30, Length 6070 mm, Anodized Aluminum, Pack of 20 - Bosch Rexroth 3842557206

Bosch Rexroth ✓ Original product Brand new Made in Turkey

Strut profile 30x30 mm in anodized aluminum, supplied as a standard-length packaging unit of 20 pieces at 6070 mm each. Four open slots and slot size 8 provide flexible connectivity within the Bosch Rexroth modular system on a 30 mm grid. Suitable for lightweight support structures and assembly fixtures.

Net
€1,420.86
excl. VAT
Item BRR-3842557206
Manufacturer no. 3842557206
Save Compare
Question about this item
Datasheet (PDF) 8 documents, all under Downloads
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The 30x30 strut profile in anodized aluminum is a core structural element of the Bosch Rexroth profile system built on a 30 mm modular dimension. At 6070 mm length with four open slots and profile slot 8, it connects directly with all standard accessories in the series. Supplied as a packaging unit of 20 pieces; individual mass 0.9 kg, total unit weight 116 kg.

  • Four open slots - flexible connections in all orientations without repositioning
  • Profile slot 8 - compatible with the full range of 30 mm modular fasteners and connectors
  • Anodized aluminum - corrosion-resistant, lightweight and dimensionally stable
  • Standard profile type - direct interchangeability with all common connectors in the series

Technical data

PropertyValue
Cross-section30x30 mm
Length [L]6070 mm
Modular dimension30 mm
Profile slot8
Open slots4
Profile typeStandard
MaterialAluminum, anodized
ColorNatural
Profile surface [A]3.1 cm²
Area moment of inertia [lx / ly]2.8 / 2.8 cm⁴
Moment of resistance [Wx / Wy]1.8 / 1.8 cm³
Torsional moment of inertia [It]0.29 cm⁴
Moment of torsion resistance [Wt]0.33 cm³
Mass per piece [m]0.9 kg
Delivery unit20 pieces
Condition on deliveryPackaging unit in standard length
Weight per packaging unit116 kg
Recommended accessoriesCover cap 30x30 signal gray, Cover cap 30x30 black, Cover cap with hole 30x30 signal gray, Cover cap with hole 30x30 black
Weight116 kg
ManufacturerBosch Rexroth
Manufacturer Nr.3842557206
HS-Code76042100
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of articleNew
Article authenticityOriginal product
Country of ManufactureTurkey
Lenght6070 mm
