Suspension field 1850x1500 grille galvanized - Bosch Rexroth 3842567948

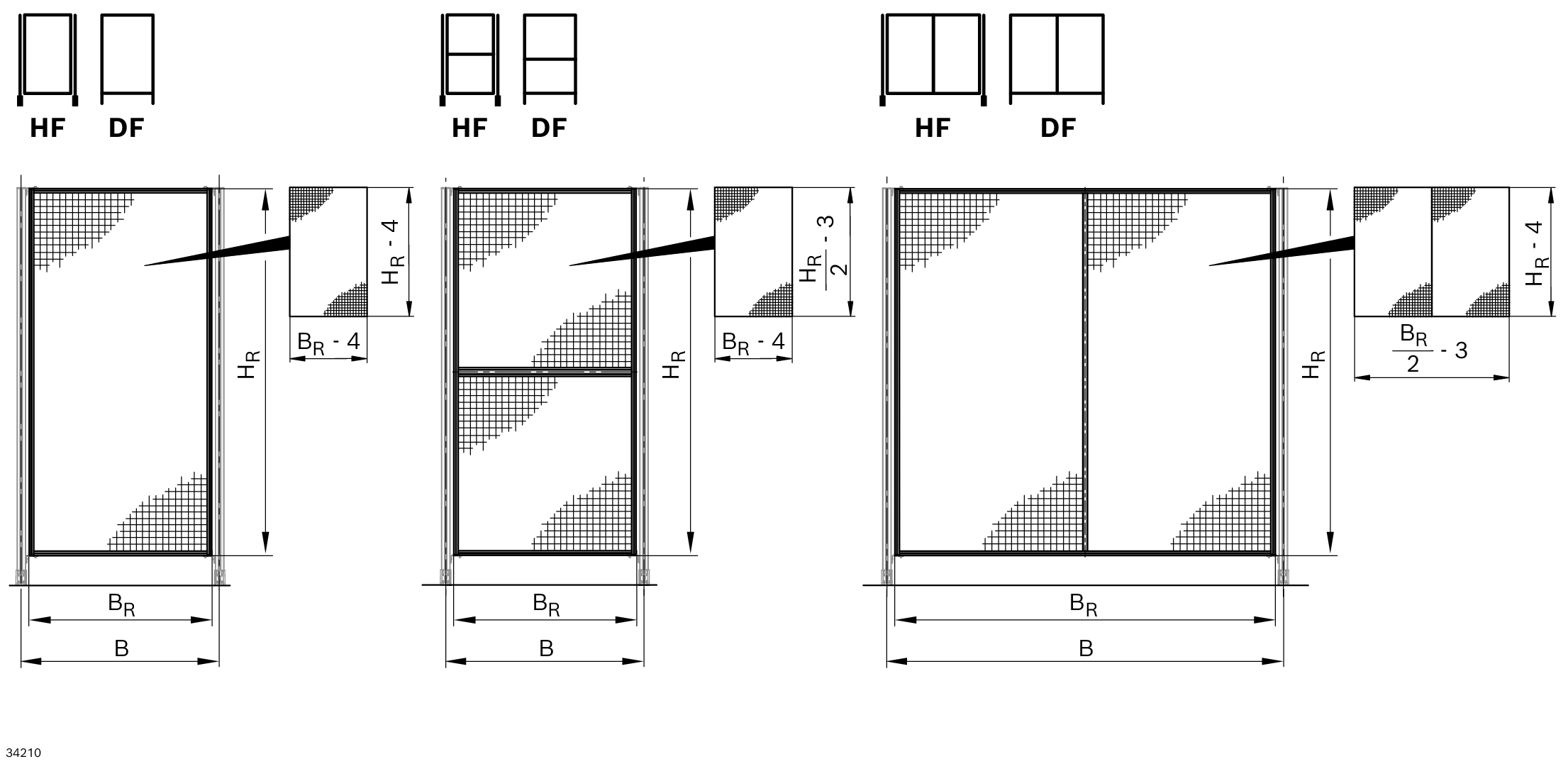

Suspension field 1850x1500 grille galvanized - Bosch Rexroth 3842567948 Dimensional drawing 3842567948

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Suspension field 1850x1500 grille galvanized - Bosch Rexroth 3842567948

Bosch Rexroth ✓ Original product Brand new Made in Germany

Suspension field 1850x1500 grille galvanized. Simple mounting on the supports using the suspension brackets. Single fitter is sufficient. Suitable kits enable the construction of doors (system doors, sliding doors, double doors).

Net
€242.61
excl. VAT
Item BRR-3842567948
Manufacturer no. 3842567948
Save Compare
Question about this item
Datasheet (PDF) 8 documents, all under Downloads
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Suspension field 1850x1500 grille galvanized

  • Simple mounting on the supports using the suspension brackets. Single fitter is sufficient
  • Suitable kits enable the construction of doors (system doors, sliding doors, double doors)
  • Protective frame made of frame profile 22.5x45 with spot-weld wire grille 40x40x3.8 for suspension fields
  • Protective frame completely mounted
  • Standard dimension for safety fence field with H=2000 mm with 150 mm ground clearance
  • Modular dimension "B" relates to leg sets 45x45 (center of leg set)
  • Without pitch

Technical data

Width of protective frame [B]1500 mm
ESDNo
Delivery informationFully assembled
Scope of deliveryProtective frame
Material informationFrame: Aluminum, anodized; Grille and fastening material: Steel, galvanized
Height of protective frame [HR]1850 mm
Weight21.51 kg
Part number3842567948
Customs tariff number76109090
Country of originGermany
ManufacturerBosch Rexroth
Manufacturer Nr.3842567948
HS-Code76109090
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main
Condition of articleNew
Article authenticityOriginal product
Country of ManufactureGermany
