The 20x60 strut profile in anodized aluminum is designed for building lightweight support structures, machine frames, and fixtures on a 20 mm modular grid. Six open slots (6 mm width) provide full compatibility with Bosch Rexroth standard connectors and accessories. Available cut-to-length from 50 to 3000 mm.
Strut Profile 20x60, 6 Slots, Anodized Aluminum - Bosch Rexroth 3842993698
BOSCH REXROTH
Original product
Net price (excl. VAT)
€20.72
Item
BRR-3842993698
Manufacturer no.
3842993698
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842993698
Country of originGermany
Customs tariff number76042100
ConditionNew
Article
BRR-3842993698
Frequently Bought Together
-
This Item:
€20.72
-
Strut Profile 20x20 M6/M6, 1000 mm, Anodized Aluminum, Slot 6 - Bosch Rexroth 3842993231-1000
€17.37
-
Strut Profile 20x40x40, Slot 6, Anodized Aluminum, L 3000 mm - Bosch Rexroth 3842537818
€991.02
Total price
The Bosch Rexroth 20x60 strut profile is a slender aluminum section for modular assembly systems and industrial fixtures. Its 20x60 mm cross-section, six open slots, and 20 mm modular dimension integrate directly into the Bosch Rexroth profile system, enabling fast, low-tooling construction.
- Versatile slot layout: 6 open profile slots (6 mm width) on all faces - compatible with the full range of Bosch Rexroth connectors, brackets, and fastening accessories.
- Cut-to-length flexibility: Available in lengths from 50 to 3000 mm with standard profile finishing at specified slots (observe minimum length requirements).
- Lightweight and durable: Anodized aluminum - corrosion-resistant, low weight, natural surface finish.
- Structural properties: Area moment of inertia Ix = 14.2 cm⁴, section modulus Wx = 4.7 cm³, profile cross-section 3.5 cm², linear mass 0.9 kg/m.
Technical data
| Property | Value |
|---|---|
| Cross-section | 20x60 mm |
| Modular dimension | 20 mm |
| Profile slot width | 6 mm |
| Open slots | 6 |
| Profile type | Standard |
| Color / surface | Natural, anodized |
| Material | Aluminum, anodized |
| Length min. (L min) | 50 mm |
| Length max. (L max) | 3000 mm |
| Mass | 0.9 kg/m |
| Profile surface (A) | 3.5 cm² |
| Area moment of inertia X (Ix) | 14.2 cm⁴ |
| Area moment of inertia Y (Iy) | 1.7 cm⁴ |
| Section modulus X (Wx) | 4.7 cm³ |
| Section modulus Y (Wy) | 1.7 cm³ |
| Torsional moment of inertia (It) | 2.3 cm⁴ |
| Torsion section modulus (Wt) | 2.0 cm³ |
| DGmax | 45° |
| Lmin1 / Lmin2 | 404 / 508 mm |
| Packaging unit | 1 |

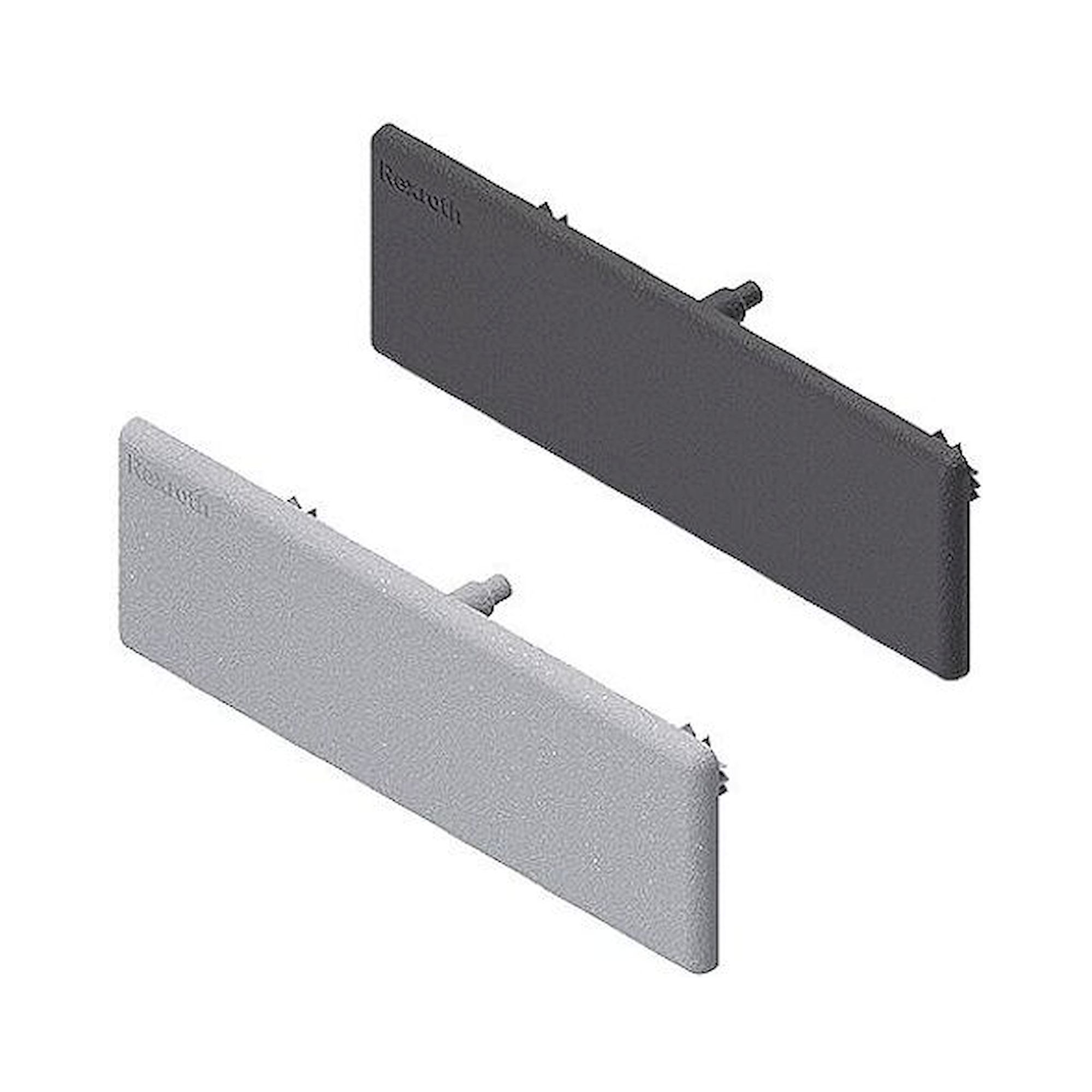

| Recommended accessories | Cover cap 20x60 signal gray, Cover cap 20x60 black |
| ESD version | TEC |
|---|---|
| Manufacturer Nr. | 3842993698 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.900000 |
| HS-Code | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
