Linear sliding trolley in anodized aluminium for Bosch Rexroth profiles with 60 mm width and slot 10. Rated to 2500 N compression and 1250 N tensile load at up to 12 m/min sliding speed. A built-in spacer washer simplifies tolerance compensation between trolley and profile for fast assembly.
EcoSlide Trolley 45x60x160 mm for 60 mm Aluminium Profile - Bosch Rexroth 8981535479
BOSCH REXROTH
Original product
Net price (excl. VAT)
€51.44
Item
BRR-8981535479
Manufacturer no.
8981535479
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.8981535479
Country of originUnited States
Customs tariff number76169990
ConditionNew
Article
BRR-8981535479
Frequently Bought Together
- This Item: €51.44
- Safety Cover EcoFlow, Galvanized Steel, Set of 2 - Bosch Rexroth 3842537584 €35.42
- Sliding Door Stop Set, PA, Slot 8 and 10 - Bosch Rexroth 3842524490 €15.58
Total price

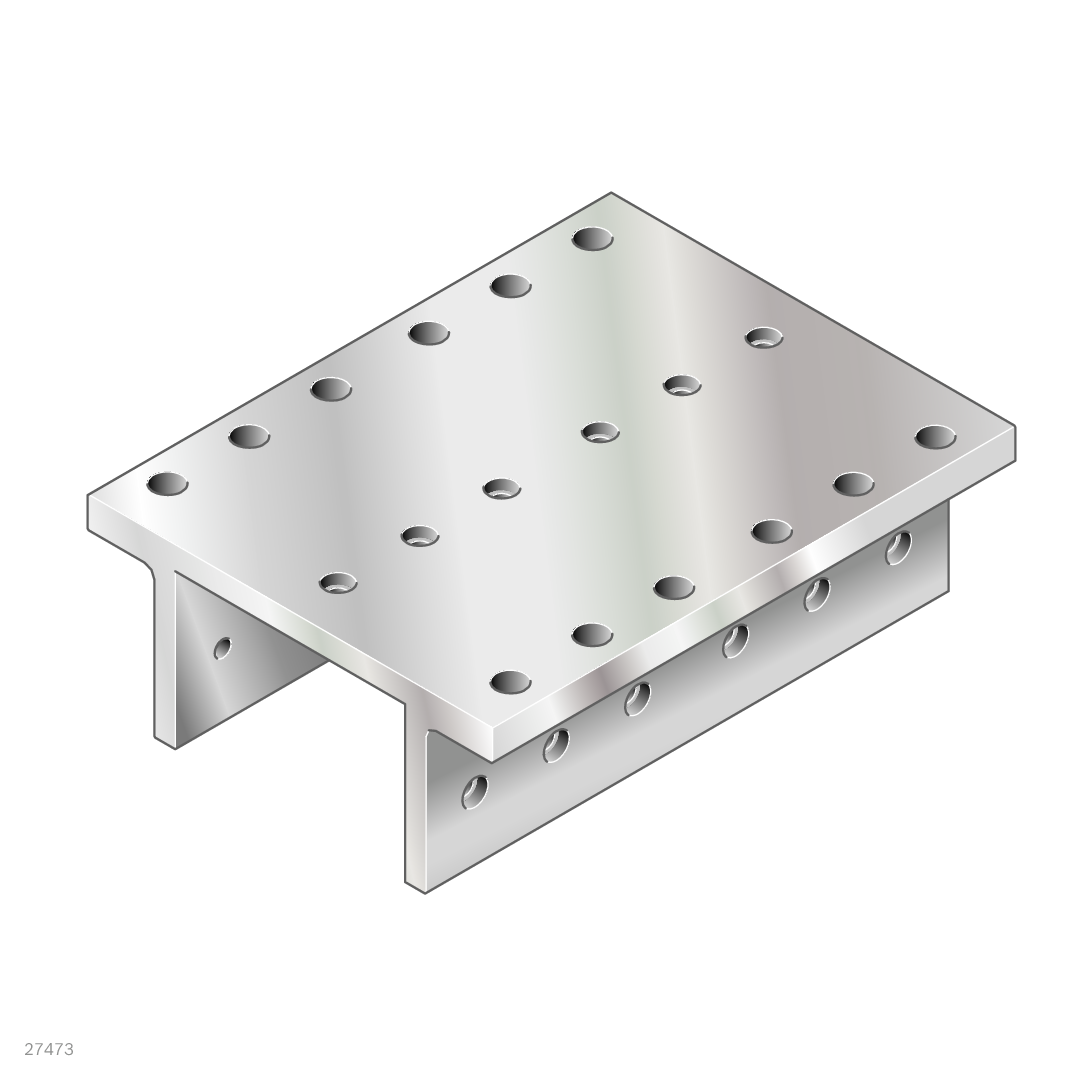

The EcoSlide trolley 8981535479 is a linear slide carriage in anodized aluminium, designed for Bosch Rexroth aluminium profiles with 60 mm width (profile slot 10). It is used in assembly and handling systems wherever components or tools must slide and be positioned along a profile rail.
- 2500 N compression and 1250 N tensile load capacity for demanding assembly tasks
- Maximum sliding speed of 12 m/min for smooth, efficient workflows
- Integrated spacer washer for straightforward tolerance compensation between trolley and profile
- Anodized aluminium construction: corrosion-resistant and lightweight at 0.659 kg
- Tool-free assembly; bore the clamping lever hole to 9 mm when using a clamping lever accessory
Technical data
| Parameter | Value |
|---|---|
| Dimensions (L x W x H) | 45 x 60 x 160 mm |
| Profile slot | 10 |
| Profile width | 60 mm |
| Material | Aluminum, anodized |
| Compression load Fmax | 2500 N |
| Tensile load Fmax | 1250 N |
| Torque around x axis Mmax | 80 Nm |
| Torque around z axis Mmax | 200 Nm |
| Maximum sliding speed | 12 m/min |
| Weight | 0.659 kg |
| Packaging unit | 1 piece |
| Recommended accessories | N10 flat slider, N10 flat lockable slider, spacer washer, clamping lever, N10 sliding block |
| Manufacturer Nr. | 8981535479 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | United States |
| Weight | 0.659000 |
| HS-Code | 76169990 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
