Fem E B 20X20RX3,5-3 by Bosch Rexroth, material number R150217063. Size 20 x 20R x 3,5 - 3.
Fem E B 20X20RX3,5-3 - Bosch Rexroth R150217063
BOSCH REXROTH
Original product
Net price (excl. VAT)
€292.47
Item
BRR-R150217063
Manufacturer no.
R150217063
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.R150217063
Country of originGermany
ConditionNew
Article
BRR-R150217063
Frequently Bought Together
-
This Item:
€292.47
-

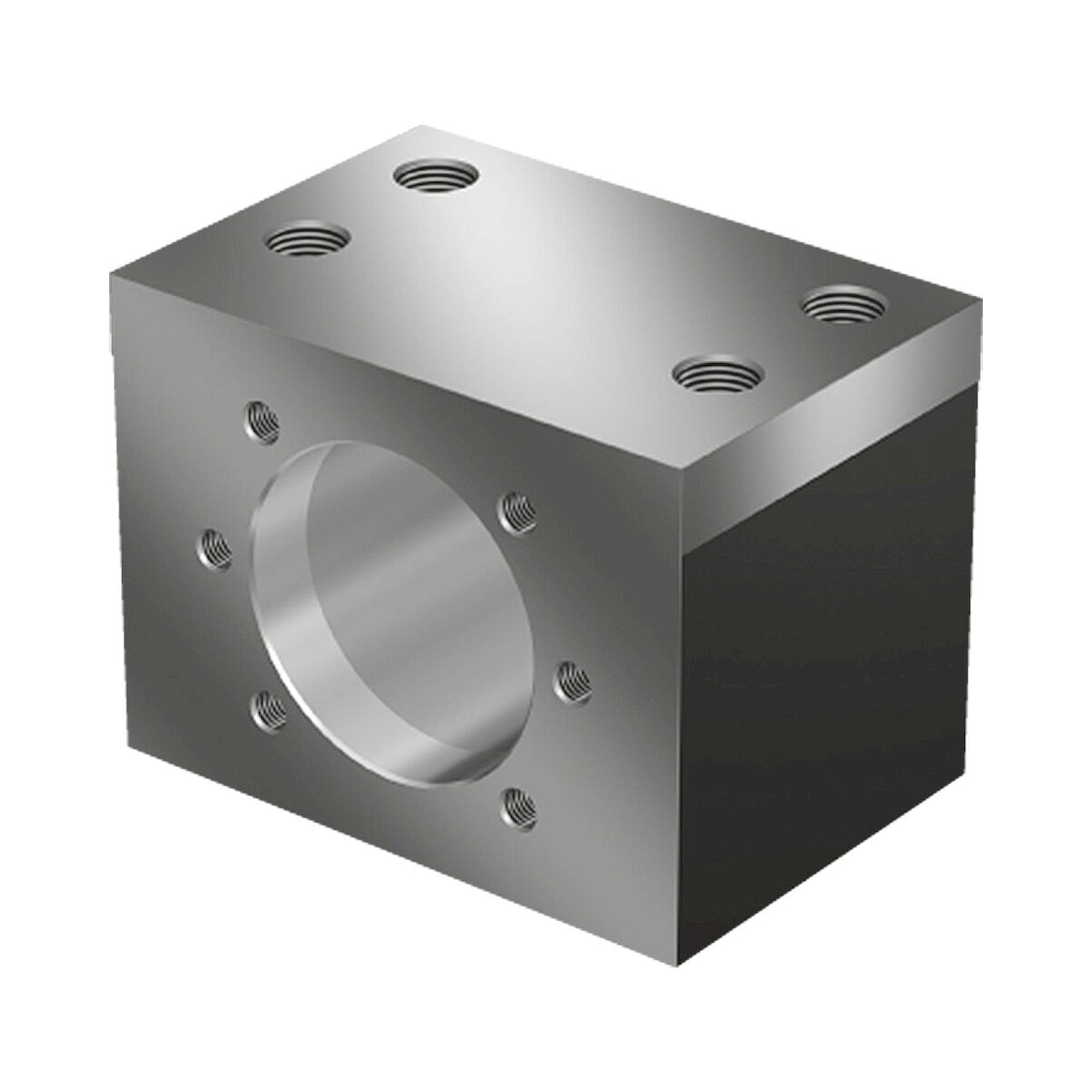

Gehäuse MGD - Bosch Rexroth R150660050
€192.51
-
Sem E S 50X20RX6,5-3 - Bosch Rexroth R151257014
€643.19
Total price
Fem E B 20X20RX3,5-3 by Bosch Rexroth, material number R150217063. Size 20 x 20R x 3,5 - 3. The static load capacity is 18800 N. Permissible values are up to 120 m/min travel speed. The weight is 0.57 kg.
Technical data
| Lead | 20 mm |
|---|---|
| Maximum permissible linear speed vmax (m/min) | 120 m/min |
| Direction of lead | Right |
| Nominal size | 20 x 20R x 3,5 - 3 |
| Screw drive seal | With seal |
| Static load capacity C0 | 18800 N |
| Series | Standard series |
| Bearing temperature min | <prefix>-</prefix>15<suffix></suffix> °C |
| Maximum operating temperature | <prefix>+</prefix>80<suffix></suffix> °C |
| Nut or screw | Screw drive nut |
| Bearing temperature max | <prefix>+</prefix>80<suffix></suffix> °C |
| Category | A |
| Minimum operating temperature | <prefix>-</prefix>10<suffix></suffix> °C |
| Hole pattern | BB2 |
| Dynamic load capacity C | 16000 N |
| Dimension d1 | 19 mm |
| Screw drive version (drive type) | Ball screw assembly |
| Nut type | FEM-E-B single nut with flange |
| Weight | 0.57 kg |
| Storage temperature (min. … max.) | -15 °C ... +80 °C |
| Operating temperature (min. … max.) | -10 °C ... +80 °C |
| Manufacturer Nr. | R150217063 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.100000 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
