Lager LAN-C-A 30 BG - Bosch Rexroth R159023030
Lager LAN-C-A 30 BG by Bosch Rexroth, material number R159023030. Size 50 x 10/12/16/20/25/30/40.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Lager LAN-C-A 30 BG by Bosch Rexroth, material number R159023030. Size 50 x 10/12/16/20/25/30/40. The static load capacity is 127000 N. The weight is 0.99 kg.
Technical data
| Rigidity of the bearing (axial) RFB | 1500 |
|---|---|
| Bearing frictional torque with seal MRb | 0.75 Nm |
| Type | Angular-contact thrust ball bearing |
| Nominal size | 50 x 10/12/16/20/25/30/40 |
| Accessories for screw drives | Bearings |
| Static load capacity C0 | 127000 N |
| Dynamic load capacity C | 47500 N |
| Rigidity against tilting Rkl | 620 Nm/mrad |
| Outer diameter D | 62 mm |
| Limit speed (grease) nmax | 2200 min⁻¹ |
| Weight | 0.99 kg |
| Manufacturer | Bosch Rexroth |
| Manufacturer Nr. | R159023030 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
Downloads
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
Customers Who Bought This Item Also Bought
Bosch Rexroth

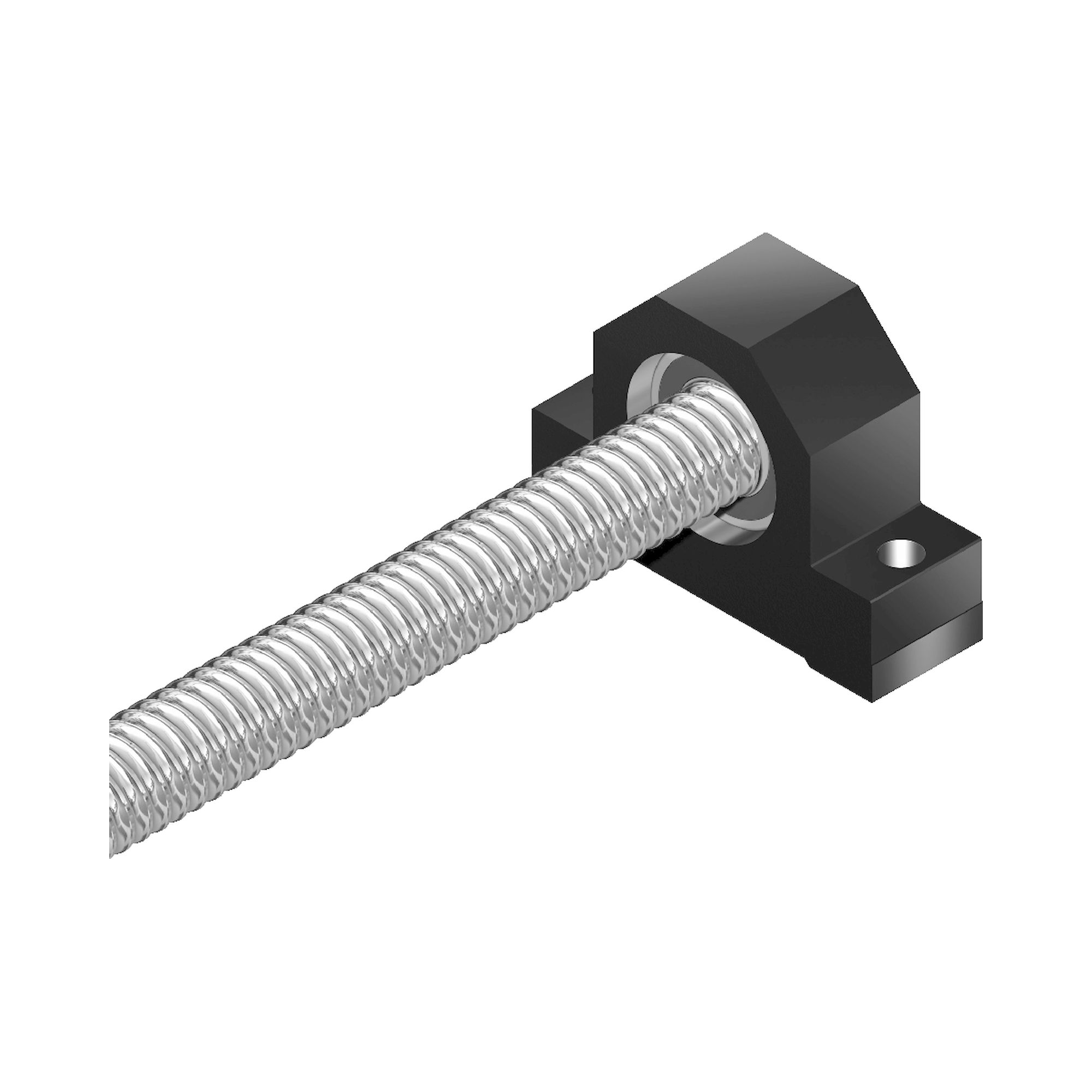

Plummer block bearing SEB-L-S 5 - Bosch Rexroth R159160500
