Braking element MBPS 2505 BS1A for roller rail systems - Bosch Rexroth R181024031
Braking element MBPS 2505 BS1A from Bosch Rexroth for size 25. Pneumatic braking unit MBPS, FLS for roller rail systems. Genuine accessory, material number R181024031.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Clamping and braking units hold the runner block in position without loading the drive and secure axes at standstill or in the event of a power failure. Designed for size 25. Manufacturer designation: Pneumatic braking unit MBPS, FLS for roller rail systems.
Benefits
- Clamping directly on the free surfaces of the guide rail, independent of the drive
- Reorder exactly via material number R181024031
Applications
Initial equipment, retrofitting and maintenance of linear axes with Bosch Rexroth profiled rail systems of size 25, in handling and assembly technology, machine tools and special machinery.
Technical data
| Manufacturer part number | R181024031 |
|---|---|
| Version | Pneumatic braking unit MBPS, FLS for roller rail systems |
| Type clamping and braking units | Pneumatic |
| Nominal size | 25 |
| Accessories for | Runner Block |
| Maximum pneumatic operating pressure | 8 bar |
| Minimum release pressure | 4.5 bar |
| Spring energy holding force with standard air port | 1300 N |
| Dimension B1 | 20.2 mm |
| Air consumption (normal liter) standard air port | 0.048 dm³/stroke |
| Maximum permissible ambient temperature | +70 °C |
| Weight | 0.7 kg |
| Permissible ambient temperature (min. ... max.) | 0 °C ... +70 °C |
| Manufacturer | Bosch Rexroth |
| Manufacturer Nr. | R181024031 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
Downloads
- Datasheet (PDF)
- Roller rail systems High Precision RSHP Roller runner blocks, roller guide rails, accessories (R999000354) EN
- Rollenschienenführungen Rollenwagen, Rollenschienen, Zubehör (R999000353) DE
- Guidages à rouleaux sur rails de haute précision RSHP Guides à rouleaux, rails de guidage rouleaux (R999000355) FR
Accessories
Clamping element MK 4505 AR for roller rail systems - Bosch Rexroth R181044260

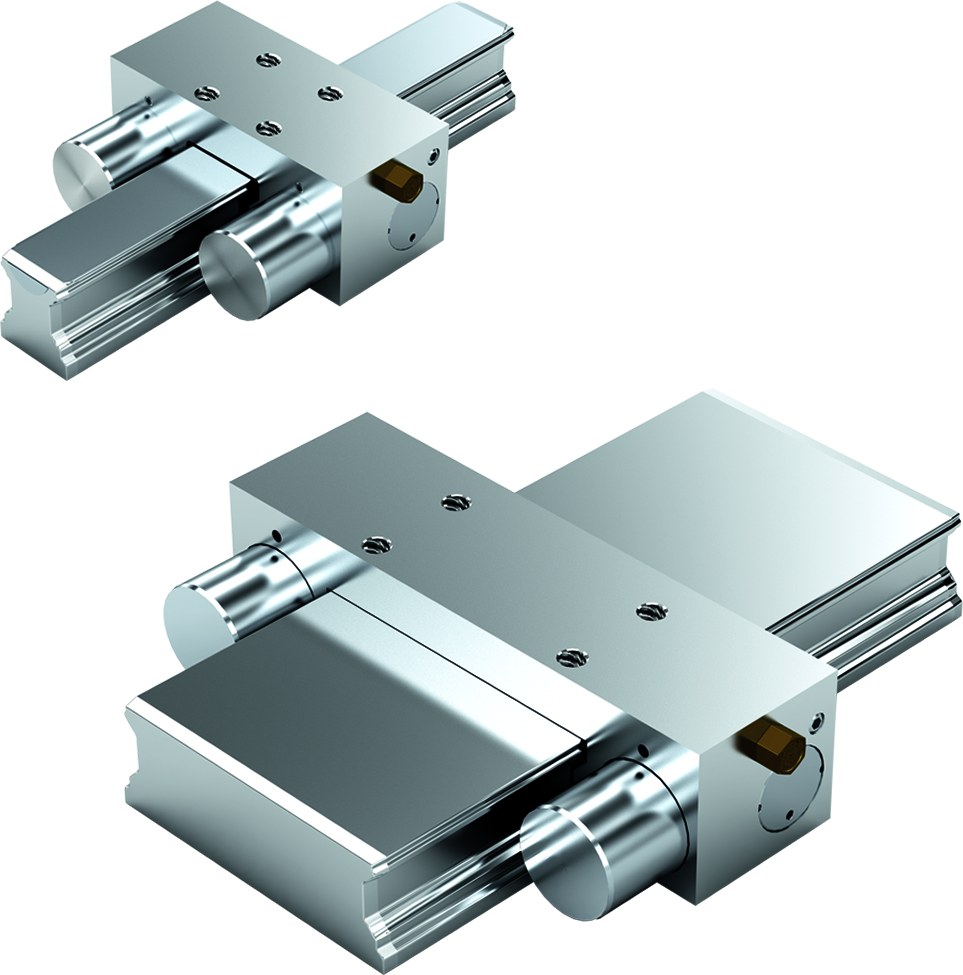

Item BRR-R181044260Clamping element MKS 4505 AK for ball rail systems - Bosch Rexroth R161944060
Item BRR-R161944060Clamping element MK 4505 AK for ball rail systems - Bosch Rexroth R161944260
Item BRR-R161944260Braking element KBH 5505 AS1A for ball rail systems - Bosch Rexroth R161954021
Item BRR-R161954021Braking element KBH 4505 BS3A for roller rail systems - Bosch Rexroth R181044022
Item BRR-R181044022Braking element KBH 4505 BS1A for roller rail systems - Bosch Rexroth R181044021
Item BRR-R181044021Braking element KBH 4505 AS1A for ball rail systems - Bosch Rexroth R161944021
Item BRR-R161944021Show 7 more items
Braking element KBH 3505 AS1A for ball rail systems - Bosch Rexroth R161934021
Item BRR-R161934021Braking element KBH 2505 AS1A for ball rail systems - Bosch Rexroth R161924021
Item BRR-R161924021Braking element KBH 6505 AS1A for ball rail systems - Bosch Rexroth R161964021
Item BRR-R161964021Braking element KBH 5505 BS1A for roller rail systems - Bosch Rexroth R181054021

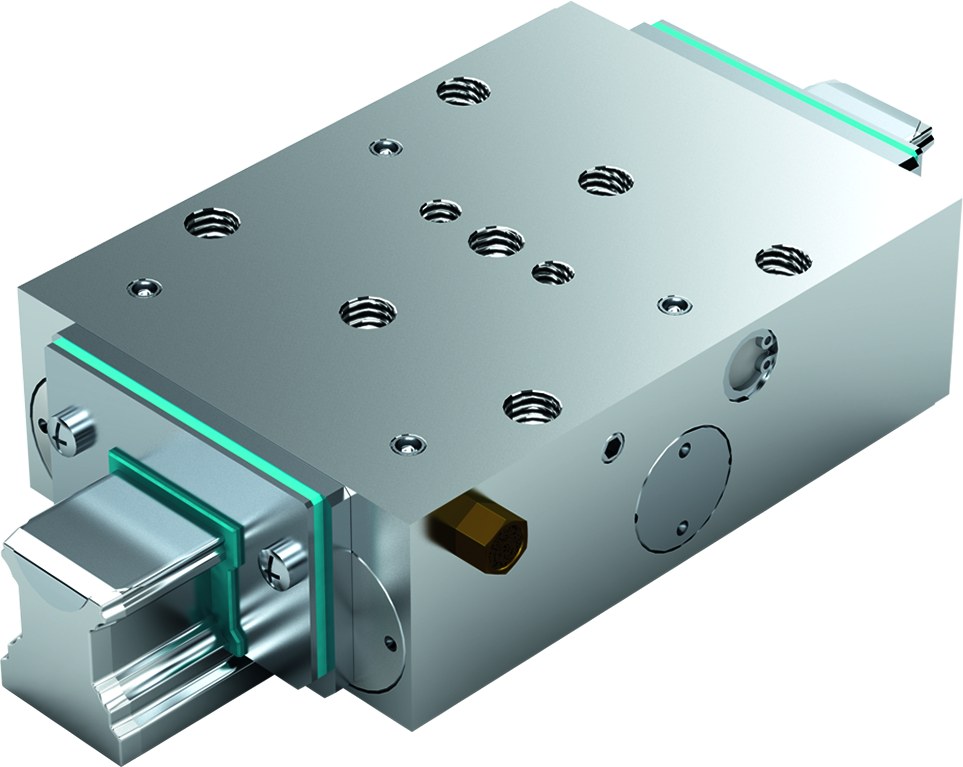

Item BRR-R181054021Braking element UBPS 2505 AS1A for ball rail systems - Bosch Rexroth R161924051
