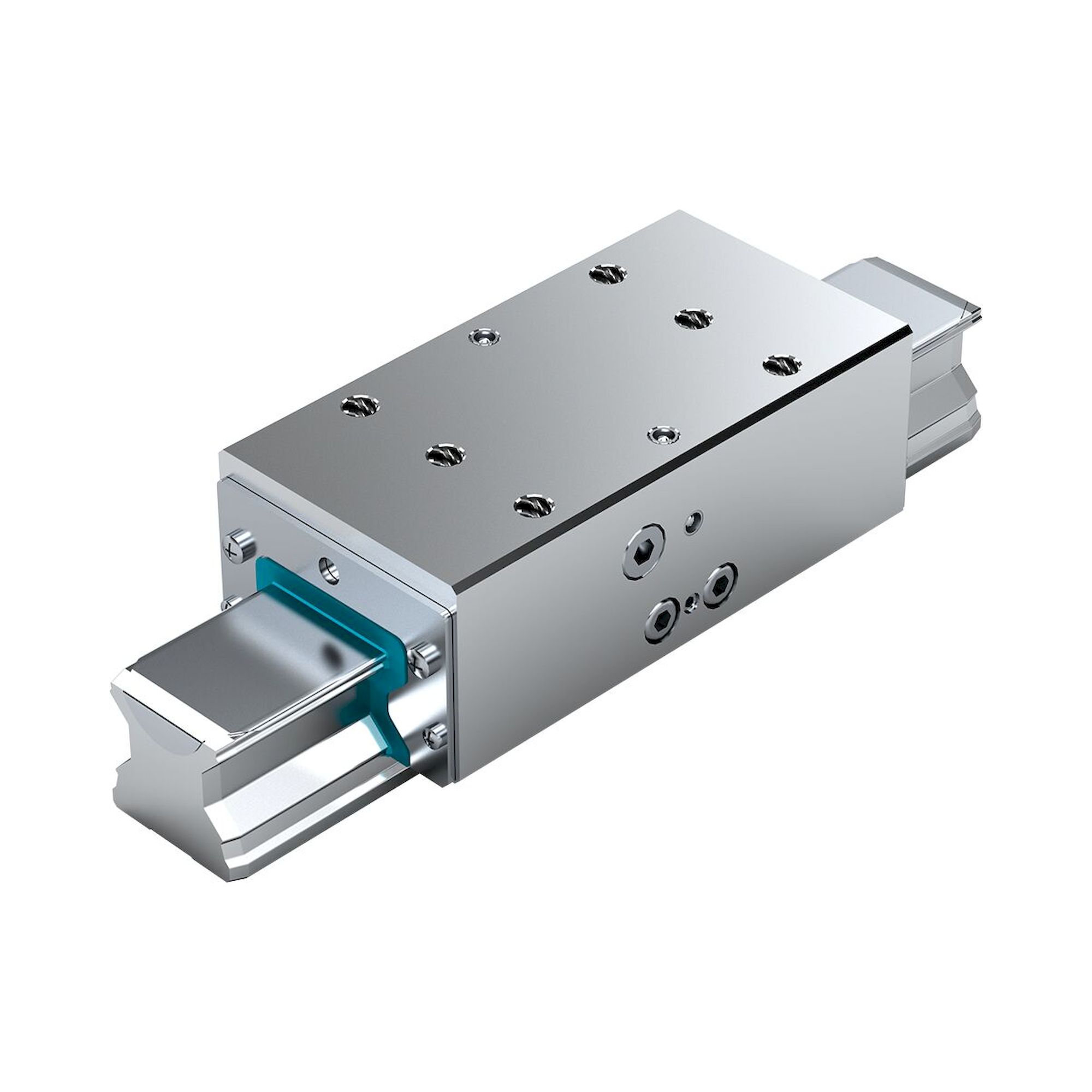

Clamping element KWH 10005 BS1A for roller rail systems - Bosch Rexroth R181024311
Clamping element KWH 10005 BS1A from Bosch Rexroth for size 100. Hydraulic clamping unit KWH, FLS for roller rail systems. Maximum holding force 34,000 N, holding force 34,000 N. Genuine accessory, material number R181024311.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Clamping and braking units hold the runner block in position without loading the drive and secure axes at standstill or in the event of a power failure. Designed for size 100, key values: maximum holding force 34,000 N, holding force 34,000 N. Manufacturer designation: Hydraulic clamping unit KWH, FLS for roller rail systems.
Benefits
- Clamping directly on the free surfaces of the guide rail, independent of the drive
- Maximum holding force: 34,000 N
- Holding force: 34,000 N
Applications
Initial equipment, retrofitting and maintenance of linear axes with Bosch Rexroth profiled rail systems of size 100, in handling and assembly technology, machine tools and special machinery.
Technical data
| Manufacturer part number | R181024311 |
|---|---|
| Version | Hydraulic clamping unit KWH, FLS for roller rail systems |
| Type clamping and braking units | Hydraulic |
| Nominal size | 100 |
| Accessories for | Runner Block |
| Maximum holding force | 34,000 N |
| Dimension B1 | 200 mm |
| Holding force | 34,000 N |
| Maximum permissible ambient temperature | +70 °C |
| Maximum hydraulic operating pressure | 150 bar |
| Displacement | 5 cm³ |
| Weight | 29.83 kg |
| Permissible ambient temperature (min. ... max.) | 0 °C ... +70 °C |
| Manufacturer | Bosch Rexroth |
| Manufacturer Nr. | R181024311 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
Downloads
- Datasheet (PDF)
- Roller rail systems High Precision RSHP Roller runner blocks, roller guide rails, accessories (R999000354) EN
- Rollenschienenführungen Rollenwagen, Rollenschienen, Zubehör (R999000353) DE
- Guidages à rouleaux sur rails de haute précision RSHP Guides à rouleaux, rails de guidage rouleaux (R999000355) FR
