Statfree T2 Plus ESD Rubber Mat Roll, Dissipative, Grey, 1.5 mm, 1.2 x 12.2 m - Desco 66411

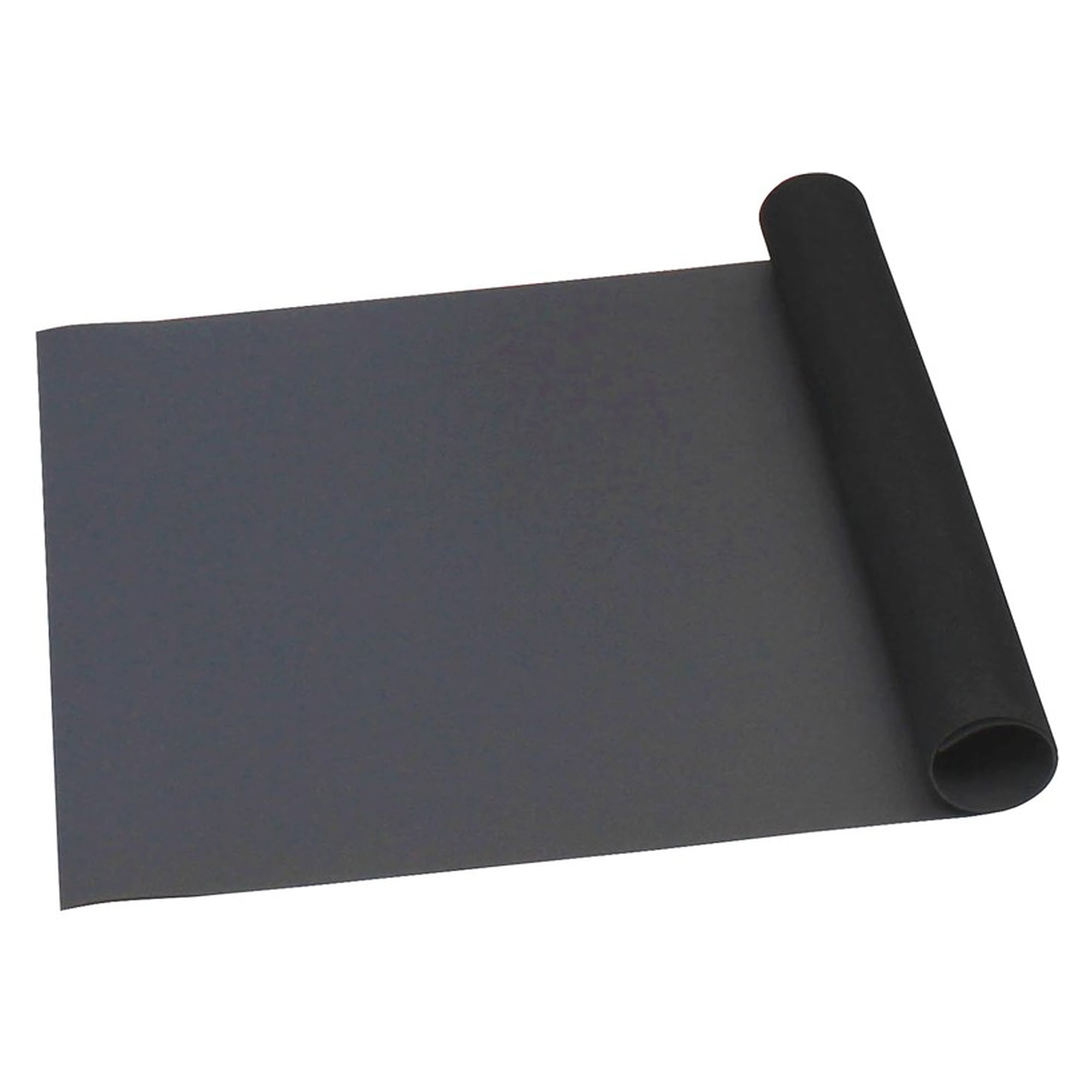

When several benches need a uniform ESD surface or non-standard sizes are required, cutting the mat from a roll is the practical route. Statfree T2 Plus is a dual-layer oil-resistant nitrile rubber: the grey top layer is dissipative at 1 x 10⁶ to < 1 x 10⁹ ohms, the black bottom layer is conductive. The roll measures 1.2 x 12.2 m at 1.5 mm thickness.

Key benefits

• Controlled discharge: the top layer with Rtt and Rtg of 1 x 10⁶ to < 1 x 10⁹ ohms meets the minimum worksurface recommendation of IEC 61340-5-1.
• Conductive black bottom layer with < 1 x 10⁶ ohms lowers the resistance to ground and allows use with ESD workstation monitors.
• Solder-safe: the material does not melt or burn on contact with hot solder or soldering irons and resists flux, acids, mineral oil, aldehydes and amines.
• Oil-resistant nitrile compound limits oil absorption, so electrical and physical properties hold up over the service life.
• UV stabilisers keep the colour stable and prevent the top layer from cracking when the material is flexed.

Applications

For workbenches, packing tables, repair and soldering stations in electronics production, laboratories and service. Before cutting to an exact size, let the material condition unrolled for at least 4 hours because it shrinks slightly when first unrolled, then trim with a sharp knife. The mat must be grounded to remove charges. If it lies on a surface that is already properly grounded, separate grounding hardware may not be needed. Do not daisy-chain mats, ground each one individually.

Standards

Meets the worksurface requirements of ANSI/ESD S20.20 and the minimum recommendation of IEC 61340-5-1. Resistance is measured per ANSI/ESD STM4.1 and ESD TR53. Lead-free and RoHS compliant. Desco guarantees the dissipative and conductive properties for the life of the mat.
