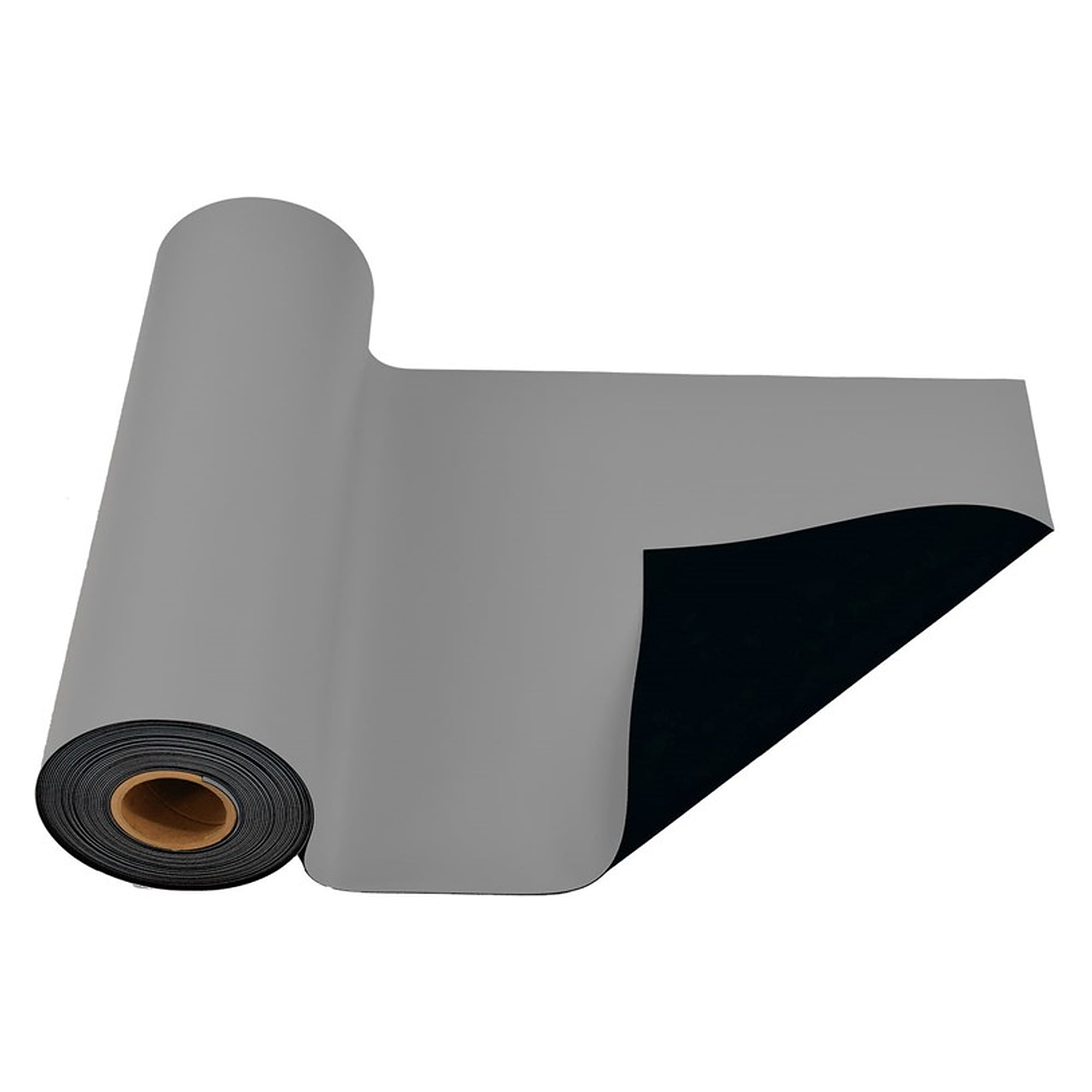

R3 Dissipative Rubber ESD Mat, Grey, Roll 1.2 x 15.2 m - Desco 770089
Two-layer nitrile rubber ESD worksurface on a 1.2 x 15.2 m roll with a grey top. Dissipative at 1 x 10^6 to < 1 x 10^9 ohms, resistant to hot solder, soldering irons and flux, and compatible with workstation monitors.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
To cover workstations in your own dimensions, cut the R3 rubber mat from the 1.2 x 15.2 m roll. The grey top layer dissipates charges in a controlled way at 1 x 106 to < 1 x 109 ohms, while the black conductive bottom layer lowers the resistance to ground and makes the mat monitorable.
Key benefits
- Dissipative surface that generates no charge itself and slows the discharge of parts placed on it
- Conductive bottom layer, compatible with continuous workstation monitors
- Nitrile rubber resists abrasion, tearing, hot solder, soldering irons, flux and solvents
- Electrical values independent of humidity, with no drift over the life of the mat
- Lot traceability, lead-free, RoHS 2 and REACH compliant
Applications
Covering for workbenches, soldering stations, repair and test benches and shelving in electronics manufacturing. Matting shrinks slightly when first unrolled: let it condition for at least 4 hours before cutting and trim with a sharp knife. Ground via snap and ground cord, clean with a silicone-free ESD mat cleaner.
Standards
Meets the worksurface limit of IEC 61340-5-1 and ANSI/ESD S20.20, tested per ANSI/ESD STM4.1 and ESD TR53.
Technical data
| Item number | 770089 |
|---|---|
| Manufacturer | Desco (SCS) |
| Series | R3 |
| Size | 1.2 x 15.2 m (roll) |
| Colour | Top grey, bottom black |
| Material | Nitrile rubber, two-layer, vulcanised |
| Thickness | 1.5 to 1.8 mm |
| Resistance Rtt and Rtg | 1 x 106 to < 1 x 109 ohms (ANSI/ESD STM4.1, ESD TR53) |
| Hardness | 65 ± 5 Shore A (ASTM D2240) |
| Tolerance | Width ± 6.3 mm, length ± 50.8 mm |
| Weight | 37.22 kg |
| Country of origin | USA |
| Manufacturer Nr. | 770089 |
| HS-Code | 40169100 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | United States |
| Sales unit | Rolle 15,2 m |
| Height | 1,5 bis 1,8 mm |
| Width | 1200 mm |
| Depth | 15,2 m |
| Abmessung | 1,2 x 15,2 m |
| ESD version | ESD (antistatic) |
| ESD-Eigenschaft | dissipative |
| Certification | IEC 61340-5-1 |
