Torque Adapter 7.0 Nm Preset, 1/4 Inch Hexagon Both Sides - Bernstein 4-9607-ETA

Where a precise tightening torque of 7.0 Nm is required, this adapter replaces bulky torque wrenches: it clamps between any standard holding tool and a 1/4 inch bit and slips noticeably once the value is reached.

Advantages

• Preset tightening torque 7.0 Nm / 71.3 kgf-cm / 62.0 in-lb.
• Precision mechanism slips noticeably once the set value is reached, overtightening is not possible.
• Process reliability through the fixed torque value, no readjustment needed.

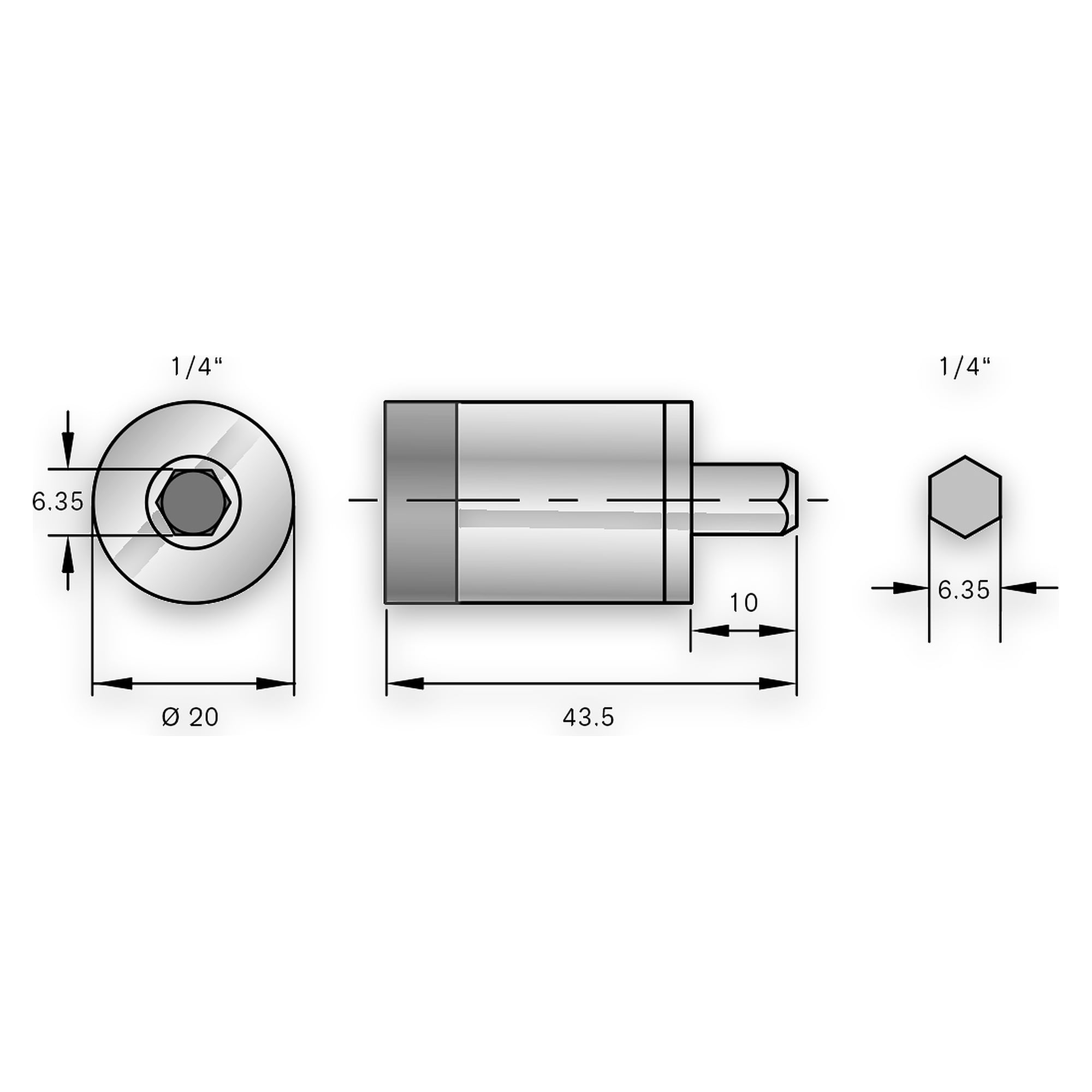

• Bit magnetic holder 1/4 inch hexagon 6.35 mm to DIN 3126.
• 30% higher torque when loosening, since no torque release occurs during loosening.

Technical Data

Application

The adapter is used as a complete solution for work on electronic equipment, in quick-change systems, robotic stations, aerospace, medical technology or on any workbench where accurate torque is needed. It is primarily suitable for manual operation.

Standards and Delivery Data

• Tested to DIN EN ISO 6789, factory certificate available on request.
• The torque value should be checked regularly with a torque meter.
• EAN 4250838535724.
• Customs tariff number 82041100.
• Country of origin Taiwan.
