ESD hinged door 36E, 717x750 mm, right-hinged, inset, with recessed grip and magnetic catch - Lista 95.813

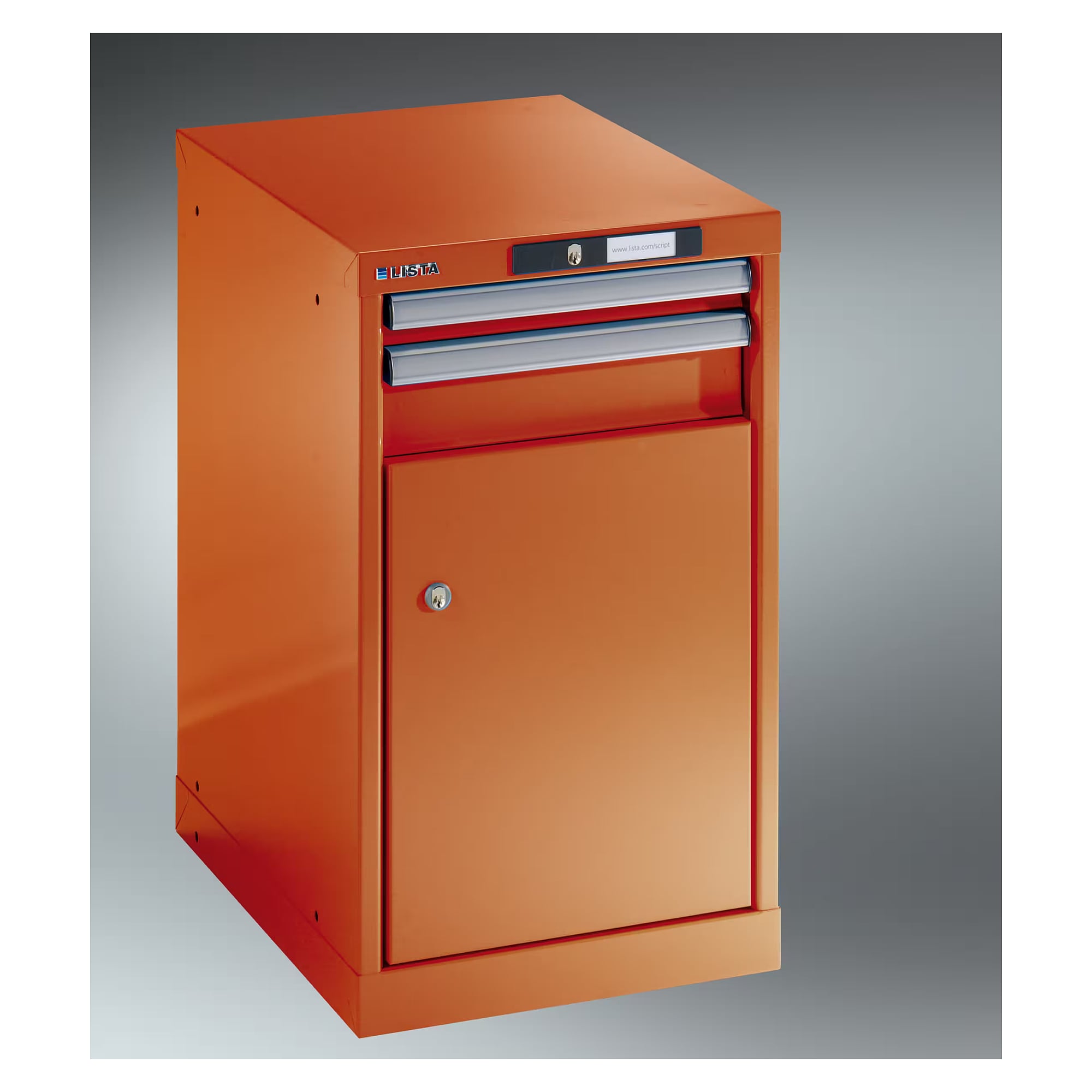

Below the drawers, a cabinet housing often has room for bulky parts, test devices or containers. This ESD hinged door closes that space with a front 750 mm high and 717 mm wide and is right-hinged.

Benefits

• Dissipative paint coating of the Lista ESD version drains charges in a controlled way, effective in an earthed cabinet assembly
• Inset mounting, right-hinged: the door sits inside the housing
• Recessed grip and magnetic catch: opens without a protruding handle and stays securely closed
• Front height 750 mm, freely combinable with drawers in the same housing

Colours

Select the ESD colour as an option when you order:

• Light grey RAL 7035

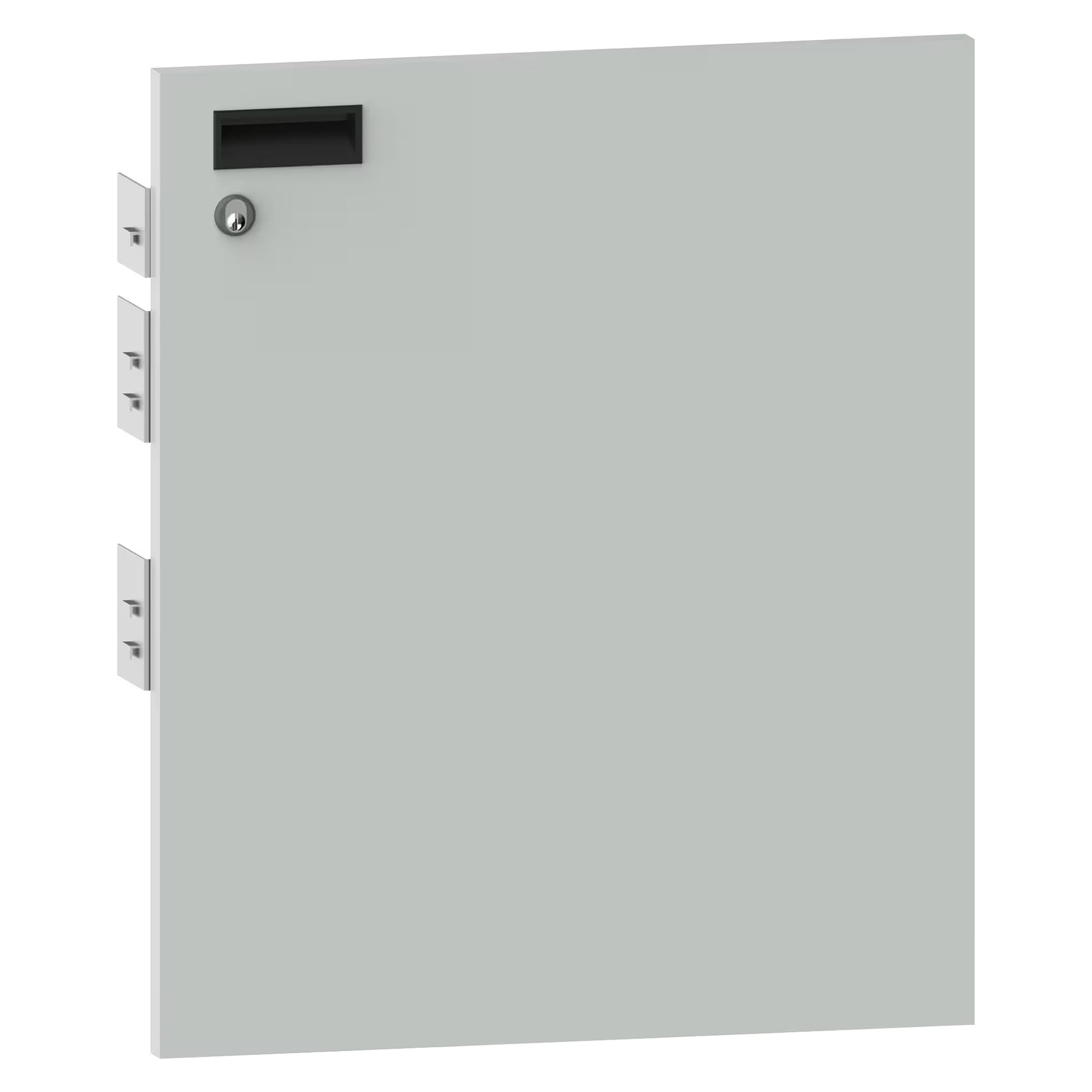

• Pale grey NCS S 2403-Y

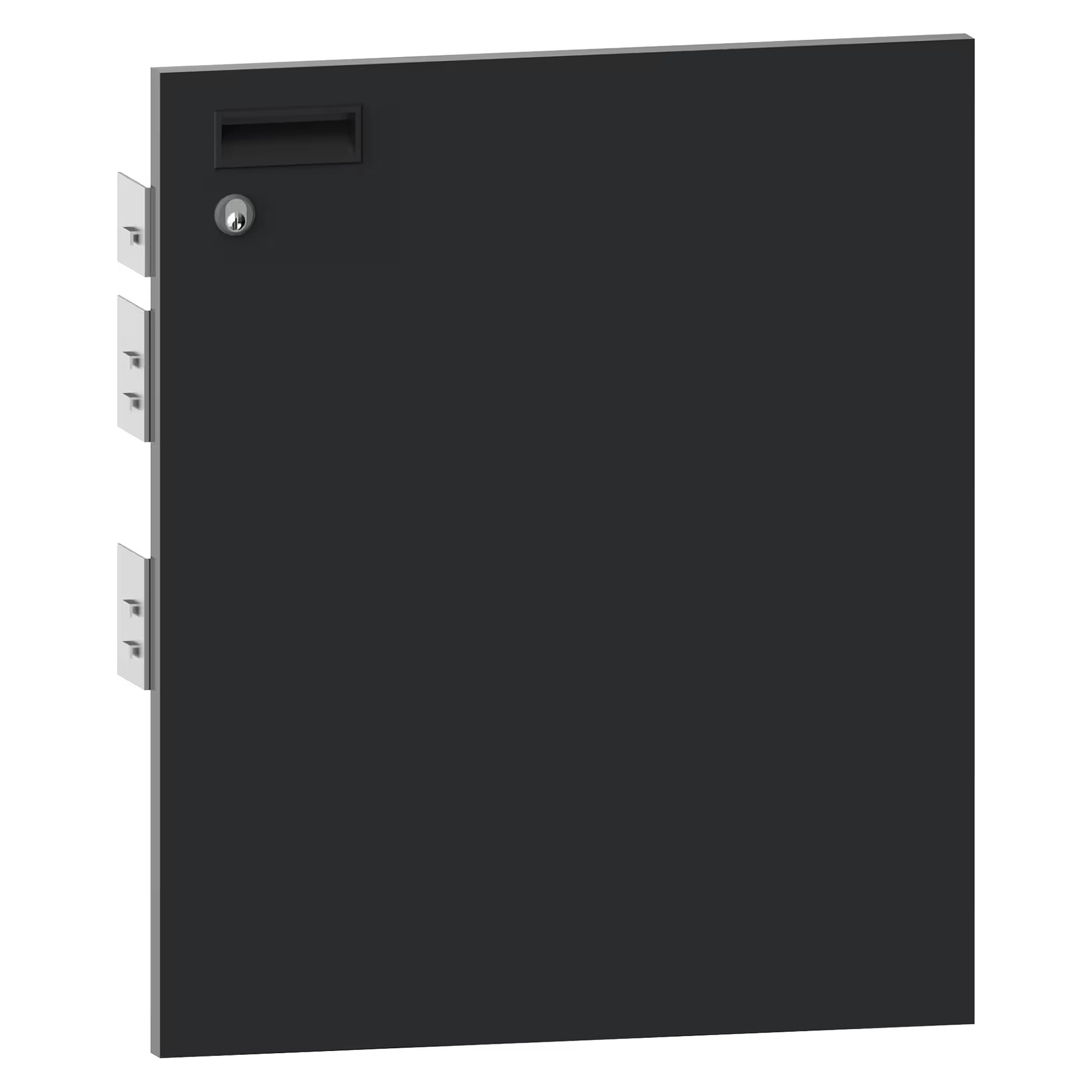

• Anthracite grey RAL 7016

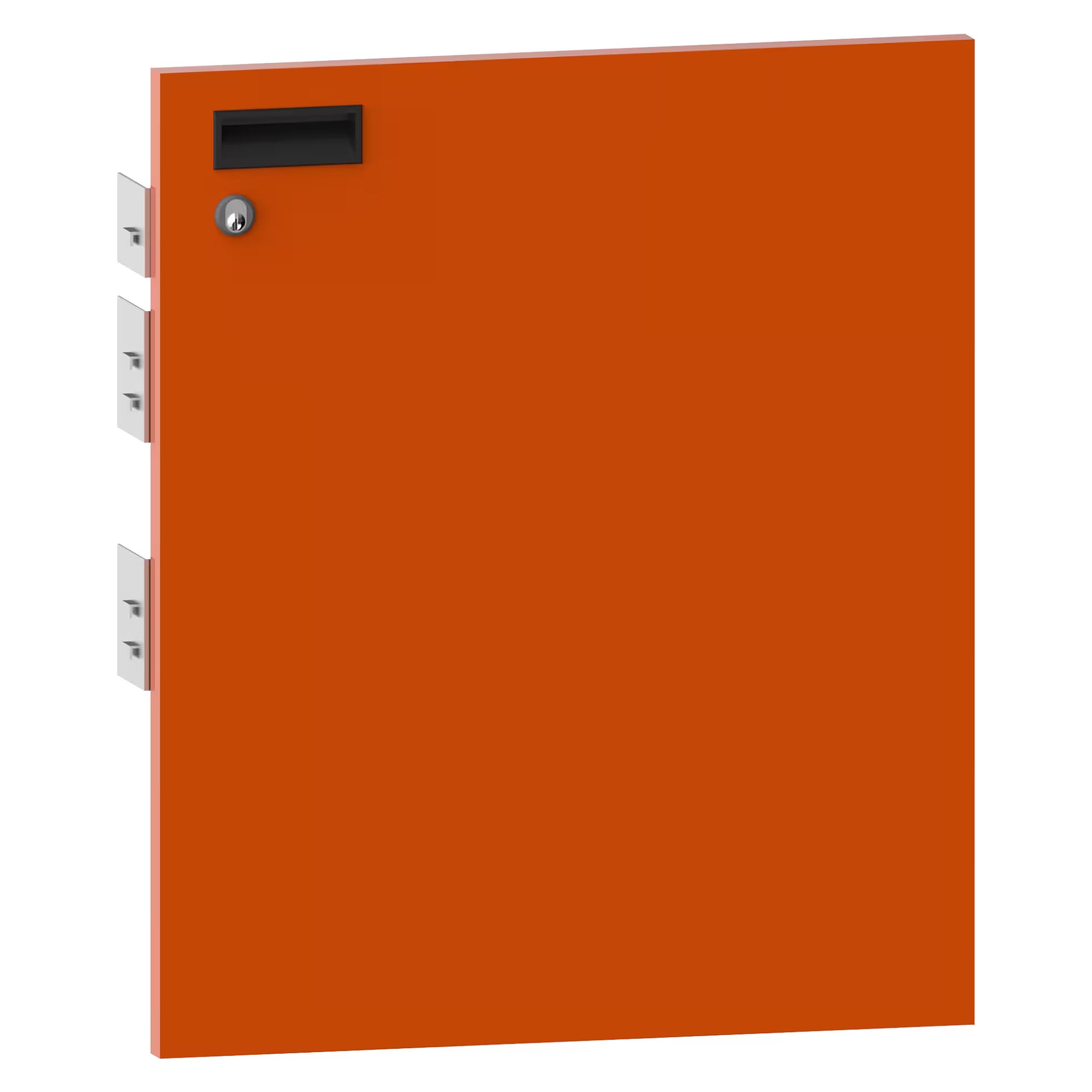

• Orange NCS S 1080-Y40R

Use and combination

For ESD drawer cabinets in electronics production, test stations, repair and component storage. Pull-out or adjustable shelves for inset hinged doors are fitted behind the door. The front height of the door plus the front heights of all drawers must equal the clear height of the cabinet housing. A cylinder lock is not included.
