ESD personnel tester Test Station EVO USB with stand and footplate - Iteco 9264922

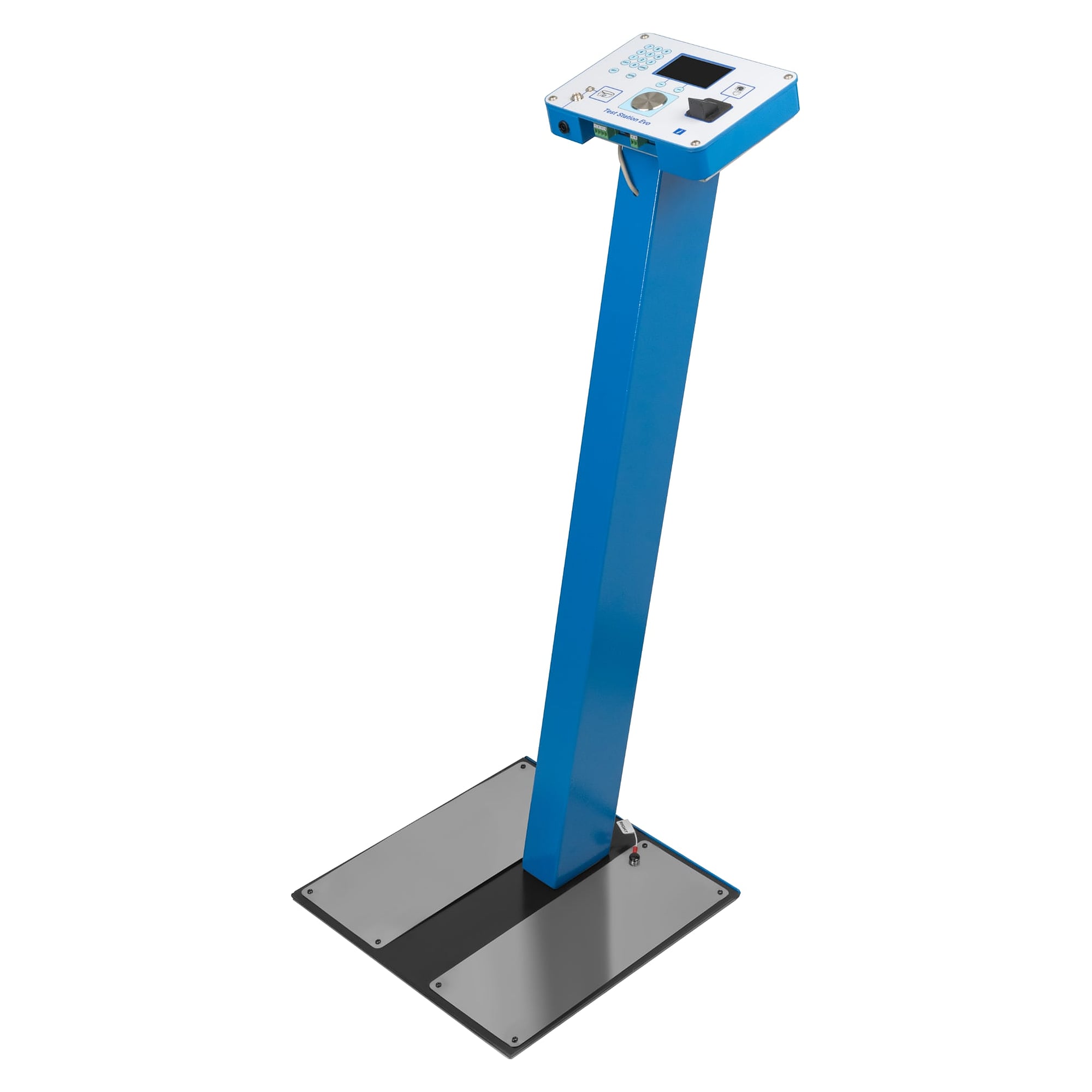

Not every EPA entrance offers a load bearing wall or permits drilling. The stand-up version of the Test Station EVO USB combines instrument, column and footplate in one unit and can be placed anywhere in front of the airlock. The wrist strap and each shoe are measured individually in the range 50 kΩ to 2 GΩ.

Benefits in daily EPA operation

• Fully assembled column with integrated footplate, no wall drilling and no separate floor installation required
• Front panel positioned for standing operation, fingerprint sensor and keypad are right in front of the operator
• Fingerprint recognition for up to 1000 users, identification in less than one second
• Data logger for 10,000 accesses, logs and configuration are transferred with a USB stick
• Separate measurement of left and right shoe with programmable limit values
• Relay output max. 60 V, 1 A for door opener or turnstile once the test is passed

Technical data

Applications

The stand-up version suits airlocks and transition zones without a suitable wall, rented premises and areas where the test point is moved from time to time. Without a network connection the station stays self contained and evaluation is done with a USB stick.

Compatibility and scope of delivery

The delivery consists of the Test Station EVO USB instrument, the stand with base, the footplate, the plug-in power supply and the evaluation software. The calibration units Iteco 9264980 and Iteco 9264981 verify measuring accuracy, and Iteco 9266100 provides turnstile controlled access.

Standards and origin

Wrist strap and footwear testing follows IEC 61340-5-1. An ISO9000 traceable calibration certificate is supplied with the instrument, and periodic recalibration can be ordered as Iteco 9264927. The Test Station EVO is manufactured in Italy.
