ESD workbench 27x36E, 2000x750x850 mm, 4 drawers 2x100/1x200/1x300, 75 kg, RFID Lock - Lista 95.914

For test and assembly stations in the EPA, Lista supplies a 2000 mm wide workbench whose cabinet holds 4 drawers rated at 75 kg each. The 50 mm synthetic resin top is designed for a surface load of up to 800 kg, and access is controlled by the RFID Lock.

Benefits

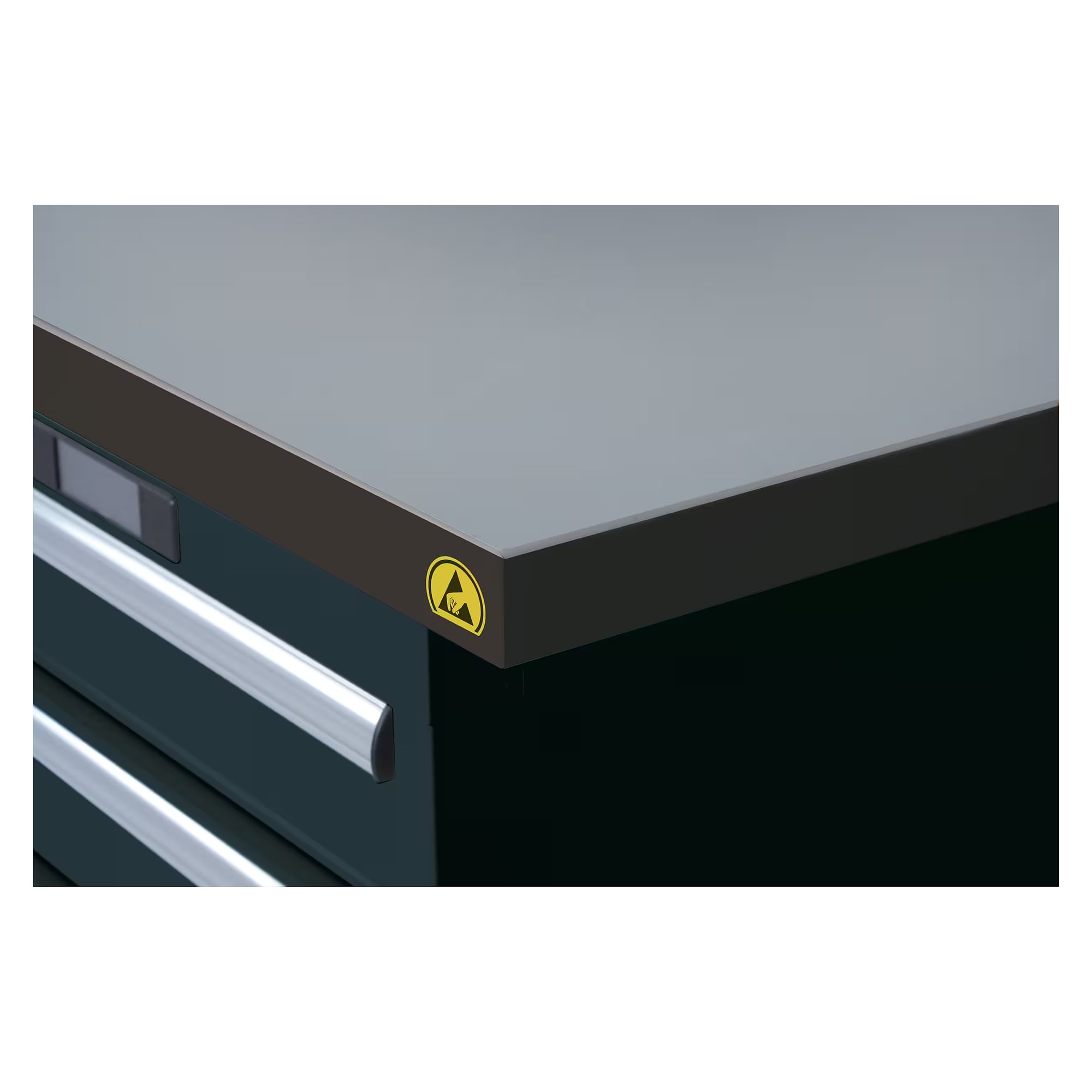

• Dissipative worktop: 50 mm composite element made of volume conductive chipboard with hard-wearing HPL laminate, top surface light grey NCS S 1500-N, edges with 2 mm ABS banding, grounding set included.
• RFID Lock: In addition to the numeric code, the lock opens with standard RFID badges, cards or tags, operated manually.
• 4 drawers at 75 kg each: usable area 459 x 612 mm, drawers filling the cabinet from floor to worktop, including one with a 300 mm front for instruments and bulky assemblies.
• Dissipative paint coating: The painted parts carry the coating developed by Lista, which drains charges in a controlled way.
• Flexible assembly: The drawer cabinet can be fitted on the right or left, and the bench comes pre-assembled with fixing material. Surface load up to 800 kg.

Colours

Choose the ESD colour of frame and cabinet when ordering:

• Light grey RAL 7035
• Pale grey NCS S 2403-Y
• Anthracite grey RAL 7016
• Orange NCS S 1080-Y40R

Use and combination

The workbench is intended for EPAs in electronics production, at EMS providers, test and repair stations and in the laboratory. The dissipative effect requires the top and frame to be properly grounded via the supplied grounding set. To complete the ESD workstation, we supply a wrist strap with coiled cord, grounding box, ESD table mat and floor mat. Warning signs in German or English and floor marking tape identify the EPA.
