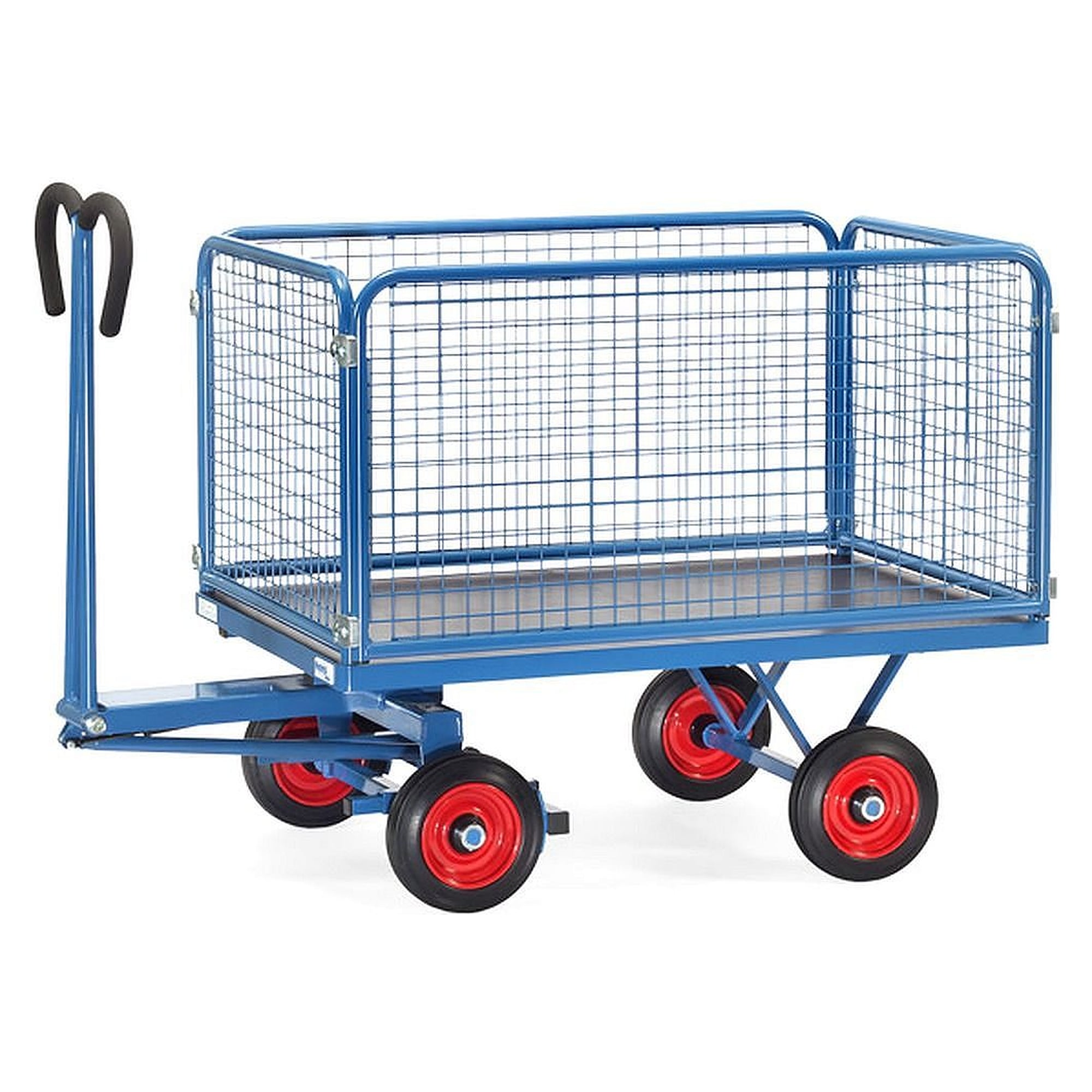

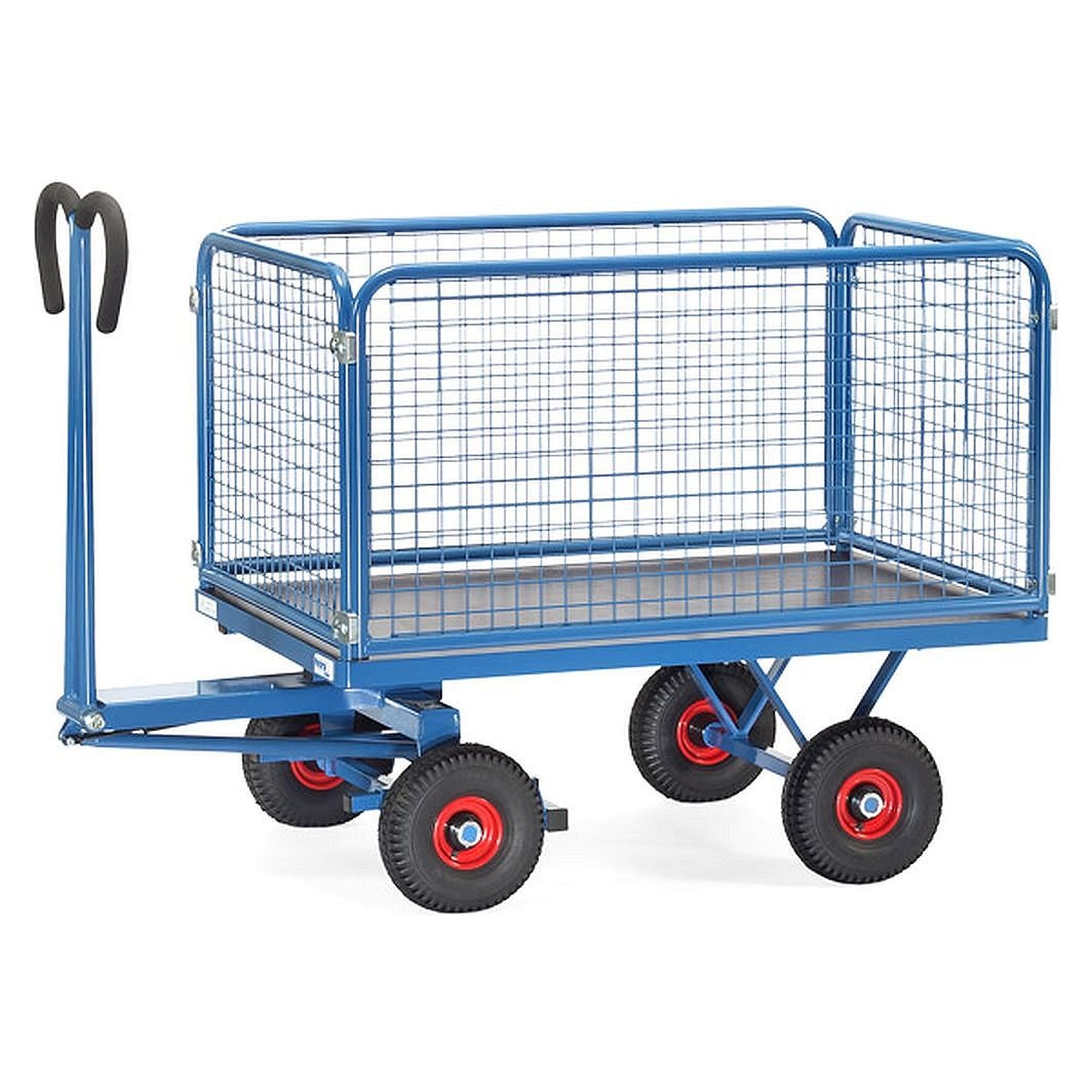

Mesh-wall platform truck 1135x795 mm, 1000 kg capacity with towing eye - Fetra 6434VZ

The Fetra 6434VZ is a platform hand truck with mesh walls with towing eye for in-plant transport of loads up to 1000 kg. Its 1135 x 795 mm deck and welded profile-steel frame make it a durable workhorse for continuous use.

Key benefits

• Total load capacity 1000 kg on a 1135 x 795 mm deck
• Welded profile-steel frame, powder-coated blue RAL 5007, with four corner sockets
• Swivel-bolster steering with ball race and a scissor drawbar with Softgrip safety handle, automatic damped return to rest position
• Solid rubber tyres, 400 mm wheels on roller-bearing hubs for easy rolling
• Automatic parking brake acting on the front wheels
• Towing eye for coupling into a tugger train behind a tractor or further trucks

Technical data

• Total load capacity: 1000 kg
• Usable area: 1135 x 795 mm
• Deck height: 490 mm
• Overall size (L x W x H): 1550 x 850 x 1190 mm
• Tyres: solid rubber tyres, 400 mm wheel diameter
• Net weight: 117 kg
• EAN: 4017976434025

Construction

• End walls bolted to the platform, side walls hook in and lift out
• Welded 40 x 40 x 4 mm mesh keeps loose goods from falling off
• Anti-slip screen-printed waterproof plywood deck

Applications

Suited to loose and stacked goods in warehousing, picking and dispatch.

Quality and origin

Made in Germany. Fetra grants a 10-year warranty on this unit.
