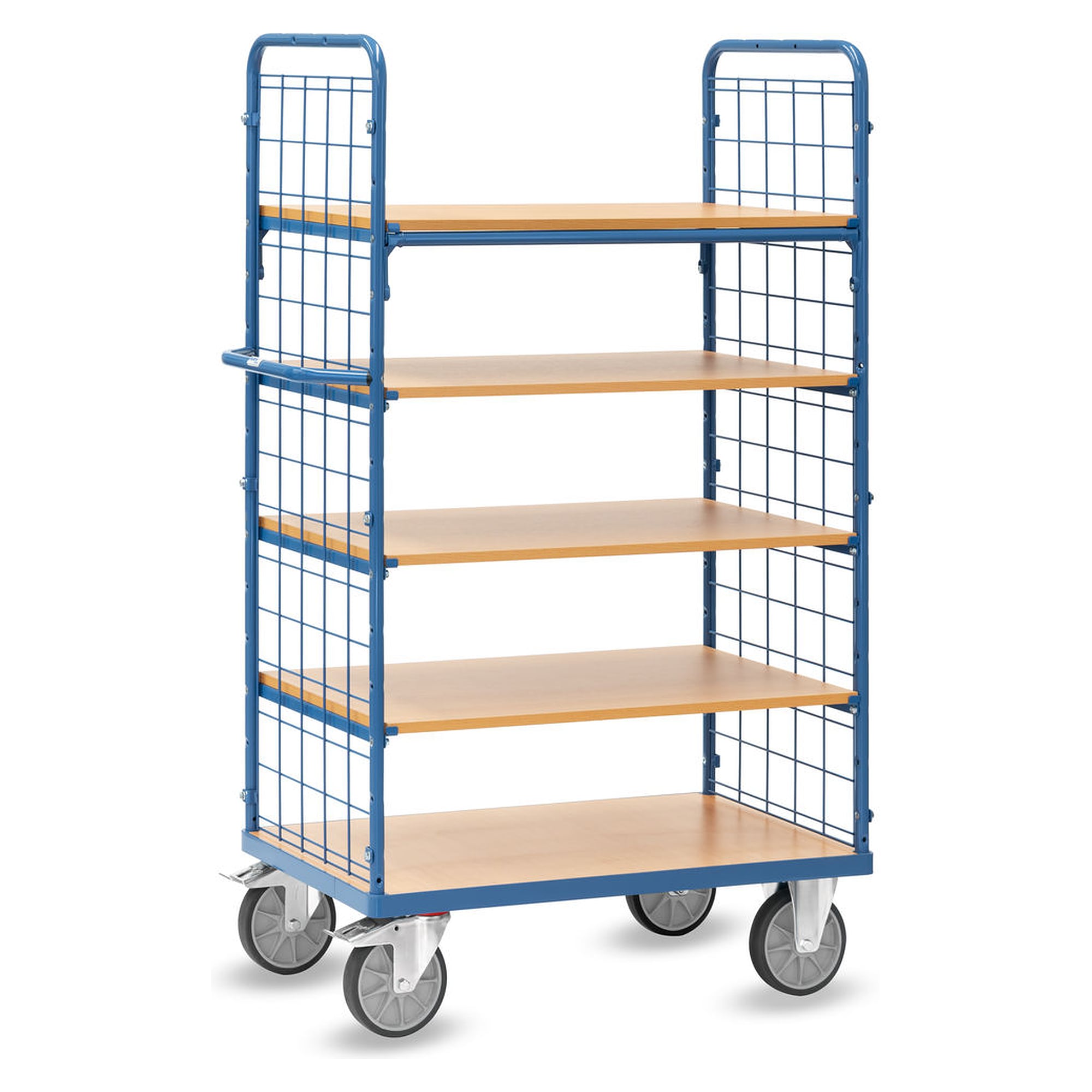

Shelf trolley with tube struts 4 tiers, 600 kg, load area 1000 x 700 mm - Fetra 8312-1

The Fetra shelf trolley with tube struts 8312-1 moves up to 600 kg across 4 tiers through production, warehouse and dispatch areas. The 4 levels of 1000 x 700 mm usable area each keep orders, parts or picks cleanly separated so more is carried in a single run.

Key benefits

• 600 kg total capacity on 4 tiers for high transport throughput per trip
• 1 fixed shelf and 3 repositionable shelves, end walls with vertical tube struts that keep the load from sliding off
• Welded tubular steel chassis, powder-coated blue RAL 5007, built for continuous duty
• Total-Stop and Fix-Stop brake system locks the trolley securely during loading and unloading
• Overall height 1800 mm, easy to push and to manoeuvre through standard doorways

Technical data

• Load capacity: 600 kg
• Tiers: 4
• Usable area per tier: 1000 x 700 mm
• Overall height: 1800 mm
• Net weight: 95 kg
• Wheels: 2 swivel and 2 fixed castors, TPE tyres, ball-bearing hubs
• Frame: steel, powder-coated blue RAL 5007
• Shelves: wood, beech-finish surface

Applications

Order picking, in-plant material flow, line-side supply at assembly stations, workshop and dispatch logistics. The separate levels suit staging several orders in parallel.

Quality and warranty

Made in Germany, 10-year warranty. Optional pneumatic, elastic, polyamide or polyurethane tyres and matching Euro containers and accessories are available.
