Flow meter Flow Meter & Monitor FlowVaneforFMC-30 - Nitto Kohki 469866137

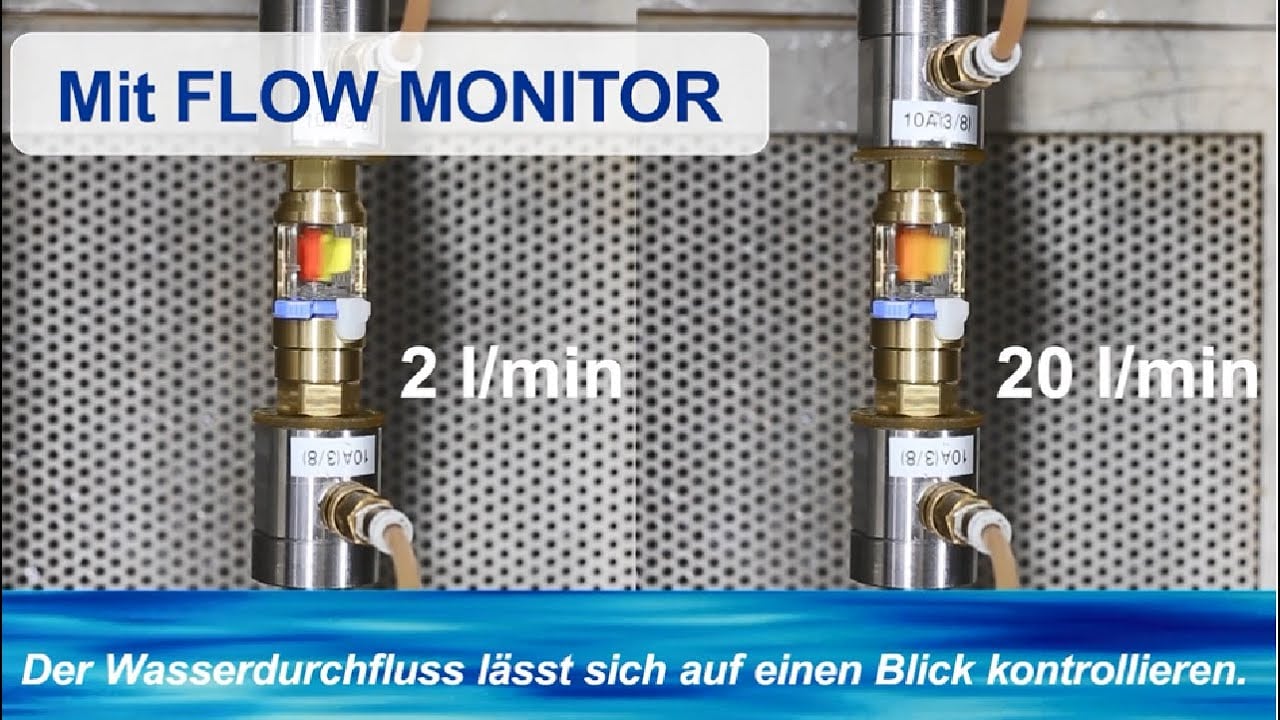

A pipe gives no sign of whether cooling water is actually moving. The Nitto Kohki flow indicators show the flow through a two-coloured impeller, from 2 L/min on the Flow Monitor.

• Two-coloured impeller makes flow from 2 L/min visible at a glance
• Flow Monitor FMC-30 for 2 to 20 L/min at 1.0 MPa (10 bar, 145 PSI) and +10 °C to +80 °C

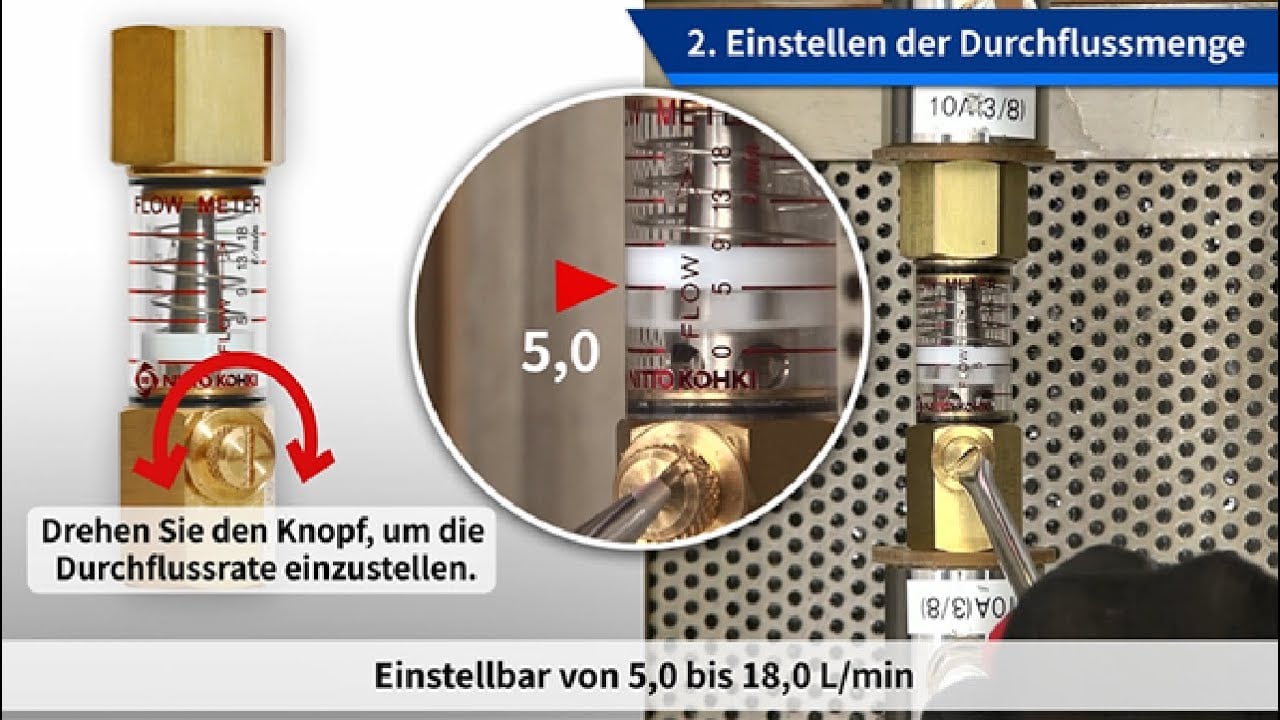

• Flow Meter FM-03-B for 5 to 18 L/min at 0.5 MPa (5 bar, 72.5 PSI) and +10 °C to +60 °C
• The Flow Vane ASSY can be replaced without removing the unit from the piping
• A stopper prevents unintended removal of the plastic parts
• The threaded part on the T2 side rotates freely to the left and right, which makes installation and replacement easier

Technical data from the manufacturer catalogue

Models in this series FLOW MONITOR

Every model of the series as printed in the manufacturer catalogue. The row of the article offered here is highlighted.

Operating principle

• Fluid flow from low flow rate (2 L/min) water pipes can be visually checked with the rotating two-colored impeller.
• Flow Vane ASSY can be replaced without removing it from the piping.
• The stopper prevents unintended removal of the plastic parts.
• Installation and replacement is easy since the screw part of the T2 side rotates freely to the left and right.
• The Flow Vane ASSY can be replaced when dirty.
• Fluid flow can be bi-directional.
• RESIDUAL PRESSURE RELEASE JIG: residual pressure within socket or plug can be released easily by just turning the handle.
• RESIDUAL PRESSURE RELEASE JIG: jigs are available in two types, socket type for use with plugs and plug type for use with sockets; connection to sockets or plugs is the same as connection of a normal CUPLA.

Series comparison

Choose FLOW MONITOR when the task is to see whether water is actually flowing in a mold cooling line, not to connect or disconnect that line: the sibling series such as HI CUPLA BL, LOCK CUPLA 200 and ROTARY LINE CUPLA are one-way shut-off couplings and indicate no flow at all. Its use is limited to water at a working pressure of 1.0 MPa {10 kgf/cm2} and a flow range of 2 to 20 L/min with Rc 3/8 or Rc 1/2 female threads, so lines run at the 1.5 MPa of those one-way shut-off series are outside its rating. Where the concern is not flow indication but fluid escaping on disconnection, the two-way shut-off COMPACT ZEROSPILL CUPLA is the series to look at.

Body and seal materials

Applications

• Visual check of cooling water flow on tooling and machinery
• Temperature control circuits where a loss of circulation must show up immediately
• Pipework with Rc 3/8 or Rc 1/2 female threads
• Installations where the indicator is cleaned or replaced on a regular basis

Compatibility

The approved fluid is water. The units cannot be used for gas, and with oil the durability of the plastic parts may drop depending on the oil or its additives, so the application has to be evaluated first.

Standards and compliance

End sizes are Rc 3/8 and Rc 1/2, maximum tightening torques are 11 Nm on the FM-03-B and 12 Nm at Rc 3/8 and 30 Nm at Rc 1/2 on the FMC-30, and the products comply with the RoHS Directive.

Safety and application notes

• RESIDUAL PRESSURE RELEASE JIG caution: since the upper limit of residual pressure that can be relieved depends on the product, please contact us separately.
• Semi standard items: as these items are not always in stock, delivery time is subject to confirmation.
• When ordering, please indicate Model Name or part number.

All technical data on this page is taken from the Nitto Kohki general catalogue Quick Connect Couplings C01en-b, page 166. The complete catalogue is available for download on this page.
