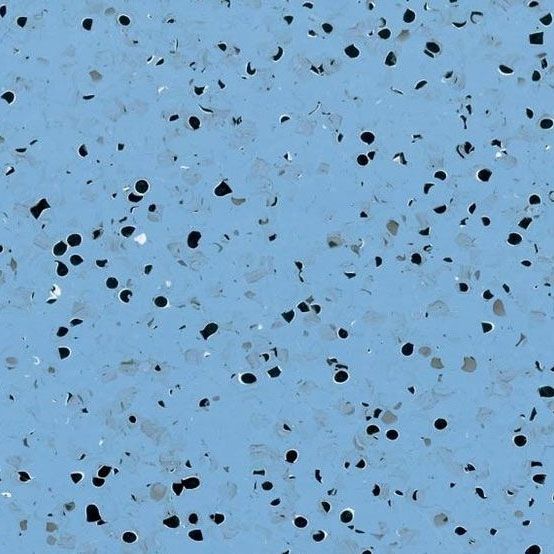

ESD interlocking access tile GTI EL5 Connect 31.0 x 63.5 cm, blue - Gerflor 8644-0354
ESD interlocking access tile GTI EL5 Connect 31.0 x 63.5 cm, blue - Gerflor 8644-0354 ESD interlocking access tile GTI EL5 Connect 31.0 x 63.5 cm, blue - Gerflor 8644-0354 ESD interlocking access tile GTI EL5 Connect 31.0 x 63.5 cm, blue - Gerflor 8644-0354 ESD interlocking access tile GTI EL5 Connect 31.0 x 63.5 cm, blue - Gerflor 8644-0354 ESD interlocking access tile GTI EL5 Connect 31.0 x 63.5 cm, blue - Gerflor 8644-0354 Image

Images are examples, some edited with AI. The technical data are authoritative. AI notice

ESD interlocking access tile GTI EL5 Connect 31.0 x 63.5 cm, blue - Gerflor 8644-0354

Gerflor ✓ Original product Brand new Made in France

Dissipative ESD interlocking access tile in vinyl, format 31.0 x 63.5 cm, in blue. Dovetail joint for fast adhesive-free installation. Electrical resistance ≤ 10⁹ Ω to IEC 61340-4-1.

Net
€46.12
excl. VAT
Item 8644-0354
Manufacturer no. 8644-0354
Save Compare
Question about this item
Datasheet (PDF) Declaration of conformity User manual 31 documents, all under Downloads
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The GTI EL5 Connect is a dissipative interlocking access tile for ESD protected areas in electronics manufacturing, test areas and cleanrooms. The tiles are loose-laid and join through a dovetail profile to form a continuous dissipative floor without adhesive.

Benefits

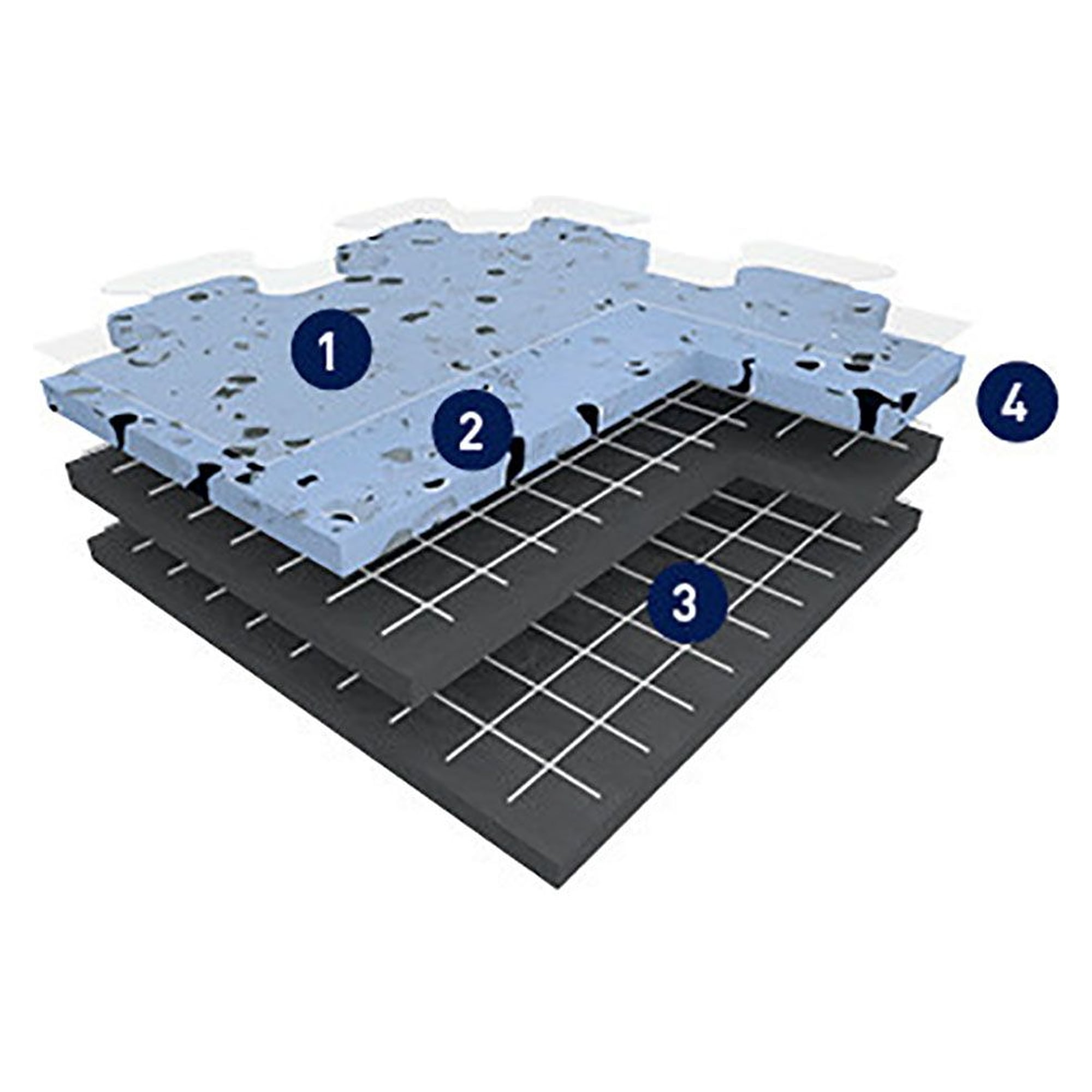

  • Permanent dissipative behaviour from carbon granules through the full thickness and a conductive backing
  • Evercare PUR surface for low cleaning and maintenance effort, no wax for life
  • Adhesive-free installation, also in renovation and during operation
  • Fully recyclable, free of heavy metals, VOC < 10 µg/m³ after 28 days (EN 16000-6)

Applications

Suitable for castor chairs to EN 12529 type W and for areas under the highest load. The first row of tiles at the entrance is bonded per the manufacturer instruction.

Standards and compliance

Meets IEC 61340-5-1 (ESD), IEC 61340-4-1, EN 13501-1 (Bfl-s1) and carries CE marking.

Technical data

Materialheterogeneous vinyl to ISO 10582, type I
Tile format31.0 x 63.5 cm (0.20 m²)
Overall thickness6.0 mm, wear layer 2.0 mm
Jointdovetail profile, loose-lay (adhesive-free)
SurfaceEvercare PUR treatment, smooth, non-directional
Reinforcementdouble fibreglass grid
Electrical resistance≤ 10⁹ Ω (IEC 61340-4-1 / IEC 61340-4-5 / ANSI ESD 7.1)
Body voltage< 2 kV (EN 1815)
Use class34 / 43 (ISO 10874)
Reaction to fireBfl-s1 (EN 13501-1)
Slip resistanceR9 (DIN 51130)
Weight per area9,240 g/m² (ISO 23997)
Weight1.8 kg
ManufacturerGerflor
Manufacturer Nr.8644-0354
HS-Code39181090
GPSR manufacturer informationGerflor Mipolam GmbH Mülheimer Straße 27 DE-53840 Troisdorf www.gerflor.de
Condition of articleNew
Article authenticityOriginal product
Country of ManufactureFrance
Sales unit1 Stück
Height6
Width310
Depth635
ColourBlue
Farbeblau
AusführungZugangsfliese
ESD versionESD (antistatic)
ESD equipmentESD Bodenbelag
ESD-Eigenschaftconductive
NormANSI/ESD S20.20, DIN EN 1081, DIN EN 12529, DIN EN 16000-6, ISO 10582, ISO 10874, ISO 23997
CertificationDIN 51130, EN 1815, EN 13501-1, IEC 61340-4-1, IEC 61340-4-5, IEC 61340-5-1

Downloads

Datasheet

User Manual

Declaration of Conformity

Brochure

Certificate

Other

Videos

GTI EL5 Connect - Tuto de pose clipsée dalles conductrices
