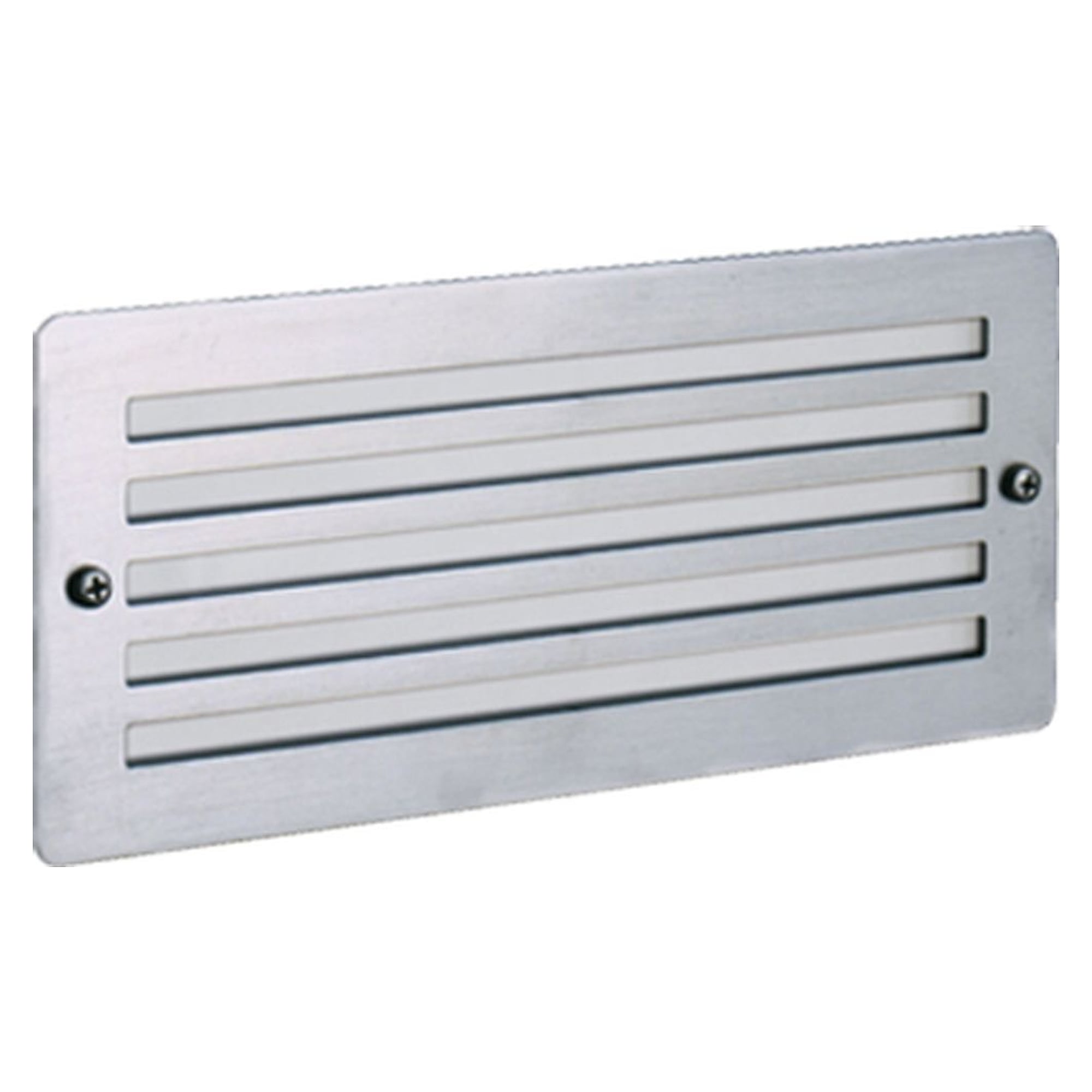

Glamox 1016550. Architectural Lighting MINI GAMMA 10-16 LED 300 HF 840 BR.STEEL

Name: Glamox 1016550. Architectural Lighting MINI GAMMA 10-16 LED 300 HF 840 BR.STEEL
Brand: Glamox
SKU: GL-1016550
Price: 220.5 EUR
Availability: InStock

Lead time

4 weeks

€220.50

Excl. 19% VAT , excl. Shipping Cost

Article

GL-1016550

Manufacturer Nr.

1016550

MINI GAMMA 10-16 LED 300 HF 840 BR.STEEL

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox 1016550. Architectural Lighting MINI GAMMA 10-16 LED 300 HF 840 BR.STEEL
€220.50
Excl. 19% VAT , excl. Shipping Cost
Glamox 514260280. MACH 2/3 BRACKET FOR POLE d.60 SILVER
€107.10
Excl. 19% VAT , excl. Shipping Cost
Glamox O34704116. Bollard O34 LED 1400 HF 840 1000MM 360° ANTHRACITE
€784.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Rectangular
Technical Data
1. Maximum ambient temperature (°C)
  25
2. IK classification
  06
3. IP classification
  54
4. Corrosion class
  C4

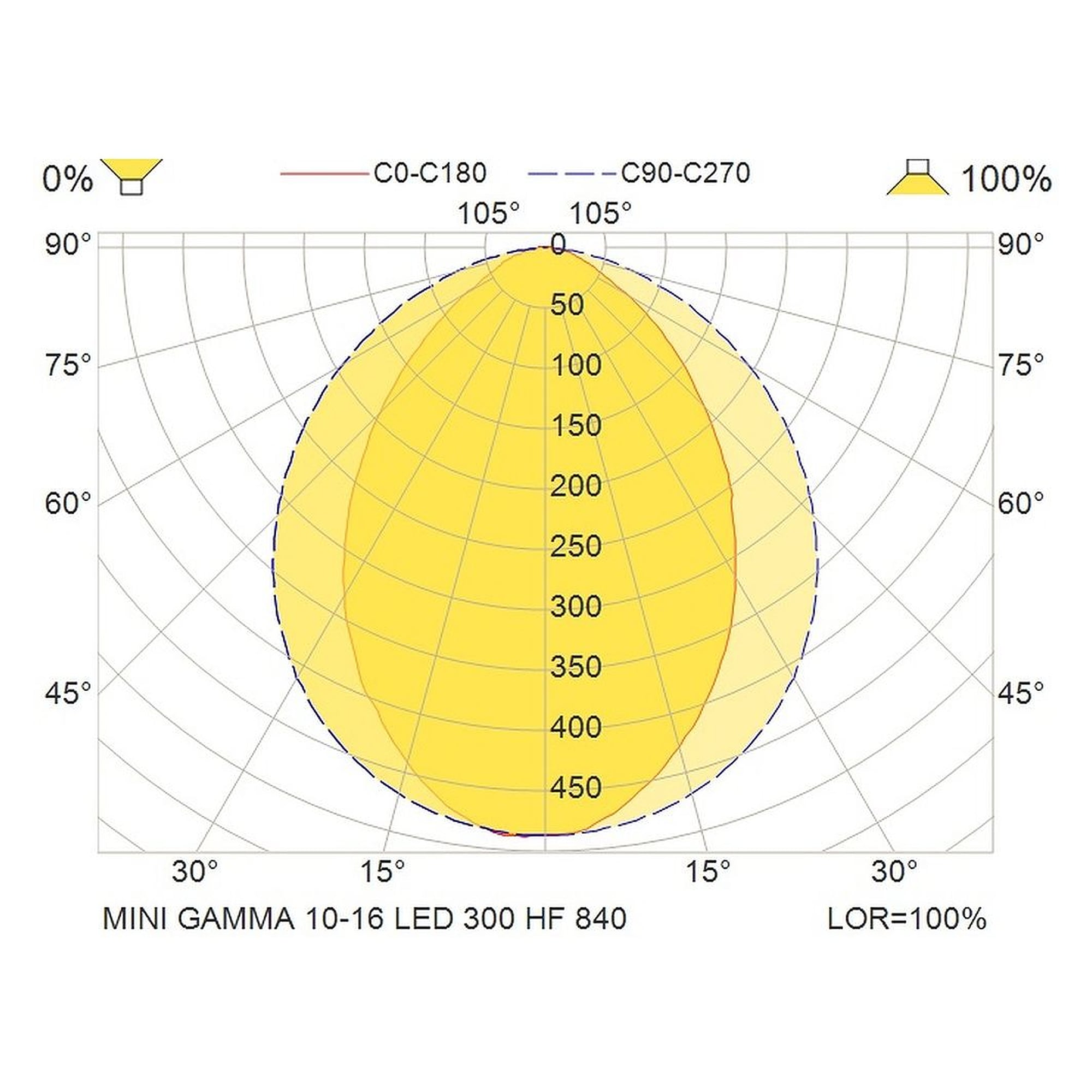

Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  297
3. Lumen per Watt (lm/W)
  33
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  1
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Total consumption (W)
  9
6. Number of luminaires on a 10A MCB type B (80% load)
  31
7. Number of luminaires on a 10A MCB type C (80% load)
  63
8. Number of luminaires on a 16A MCB type B (80% load)
  50
9. Number of luminaires on a 16A MCB type C (80% load)
  100
Optic
1. Material of diffuser
  Tempered glass
2. Diffuser material design
  Opal

Housing
1. Main body material
  Aluminium
2. Body colour
  Grey
3. Main body colour name
  Grey
4. Main body colour surface
  Brushed steel

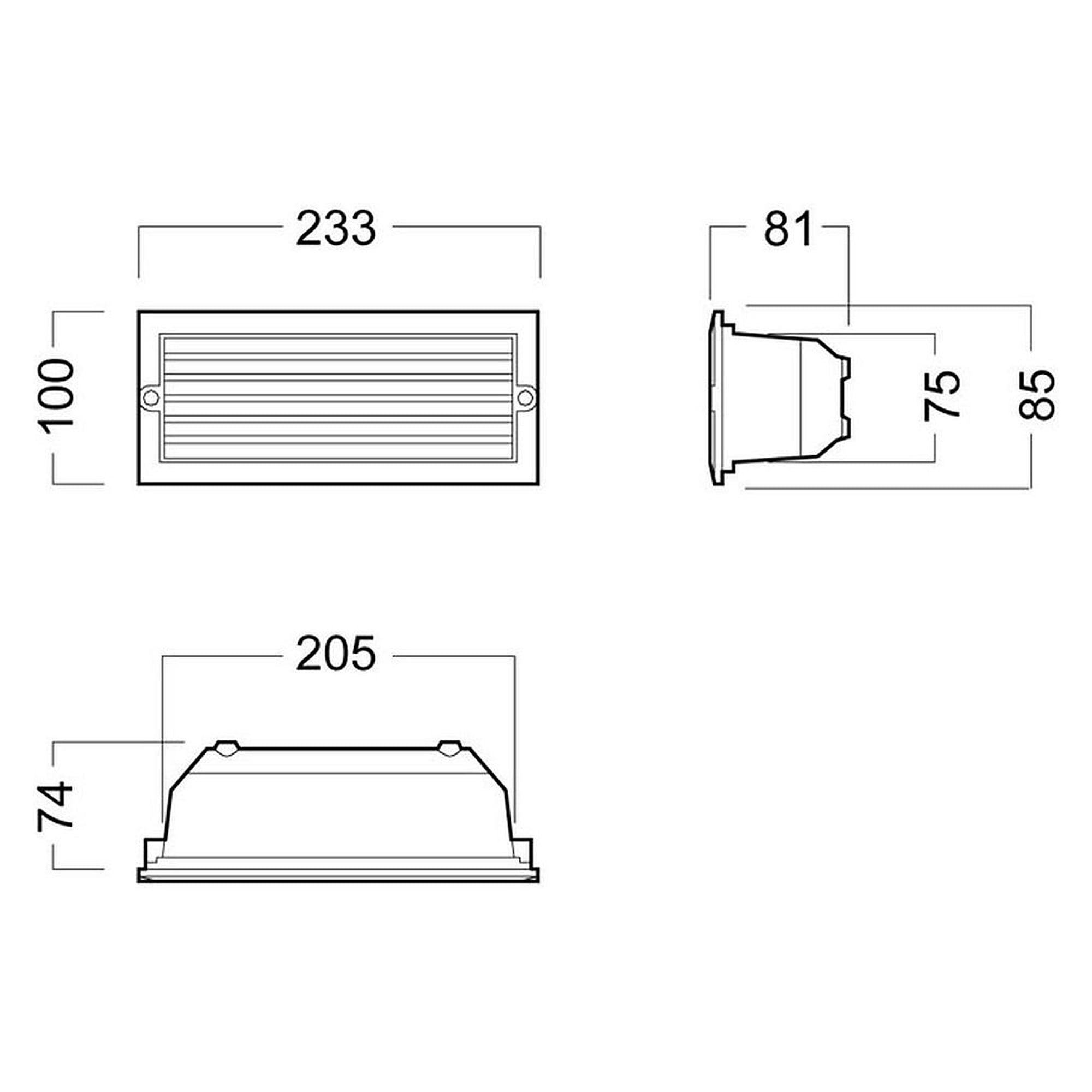

Dimensions
1. Length (mm)
  230
2. Width (mm)
  100
3. Height (mm)
  75
4. Net weight (kg)
  1.21
Termination
1. Termination
  3x2.5mm2 Screw Terminal
Mounting
1. Product mounting
  Wall Recessed
Logistic Data
1. Item gross weight (kg)
  1.32

Information

More Information
Execution	TEC
Manufacturer Nr.	1016550
Manufacturer	Glamox
Country of Manufacture	Germany
EAN	7020940332590
Lead time	4 weeks
Weight	1.320000
Colour	4000K
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
