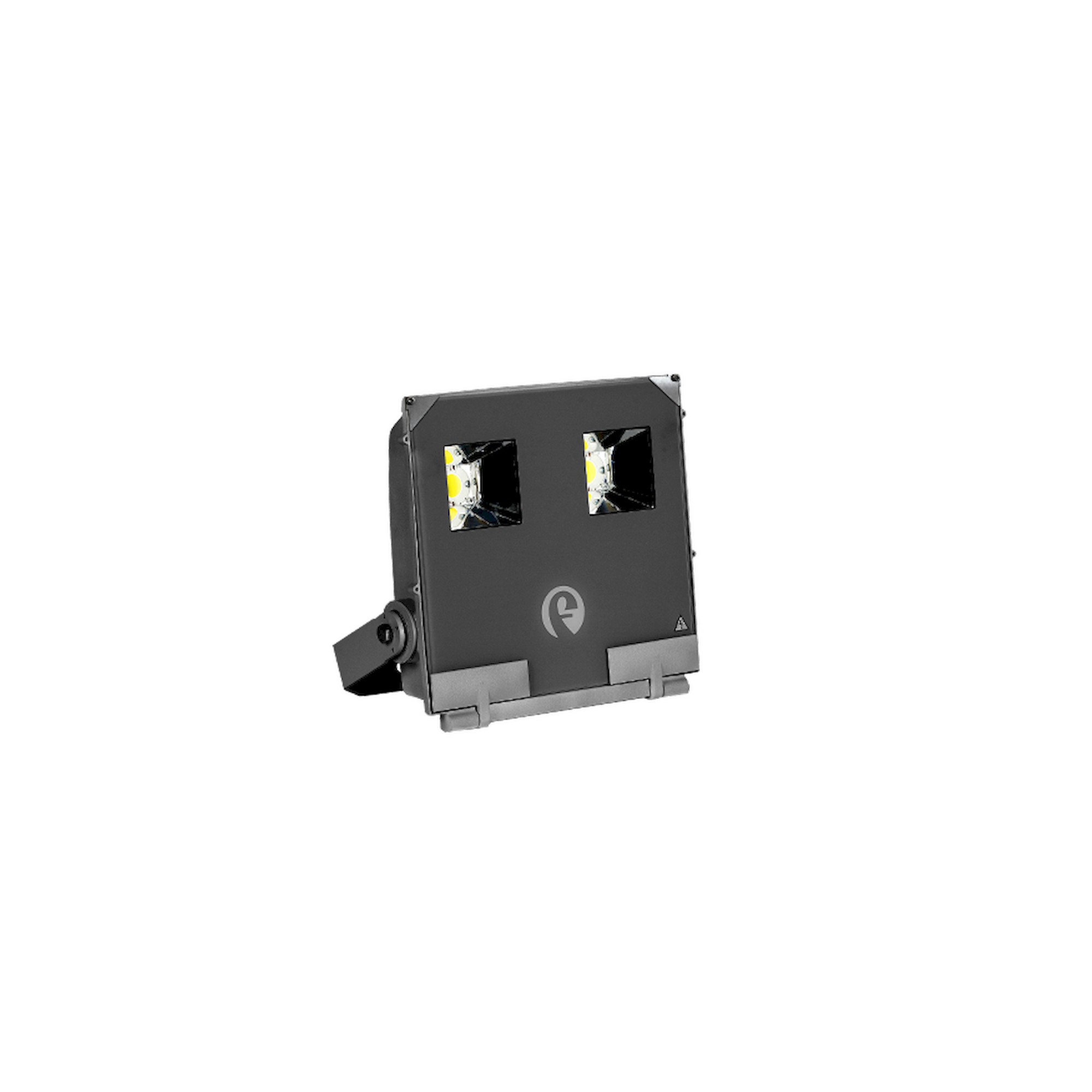

Glamox 514034175. Flood light NEXT 2 LED 9000 DALI 740 MB

Name: Glamox 514034175. Flood light NEXT 2 LED 9000 DALI 740 MB
Brand: Glamox
SKU: GL-514034175
Price: 423.5 EUR
Availability: InStock

Lead time

6 weeks

€423.50

Excl. 19% VAT , excl. Shipping Cost

Article

GL-514034175

Manufacturer Nr.

514034175

NEXT 2 LED 9000 DALI 740 MB

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox 514034175. Flood light NEXT 2 LED 9000 DALI 740 MB
€423.50
Excl. 19% VAT , excl. Shipping Cost

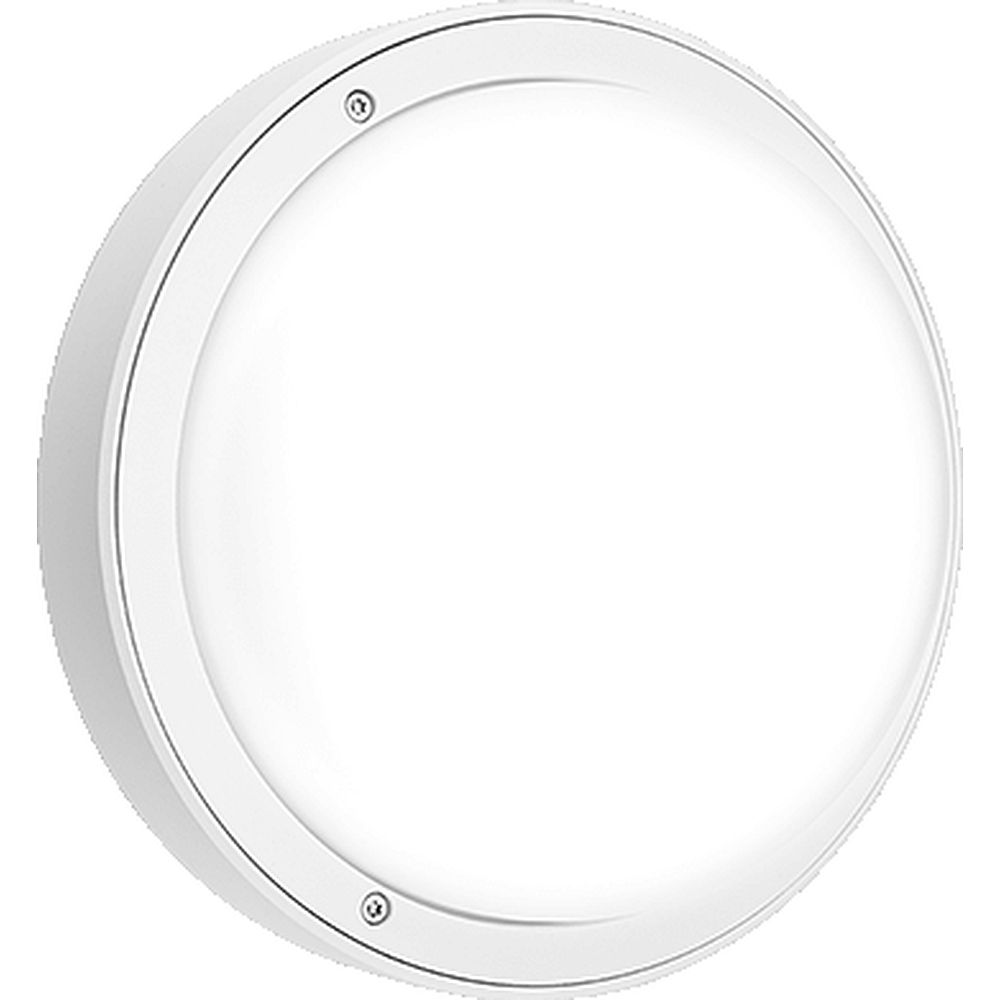

Glamox O10124200. O10-S290 LED 1000 AC-DALI 840 WH
€249.20
Excl. 19% VAT , excl. Shipping Cost

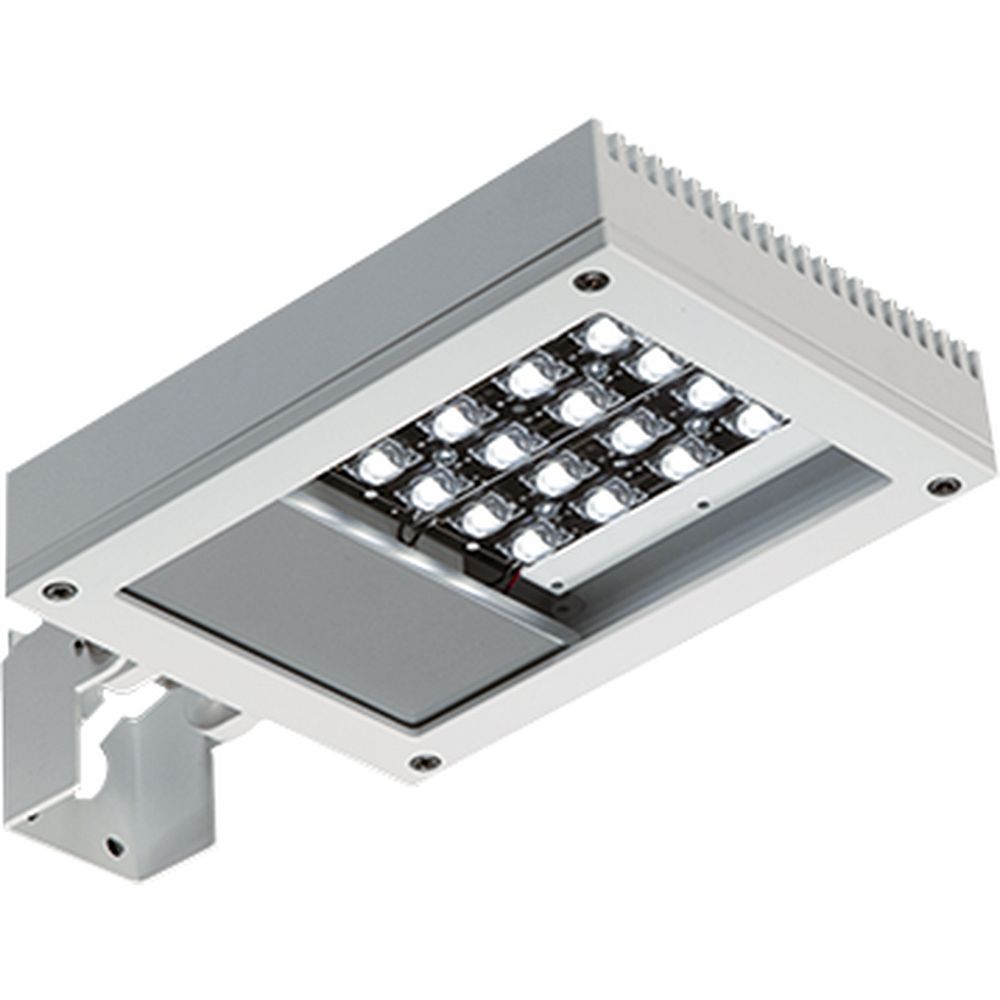

Glamox 5250624. Architectural Lighting O44-175 LED 1300 HF 840 ASY BL
€499.10
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Square
LMS System
1. Number of DALI addresses
  1
2. LMS Protocol
  DALI
Technical Data
1. Minimum ambient temperature (ºC)
  -30
2. Maximum ambient temperature (°C)
  35
3. IK classification
  09
4. IP classification
  66
5. Corrosion class
  C5
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  9,001
3. Lumen per Watt (lm/W)
  123
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  70
6. MacAdam step
  3
7. Energy class light source
  C
8. Minimum dim level (%)
  20
Driver / Ballast
1. Type of LED Driver
  DALI: Dimming
2. Number of Driver
  1
Lifetime
1. L90 Median useful life LED Ta25 (hr)
  100 000
2. L80 Median useful life LED MaxTa (hr)
  100 000
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Main Feed DC (V) Min
  198
6. Main Feed DC (V) Max
  250
7. Total consumption (W)
  73
8. Protection against surges (kV)
  10
9. Number of luminaires on a 10A MCB type B (80% load)
  6
10. Number of luminaires on a 10A MCB type C (80% load)
  10
11. Number of luminaires on a 16A MCB type B (80% load)
  10
12. Number of luminaires on a 16A MCB type C (80% load)
  17

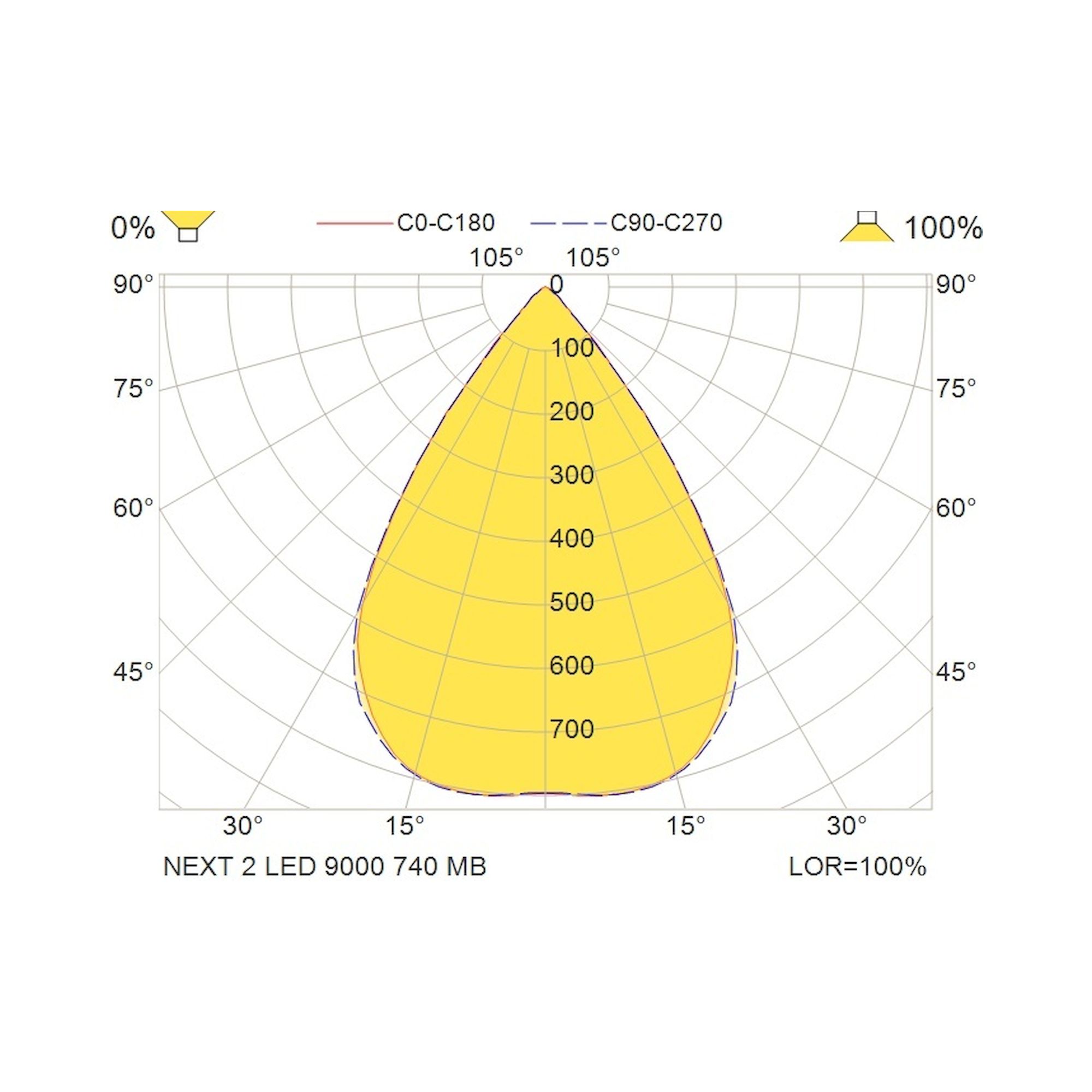

Optic
1. Optic
  MB - Medium beam
2. Material of diffuser
  Tempered glass
3. Diffuser material design
  Clear
Housing
1. Main body material
  Aluminium
2. Body colour
  Grey
3. Main body colour name
  Silver grey

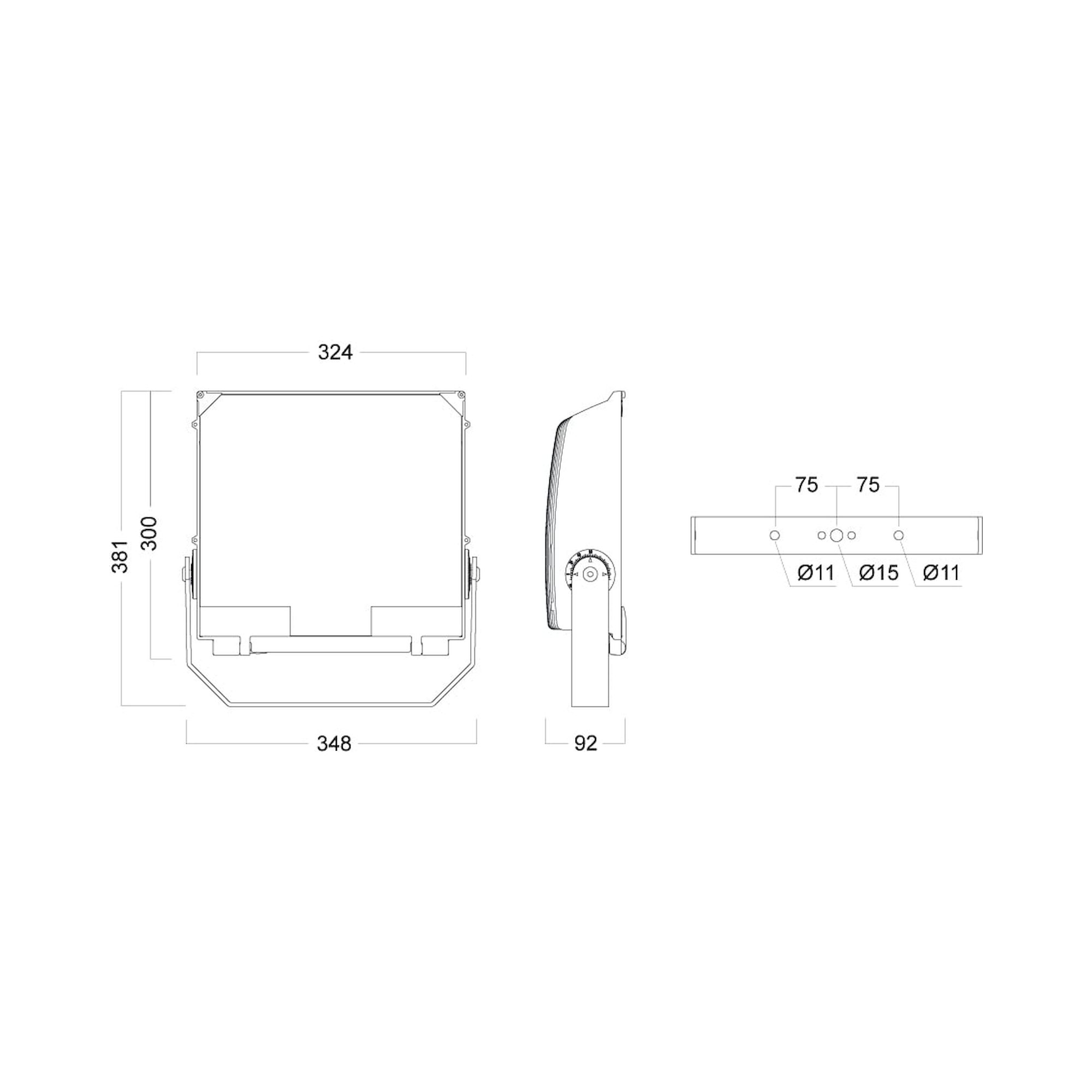

Dimensions
1. Length (mm)
  324
2. Width (mm)
  381
3. Height (mm)
  92
4. Net weight (kg)
  5.35
Cable
1. Cable Cross section (mm²)
  1.50
2. Cable End / Plug Name
  Open End
3. Cable length (m)
  1
4. Cable material
  RUBBER
5. No of leads
  5
Mounting
1. Product mounting
  Surface
Logistic Data
1. Item gross weight (kg)
  5.81

Information

More Information
Manufacturer Nr.	514034175
Manufacturer	Glamox
EAN	8019455341752
Lead time	6 weeks
Weight	5.810000
Colour	4000K
Lenght	324
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
