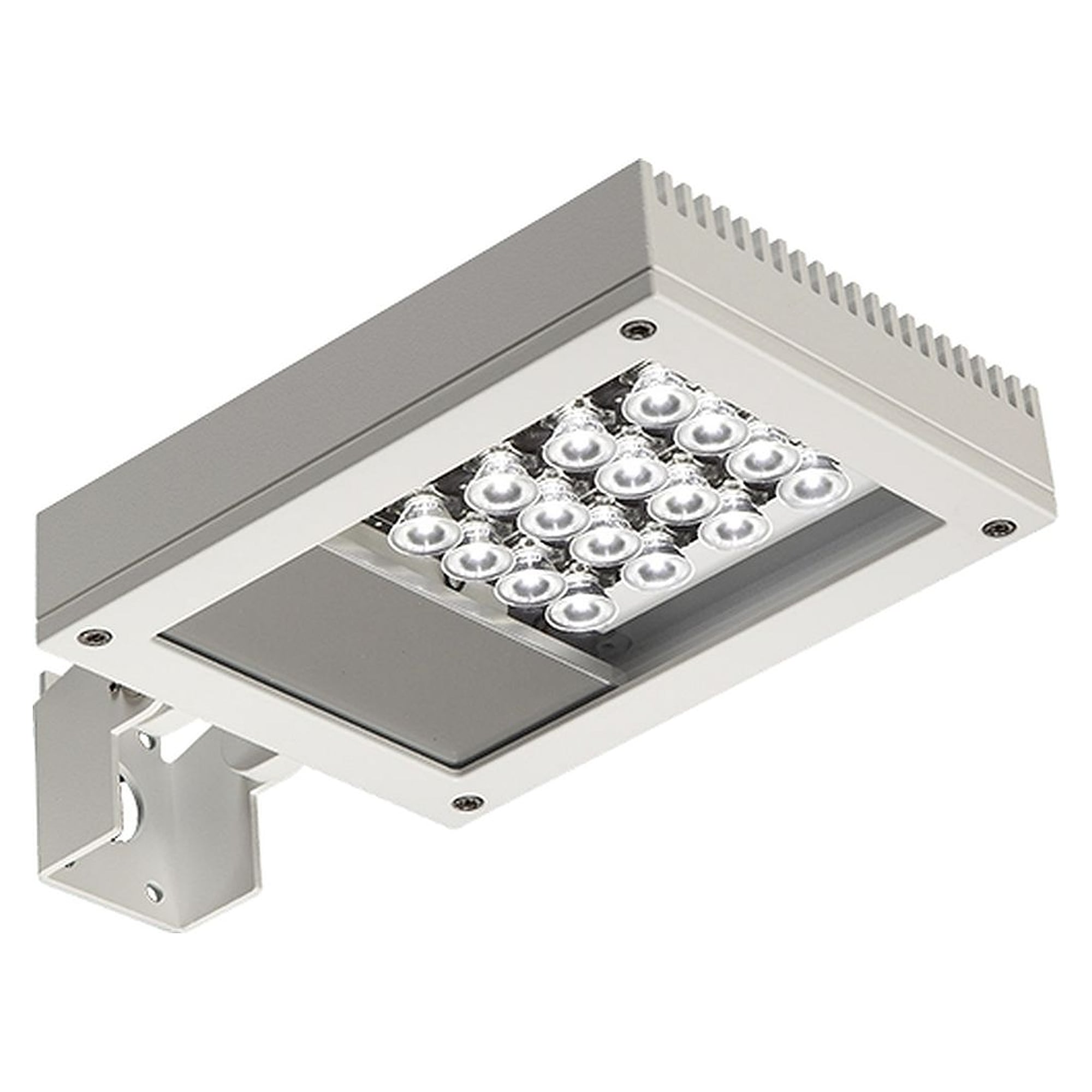

Glamox 5250824. Architectural Lighting O44-175 LED 1800 HF 840 MB BL

Name: Glamox 5250824. Architectural Lighting O44-175 LED 1800 HF 840 MB BL
Brand: Glamox
SKU: GL-5250824
Price: 534.75 EUR
Availability: InStock

Lead time

6 weeks

€534.75

Excl. 19% VAT , excl. Shipping Cost

Article

GL-5250824

Manufacturer Nr.

5250824

O44-175 LED 1800 HF 840 MB BL

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox 5250824. Architectural Lighting O44-175 LED 1800 HF 840 MB BL
€534.75

Excl. 19% VAT , excl. Shipping Cost
Glamox 1099553. Architectural Lighting MINI GAMMA 10-99 LED 500 HF 840 BLACK
€195.00

Excl. 19% VAT , excl. Shipping Cost
Glamox DNX568286. Downlight DN S140 WH 2600 HF 840 NB
€259.50

Excl. 19% VAT , excl. Shipping Cost

Total price

General
1. Product shape
  Square
Technical Data
1. Minimum ambient temperature (ºC)
  -25
2. Maximum ambient temperature (°C)
  25
3. IK classification
  07
4. IP classification
  65
5. Corrosion class
  C4
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  1,797
3. Lumen per Watt (lm/W)
  95
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  D
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  1
Lifetime
1. L70 Median useful life LED MaxTa (hr)
  50 000
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Main Feed DC (V) Min
  180
6. Main Feed DC (V) Max
  270
7. Total consumption (W)
  19
8. Number of luminaires on a 10A MCB type B (80% load)
  31
9. Number of luminaires on a 10A MCB type C (80% load)
  53
10. Number of luminaires on a 16A MCB type B (80% load)
  50
11. Number of luminaires on a 16A MCB type C (80% load)
  85

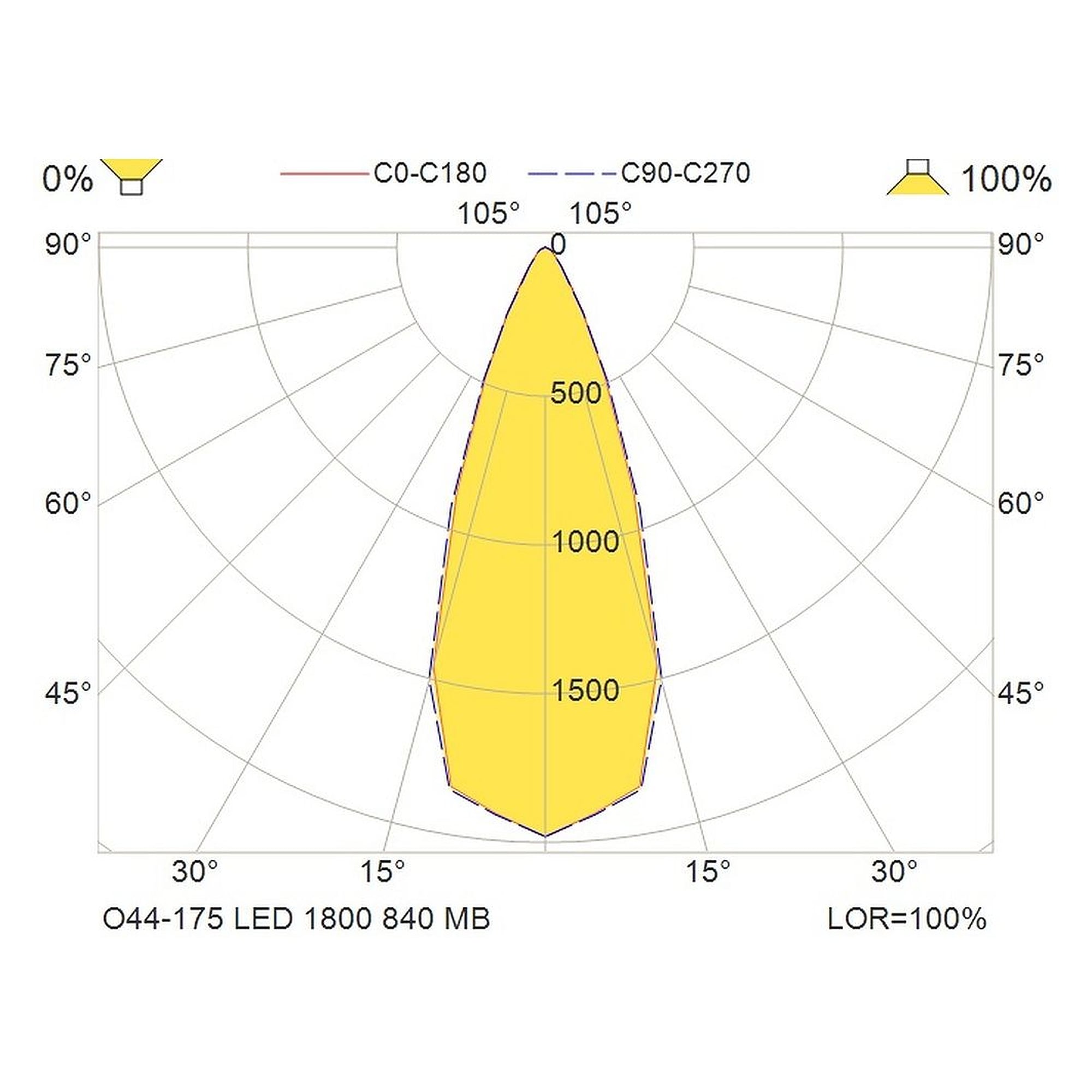

Optic
1. Optic
  MB - Medium beam
2. Material of diffuser
  Tempered glass
3. Diffuser material design
  Clear
Housing
1. Main body material
  Aluminium
2. Body colour
  Black
3. Main body colour name
  Black

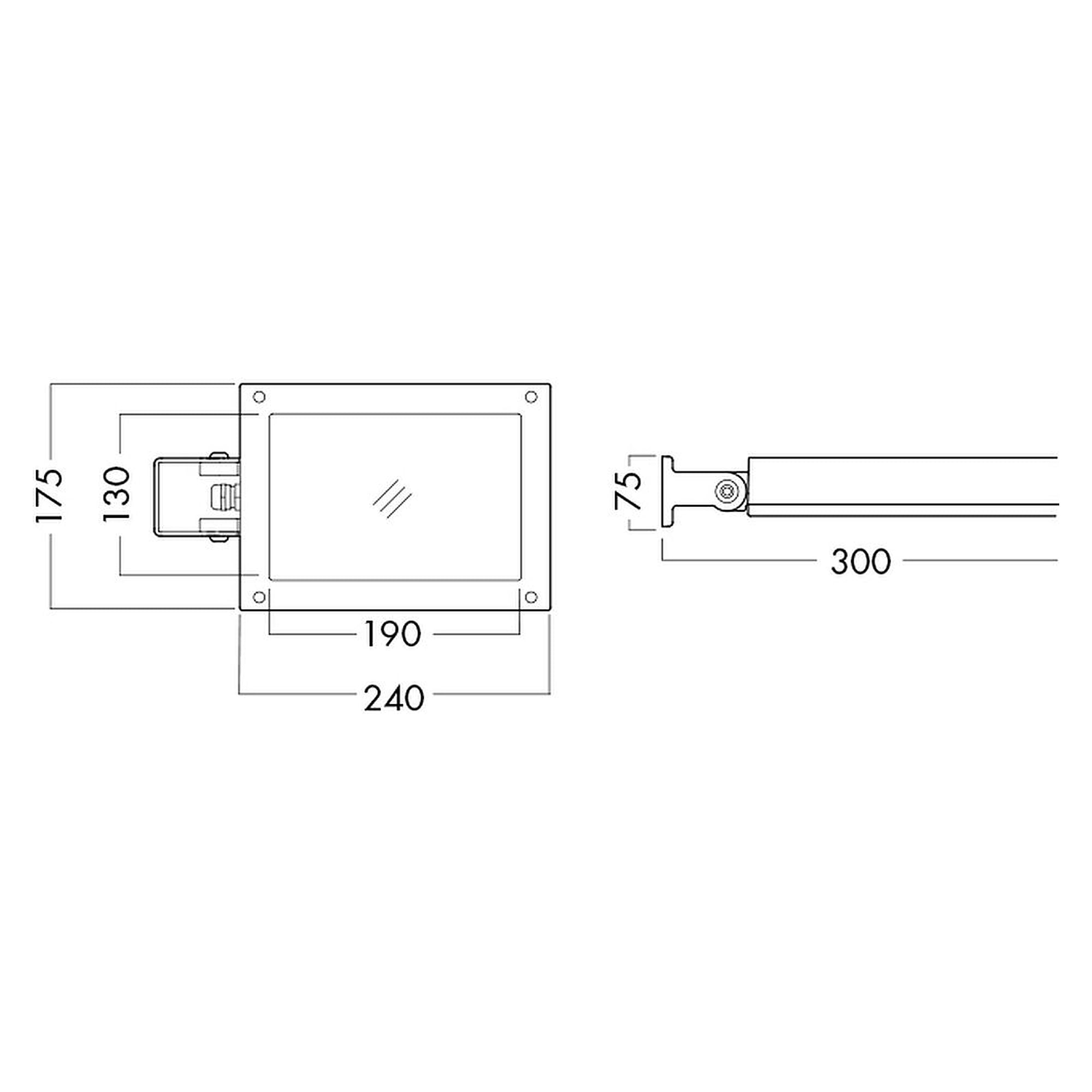

Dimensions
1. Length (mm)
  300
2. Width (mm)
  175
3. Height (mm)
  75
4. Net weight (kg)
  2.65
Mounting
1. Product mounting
  Wall Surface
Logistic Data
1. Item gross weight (kg)
  2.88
