Glamox C21536904. Interior General Lighting C21-S1200 LED WH 2500 WZ 840 TW MPW-SEN BL/ASY

Glamox
Lead time
3 weeks
€455.00
Excl. 19% VAT , excl. Shipping Cost
Article
GL-C21536904

Manufacturer Nr.
C21536904
C21-S1200 LED WH 2500 WZ 840 TW MPW-SEN BL/ASY
Add to Wish List Add to Compare
main product photo
The product may differ from the illustration
Frequently Bought Together
Total price

  • General

    1. Product shape
      Linear

  • LMS System

    1. User Control
      App
    2. Type of user interface
      Screen
    3. User Control Short Text
      App based control
    4. LMS Wireless solution
      ZigBee
    5. LMS Protocol
      Wireless

  • Certificates

    1. Certification
      ENEC

  • Completeness

    1. Item is not complete, missing
      End caps

  • Technical Data

    1. Maximum ambient temperature (°C)
      25

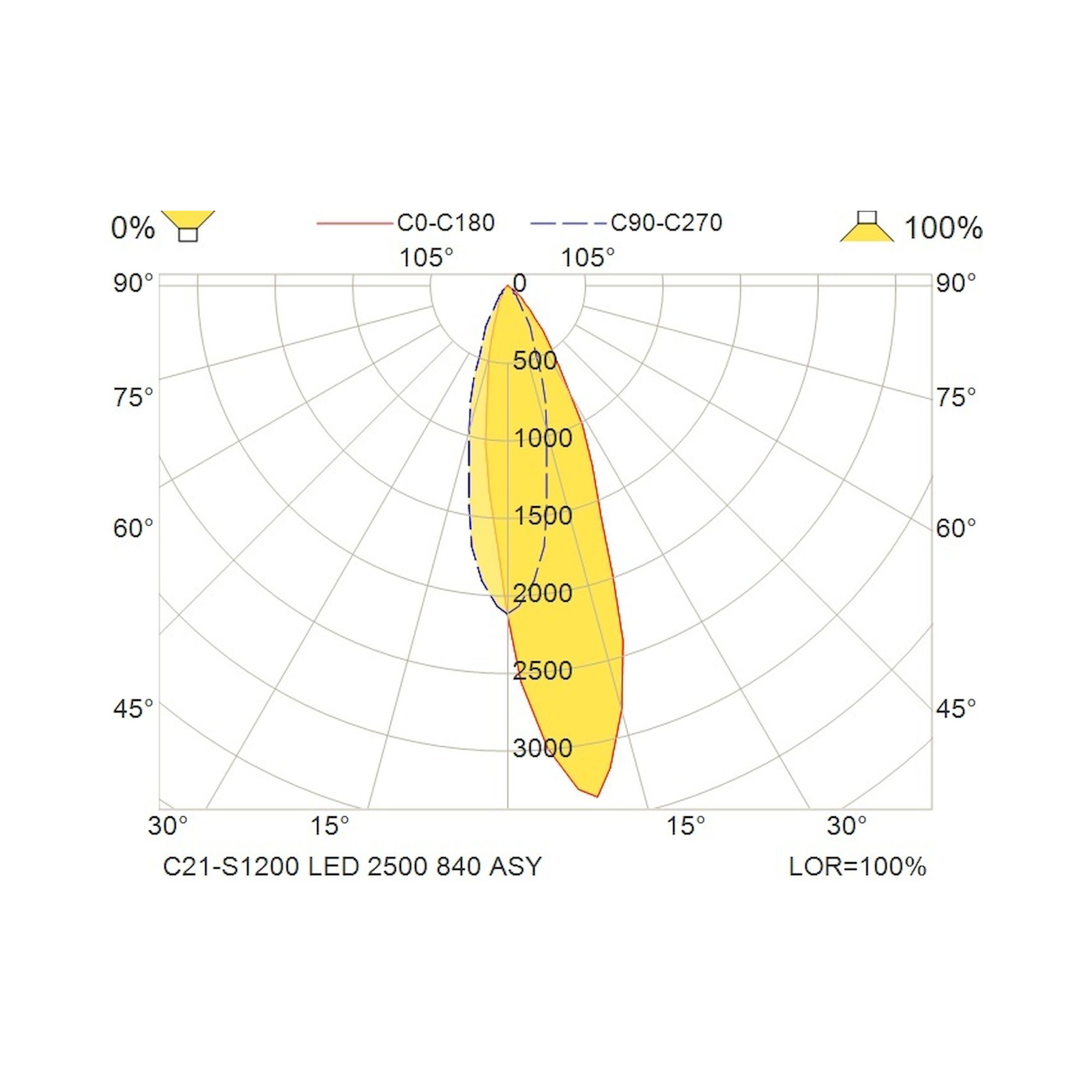

  • Light Technical Data

    1. Light source
      LED
    2. Lumen out (lm)
      2,467
    3. Lumen per Watt (lm/W)
      130
    4. Lamp colour temp (K)
      4000
    5. CRI Colour rendering index
      80
    6. MacAdam step
      3
    7. Energy class light source
      D

  • Driver / Ballast

    1. Type of LED Driver
      WZ: Wireless Zigbee
    2. Number of Driver
      1

  • Lifetime

    1. L80 Median useful life LED Ta25 (hr)
      100 000
    2. Luminous flux decline (LLMF) 50.000h Ta25
      0.80

  • Electrical Data

    1. Voltage from (V)
      220
    2. Maximum voltage (V)
      240
    3. Minimum frequency (Hz)
      50
    4. Maximum frequency (Hz)
      60
    5. Total consumption (W)
      20.50
    6. Number of luminaires on a 10A MCB type B (80% load)
      15
    7. Number of luminaires on a 10A MCB type C (80% load)
      25
    8. Number of luminaires on a 16A MCB type B (80% load)
      24
    9. Number of luminaires on a 16A MCB type C (80% load)
      40

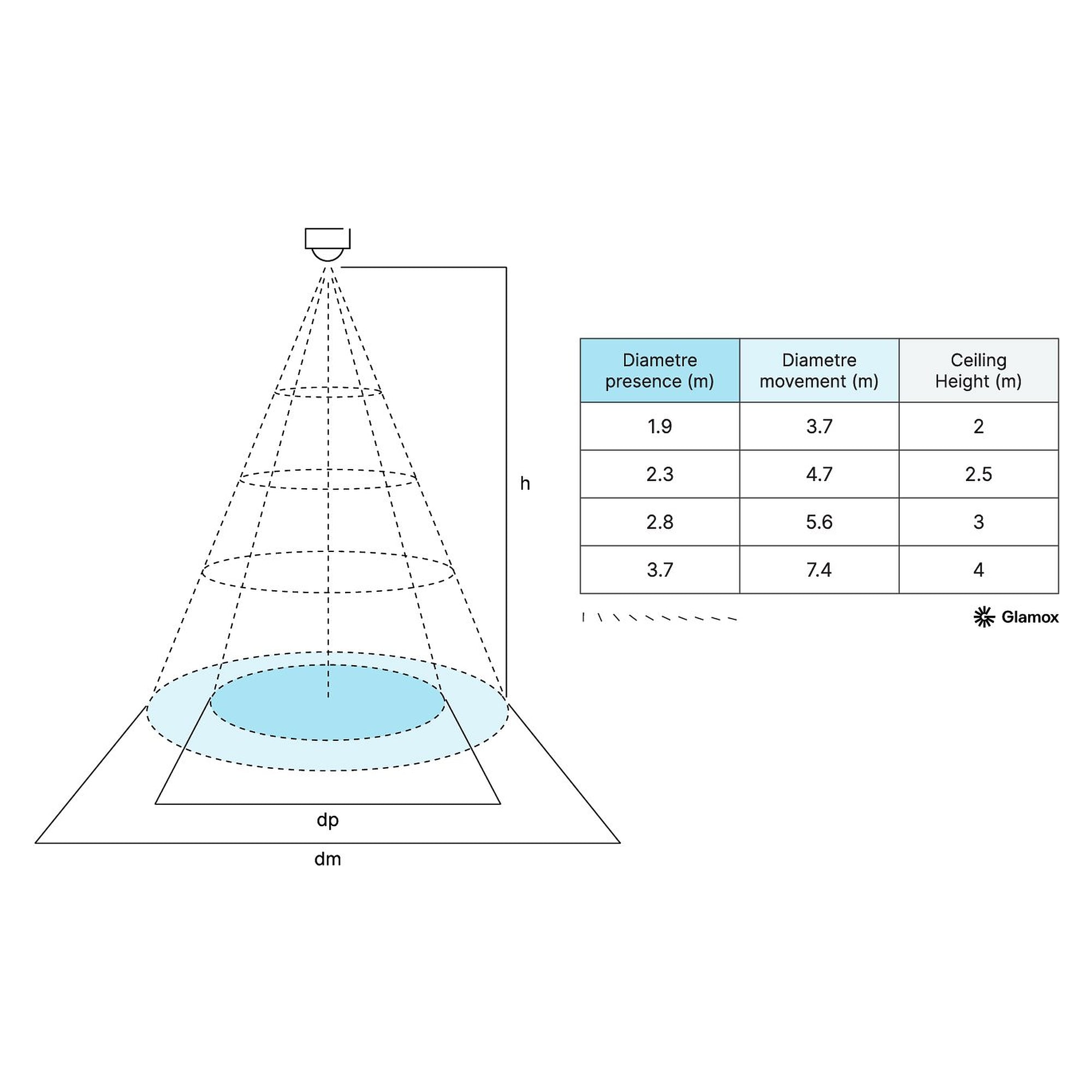

  • Sensor

    1. Sensor type
      PIR+Daylight harvesting (CLS)
    2. Daylight functionality
      CLS
    3. Light sensor max lux
      999
    4. Light sensor min lux
      0
    5. Detection angle crosswise (°)
      62
    6. Detection angle lengthwise (°)
      84
    7. Sensor cover cross presence
      45
    8. Presence functionality
      PROG
    9. Sensor cover length presence
      62
    10. Max mounting height / detection range (metre)
      3
    11. Sensor max hold time
      Programmable
    12. Sensor min hold time
      5 sec

  • Optic

    1. Optic
      ASY - Asymmetric

  • Housing

    1. Main body material
      Recycled aluminium
    2. Body colour
      White
    3. Main body colour name
      White

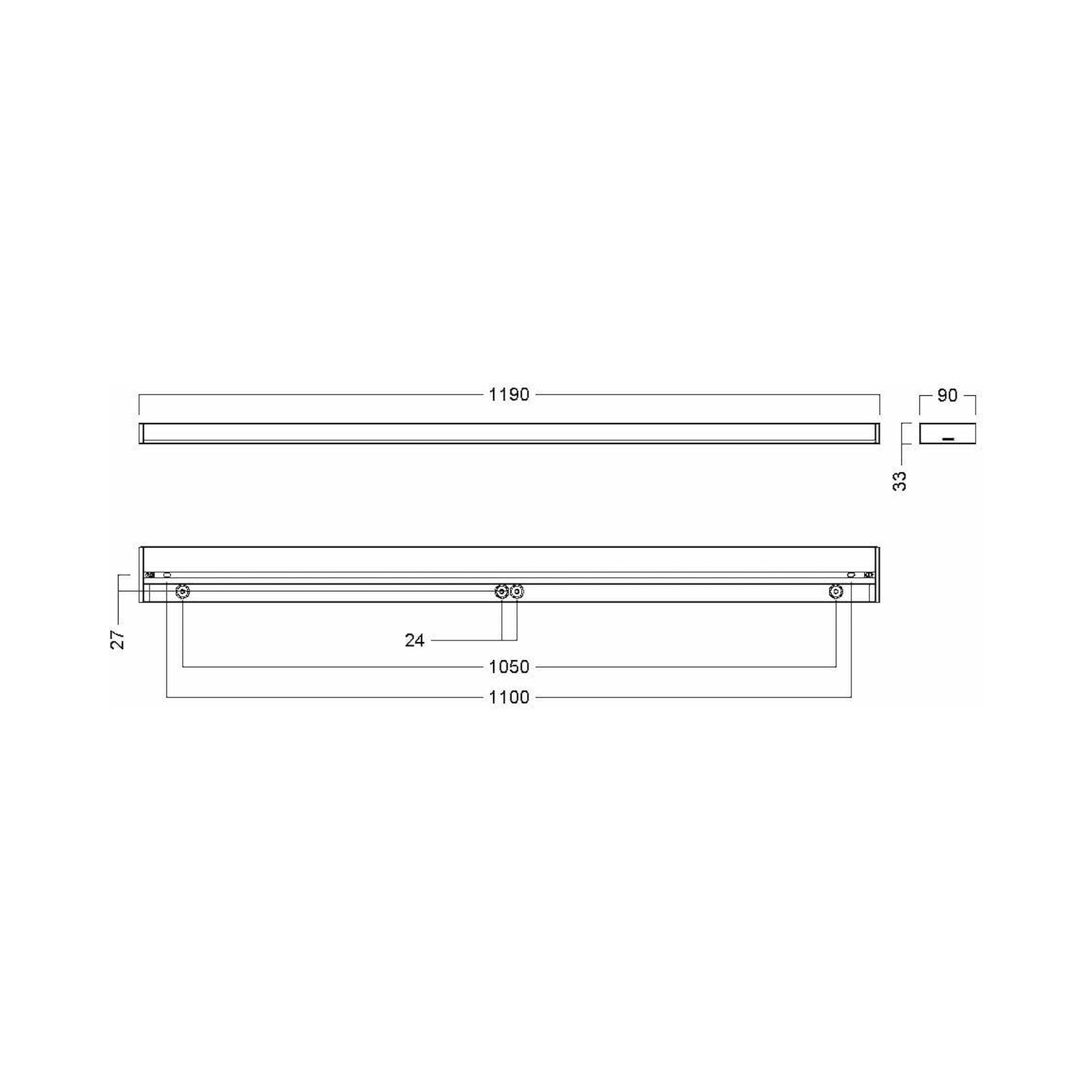

  • Dimensions

    1. Length (mm)
      1,190
    2. Width (mm)
      90
    3. Height (mm)
      33
    4. Net weight (kg)
      2.65

  • Termination

    1. Termination
      5x2x2.5mm2 Push In
    2. Type of through wiring
      5x1.5

  • Cable Inlet

    1. Number of cable entries
      4

  • Mounting

    1. Product mounting
      Ceiling Surface

  • Logistic Data

    1. Item gross weight (kg)
      2.88
More Information
Manufacturer Nr. C21536904
Manufacturer Glamox
EAN 4741145369046
Lead time 3 weeks
Weight 2.880000
Colour 4000K
Lenght 1190
GPSR manufacturer information Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity Original product
Condition of article New
