Glamox C70091544. Interior General Lighting C70-S275 LED 4300 HF 840 SPR-SEN MP

Name: Glamox C70091544. Interior General Lighting C70-S275 LED 4300 HF 840 SPR-SEN MP
Brand: Glamox
SKU: GL-C70091544
Price: 322 EUR
Availability: InStock

GLAMOX Original product

Net price (excl. VAT)

€322.00

Excl. 19% VAT , excl. Shipping Cost

Available Fast shipping

Item GL-C70091544

Manufacturer no. C70091544

Personal expert advice

Brand new Specialist dealer since 2009 Original product Worldwide shipping

Product data

Manufacturer no.C70091544

ConditionNew

Article

GL-C70091544

Skip to the end of the images gallery

Glamox C70091544. Interior General Lighting C70-S275 LED 4300 HF 840 SPR-SEN MP

Skip to the beginning of the images gallery

The product may differ from the illustration

C70-S275 LED 4300 HF 840 SPR-SEN MP

Frequently Bought Together

This Item: Glamox C70091544. Interior General Lighting C70-S275 LED 4300 HF 840 SPR-SEN MP
€322.00
Excl. 19% VAT , excl. Shipping Cost

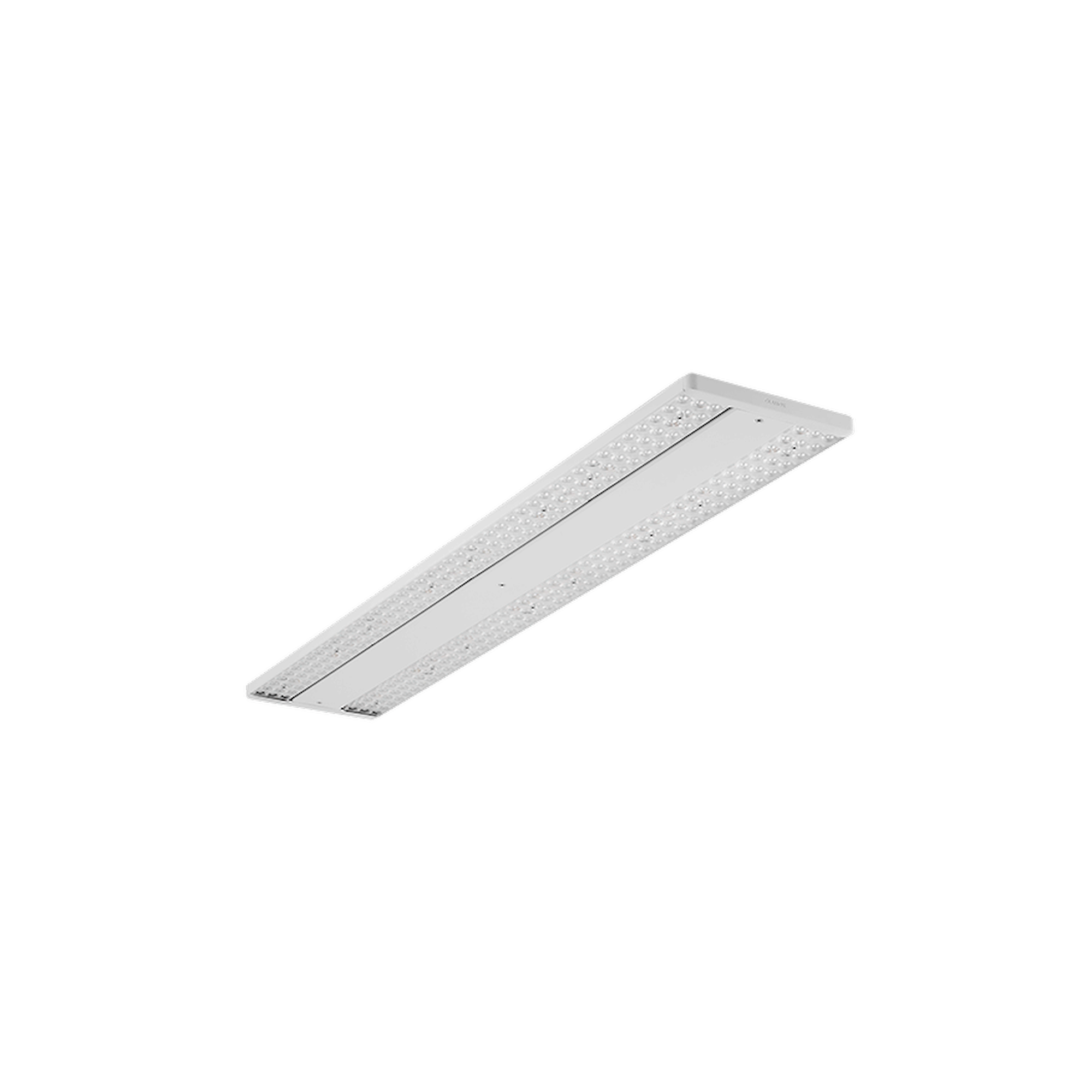

Glamox C52124104. Interior General Lighting C52-S1500 24000 DALI 840 TW MB
€625.80
Excl. 19% VAT , excl. Shipping Cost
Glamox C52124073. Interior General Lighting C52-S1200 10000 DALI E3/ST 840 TW MB
€615.30
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Square
Electrical Data
1. Leakage current (mA)
  0.29
2. Voltage from (V)
  220
3. Maximum voltage (V)
  240
4. Minimum frequency (Hz)
  50
5. Maximum frequency (Hz)
  60
6. Total consumption (W)
  39.26
7. Number of luminaires on a 10A MCB type B (80% load)
  15
8. Number of luminaires on a 10A MCB type C (80% load)
  25
9. Number of luminaires on a 16A MCB type B (80% load)
  24
10. Number of luminaires on a 16A MCB type C (80% load)
  40
Technical Data
1. Maximum ambient temperature (°C)
  25
2. IK classification
  06
3. IP classification
  40
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  4,212
3. Lumen per Watt (lm/W)
  111
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  C
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. Luminous flux decline (LLMF) 50.000h Ta25
  0.90
Sensor
1. Sensor type
  PIR
2. Detection angle crosswise (°)
  62
3. Detection angle lengthwise (°)
  50
4. Presence functionality
  Auto ON_OFF
5. Max mounting height / detection range (metre)
  3
6. Sensor max hold time
  15min
7. Sensor min hold time
  5min
8. Max number of children per sensor
  3

Optic
1. Optic
  MP - Micro prismatic diffuser
2. Material of diffuser
  Acrylic
3. Diffuser material design
  Prismatic
Housing
1. Main body material
  Steel
2. Body colour
  White
3. Main body colour name
  White
4. Detail material
  Polycarbonate
Dimensions
1. Length (mm)
  1,174
2. Width (mm)
  274
3. Height (mm)
  57
4. Net weight (kg)
  5.72
Termination
1. Termination
  3x2x2.5mm2 Push In
Mounting
1. Product mounting
  Ceiling Surface
Logistic Data
1. Item gross weight (kg)
  6.22

Information

More Information
Manufacturer Nr.	C70091544
Manufacturer	Glamox
Weight	6.220000
Lenght	1175
Color Temperature	4000K
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
