Glamox C77099298. Downlight C77-R160x160 WH 1200 HF 840 SM

Name: Glamox C77099298. Downlight C77-R160x160 WH 1200 HF 840 SM
Brand: Glamox
SKU: GL-C77099298
Price: 111.3 EUR
Availability: InStock

GLAMOX Original product

Net price (excl. VAT)

€111.30

Excl. 19% VAT , excl. Shipping Cost

Available Fast shipping

Item GL-C77099298

Manufacturer no. C77099298

Personal expert advice

Brand new Specialist dealer since 2009 Original product Worldwide shipping

Product data

Manufacturer no.C77099298

EAN7054130992981

ConditionNew

Article

GL-C77099298

Skip to the end of the images gallery

Glamox C77099298. Downlight C77-R160x160 WH 1200 HF 840 SM

Skip to the beginning of the images gallery

The product may differ from the illustration

C77-R160x160 WH 1200 HF 840 SM

Frequently Bought Together

This Item: Glamox C77099298. Downlight C77-R160x160 WH 1200 HF 840 SM
€111.30
Excl. 19% VAT , excl. Shipping Cost
Glamox CML571183. Downlights CAMELEON-R65A WH IP20 800 HF 840 38°
€91.00
Excl. 19% VAT , excl. Shipping Cost
Glamox D35529867. Downlight D35-R180 LED 1000 HF 840 OP
€94.50
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Square
Certificates
1. Certification
  5 year warranty,ENEC
Technical Data
1. Minimum ambient temperature (ºC)
  -25
2. Maximum ambient temperature (°C)
  30
3. IK classification
  08
4. IP classification
  40 from underneath \ 20 from above
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  1,194
3. Lumen per Watt (lm/W)
  121
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  E
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. L80 Median useful life LED MaxTa (hr)
  100 000
3. Median useful life driver Ta25 (hr)
  100,000
4. Median useful life driver Ta45 (hr)
  50,000
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Total consumption (W)
  9.90
6. Number of luminaires on a 10A MCB type B (80% load)
  24
7. Number of luminaires on a 10A MCB type C (80% load)
  41
8. Number of luminaires on a 16A MCB type B (80% load)
  40
9. Number of luminaires on a 16A MCB type C (80% load)
  68

Optic
1. Optic
  SM - Silver matt reflector
Housing
1. Main body material
  Steel
2. Body colour
  White
3. Main body colour name
  Traffic white
4. Main body colour RAL code
  RAL 9016

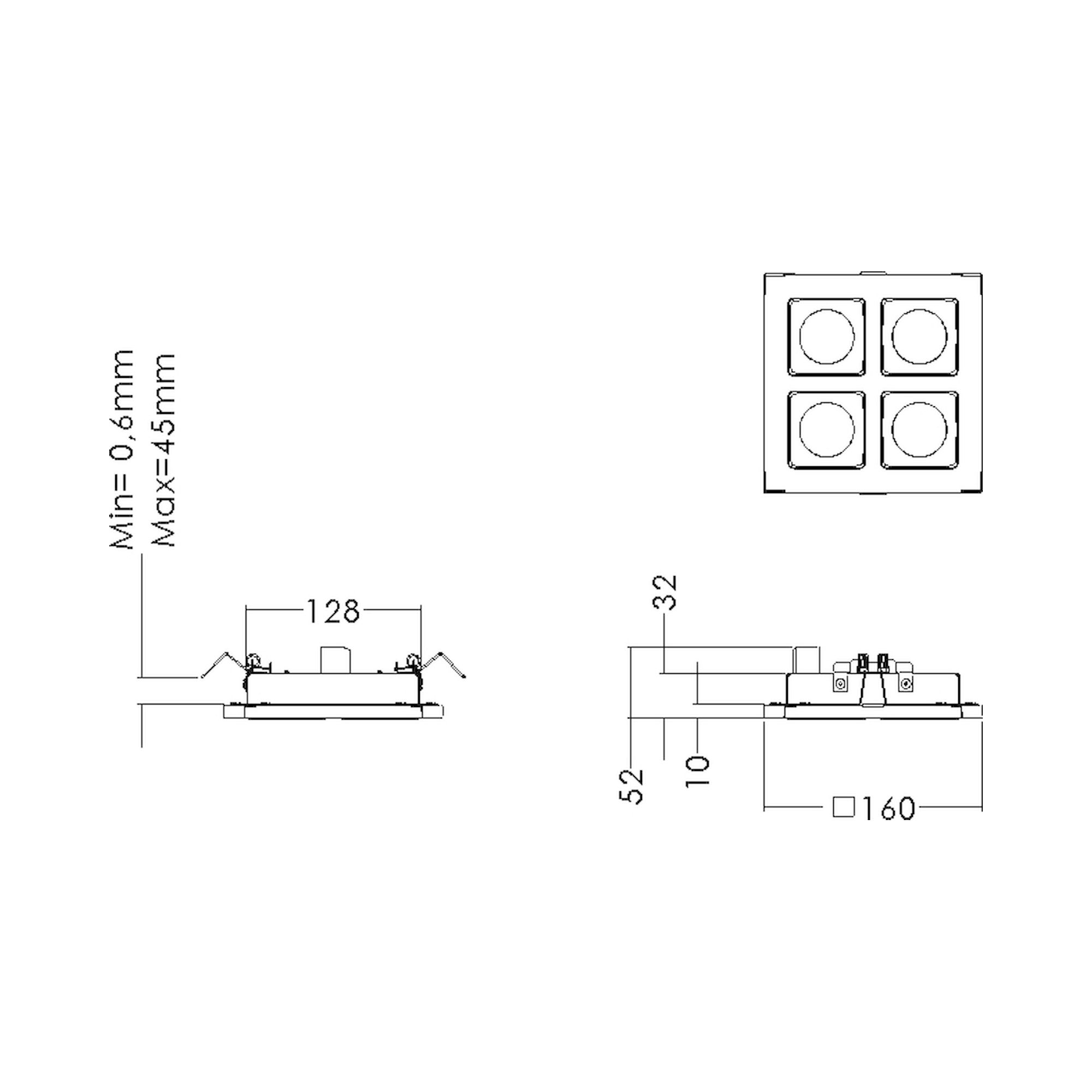

Dimensions
1. Length (mm)
  160
2. Width (mm)
  160
3. Height (mm)
  32
4. Cut out (mm)
  128
5. Net weight (kg)
  0.57
Termination
1. Termination
  3x2x2.5mm2 Push In
Mounting
1. Product mounting
  Ceiling Recessed
Logistic Data
1. Item gross weight (kg)
  0.62

Information

More Information
Manufacturer Nr.	C77099298
Manufacturer	Glamox
EAN	7054130992981
Weight	0.620000
Color Temperature	4000K
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
