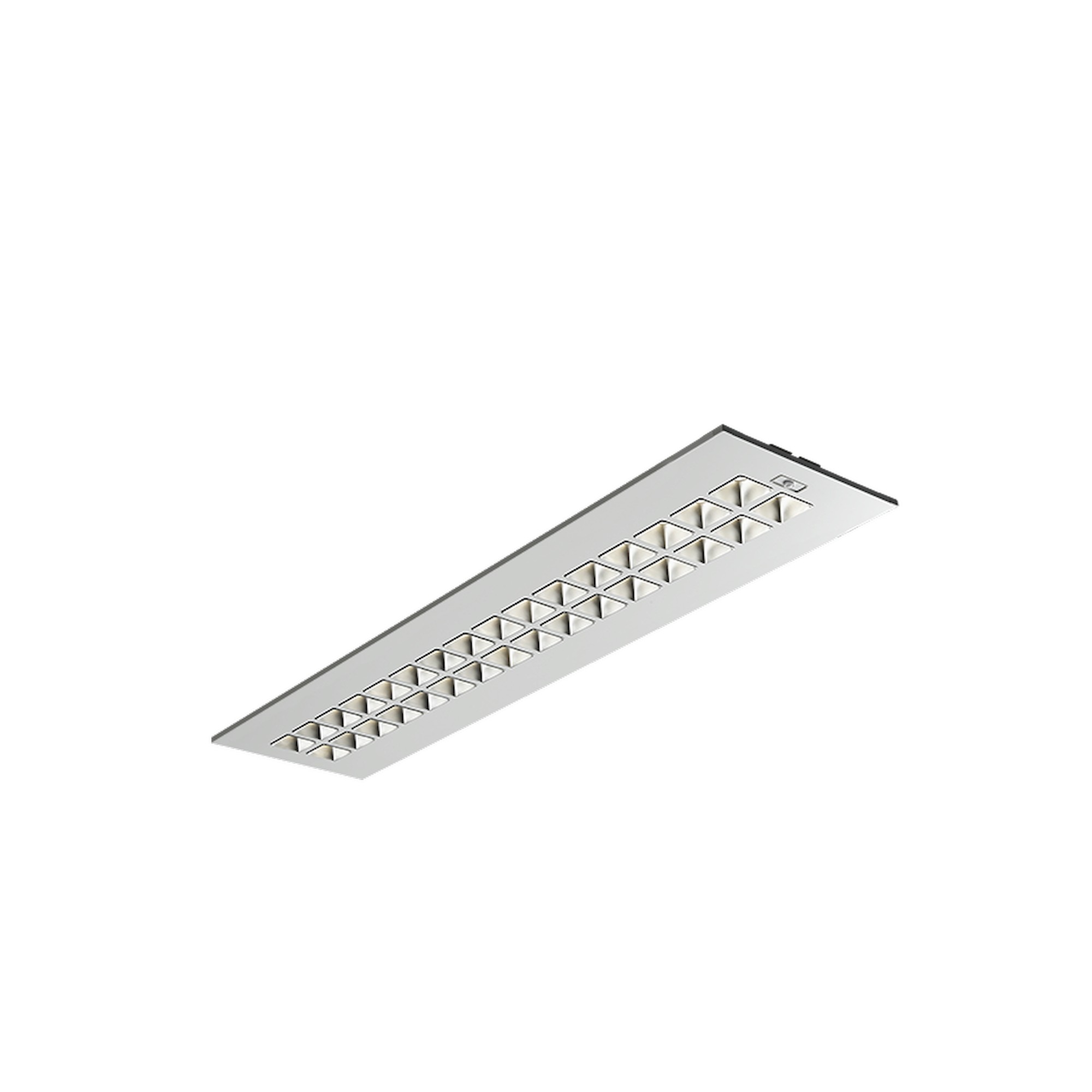

Glamox C77099503. Interior General Lighting C77-R300x1200 WH 5000 HF 830 SPR-SEN LI/O 2xSM

Name: Glamox C77099503. Interior General Lighting C77-R300x1200 WH 5000 HF 830 SPR-SEN LI/O 2xSM
Brand: Glamox
SKU: GL-C77099503
Price: 251.3 EUR
Availability: InStock

Lead time

4 weeks

€251.30

Excl. 19% VAT , excl. Shipping Cost

Article

GL-C77099503

Manufacturer Nr.

C77099503

C77-R300x1200 WH 5000 HF 830 SPR-SEN LI/O 2xSM

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox C77099503. Interior General Lighting C77-R300x1200 WH 5000 HF 830 SPR-SEN LI/O 2xSM
€251.30
Excl. 19% VAT , excl. Shipping Cost
Glamox C80546743. Innenraumleuchten C80-R1800 WH G2 5400 HF 830 OD
€321.30
Excl. 19% VAT , excl. Shipping Cost
Glamox C95233607. Innenraumleuchten C95-R600x600 LED 1500 DALI 840 LI SK7
€546.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Rectangular
Certificates
1. Certification
  5 year warranty,ENEC
Technical Data
1. Minimum ambient temperature (ºC)
  -25
2. Maximum ambient temperature (°C)
  35
3. IK classification
  08
4. IP classification
  40 from underneath \ 20 from above
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  4,871
3. Lumen per Watt (lm/W)
  141
4. Lamp colour temp (K)
  3000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  D
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. L80 Median useful life LED MaxTa (hr)
  100 000
3. Median useful life driver Ta25 (hr)
  100,000
4. Median useful life driver Ta45 (hr)
  50,000
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Total consumption (W)
  34.57
6. Number of luminaires on a 10A MCB type B (80% load)
  20
7. Number of luminaires on a 10A MCB type C (80% load)
  34
8. Number of luminaires on a 16A MCB type B (80% load)
  33
9. Number of luminaires on a 16A MCB type C (80% load)
  56

Sensor
1. Sensor type
  PIR
2. Detection angle crosswise (°)
  62
3. Detection angle lengthwise (°)
  50
4. Max mounting height / detection range (metre)
  3
5. Sensor max hold time
  15min
6. Sensor min hold time
  5min
7. Max number of children per sensor
  3
Optic
1. Optic
  SM - Silver matt reflector
Housing
1. Main body material
  Steel
2. Body colour
  White
3. Main body colour name
  Traffic white
4. Main body colour RAL code
  RAL 9016

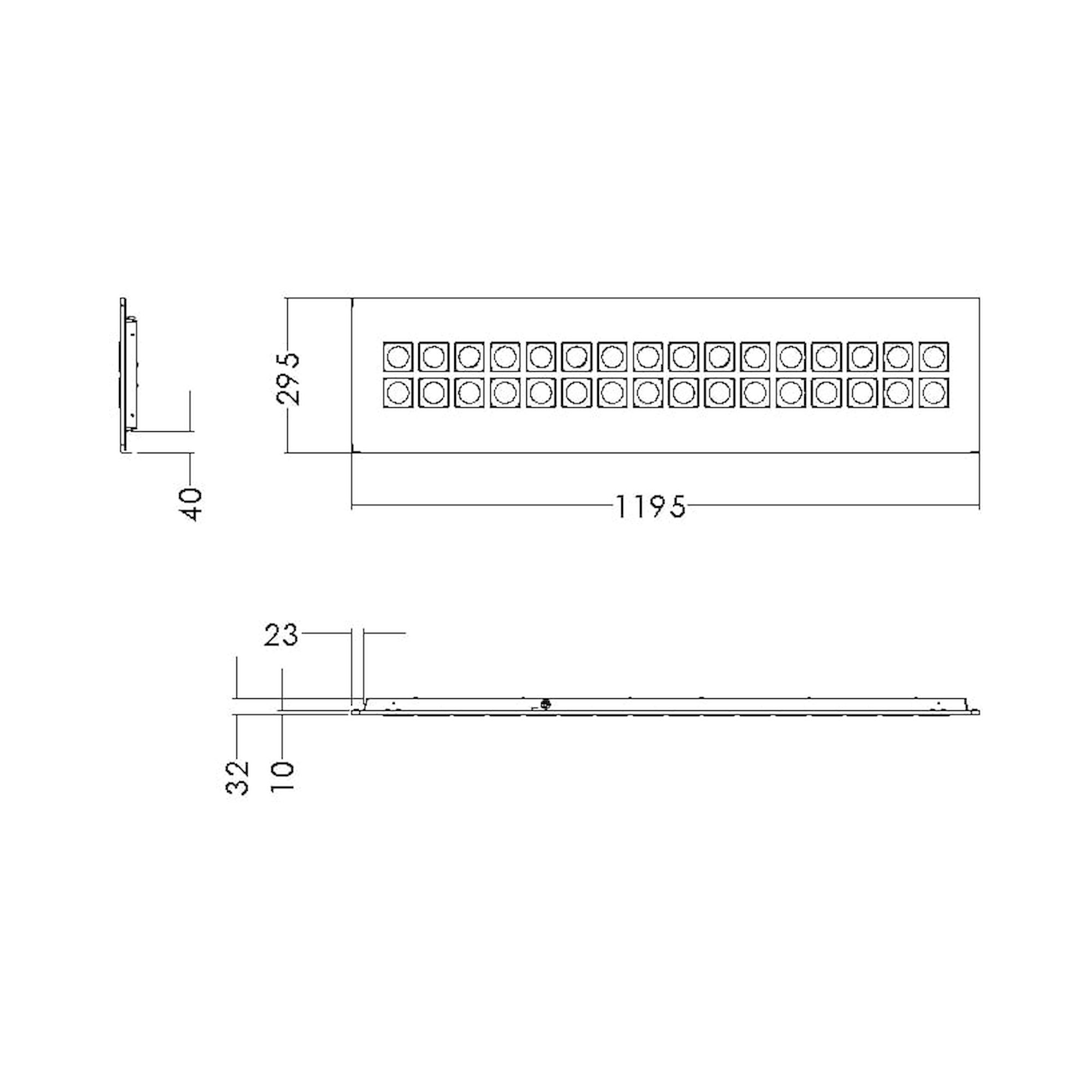

Dimensions
1. Length (mm)
  1,195
2. Width (mm)
  295
3. Height (mm)
  32
Termination
1. Termination
  5x2x2.5mm2 Push In
2. Plug type
  LINECT OUT -possibility to connect 3 other luminaries
Mounting
1. Product mounting
  Ceiling Recessed

Information

More Information
Manufacturer Nr.	C77099503
Manufacturer	Glamox
EAN	7054130995036
Lead time	4 weeks
Weight	0.100000
Colour	3000K
Lenght	1195
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
