Glamox C77099821. Interior General Lighting C77-S150x1200 WH 4000 WZ 840 MPW-SEN SM

Glamox
Lead time
4 weeks
€294.70
Excl. 19% VAT , excl. Shipping Cost
Article
GL-C77099821

Manufacturer Nr.
C77099821
C77-S150x1200 WH 4000 WZ 840 MPW-SEN SM
Add to Wish List Add to Compare

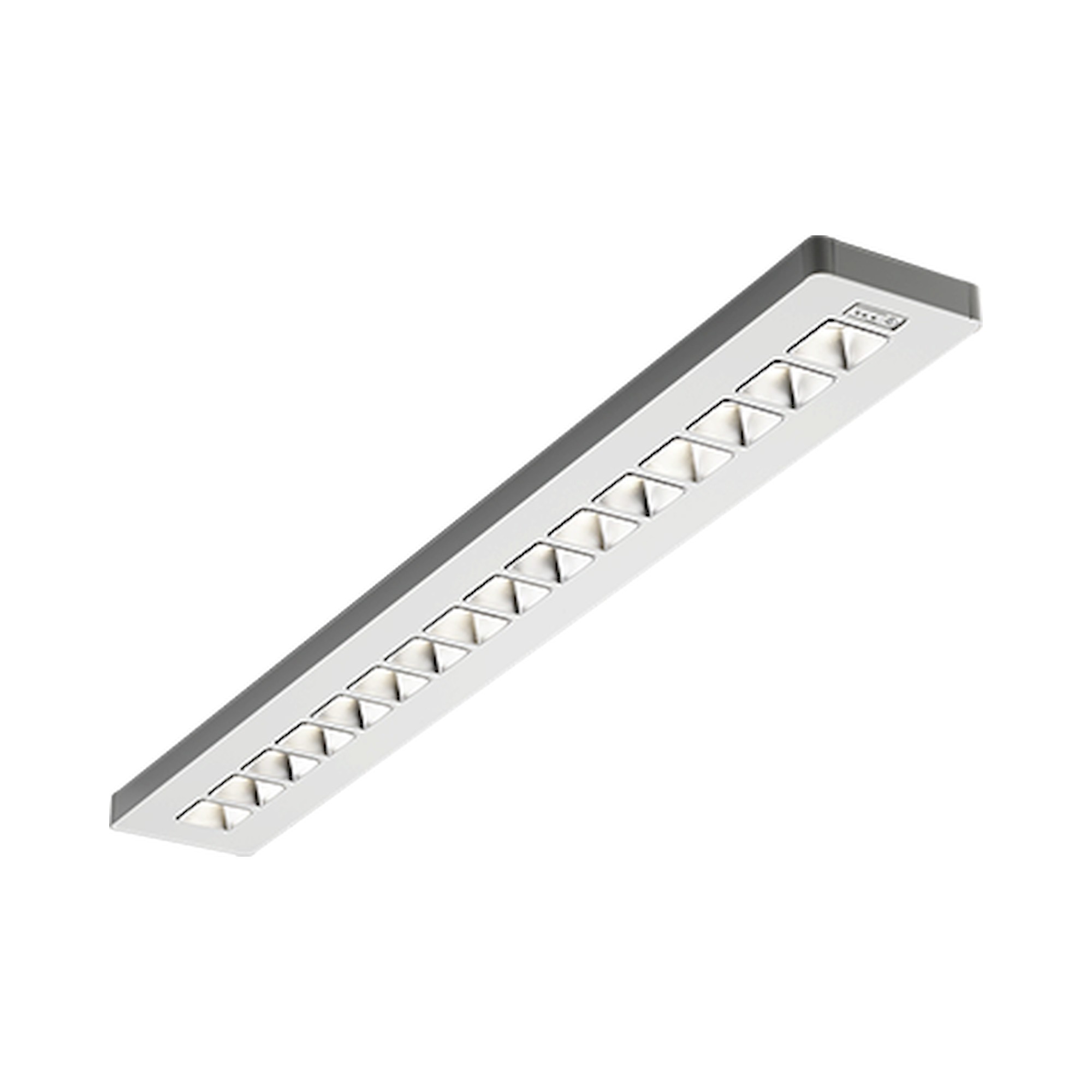

main product photo
The product may differ from the illustration
Frequently Bought Together
Total price

  • General

    1. Product shape
      Rectangular

  • LMS System

    1. User Control
      App
    2. Type of user interface
      Screen
    3. User Control Short Text
      App based control

  • Certificates

    1. Certification
      5 year warranty,ENEC

  • Technical Data

    1. Minimum ambient temperature (ºC)
      -25
    2. Maximum ambient temperature (°C)
      40
    3. IK classification
      08
    4. IP classification
      20

  • Light Technical Data

    1. Light source
      LED
    2. Lumen out (lm)
      4,176
    3. Lumen per Watt (lm/W)
      133
    4. Lamp colour temp (K)
      4000
    5. CRI Colour rendering index
      80
    6. MacAdam step
      3
    7. Energy class light source
      D
    8. Minimum dim level (%)
      1

  • Driver / Ballast

    1. Type of LED Driver
      WZ: Wireless Zigbee
    2. Number of Driver
      1

  • Lifetime

    1. L80 Median useful life LED Ta25 (hr)
      100 000
    2. L80 Median useful life LED MaxTa (hr)
      100 000
    3. Median useful life driver Ta25 (hr)
      100,000
    4. Median useful life driver Ta45 (hr)
      50,000

  • Electrical Data

    1. Voltage from (V)
      220
    2. Maximum voltage (V)
      240
    3. Minimum frequency (Hz)
      50
    4. Maximum frequency (Hz)
      60
    5. Total consumption (W)
      31.50
    6. Number of luminaires on a 10A MCB type B (80% load)
      12
    7. Number of luminaires on a 10A MCB type C (80% load)
      21
    8. Number of luminaires on a 16A MCB type B (80% load)
      21
    9. Number of luminaires on a 16A MCB type C (80% load)
      35

  • Sensor

    1. Sensor type
      PIR+Daylight harvesting (CLS)
    2. Daylight functionality
      CLS
    3. Light sensor max lux
      999
    4. Light sensor min lux
      0
    5. Detection angle crosswise (°)
      62
    6. Detection angle lengthwise (°)
      84
    7. Sensor cover cross presence
      45
    8. Sensor cover length presence
      62
    9. Max mounting height / detection range (metre)
      3
    10. Sensor max hold time
      Programmable
    11. Sensor min hold time
      5 sec

  • Optic

    1. Optic
      SM - Silver matt reflector

  • Housing

    1. Main body material
      Steel
    2. Body colour
      White
    3. Main body colour name
      Traffic white
    4. Main body colour RAL code
      RAL 9016

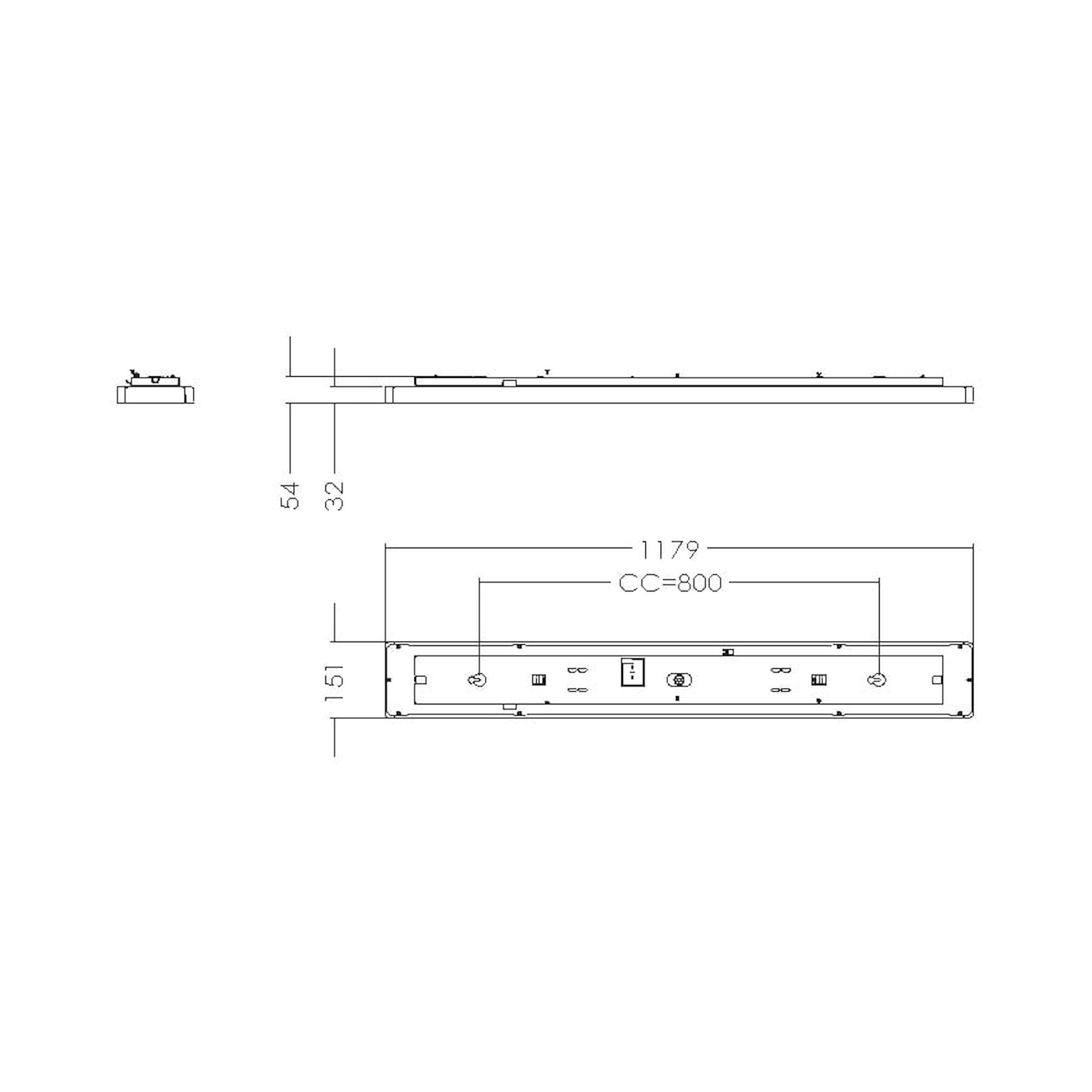

  • Dimensions

    1. Length (mm)
      1,179
    2. Width (mm)
      151
    3. Height (mm)
      54
    4. Net weight (kg)
      4.21

  • Termination

    1. Termination
      5x2x2.5mm2 Push In

  • Mounting

    1. Product mounting
      Surface,Ceiling Surface,Ceiling

  • Logistic Data

    1. Item gross weight (kg)
      4.58
More Information
Manufacturer Nr. C77099821
Manufacturer Glamox
EAN 7054130998211
Lead time 4 weeks
Weight 4.580000
Colour 4000K
Lenght 1179
GPSR manufacturer information Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity Original product
Condition of article New
Download
File Icon Glamox. Catalog luxlumen (de) (13.99 MB)
