Glamox C77099834. Interior General Lighting C77-S200x1200 WH 6000 HF E1/S 830 SM

Name: Glamox C77099834. Interior General Lighting C77-S200x1200 WH 6000 HF E1/S 830 SM
Brand: Glamox
SKU: GL-C77099834
Price: 343.7 EUR
Availability: InStock

Lead time

4 weeks

€343.70

Excl. 19% VAT , excl. Shipping Cost

Article

GL-C77099834

Manufacturer Nr.

C77099834

C77-S200x1200 WH 6000 HF E1/S 830 SM

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox C77099834. Interior General Lighting C77-S200x1200 WH 6000 HF E1/S 830 SM
€343.70
Excl. 19% VAT , excl. Shipping Cost

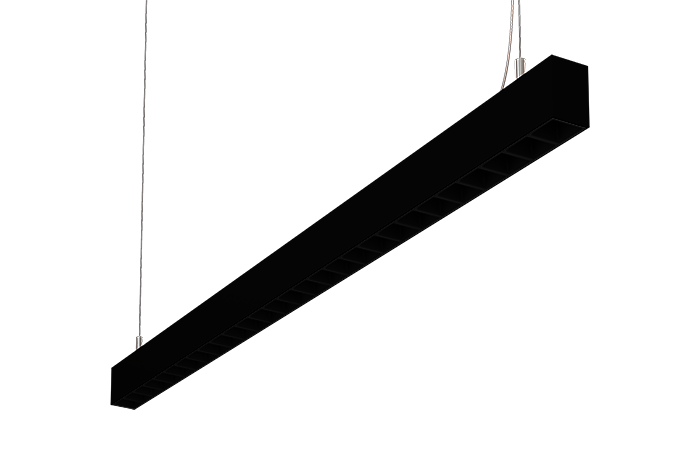

Glamox FXX132017. Innenraumleuchten FX45-P1683 0/100 BL 4500 HF C2.5 830 MB DK
€287.70
Excl. 19% VAT , excl. Shipping Cost

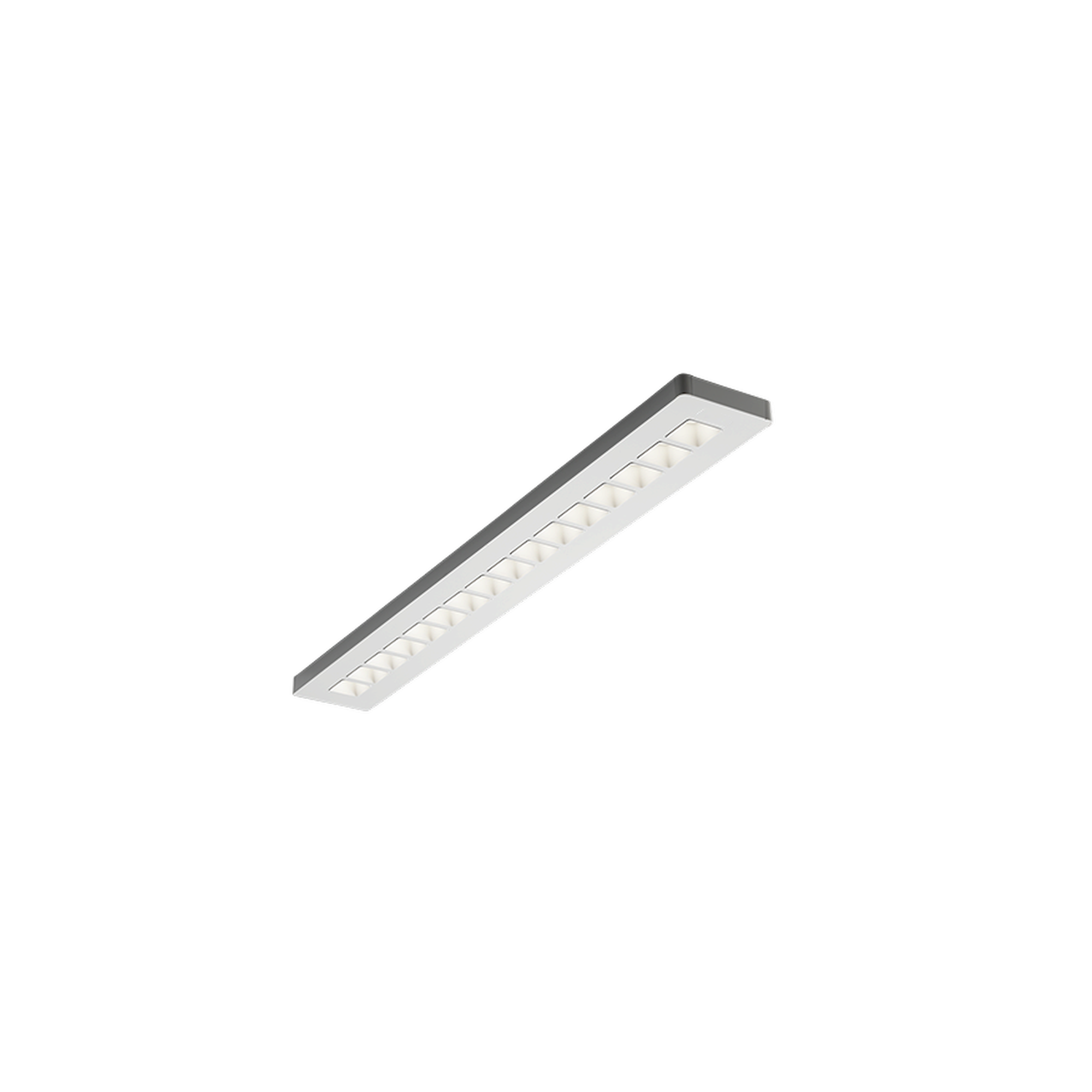

Glamox C77100051. Interior General Lighting C77-S150x1500 WH 4000 DALI 840 WM
€238.70
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Rectangular
Certificates
1. Certification
  5 year warranty
Technical Data
1. Minimum ambient temperature (ºC)
  0
2. Maximum ambient temperature (°C)
  30
3. IK classification
  08
4. IP classification
  20
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  5,854
3. Lumen per Watt (lm/W)
  134
4. Lamp colour temp (K)
  3000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  D
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. L80 Median useful life LED MaxTa (hr)
  100 000
3. Median useful life driver Ta25 (hr)
  100,000
4. Median useful life driver Ta45 (hr)
  50,000
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Total consumption (W)
  43.72
6. Number of luminaires on a 10A MCB type B (80% load)
  12
7. Number of luminaires on a 10A MCB type C (80% load)
  21
8. Number of luminaires on a 16A MCB type B (80% load)
  21
9. Number of luminaires on a 16A MCB type C (80% load)
  35

Emergency
1. Type of emergency
  S = Standard
2. Duration in battery mode (hrs)
  1
3. Charging power consumption (Emg) (W)
  1.50
4. Output in battery mode (%)
  7.30
Optic
1. Optic
  SM - Silver matt reflector
Housing
1. Main body material
  Steel
2. Body colour
  White
3. Main body colour name
  Traffic white
4. Main body colour RAL code
  RAL 9016
Dimensions
1. Length (mm)
  1,179
2. Width (mm)
  191
3. Height (mm)
  54
Termination
1. Termination
  5x2x2.5mm2 Push In
Mounting
1. Product mounting
  Surface,Ceiling Surface,Ceiling

Information

More Information
Manufacturer Nr.	C77099834
Manufacturer	Glamox
EAN	7054130998341
Lead time	4 weeks
Weight	0.100000
Colour	3000K
Lenght	1179
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
