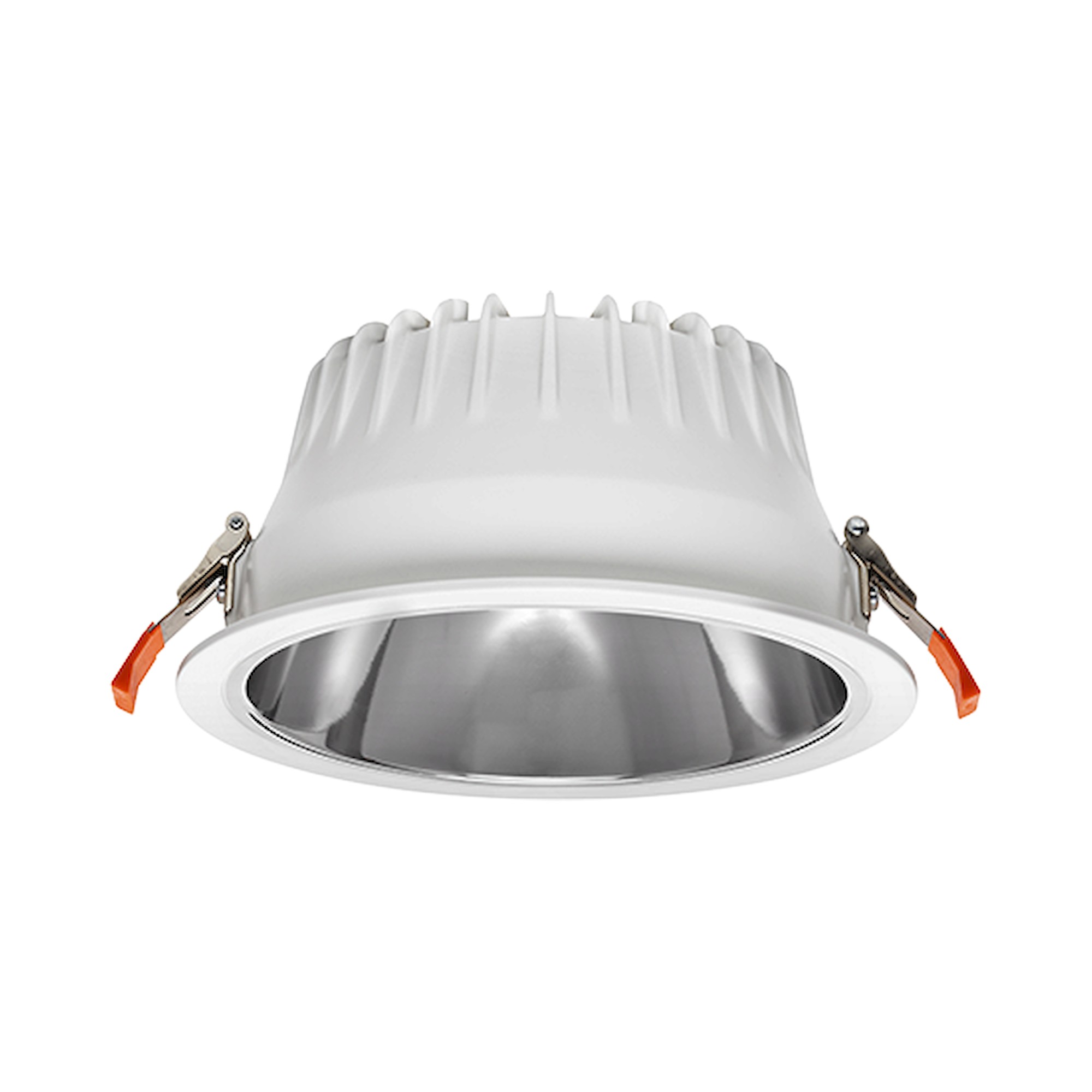

Glamox CG2123752. Downlight D50-R210 WH 4100 DALI 840 MB

Name: Glamox CG2123752. Downlight D50-R210 WH 4100 DALI 840 MB
Brand: Glamox
SKU: GL-CG2123752
Price: 154.7 EUR
Availability: InStock

Lead time

6 weeks

€154.70

Excl. 19% VAT , excl. Shipping Cost

Article

GL-CG2123752

Manufacturer Nr.

CG2123752

D50-R210 WH 4100 DALI 840 MB

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox CG2123752. Downlight D50-R210 WH 4100 DALI 840 MB
€154.70
Excl. 19% VAT , excl. Shipping Cost
Glamox D35532836. D35-S180 LED 700 HF 830 OP
€105.70
Excl. 19% VAT , excl. Shipping Cost
Glamox D40533707. D40-R70A WH LED 500 AC 830 25°
€80.50
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Round
Technical Data
1. Minimum ambient temperature (ºC)
  0
2. Maximum ambient temperature (°C)
  25
3. IK classification
  06
4. IP classification
  44 from underneath \ 20 from above
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  4,100
3. Number of lamps
  1
4. Lumen per Watt (lm/W)
  128
5. Lamp colour temp (K)
  4000
6. CRI Colour rendering index
  80
7. MacAdam step
  3
8. Energy class light source
  D
9. Light source included
  Yes
Driver / Ballast
1. Type of LED Driver
  DALI: Dimming
Lifetime
1. L70 Median useful life LED Ta25 (hr)
  100 000
2. L80 Median useful life LED Ta25 (hr)
  100 000
3. L90 Median useful life LED Ta25 (hr)
  50 000
Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Total consumption (W)
  32
6. Number of luminaires on a 10A MCB type B (80% load)
  33
7. Number of luminaires on a 16A MCB type B (80% load)
  55

Optic
1. Optic
  MB - Medium beam
Housing
1. Main body material
  Aluminium
2. Main body material production method
  Die-casted
3. Body colour
  White
4. Main body colour name
  Traffic white
5. Main body colour RAL code
  RAL 9016

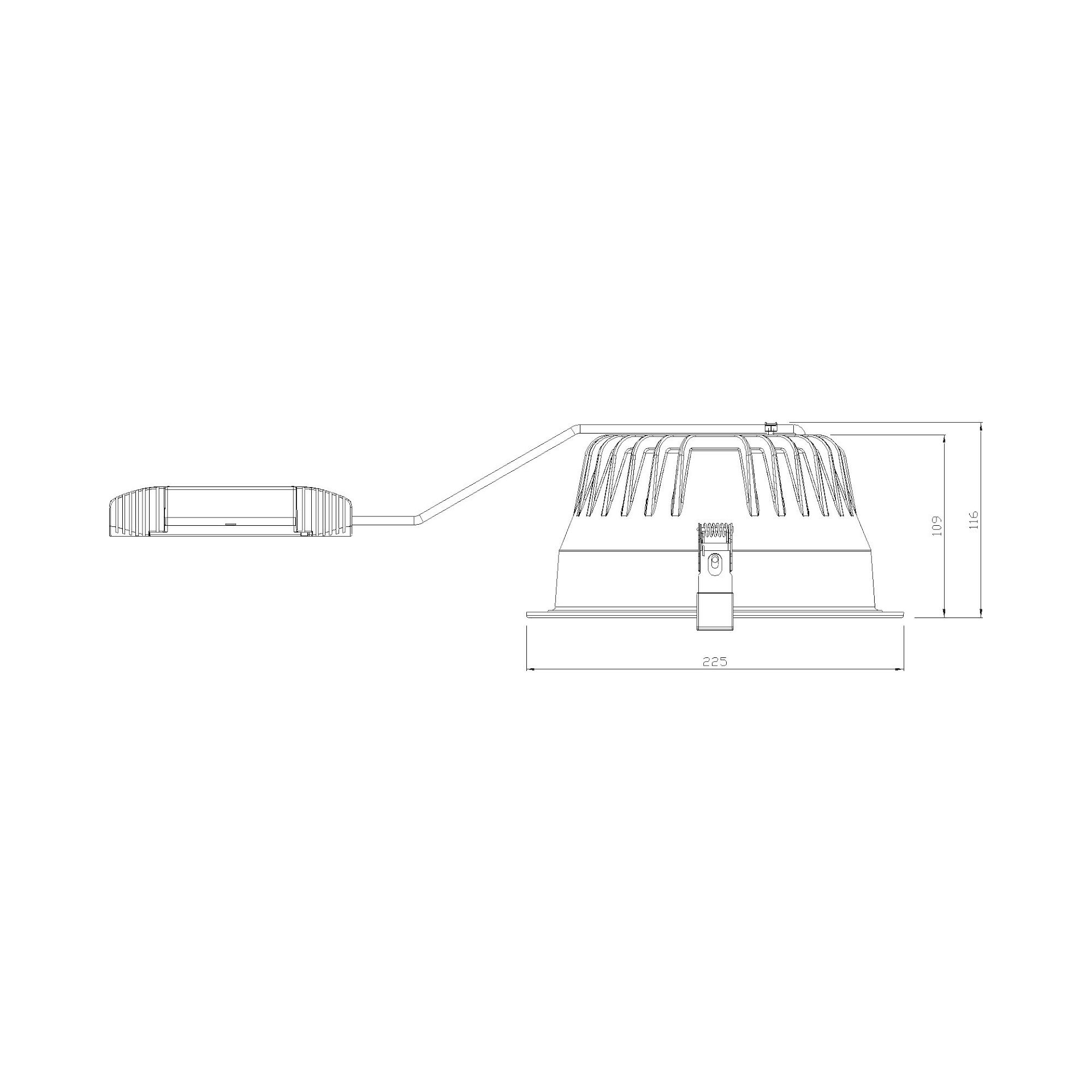

Dimensions
1. Height (mm)
  112
2. Diameter (mm)
  225
3. Cut out (mm)
  210
4. Net weight (kg)
  0.99
5. Cut out diameter
  210
Mounting
1. Product mounting
  Ceiling Recessed
Logistic Data
1. Item gross weight (kg)
  1.08

Information

More Information
Manufacturer Nr.	CG2123752
Manufacturer	Glamox
EAN	5903531237523
Lead time	6 weeks
Weight	1.080000
Colour	4000K
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
