Glamox DIS540887. Architectural Lighting DIS-P360 1200 DALI 927-965 CCT C2

Name: Glamox DIS540887. Architectural Lighting DIS-P360 1200 DALI 927-965 CCT C2
Brand: Glamox
SKU: GL-DIS540887
Price: 535.5 EUR
Availability: InStock

Lead time

4 weeks

€535.50

Excl. 19% VAT , excl. Shipping Cost

Article

GL-DIS540887

Manufacturer Nr.

DIS540887

DIS-P360 1200 DALI 927-965 CCT C2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox DIS540887. Architectural Lighting DIS-P360 1200 DALI 927-965 CCT C2
€535.50
Excl. 19% VAT , excl. Shipping Cost

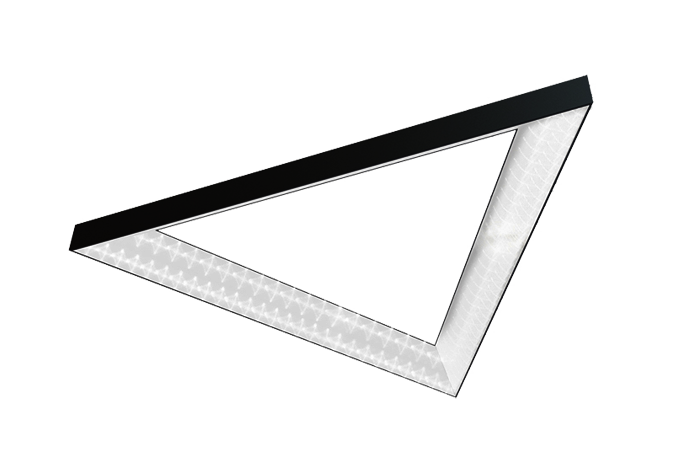

Glamox TGL574368. Dekorative Leuchten TRIANGLE-P1300 WH 7600 HF 830 PRE C1.5 MP
€739.90
Excl. 19% VAT , excl. Shipping Cost
Glamox FXX111909. Innenraumleuchten FX65 FLOW-P3000 WH 18000 DALI 830 PRE C5 OP
€2,886.80
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Organic
Electrical Data
1. Leakage current (mA)
  0.17
2. Voltage from (V)
  220
3. Maximum voltage (V)
  240
4. Minimum frequency (Hz)
  50
5. Maximum frequency (Hz)
  60
6. Main Feed DC (V) Min
  180
7. Main Feed DC (V) Max
  250
8. Total consumption (W)
  15
9. Number of luminaires on a 10A MCB type B (80% load)
  10
10. Number of luminaires on a 10A MCB type C (80% load)
  16
11. Number of luminaires on a 16A MCB type B (80% load)
  16
12. Number of luminaires on a 16A MCB type C (80% load)
  26
LMS System
1. Number of DALI addresses
  1
2. LMS Protocol
  DALI
Technical Data
1. Maximum ambient temperature (°C)
  25
2. IP classification
  20
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  1,177
3. Lumen per Watt (lm/W)
  78
4. Lamp colour temp (K)
  2700
5. Lamp colour temp (K)
  6500
6. CRI Colour rendering index
  90
7. Lamp type
  CCT - Tunable White
8. MacAdam step
  3
9. Energy class light source
  F
Driver / Ballast
1. Type of LED Driver
  DALI-DT8: Dimming (CCT/Tuneable white)
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. Luminous flux decline (LLMF) 50.000h Ta25
  0.90

Optic
1. Optic
  GL - Glass diffuser
Housing
1. Main body material
  Glass
2. Body colour
  White
3. Main body colour name
  White
Dimensions
1. Height (mm)
  270
2. Diameter (mm)
  360
3. Net weight (kg)
  4.82
Termination
1. Termination
  5x2x2.5mm2 Push In
Mounting
1. Product mounting
  Pendant
Logistic Data
1. Item gross weight (kg)
  5.24
HCL
1. MDIR min
  0.41
2. MDIR max
  0.88
3. MDIR 3500K
  0.54

Information

More Information
Manufacturer Nr.	DIS540887
Manufacturer	Glamox
EAN	4741145408875
Lead time	4 weeks
Weight	5.240000
Colour	2700K
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
