Glamox FXX589406. Interior General Lighting FX35-P1012 0/100 AL 1500 HF 840 C2.5 OP

Name: Glamox FXX589406. Interior General Lighting FX35-P1012 0/100 AL 1500 HF 840 C2.5 OP
Brand: Glamox
SKU: GL-FXX589406
Price: 168 EUR
Availability: InStock

Lead time

6 weeks

€168.00

Excl. 19% VAT , excl. Shipping Cost

Article

GL-FXX589406

Manufacturer Nr.

FXX589406

FX35-P1012 0/100 AL 1500 HF 840 C2.5 OP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox FXX589406. Interior General Lighting FX35-P1012 0/100 AL 1500 HF 840 C2.5 OP
€168.00
Excl. 19% VAT , excl. Shipping Cost
Glamox C80547509. Systemleuchten C80-SR/RR1402 G2 LU 4500 HO DALI 830 DIF
€161.00
Excl. 19% VAT , excl. Shipping Cost
Glamox C80547778. Linear System Lighting C80-PR1122 30/70 BL G2 1900 LO DALI 840 DIF
€259.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Linear
Texts
1. Remarks
  Suspension wire and bracket for surfaced mounting has to be ordered separately
Certificates
1. Certification
  HACCP
Technical Data
1. Minimum ambient temperature (ºC)
  0
2. Maximum ambient temperature (°C)
  25
3. IK classification
  07
4. IP classification
  20

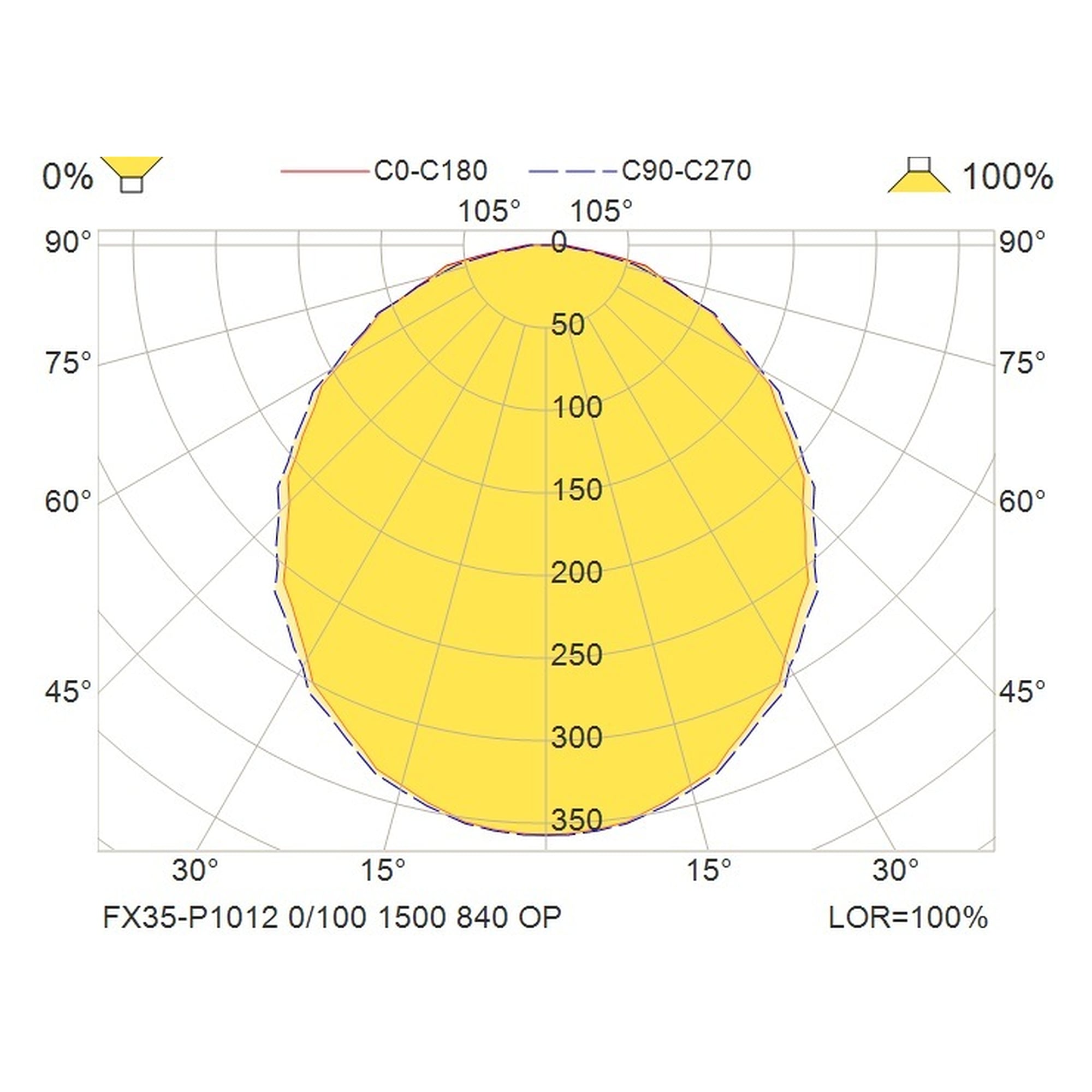

Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  1,500
3. Lumen per Watt (lm/W)
  125
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. Light distribution up %
  0
7. Light distribution down %
  100
8. MacAdam step
  3
9. Energy class light source
  C
10. Light source included
  Yes
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. Median useful life driver Ta25 (hr)
  100,000
3. Luminous flux decline (LLMF) 50.000h Ta25
  0.90

Electrical Data
1. Voltage from (V)
  220
2. Maximum voltage (V)
  240
3. Minimum frequency (Hz)
  50
4. Maximum frequency (Hz)
  60
5. Total consumption (W)
  12
6. IEC Protection Class
  I
7. Number of luminaires on a 10A MCB type B (80% load)
  10
8. Number of luminaires on a 10A MCB type C (80% load)
  16
9. Number of luminaires on a 16A MCB type B (80% load)
  16
10. Number of luminaires on a 16A MCB type C (80% load)
  26
Optic
1. Optic
  OP - Opal diffuser in acrylic
2. Material of diffuser
  Acrylic
3. Diffuser material design
  Opal
Housing
1. Main body material
  Aluminium
2. Body colour
  Grey
3. Main body colour name
  Grey
4. Main body colour surface
  Anodized

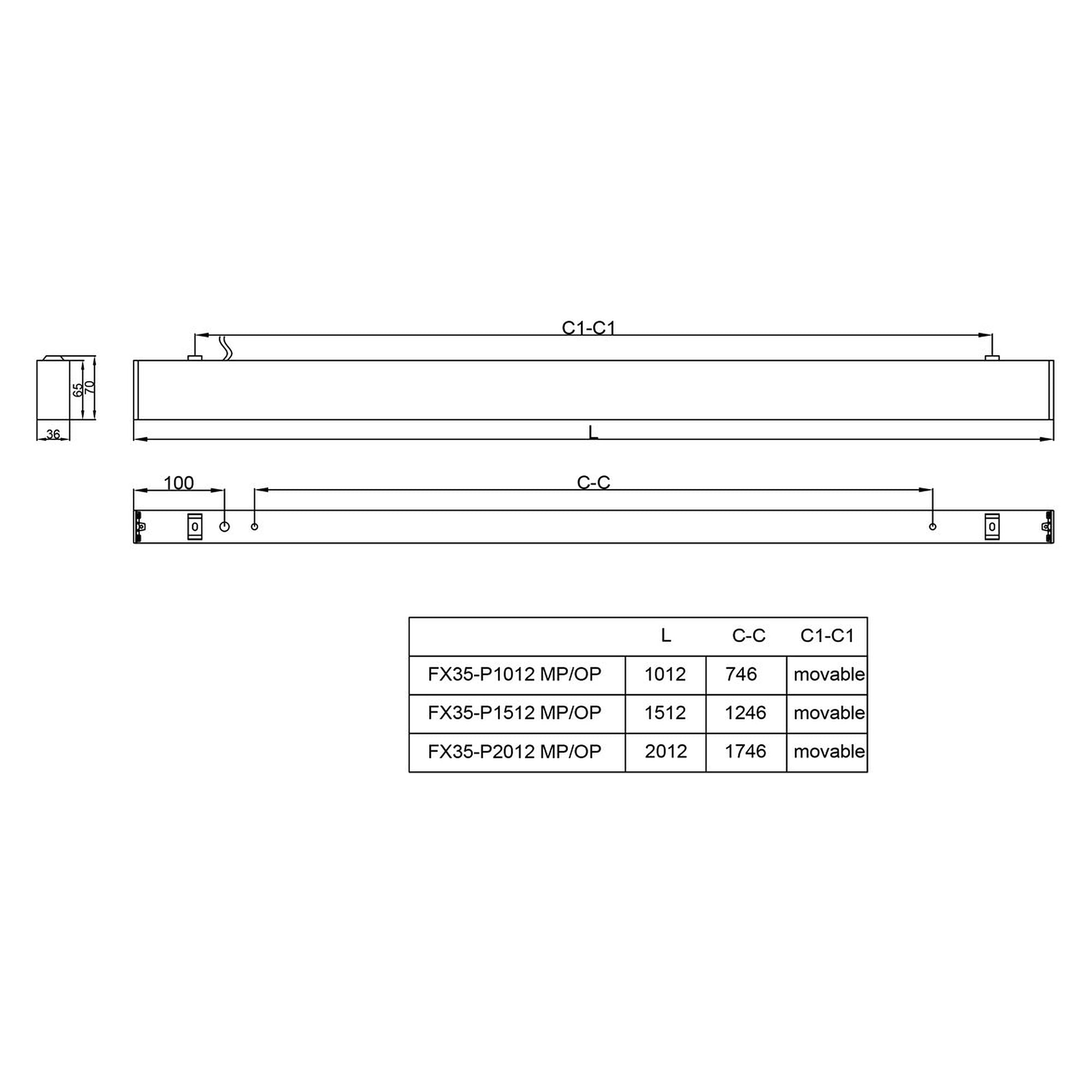

Dimensions
1. Length (mm)
  1,012
2. Width (mm)
  35
3. Height (mm)
  65
4. Net weight (kg)
  1.75
Mounting
1. Product mounting
  Pendant,Surface,Ceiling Surface,Trunking
Logistic Data
1. Item gross weight (kg)
  1.90

Information

More Information
Manufacturer Nr.	FXX589406
Manufacturer	Glamox
EAN	5901155894061
Lead time	6 weeks
Weight	1.900000
Colour	4000K
Lenght	1012
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
