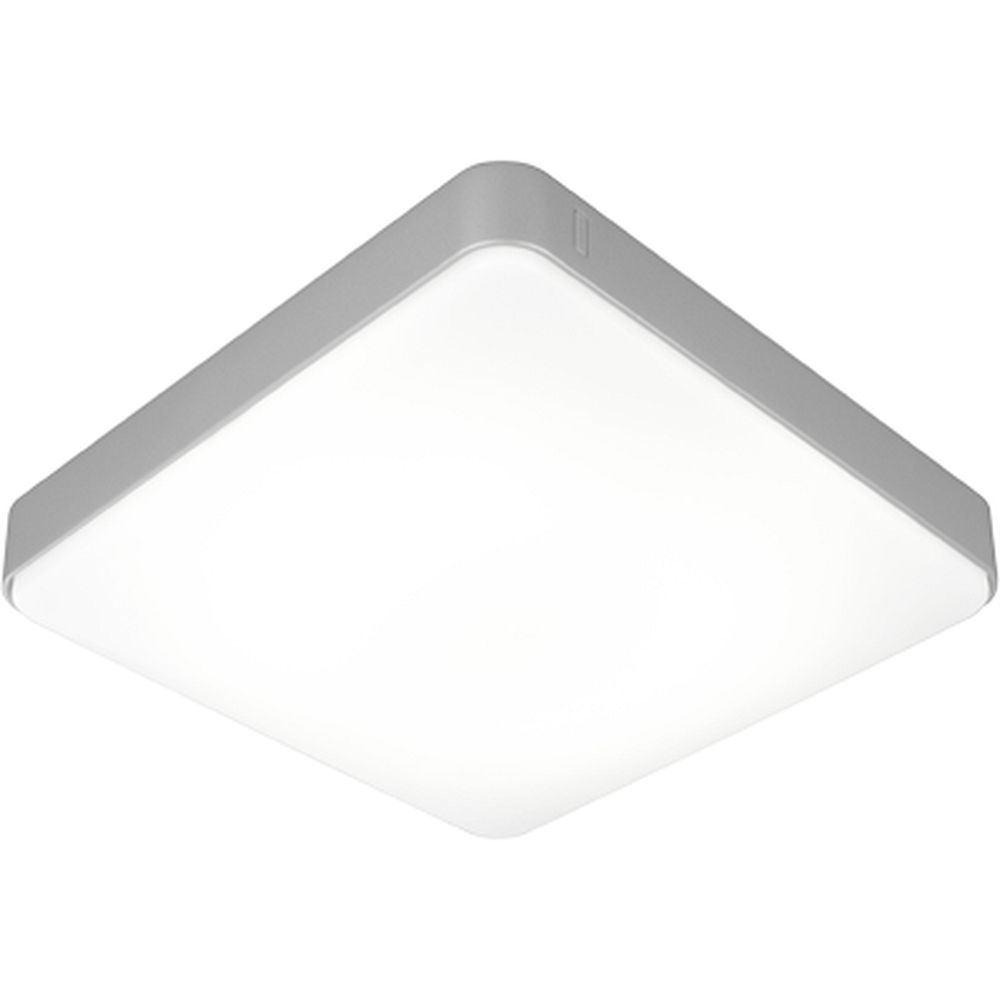

Glamox A20531208. Interior General Lighting A20-SQ400 LED 2500 HF 840 E3/S

Name: Glamox A20531208. Interior General Lighting A20-SQ400 LED 2500 HF 840 E3/S
Brand: Glamox
SKU: GL-A20531208
Price: 373.1 EUR
Availability: InStock

Lead time

6 weeks

€373.10

Excl. 19% VAT , excl. Shipping Cost

Article

GL-A20531208

Manufacturer Nr.

A20531208

A20-SQ400 LED 2500 HF 840 E3/S

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox A20531208. Interior General Lighting A20-SQ400 LED 2500 HF 840 E3/S
€373.10
Excl. 19% VAT , excl. Shipping Cost
Glamox A20341360. Interior General Lighting A20-S620 LED 3500 DALI 830
€490.00
Excl. 19% VAT , excl. Shipping Cost
Glamox A20623240. Architectural Lighting A20-P166 L=975 LED 6000 HF 840 C2,5
€411.60
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Square
Electrical Data
1. Leakage current (mA)
  0.13
2. Voltage from (V)
  220
3. Maximum voltage (V)
  240
4. Minimum frequency (Hz)
  50
5. Maximum frequency (Hz)
  60
6. Main Feed DC (V) Min
  180
7. Main Feed DC (V) Max
  270
8. Total consumption (W)
  26.20
9. Number of luminaires on a 10A MCB type B (80% load)
  24
10. Number of luminaires on a 10A MCB type C (80% load)
  41
11. Number of luminaires on a 16A MCB type B (80% load)
  39
12. Number of luminaires on a 16A MCB type C (80% load)
  65
Technical Data
1. Maximum ambient temperature (°C)
  25
2. IP classification
  20
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  2,601
3. Lumen per Watt (lm/W)
  104
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  C
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  1
Lifetime
1. L90 Median useful life LED Ta25 (hr)
  60 000
2. Luminous flux decline (LLMF) 50.000h Ta25
  0.90
Emergency
1. Type of emergency
  S = Standard
2. Duration in battery mode (hrs)
  3
3. Charging power consumption (Emg) (W)
  1.50
4. Output in battery mode (%)
  8

Optic
1. Optic
  OP - Opal diffuser in acrylic
2. Material of diffuser
  Acrylic
Housing
1. Main body material
  Aluminium
2. Body colour
  Grey
3. Main body colour name
  Silver grey
Dimensions
1. Length (mm)
  400
2. Width (mm)
  400
3. Height (mm)
  100
4. Net weight (kg)
  4.71
Termination
1. Termination
  5x2x2.5mm2 Push In
Mounting
1. Product mounting
  Ceiling Surface,Wall Surface
Logistic Data
1. Item gross weight (kg)
  5.12

Information

More Information
Execution	TEC
Manufacturer Nr.	A20531208
Manufacturer	Glamox
Country of Manufacture	Germany
EAN	4741145328104
Lead time	6 weeks
Weight	5.120000
Colour	4000K
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
