Glamox A20621230. Architectural Lighting A20-P166 L=975 LED 3700 HF 830 C2,5

Name: Glamox A20621230. Architectural Lighting A20-P166 L=975 LED 3700 HF 830 C2,5
Brand: Glamox
SKU: GL-A20621230
Price: 403.9 EUR
Availability: InStock

Lead time

4 weeks

€403.90

Excl. 19% VAT , excl. Shipping Cost

Article

GL-A20621230

Manufacturer Nr.

A20621230

A20-P166 L=975 LED 3700 HF 830 C2,5

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox A20621230. Architectural Lighting A20-P166 L=975 LED 3700 HF 830 C2,5
€403.90
Excl. 19% VAT , excl. Shipping Cost

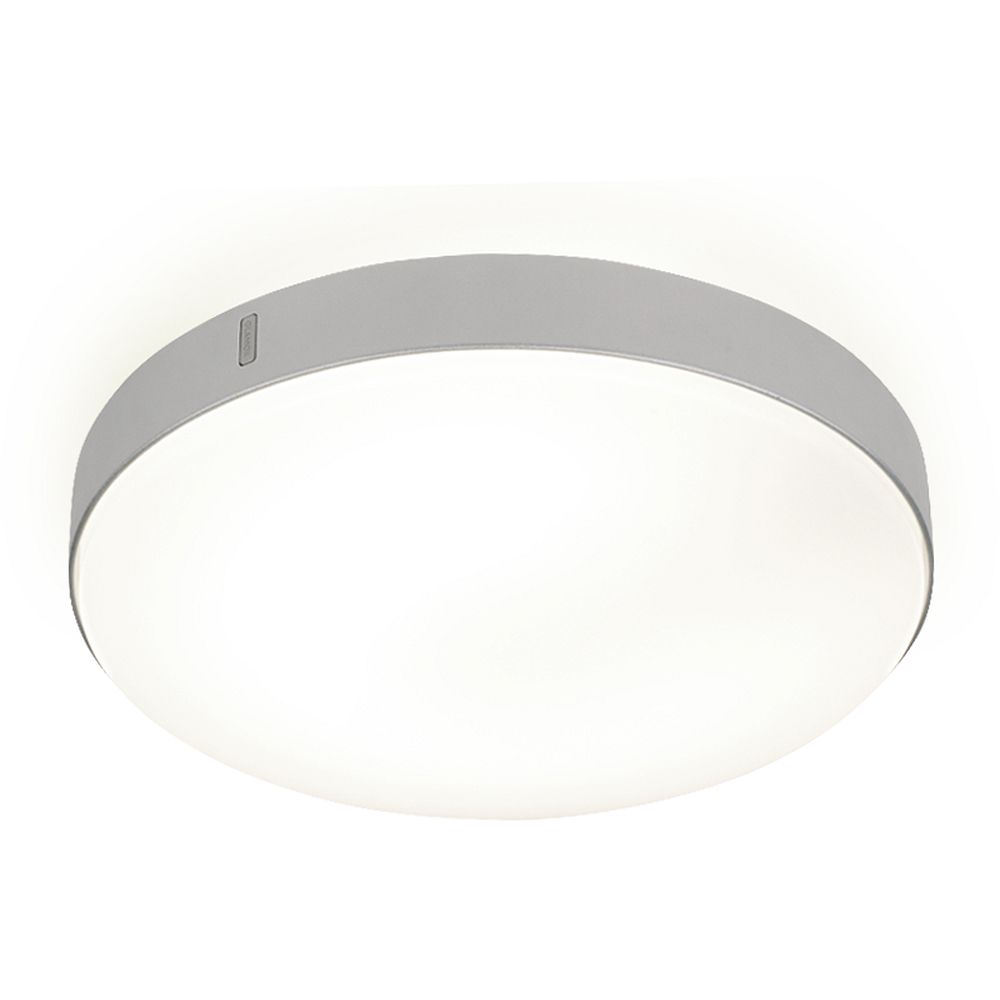

Glamox A20231360. A20-S420 LED 2400 DALI 830
€315.00
Excl. 19% VAT , excl. Shipping Cost
Glamox A20531205. A20-SQ400 LED 2500 HF 830 E1/S
€359.10
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Round
Electrical Data
1. Leakage current (mA)
  0.20
2. Voltage from (V)
  220
3. Maximum voltage (V)
  240
4. Minimum frequency (Hz)
  50
5. Maximum frequency (Hz)
  60
6. Total consumption (W)
  26
7. Number of luminaires on a 10A MCB type B (80% load)
  18
8. Number of luminaires on a 10A MCB type C (80% load)
  31
9. Number of luminaires on a 16A MCB type B (80% load)
  30
10. Number of luminaires on a 16A MCB type C (80% load)
  50
Technical Data
1. Minimum ambient temperature (ºC)
  -20
2. Maximum ambient temperature (°C)
  35
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  3,718
3. Lumen per Watt (lm/W)
  143
4. Lamp colour temp (K)
  3000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  C
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  70 000
2. Luminous flux decline (LLMF) 50.000h Ta25
  0.85

Optic
1. Optic
  OP - Opal diffuser in acrylic
Housing
1. Main body material
  Aluminium
2. Body colour
  Grey
3. Main body colour name
  Silver grey
Dimensions
1. Height (mm)
  975
2. Diameter (mm)
  166
3. Net weight (kg)
  3.62
Termination
1. Termination
  5x2x2.5mm2 Push In
Mounting
1. Product mounting
  Pendant
Logistic Data
1. Item gross weight (kg)
  3.94

Information

More Information
Execution	TEC
Manufacturer Nr.	A20621230
Manufacturer	Glamox
Country of Manufacture	Germany
EAN	4741145294294
Lead time	4 weeks
Weight	3.940000
Colour	3000K
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
