Glamox C90087087. Interior General Lighting C90-R600x600 LED 4600 DALI 925-970 CCT/RGB LI OP

Glamox
Lead time
4 weeks
€854.00
Excl. 19% VAT , excl. Shipping Cost
Article
GL-C90087087

Manufacturer Nr.
C90087087
C90-R600x600 LED 4600 DALI 925-970 CCT/RGB LI OP
Add to Wish List Add to Compare

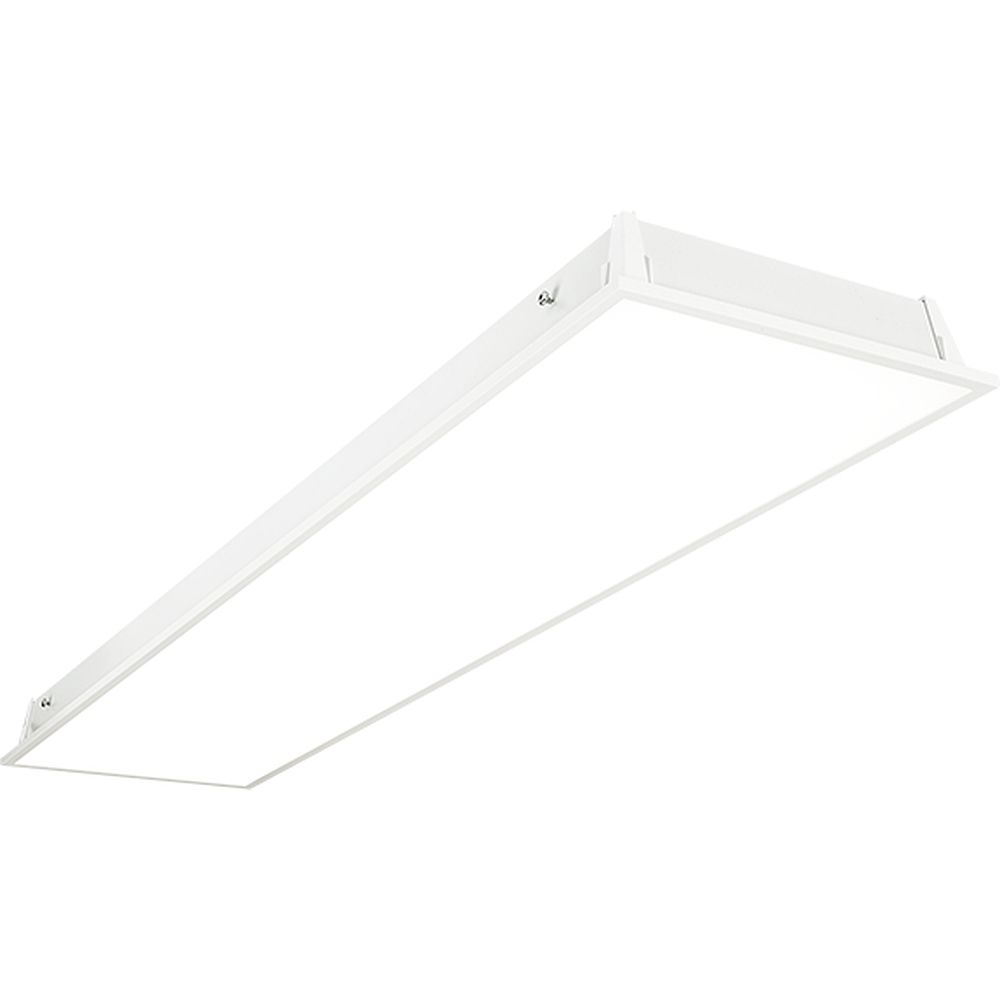

main product photo
The product may differ from the illustration
Frequently Bought Together
Total price

  • General

    1. Product shape
      Square

  • Texts

    1. Remarks
      This LED module contains a Red, Blue and a Green-White LED so it is not able to produce deep green colours.

  • Electrical Data

    1. Leakage current (mA)
      0.50
    2. Voltage from (V)
      220
    3. Maximum voltage (V)
      240
    4. Minimum frequency (Hz)
      50
    5. Maximum frequency (Hz)
      60
    6. Total consumption (W)
      51
    7. Number of luminaires on a 10A MCB type B (80% load)
      5
    8. Number of luminaires on a 10A MCB type C (80% load)
      9
    9. Number of luminaires on a 16A MCB type B (80% load)
      9
    10. Number of luminaires on a 16A MCB type C (80% load)
      15

  • LMS System

    1. Number of DALI addresses
      1
    2. LMS Protocol
      DALI

  • Technical Data

    1. Maximum ambient temperature (°C)
      25
    2. IK classification
      06
    3. IP classification
      55 from underneath \ 20 from above

  • Light Technical Data

    1. Light source
      LED
    2. Lumen out (lm)
      4,940
    3. Lumen per Watt (lm/W)
      97
    4. Lamp colour temp (K)
      2500
    5. Lamp colour temp (K)
      7000
    6. CRI Colour rendering index
      90
    7. Lamp type
      RGB
    8. MacAdam step
      3
    9. Energy class light source
      F

  • Driver / Ballast

    1. Type of LED Driver
      DALI-DT8: Dimming (CCT/Tuneable white)
    2. Number of Driver
      1

  • Lifetime

    1. L80 Median useful life LED Ta25 (hr)
      100 000
    2. Median useful life driver Ta25 (hr)
      100,000
    3. Luminous flux decline (LLMF) 50.000h Ta25
      0.80

  • Optic

    1. Optic
      OP - Opal diffuser in acrylic
    2. Material of diffuser
      Acrylic
    3. Diffuser material design
      Opal

  • Housing

    1. Main body material
      Recycled aluminium
    2. Body colour
      White
    3. Main body colour name
      White

  • Dimensions

    1. Length (mm)
      597
    2. Width (mm)
      597
    3. Height (mm)
      99
    4. Net weight (kg)
      5.61

  • Termination

    1. Termination
      5x2x2.5mm2 Push In
    2. Plug type
      Linect

  • Mounting

    1. Product mounting
      Ceiling Recessed

  • Logistic Data

    1. Item gross weight (kg)
      6.10

  • HCL

    1. MDIR min
      0.24
    2. MDIR max
      1.02
    3. MDIR 3500K
      0.54
More Information
Execution TEC
Manufacturer Nr. C90087087
Manufacturer Glamox
Country of Manufacture Germany
EAN 7054130870876
Lead time 4 weeks
Weight 6.100000
Colour 2500K
GPSR manufacturer information Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity Original product
Condition of article New
