Glamox C90231168. Interior General Lighting C90-P1170 10/90 WH 17000 DALI 827-865 CCT PRE C5 OP

Glamox
Lead time
4 weeks
€2,013.90
Excl. 19% VAT , excl. Shipping Cost
Article
GL-C90231168

Manufacturer Nr.
C90231168
C90-P1170 10/90 WH 17000 DALI 827-865 CCT PRE C5 OP
Add to Wish List Add to Compare

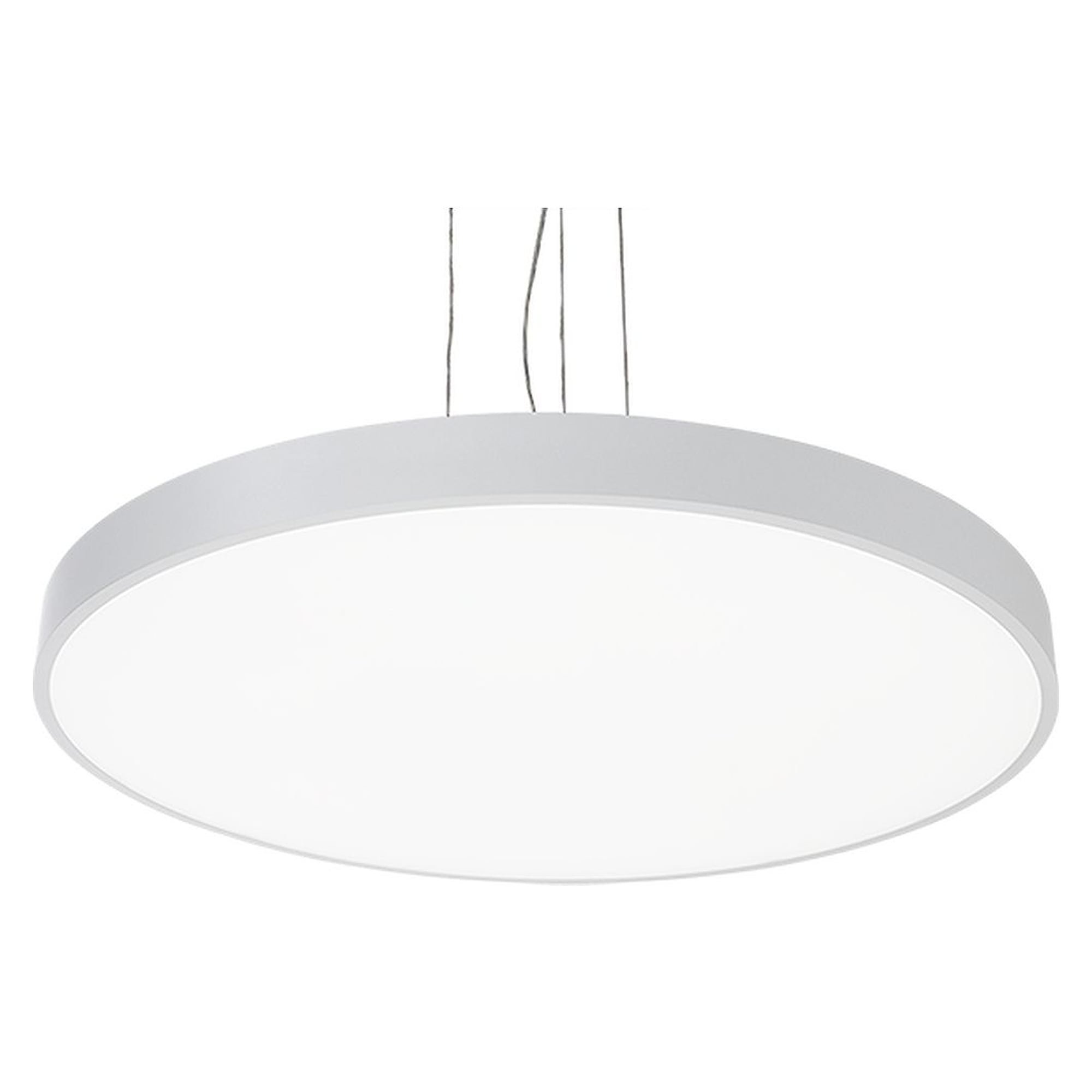

main product photo
The product may differ from the illustration
Frequently Bought Together
Total price

  • General

    1. Product shape
      Round

  • Certificates

    1. Certification
      ENEC

  • Electrical Data

    1. Leakage current (mA)
      1.60
    2. Voltage from (V)
      220
    3. Maximum voltage (V)
      240
    4. Minimum frequency (Hz)
      50
    5. Maximum frequency (Hz)
      60
    6. Total consumption (W)
      116
    7. Number of luminaires on a 10A MCB type B (80% load)
      3
    8. Number of luminaires on a 10A MCB type C (80% load)
      6
    9. Number of luminaires on a 16A MCB type B (80% load)
      6
    10. Number of luminaires on a 16A MCB type C (80% load)
      10

  • LMS System

    1. Number of DALI addresses
      1
    2. LMS Protocol
      DALI

  • Technical Data

    1. Maximum ambient temperature (°C)
      25
    2. IP classification
      20

  • Light Technical Data

    1. Light source
      LED
    2. Lumen out (lm)
      16,760
    3. Lumen per Watt (lm/W)
      144
    4. Lamp colour temp (K)
      2700
    5. Lamp colour temp (K)
      6500
    6. CRI Colour rendering index
      80
    7. Lamp type
      CCT - Tunable White

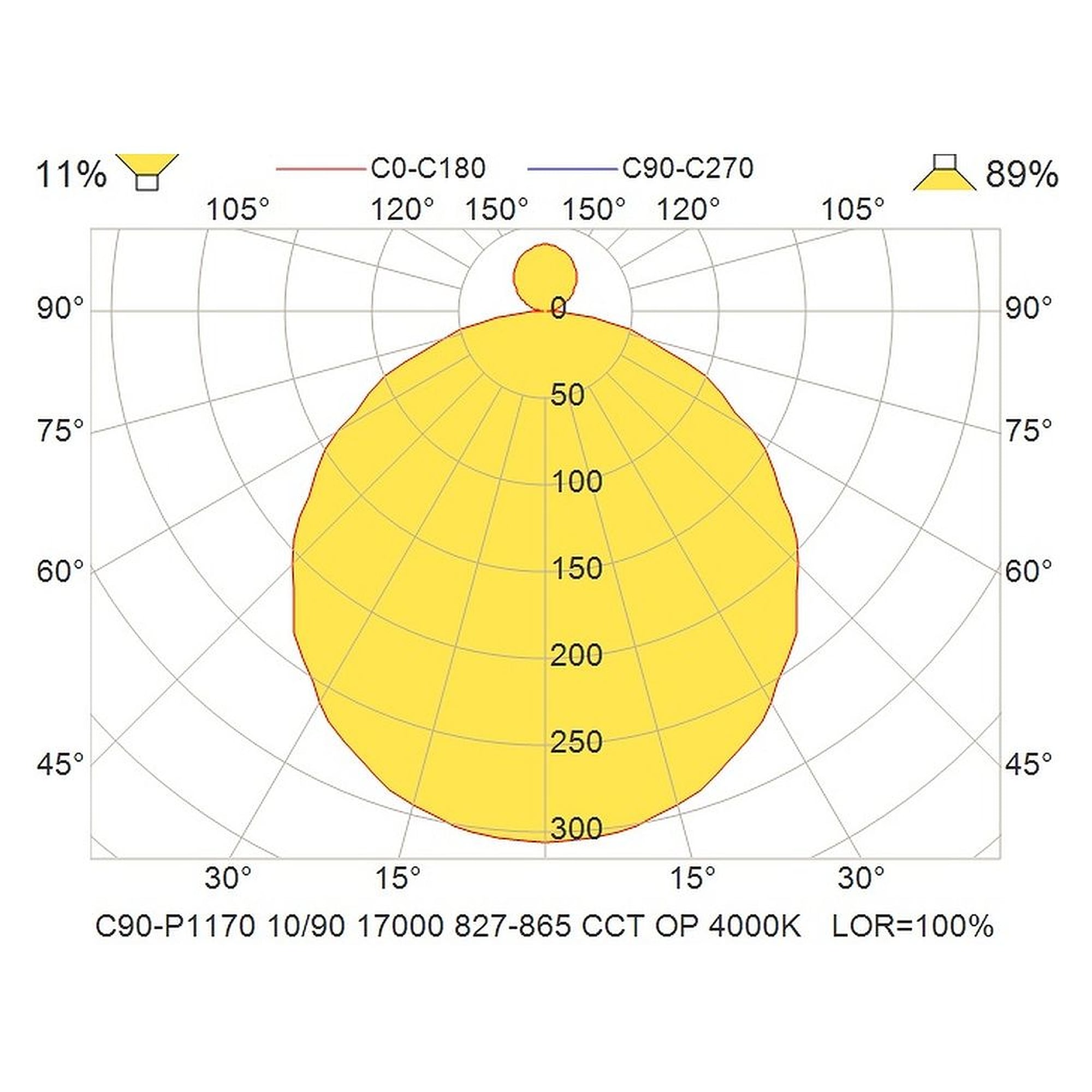

    8. Light distribution up %
      10
    9. Light distribution down %
      90
    10. MacAdam step
      3
    11. Energy class light source
      D

  • Driver / Ballast

    1. Type of LED Driver
      DALI-DT8: Dimming (CCT/Tuneable white)
    2. No Of Ballast
      3

  • Lifetime

    1. L80 Median useful life LED Ta25 (hr)
      50 000
    2. Luminous flux decline (LLMF) 50.000h Ta25
      0.80

  • Optic

    1. Optic
      OP - Opal diffuser in acrylic
    2. Material of diffuser
      Acrylic
    3. Diffuser material design
      Opal

  • Housing

    1. Main body material
      Recycled aluminium

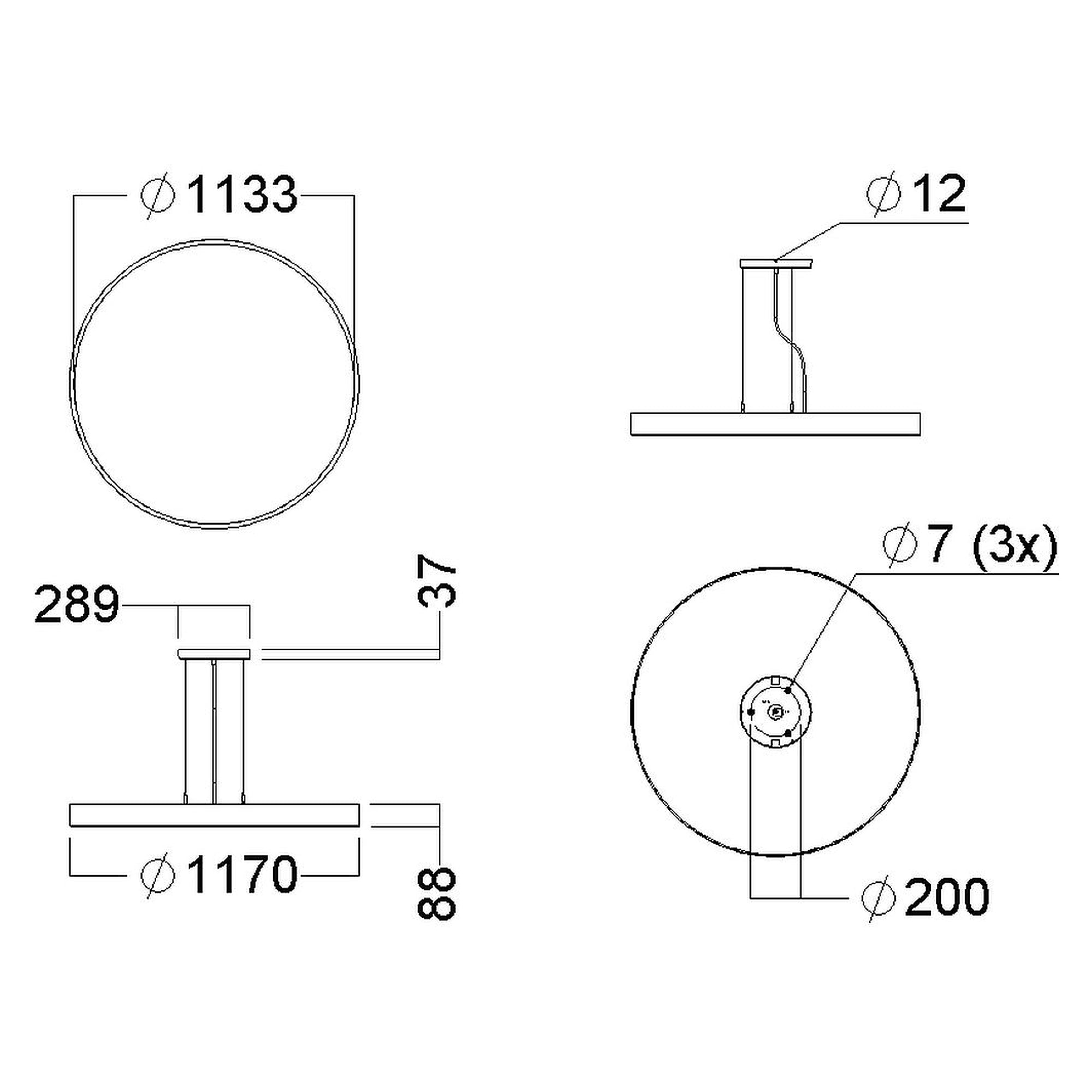

  • Dimensions

    1. Height (mm)
      88
    2. Diameter (mm)
      1,170

  • Termination

    1. Termination
      5x2x2.5mm2 Push In

  • Cable

    1. Cable Cross section (mm²)
      0.75
    2. Cable End / Plug Name
      Open End
    3. Cable length (m)
      5
    4. Cable material
      PVC
    5. No of leads
      5
    6. Cable diameter variation max (mm)
      8

  • Mounting

    1. Product mounting
      Pendant
    2. Mounting included
      5m wire

  • HCL

    1. MDIR min
      0.41
    2. MDIR max
      0.88
    3. MDIR 3500K
      0.54
More Information
Execution TEC
Manufacturer Nr. C90231168
Manufacturer Glamox
Country of Manufacture Germany
EAN 7332402311686
Lead time 4 weeks
Weight 0.009900
Colour 2700K
GPSR manufacturer information Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity Original product
Condition of article New
Download
File Icon Glamox. Catalog luxlumen (de) (13.99 MB)
