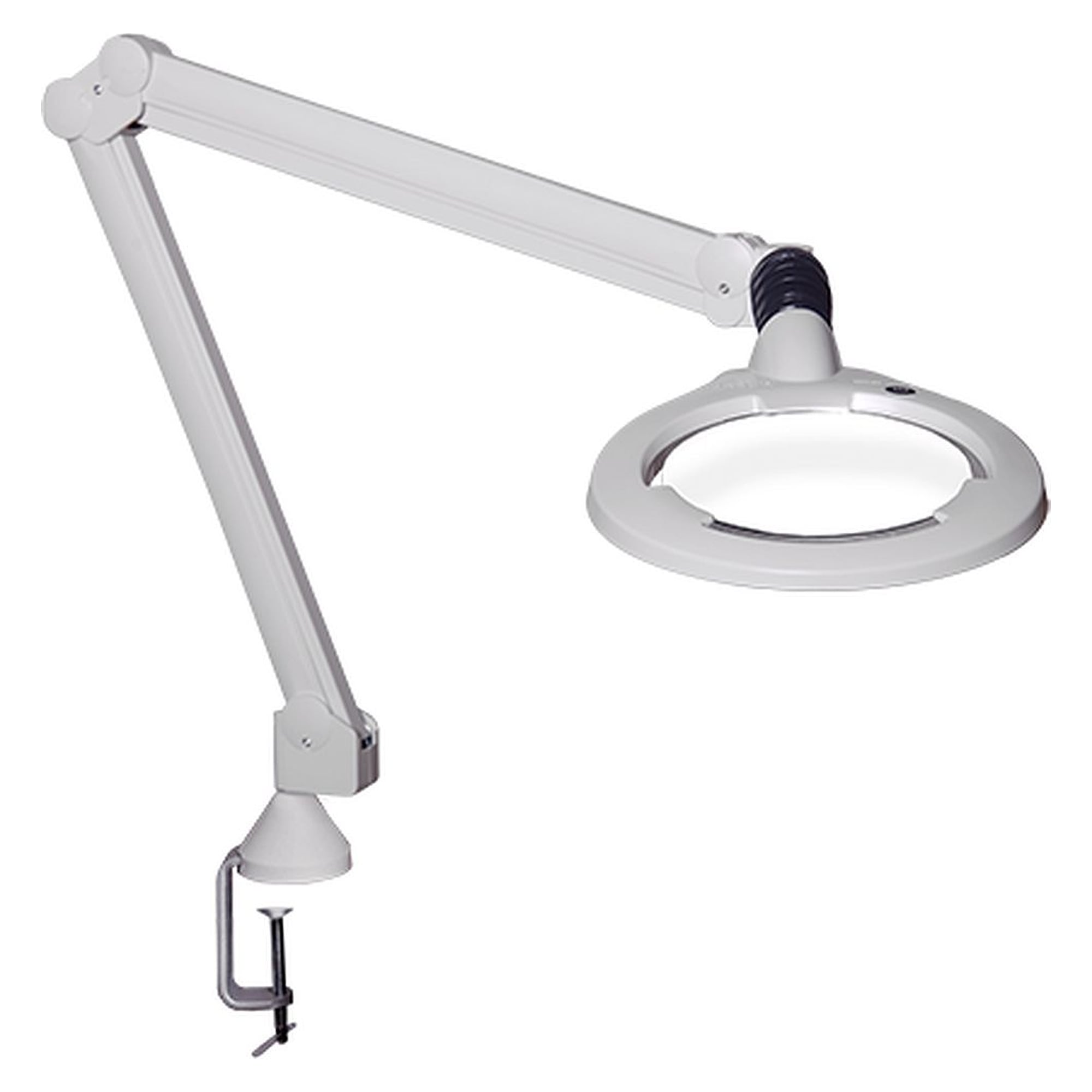

LED magnifier lamp Circus, 5 dioptres (2.25x), 105 cm arm, 4000 K, white - Glamox CIL026773
Large circular 5 dioptre lens (2.25x magnification) with 753 lm at 4000 K and Ra >90 for detailed work without eye strain. Self-balancing 105 cm arm, dimmable from 10 to 100 %.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Inspecting solder joints, components or fine surfaces for hours calls for magnification and even light that stays where you put it. The Glamox Circus magnifies about 2.25 times through its large circular 5 dioptre lens at 200 mm focal length and delivers 753 lm at 4000 K (neutral white) with Ra above 90. The self-balancing 105 cm arm holds any position.
Benefits
- 2.25x magnification from the 5 dioptre main lens, working distance approx. 200 mm
- 753 lm from only 10 W, about 75 lm/W
- Ra above 90 and MacAdam 3 colour tolerance for reliable colour judgement
- Dimmable 10-100 % with programmable switch-off timer after 4 or 9 hours
- 105 cm three-way swivelling arm, self-balancing
- LED module and driver replaceable in line with Ecodesign Regulation (EU) 2019/2020
Applications
- Visual inspection and quality control of assemblies and small parts
- Soldering, rework and fine assembly in electronics
- Laboratories, precision engineering, watchmaking and jewellery workshops
- Cosmetics, foot care and detailed medical work
For EPA workstations inside an ESD protected area, choose an ESD version such as the Glamox Wave ESD.
Technical data
| Manufacturer | Glamox |
|---|---|
| Manufacturer part number | CIL026773 |
| Glamox designation | Circus LED (M) T100 Wh 600 940 5D CLA EU |
| Series | Circus |
| Main lens | 5 dioptres |
| Magnification | approx. 2.25x (1 + D/4) |
| Focal length | 200 mm |
| Optional secondary lens | 4, 6 or 10 dioptres |
| Luminous flux | 753 lm |
| Colour temperature | 4000 K (neutral white) |
| Head | aluminium head with large circular lens and swivelling lens cover |

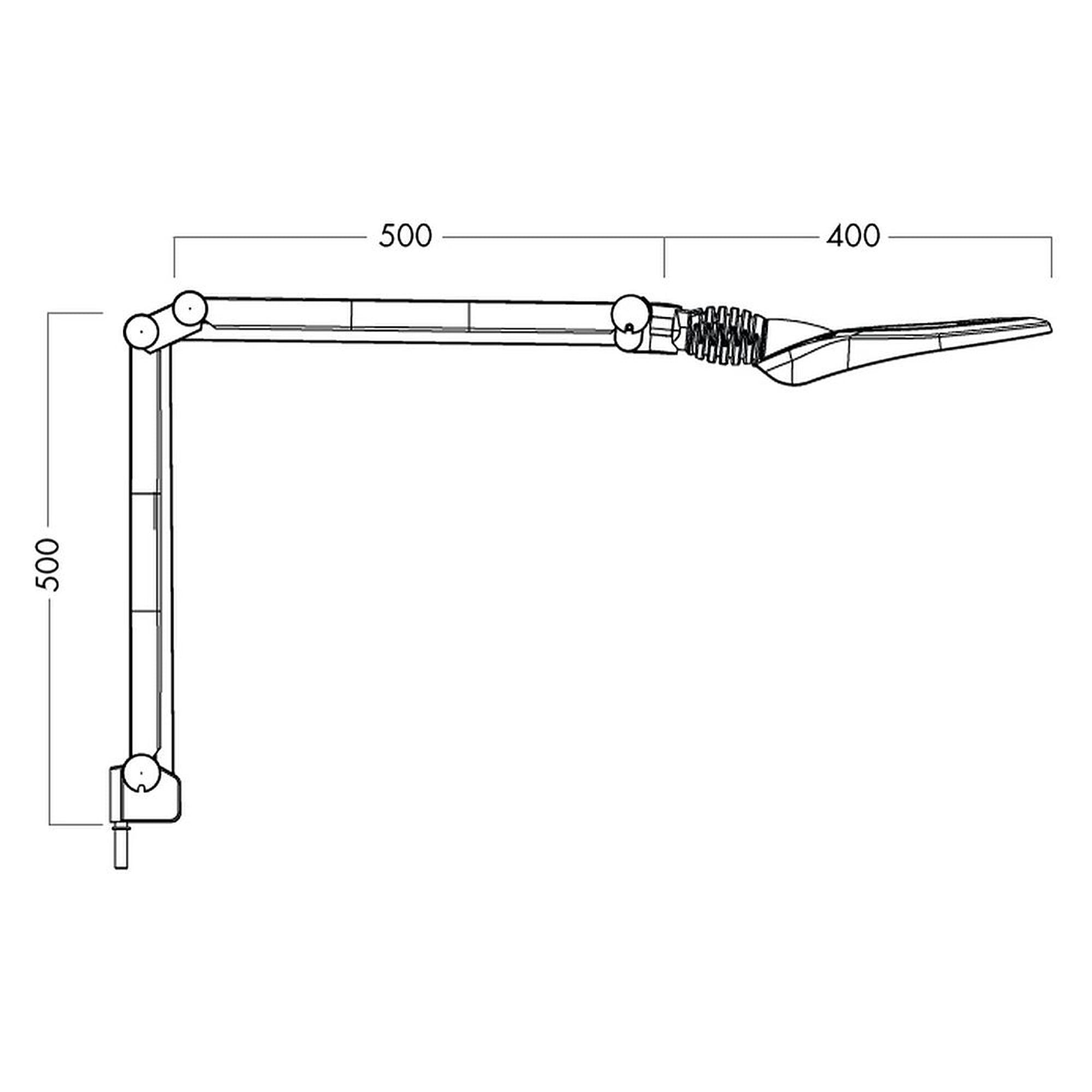

| Arm | three-way swivelling, self-balancing arm with joint cover, arm length 105 cm |
| Mounting | table clamp (CLA) |
| Power | 10 W (max.) |
| Colour rendering | Ra above 90, colour tolerance MacAdam 3 |
| Dimming | 10-100 %, programmable timer 4 or 9 hours |
| Service life | 50,000 h (L80B50, Ta 25 °C) |
| IP rating | IP20, max. ambient temperature 25 °C |
| Connection | Schuko plug |
| Certification | ENEC |
| Dimensions (L x W x H) | 310 x 245 x 80 mm |
| Colour | White (WH) |
| ESD | no, standard version |
| Weight | 5.63 kg |
| EAN | 7040670267733 |
| Manufacturer Nr. | CIL026773 |
| GPSR manufacturer information | Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Farbe | weiß |
| ESD version | TEC |
| Luminous flux (lumen) | 753 lm |
| Power (W) | 10 W |
| Colour rendering (Ra) | Ra 90 |
| Mounting type | Articulated arm, Table clamp |
| Magnification (dioptres) | 5 dpt |
| Magnification max (x) | 2.25 |
| Protection class (IP) | IP20 |
Scope of delivery
Magnifier lamp with arm, table clamp and Schuko plug. A secondary lens with 4, 6 or 10 dioptres attaches to the magnifier for extra magnification and is ordered separately. Other table clamps, integrated table holders and a roller stand are available on request.
