Lead time
3 weeks
€149.25
Excl. 19% VAT , excl. Shipping Cost
Article
GL-D35529914
Manufacturer Nr.
D35529914

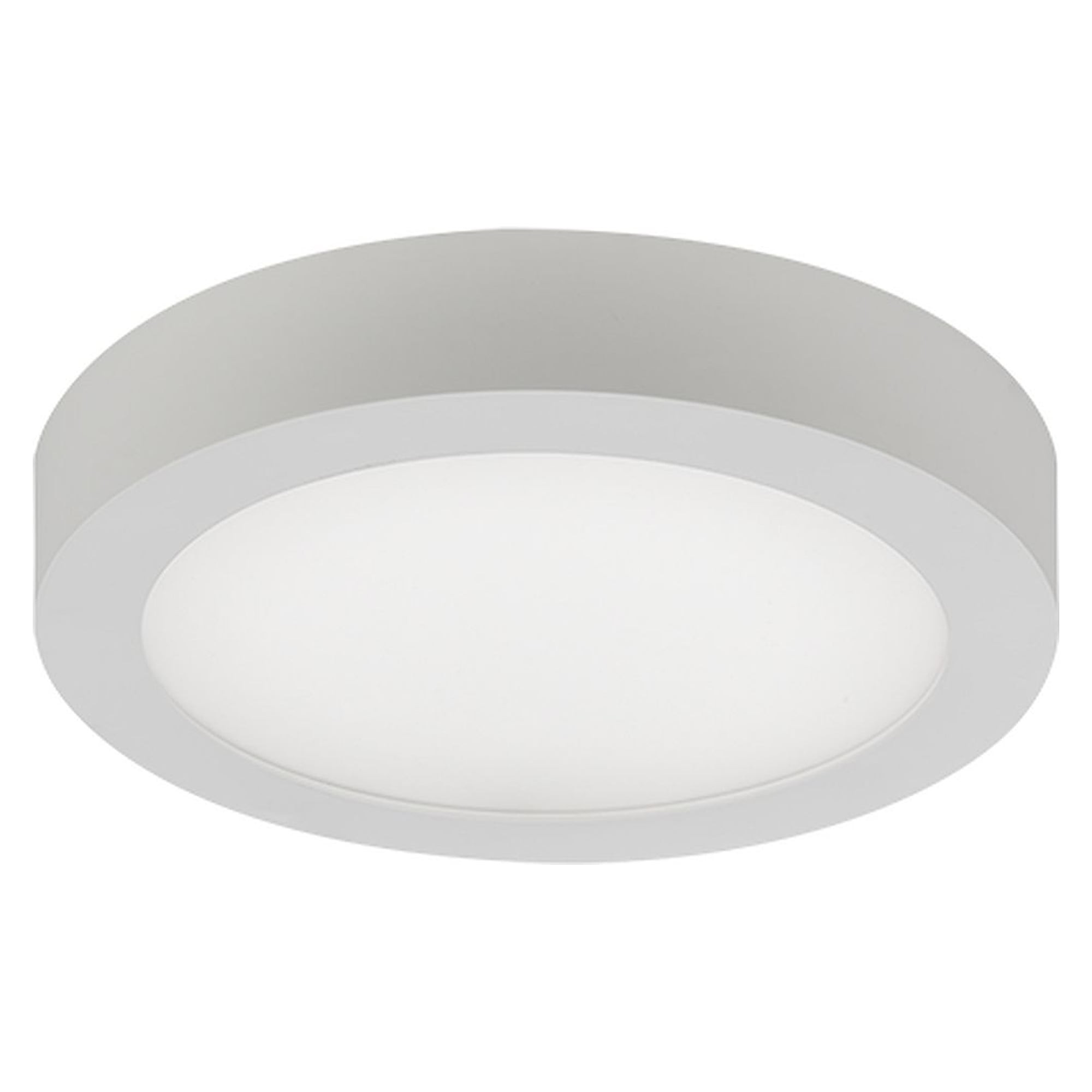

D35-S230 LED 1400 HF 840 OP
Frequently Bought Together
- This Item: €149.25Excl. 19% VAT , excl. Shipping Cost
- Glamox D70515764. D70-RF155 LED 2100 DALI 840 LI SI/CH €173.25Excl. 19% VAT , excl. Shipping Cost
- Glamox C77099310. Downlight C77-R230x230 WH 2600 HF 840 SM €141.75Excl. 19% VAT , excl. Shipping Cost
Total price
General
- Product shapeRound
- Product shape
Electrical Data
- Leakage current (mA)0.34
- Voltage from (V)220
- Maximum voltage (V)240
- Minimum frequency (Hz)50
- Maximum frequency (Hz)60
- Total consumption (W)12
- Number of luminaires on a 10A MCB type B (80% load)30
- Number of luminaires on a 10A MCB type C (80% load)51
- Number of luminaires on a 16A MCB type B (80% load)50
- Number of luminaires on a 16A MCB type C (80% load)85
- Leakage current (mA)
Technical Data
- Minimum ambient temperature (ºC)-20
- Maximum ambient temperature (°C)45
- IP classification40
- Minimum ambient temperature (ºC)

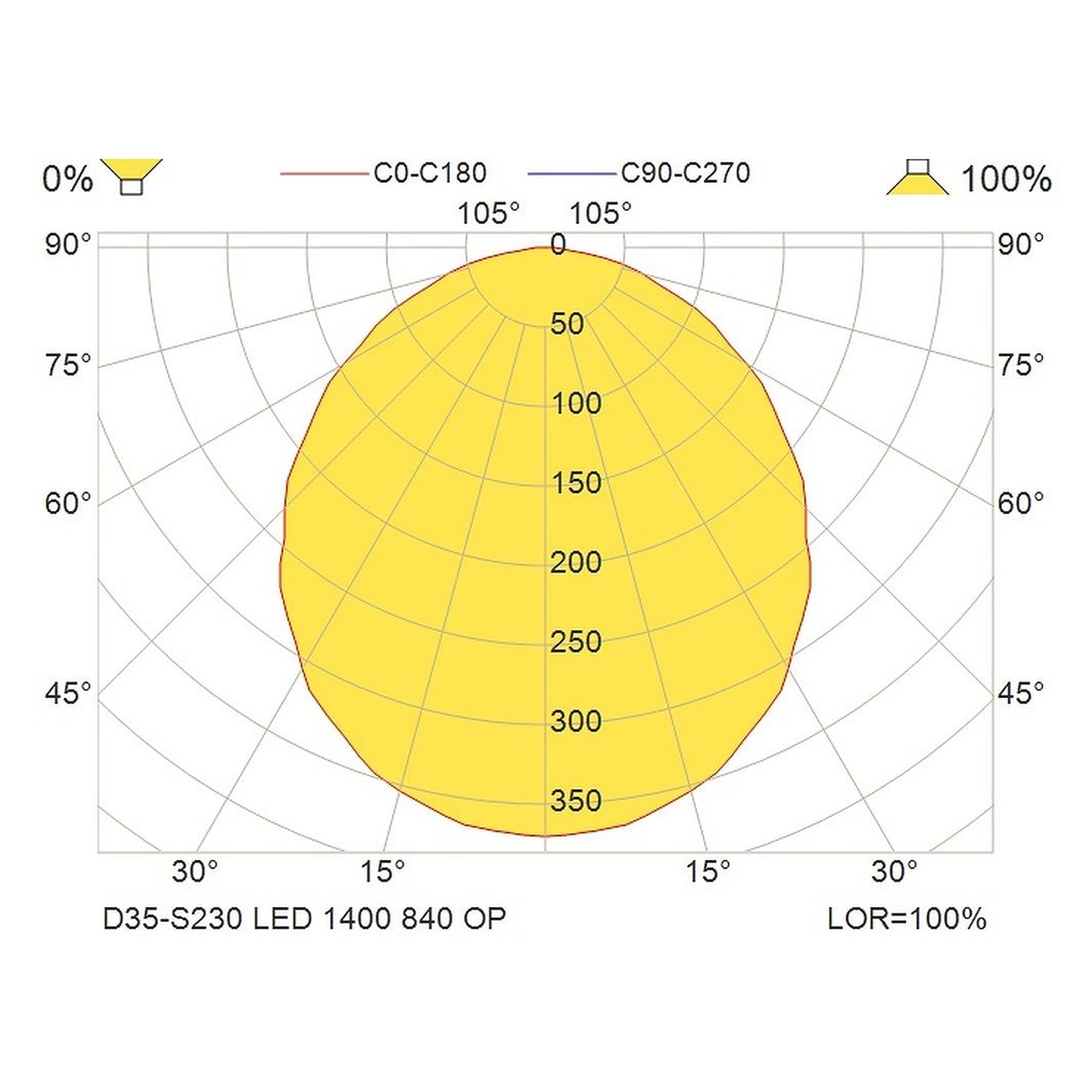

Light Technical Data
- Light sourceLED
- Lumen out (lm)1,409
- Lumen per Watt (lm/W)117
- Lamp colour temp (K)4000
- CRI Colour rendering index80
- Light distribution down %100
- MacAdam step3
- Energy class light sourceC
- Light source
Driver / Ballast
- Type of LED DriverHF: High Frequency
- Number of Driver1
- Type of LED Driver
Lifetime
- L70 Median useful life LED Ta25 (hr)80 000
- Luminous flux decline (LLMF) 50.000h Ta250.80
- L70 Median useful life LED Ta25 (hr)
Optic
- OpticOP - Opal diffuser in acrylic
- Material of diffuserAcrylic
- Diffuser material designOpal
- Optic
Housing
- Main body materialABS plastic
- Body colourWhite
- Main body colour nameWhite
- Main body material

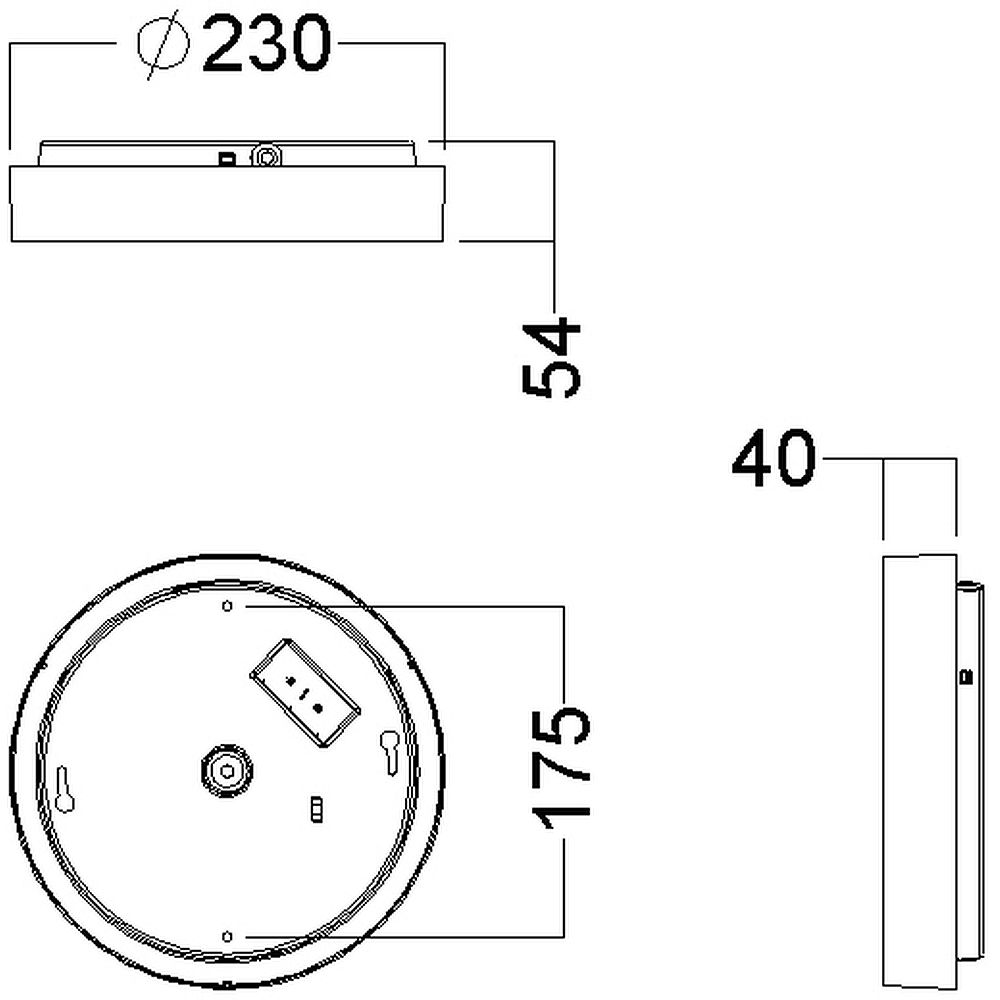

Dimensions
- Height (mm)54
- Diameter (mm)230
- Net weight (kg)0.96
- Height (mm)
Termination
- Termination3x2x2.5mm2 Push In
- Termination
Mounting
- Product mountingCeiling Surface
- Product mounting
Logistic Data
- Item gross weight (kg)1.04
- Item gross weight (kg)
Execution | TEC |
---|---|
Manufacturer Nr. | D35529914 |
Manufacturer | Glamox |
Country of Manufacture | Germany |
EAN | 4741145299145 |
Lead time | 3 weeks |
Weight | 1.040000 |
Color | 4000K |
