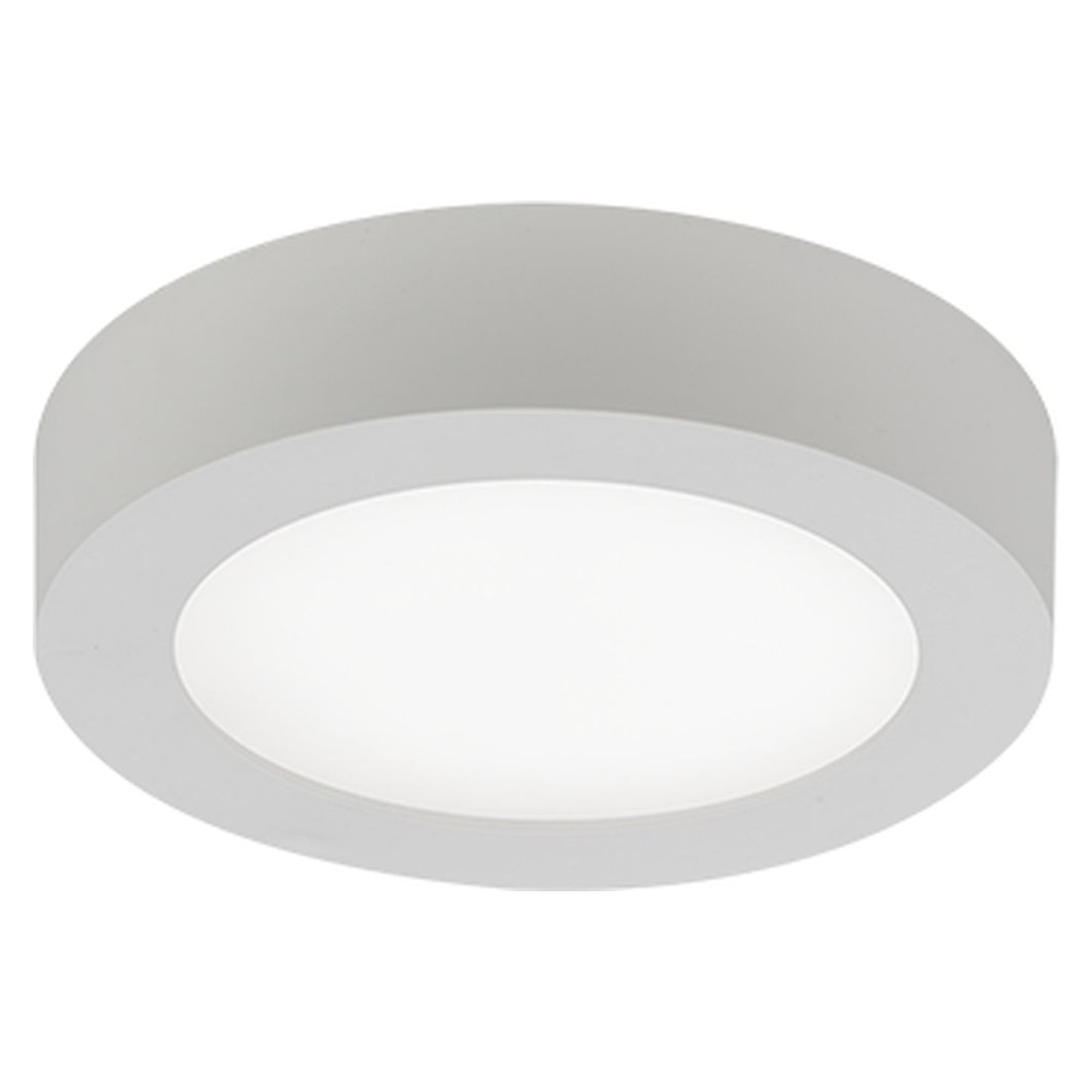

Glamox D35530259. Downlight D35-S180 LED 1000 HF 840 OP

Name: Glamox D35530259. Downlight D35-S180 LED 1000 HF 840 OP
Brand: Glamox
SKU: GL-D35530259
Price: 112.7 EUR
Availability: InStock

Lead time

3 weeks

€112.70

Excl. 19% VAT , excl. Shipping Cost

Article

GL-D35530259

Manufacturer Nr.

D35530259

D35-S180 LED 1000 HF 840 OP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox D35530259. Downlight D35-S180 LED 1000 HF 840 OP
€112.70
Excl. 19% VAT , excl. Shipping Cost
Glamox CG2123739. Downlight D50-R175 WH 1600 HF 840 WB
€88.20
Excl. 19% VAT , excl. Shipping Cost
Glamox D70518391. Downlight D70-R108 LED 700 HF 830 MB SM/CH
€127.40
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Round
Electrical Data
1. Leakage current (mA)
  0.34
2. Voltage from (V)
  220
3. Maximum voltage (V)
  240
4. Minimum frequency (Hz)
  50
5. Maximum frequency (Hz)
  60
6. Total consumption (W)
  10
7. Number of luminaires on a 10A MCB type B (80% load)
  30
8. Number of luminaires on a 10A MCB type C (80% load)
  51
9. Number of luminaires on a 16A MCB type B (80% load)
  50
10. Number of luminaires on a 16A MCB type C (80% load)
  85
Technical Data
1. Minimum ambient temperature (ºC)
  -20
2. Maximum ambient temperature (°C)
  45
3. IP classification
  40
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  1,054
3. Lumen per Watt (lm/W)
  105
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80

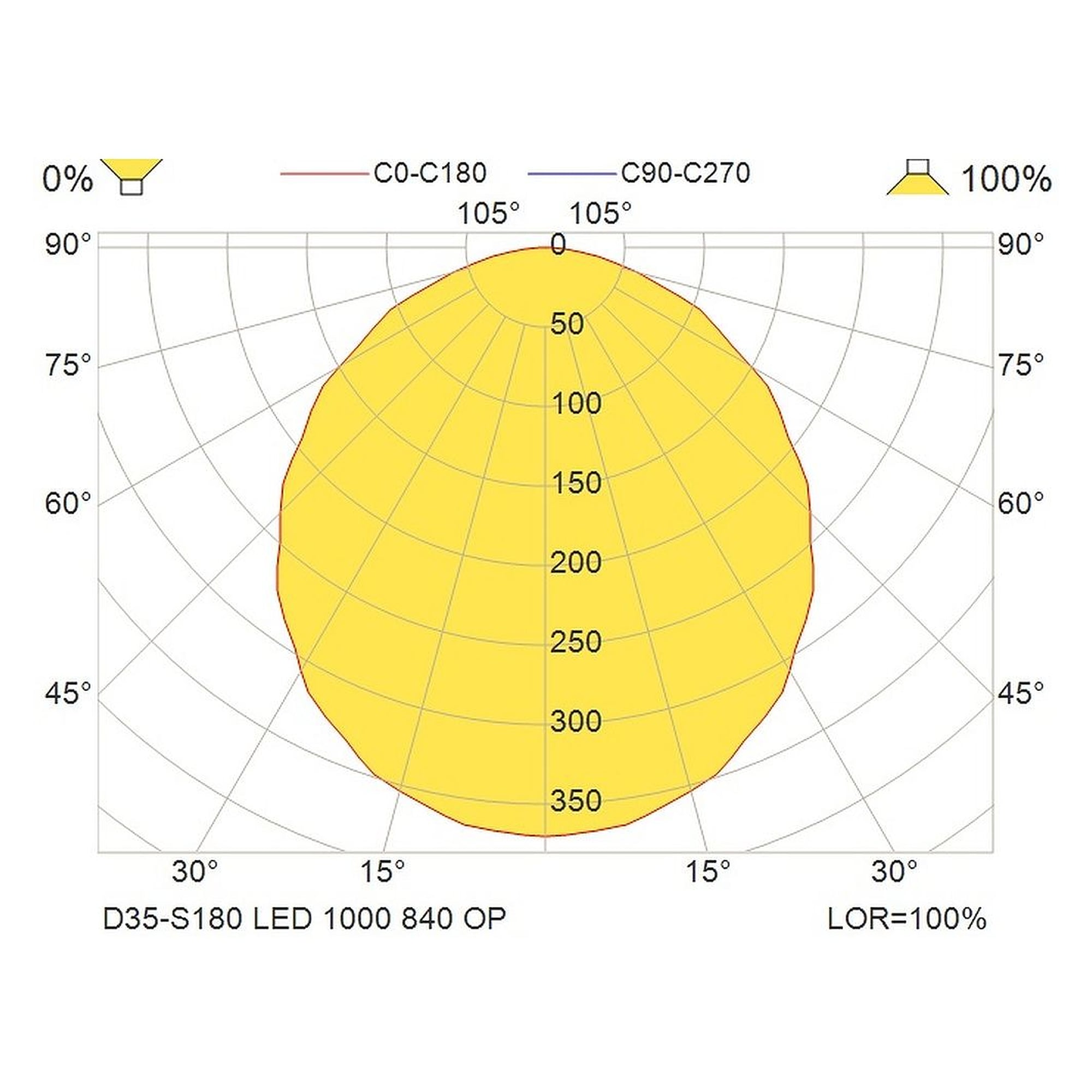

6. Light distribution down %
  100
7. MacAdam step
  3
8. Energy class light source
  C
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  80 000
2. Luminous flux decline (LLMF) 50.000h Ta25
  0.80

Optic
1. Optic
  OP - Opal diffuser in acrylic
2. Material of diffuser
  Acrylic
3. Diffuser material design
  Opal
Housing
1. Main body material
  ABS plastic
2. Body colour
  White
3. Main body colour name
  White

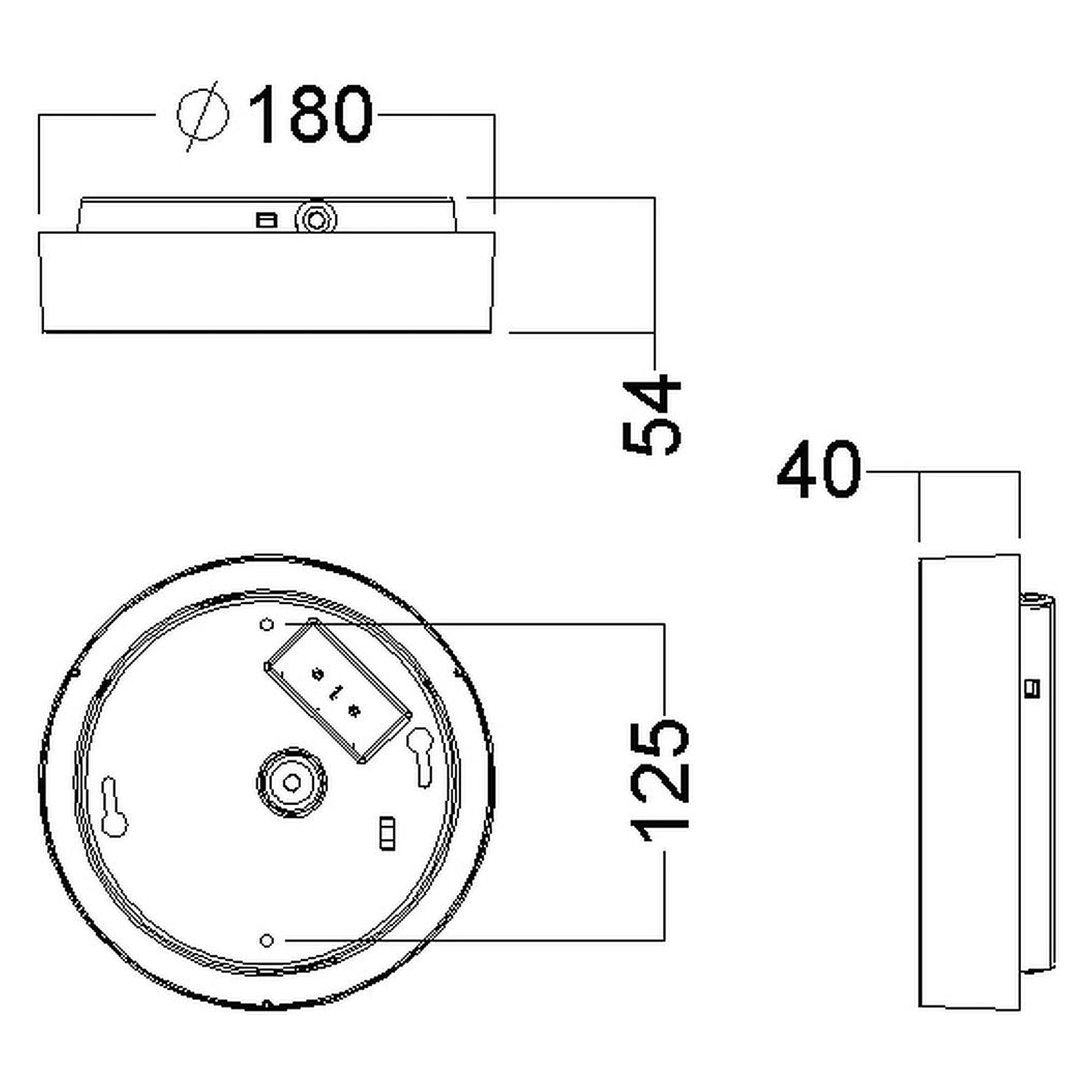

Dimensions
1. Height (mm)
  54
2. Diameter (mm)
  180
3. Net weight (kg)
  0.68
Termination
1. Termination
  3x2x2.5mm2 Push In
Mounting
1. Product mounting
  Ceiling Surface
Logistic Data
1. Item gross weight (kg)
  0.74

Information

More Information
Execution	TEC
Manufacturer Nr.	D35530259
Manufacturer	Glamox
Country of Manufacture	Germany
EAN	4741145302593
Lead time	3 weeks
Weight	0.740000
Colour	4000K
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
