Glamox E20260902. Emergency Lighting E20-S G2 LED Z/230V AC/DC

Glamox
Lead time
3 weeks
€153.30
Excl. 19% VAT , excl. Shipping Cost
Article
GL-E20260902

Manufacturer Nr.
E20260902
E20-S G2 LED Z/230V AC/DC
Add to Wish List Add to Compare

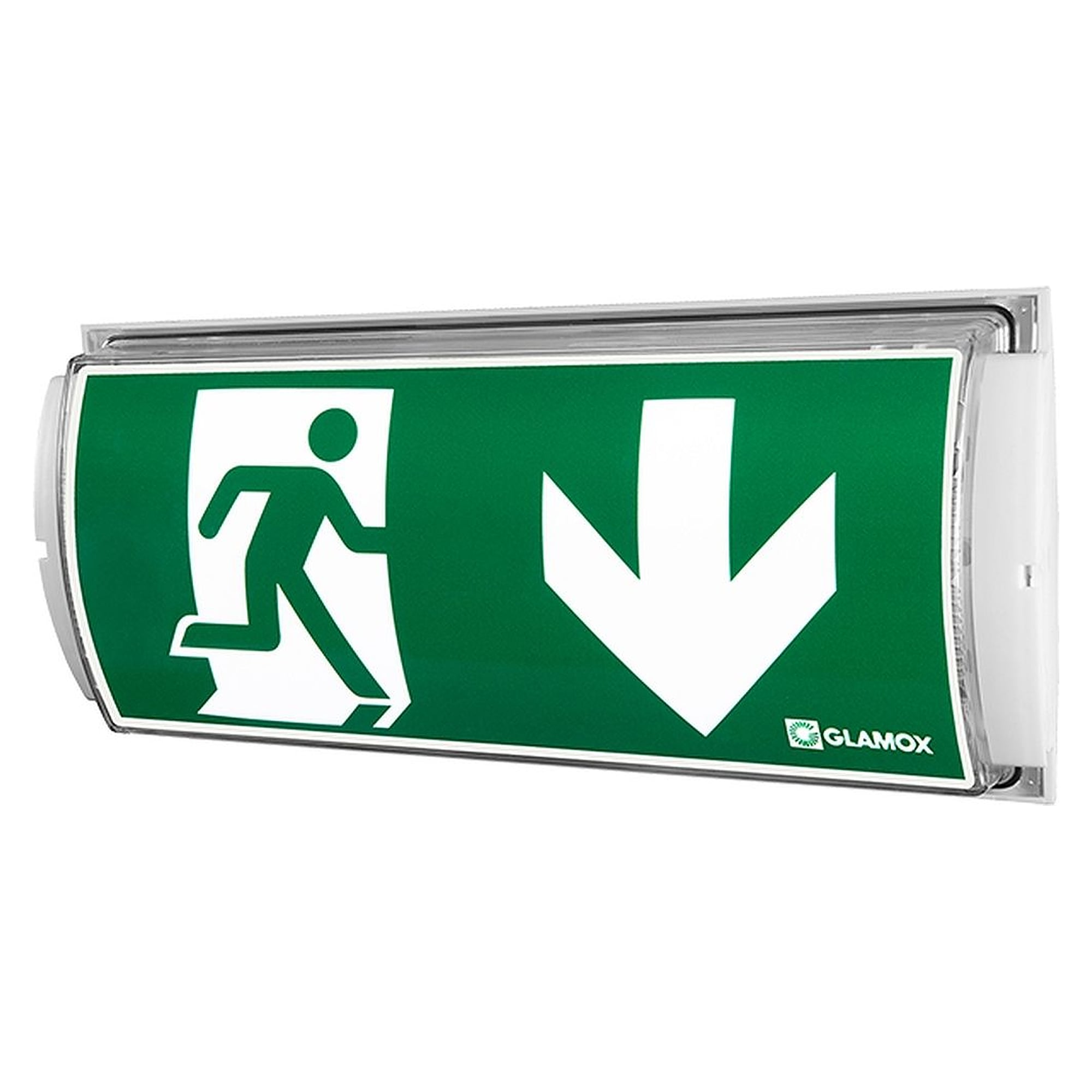

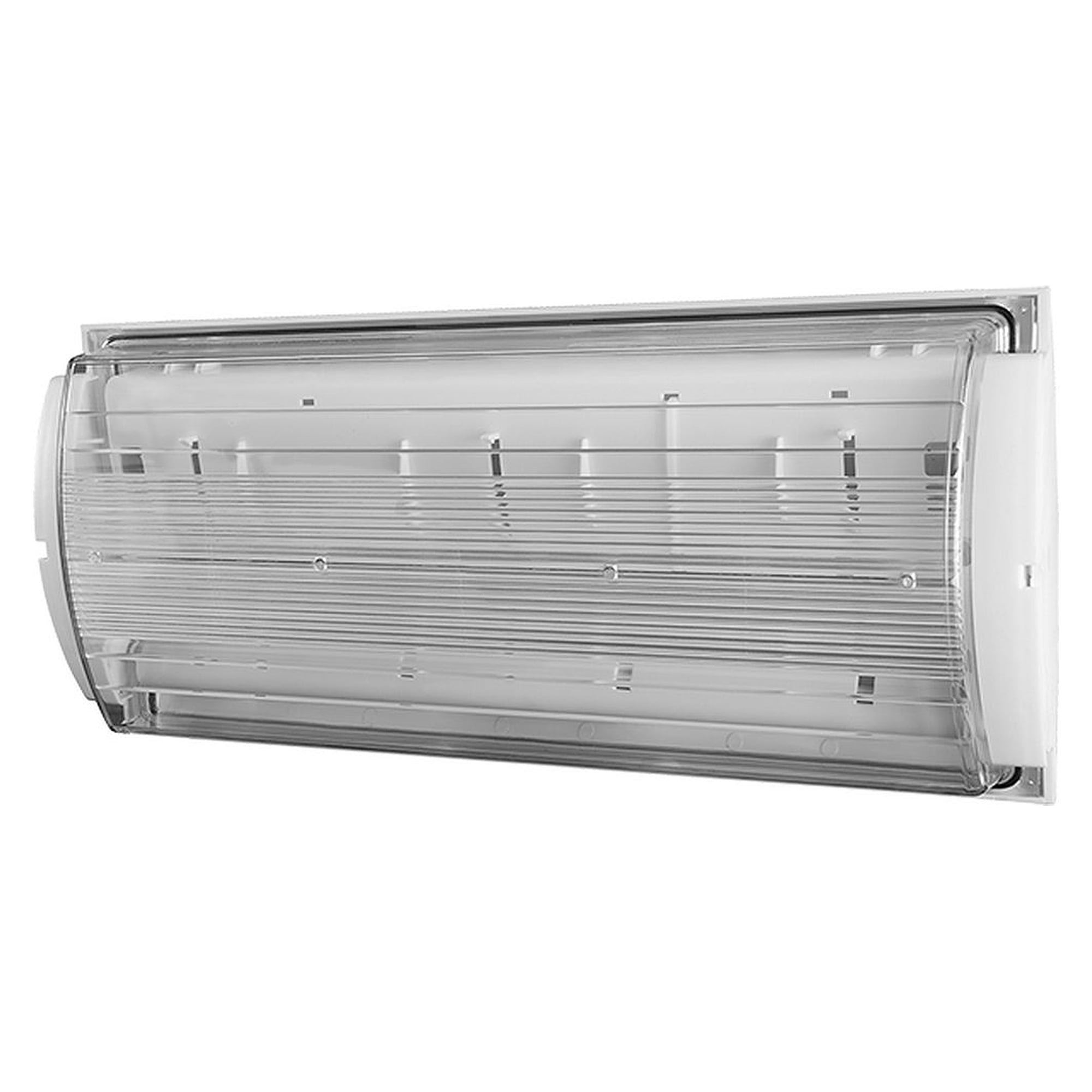

main product photo
The product may differ from the illustration
Frequently Bought Together
Total price

  • General

    1. Product shape
      Rectangular

  • Certificates

    1. Marine approved
      Yes

  • Technical Data

    1. Minimum ambient temperature (ºC)
      -20
    2. Maximum ambient temperature (°C)
      30
    3. IK classification
      06
    4. IP classification
      65

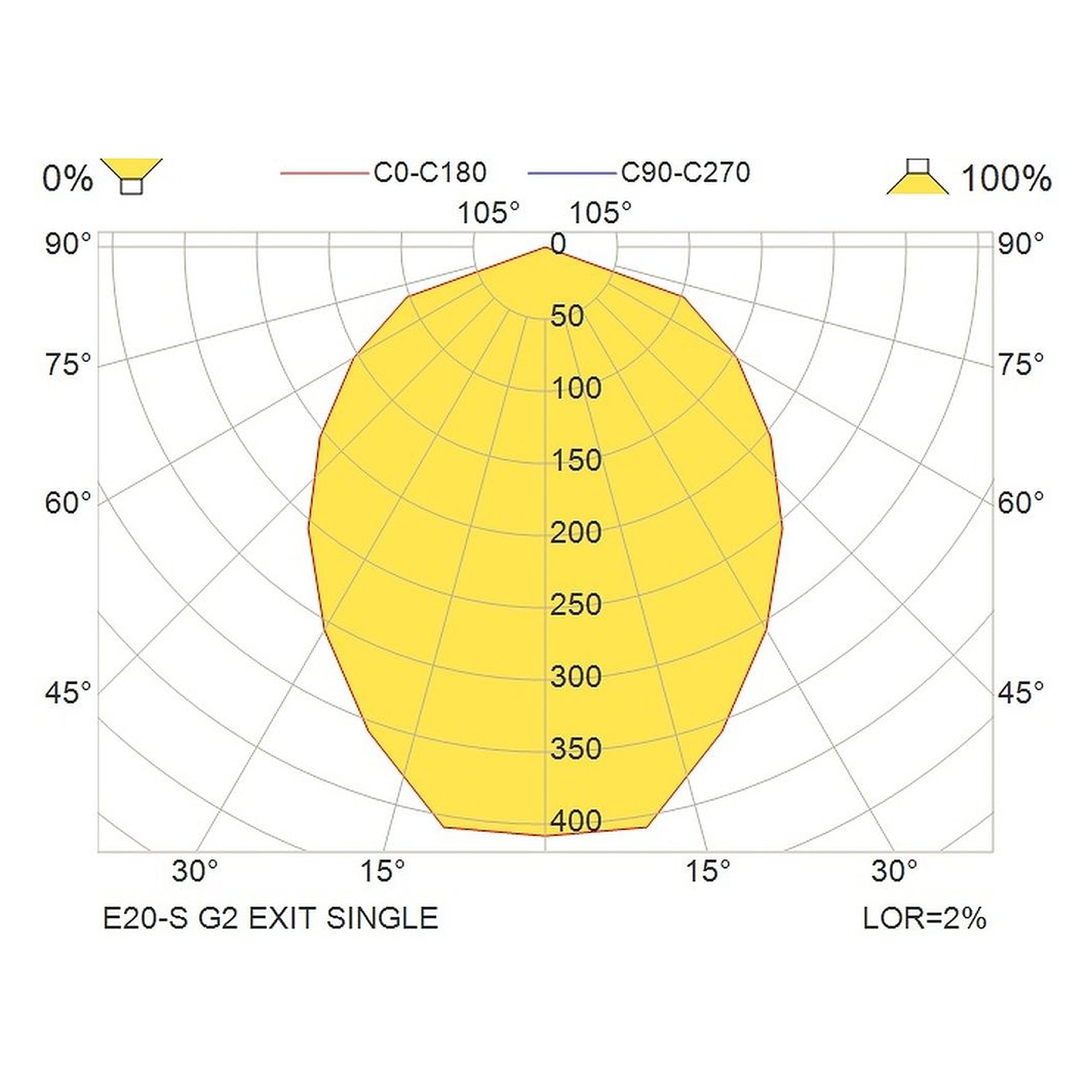

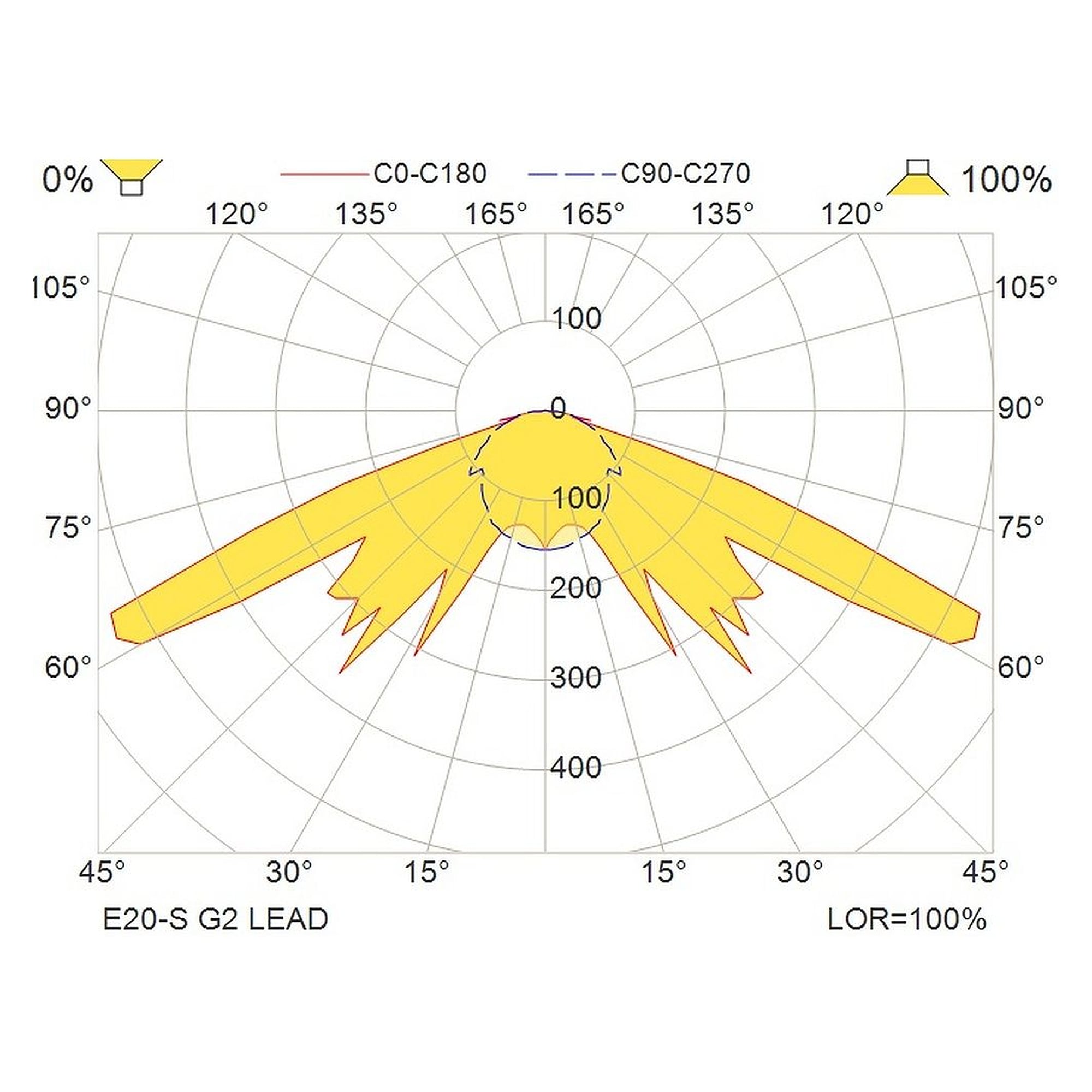

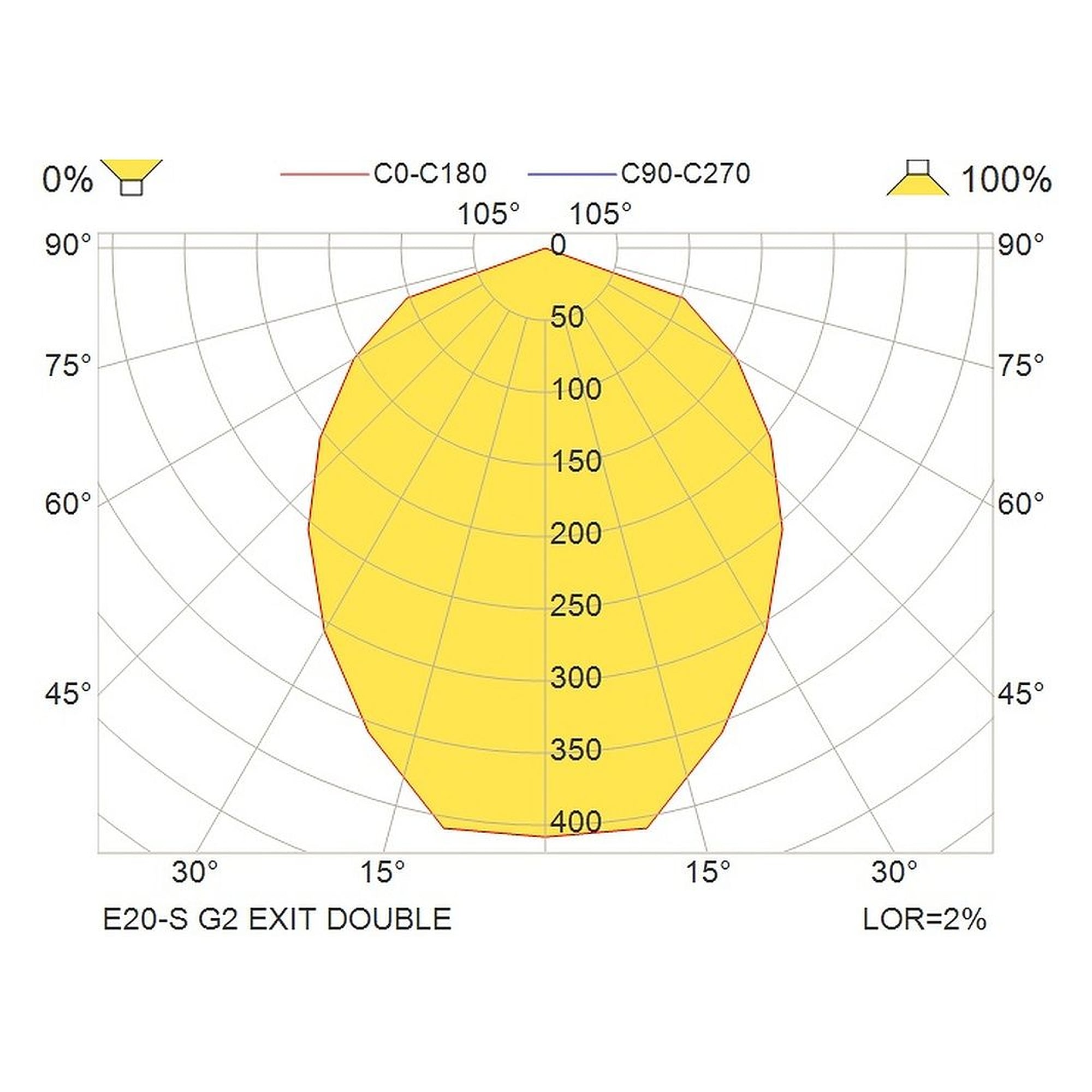

  • Light Technical Data

    1. Light source
      LED
    2. Lumen out (lm)
      179
    3. Lumen per Watt (lm/W)
      90
    4. MacAdam step
      3

  • Driver / Ballast

    1. Type of LED Driver
      HF: High Frequency
    2. Number of Driver
      1

  • Electrical Data

    1. Voltage from (V)
      220
    2. Maximum voltage (V)
      240
    3. Minimum frequency (Hz)
      50
    4. Maximum frequency (Hz)
      60
    5. Main Feed DC (V) Min
      198
    6. Main Feed DC (V) Max
      250
    7. Total consumption (W)
      2
    8. IEC Protection Class
      II

  • Emergency

    1. Type of emergency
      Z = central battery
    2. Reading distance sign (m)
      24

  • Housing

    1. Main body material
      Polycarbonate
    2. Surface treatment
      Reinforced
    3. Body colour
      Grey
    4. Main body colour name
      Grey

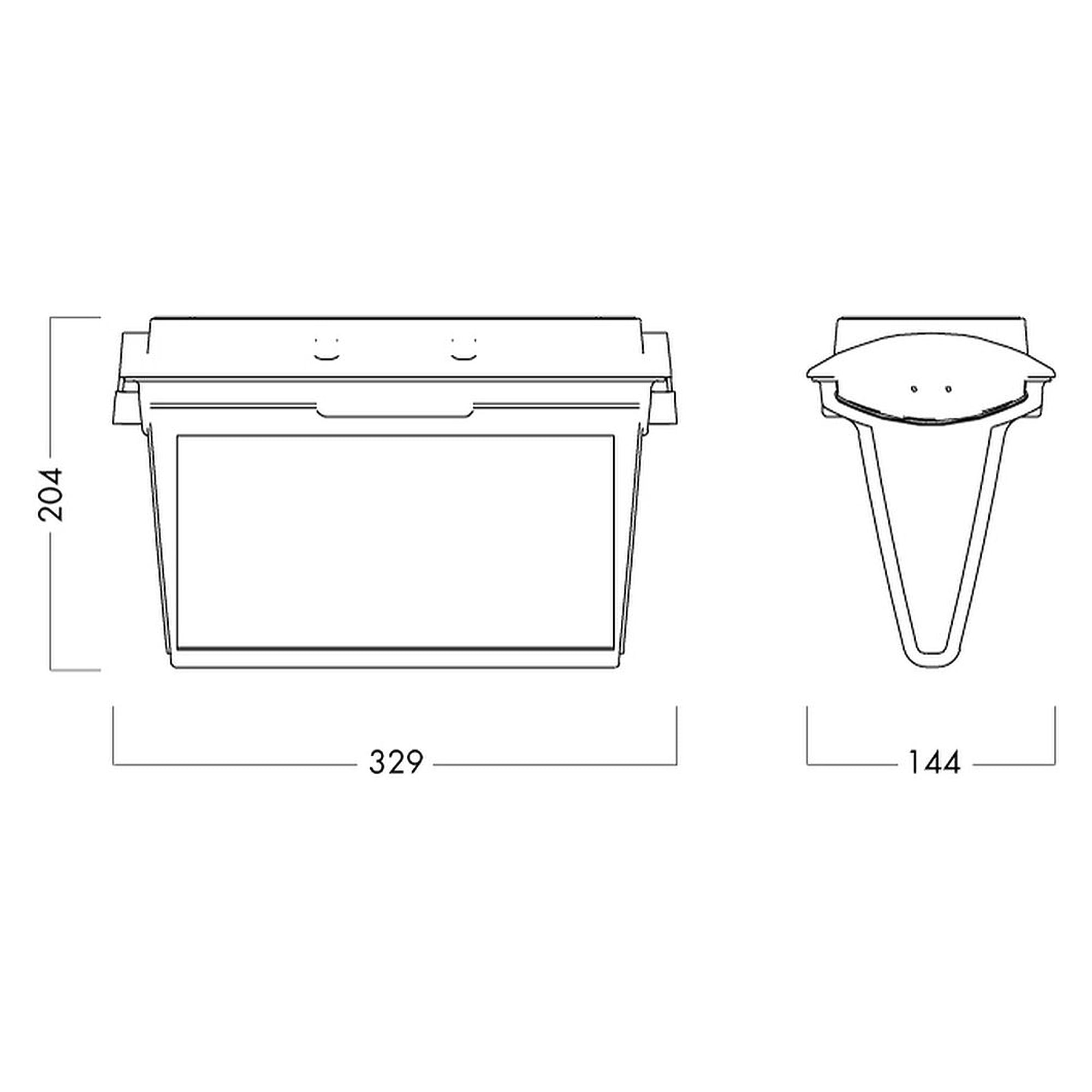

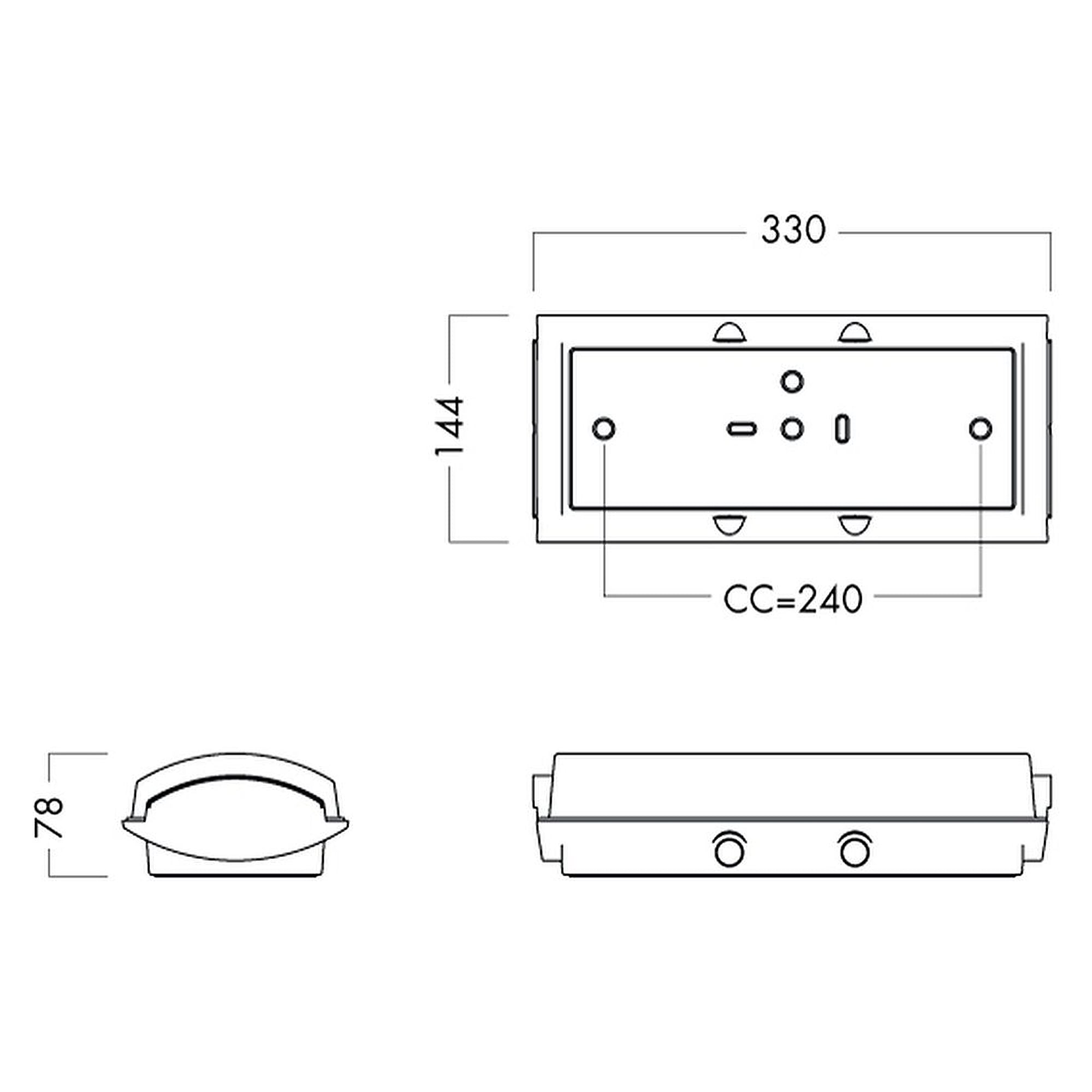

  • Dimensions

    1. Length (mm)
      330
    2. Width (mm)
      144
    3. Height (mm)
      78
    4. Net weight (kg)
      0.64

  • Termination

    1. Termination
      3x2x2.5mm2 Push In

  • Mounting

    1. Product mounting
      Ceiling Surface,Wall Surface

  • Logistic Data

    1. Item gross weight (kg)
      0.70
More Information
Execution TEC
Manufacturer Nr. E20260902
Manufacturer Glamox
Country of Manufacture Germany
EAN 7020940359818
Lead time 3 weeks
Weight 0.700000
GPSR manufacturer information Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity Original product
Condition of article New
