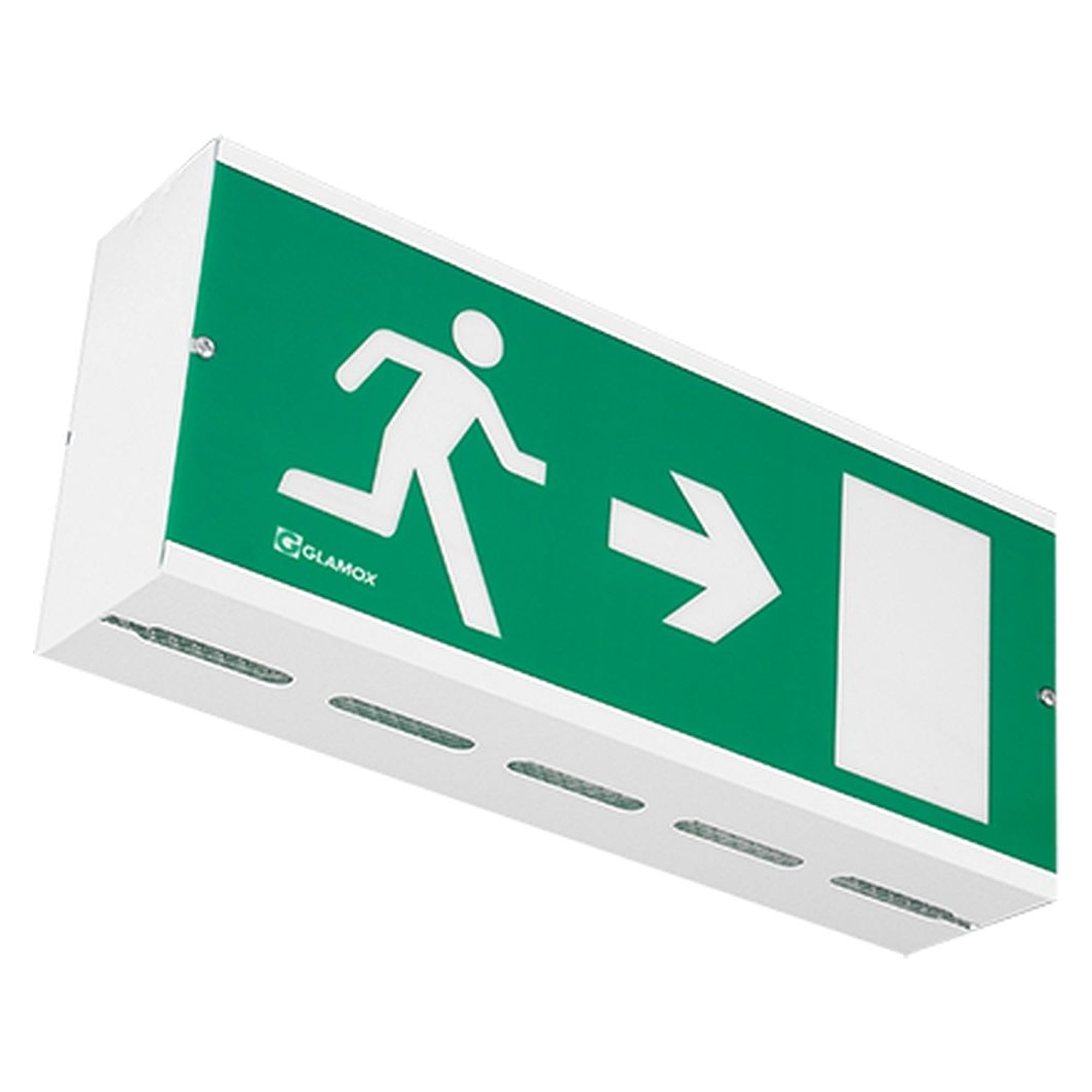

Glamox E30601009. Emergency Lighting E30 30X60 LED HF-Z WO SIGN

Name: Glamox E30601009. Emergency Lighting E30 30X60 LED HF-Z WO SIGN
Brand: Glamox
SKU: GL-E30601009
Price: 224 EUR
Availability: InStock

Lead time

4 weeks

€224.00

Excl. 19% VAT , excl. Shipping Cost

Article

GL-E30601009

Manufacturer Nr.

E30601009

E30 30X60 LED HF-Z WO SIGN

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox E30601009. Emergency Lighting E30 30X60 LED HF-Z WO SIGN
€224.00
Excl. 19% VAT , excl. Shipping Cost
Glamox E80113220. Emergency Lighting E80-S 15x26 L/R LED E3/ST
€279.30
Excl. 19% VAT , excl. Shipping Cost
Glamox E85010100. Emergency Lighting E85-R WB LED E/Z
€140.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Rectangular
Electrical Data
1. Leakage current (mA)
  0.30
2. Voltage from (V)
  220
3. Maximum voltage (V)
  240
4. Minimum frequency (Hz)
  50
5. Maximum frequency (Hz)
  60
6. Main Feed DC (V) Min
  198
7. Main Feed DC (V) Max
  270
8. Total consumption (W)
  13
9. IEC Protection Class
  I
10. Number of luminaires on a 10A MCB type B (80% load)
  12
11. Number of luminaires on a 10A MCB type C (80% load)
  20
12. Number of luminaires on a 16A MCB type B (80% load)
  19
13. Number of luminaires on a 16A MCB type C (80% load)
  31
Completeness
1. Item is not complete, missing
  Legends
Technical Data
1. Minimum ambient temperature (ºC)
  0
2. Maximum ambient temperature (°C)
  45
3. IP classification
  20

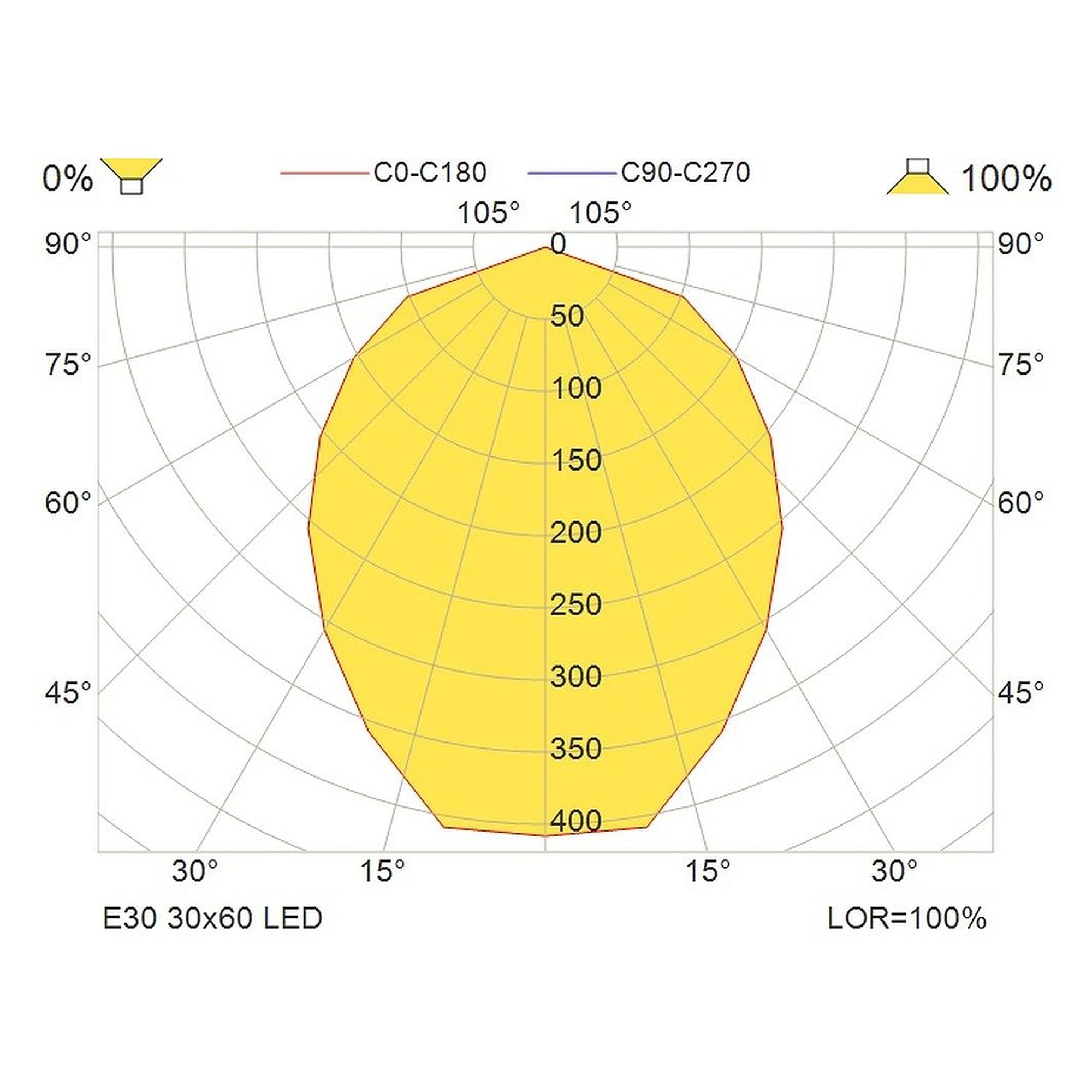

Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  2
3. Lumen per Watt (lm/W)
  8
4. MacAdam step
  3
5. Energy class light source
  C
Driver / Ballast
1. Number of Driver
  1
Lifetime
1. L70 Median useful life LED MaxTa (hr)
  50 000
2. Luminous flux decline (LLMF) 50.000h Ta25
  0.70

Emergency
1. Type of emergency
  Z = central battery
2. Output in battery mode (%)
  100
3. Reading distance sign (m)
  60
Housing
1. Main body material
  Steel
2. Body colour
  White
3. Main body colour name
  White

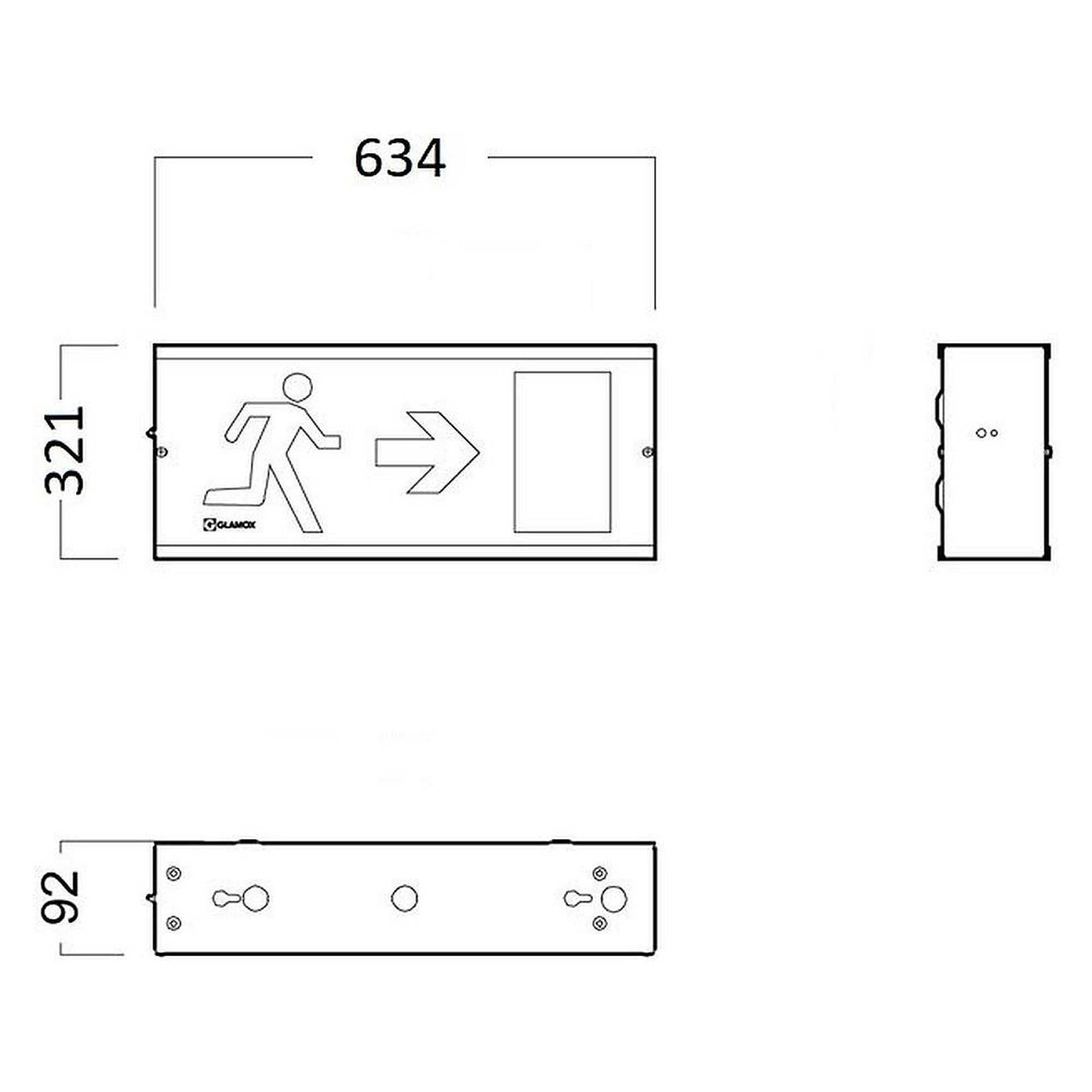

Dimensions
1. Length (mm)
  634
2. Width (mm)
  92
3. Height (mm)
  321
4. Net weight (kg)
  3.48
Termination
1. Termination
  3x2x2.5mm2 Push In
Mounting
1. Product mounting
  Ceiling Surface,Wall Surface
Logistic Data
1. Item gross weight (kg)
  3.78

Information

More Information
Execution	TEC
Manufacturer Nr.	E30601009
Manufacturer	Glamox
Country of Manufacture	Germany
EAN	4741145310956
Lead time	4 weeks
Weight	3.780000
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
