Glamox I35089788. Industry Lighting i35-1200 LED 6800 DALI TW 840 SU/TG M20

Glamox
Lead time
4 weeks
€1,012.20
Excl. 19% VAT , excl. Shipping Cost
Article
GL-I35089788

Manufacturer Nr.
I35089788
i35-1200 LED 6800 DALI TW 840 SU/TG M20
Add to Wish List Add to Compare

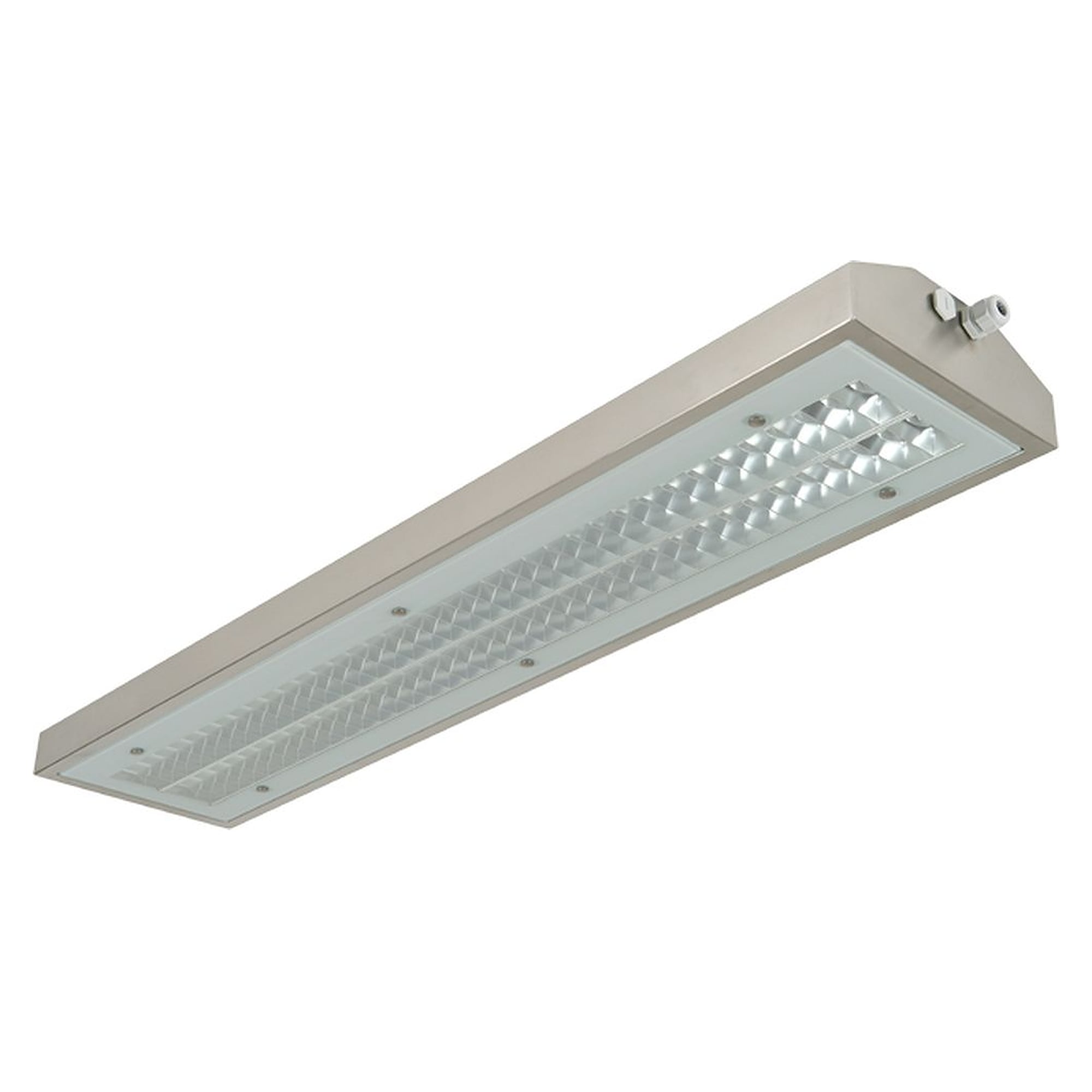

main product photo
The product may differ from the illustration
Frequently Bought Together
Total price

  • General

    1. Product shape
      Rectangular

  • Electrical Data

    1. Leakage current (mA)
      0.25
    2. Voltage from (V)
      220
    3. Maximum voltage (V)
      240
    4. Minimum frequency (Hz)
      50
    5. Maximum frequency (Hz)
      60
    6. Total consumption (W)
      62
    7. Number of luminaires on a 10A MCB type B (80% load)
      13
    8. Number of luminaires on a 10A MCB type C (80% load)
      21
    9. Number of luminaires on a 16A MCB type B (80% load)
      19
    10. Number of luminaires on a 16A MCB type C (80% load)
      40

  • LMS System

    1. Number of DALI addresses
      1
    2. LMS Protocol
      DALI

  • Technical Data

    1. Minimum ambient temperature (ºC)
      -20
    2. Maximum ambient temperature (°C)
      35
    3. IK classification
      10
    4. IP classification
      65
    5. Corrosion class
      C5

  • Light Technical Data

    1. Light source
      LED
    2. Lumen out (lm)
      6,784
    3. Lumen per Watt (lm/W)
      109
    4. Lamp colour temp (K)
      4000
    5. CRI Colour rendering index
      80
    6. MacAdam step
      3
    7. Energy class light source
      C
    8. Minimum dim level (%)
      1

  • Driver / Ballast

    1. Type of LED Driver
      DALI: Dimming
    2. Number of Driver
      1

  • Lifetime

    1. L70 Median useful life LED Ta25 (hr)
      80 000
    2. L70 Median useful life LED MaxTa (hr)
      60 000
    3. Luminous flux decline (LLMF) 50.000h Ta25
      0.80

  • Optic

    1. Optic
      SU - Soft light louvre
    2. Material of diffuser
      Tempered glass
    3. Diffuser material design
      Clear
    4. Material of reflector
      Silver-coated aluminium

  • Housing

    1. Main body material
      Stainless steel
    2. Main Body MaterialText
      Acid-proof stainless steel 316
    3. Body colour
      Unpainted
    4. Main body colour name
      Unpainted

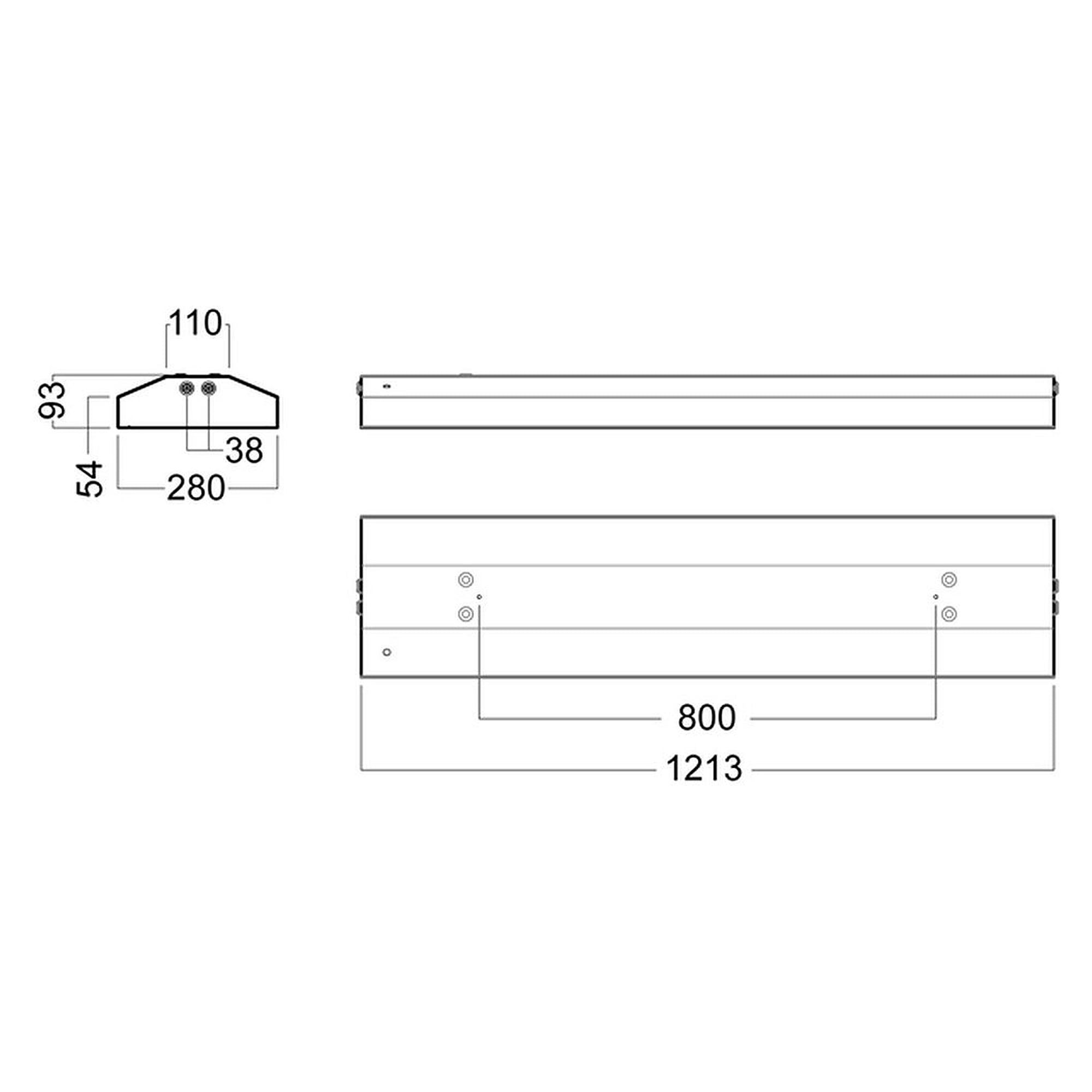

  • Dimensions

    1. Length (mm)
      1,213
    2. Width (mm)
      280
    3. Height (mm)
      93
    4. Net weight (kg)
      12.70

  • Termination

    1. Termination
      5x2x2.5mm2 Push In
    2. Type of through wiring
      7x2.5

  • Cable Inlet

    1. Number of cable entries
      2
    2. Number of blind plugs
      2
    3. Max cable diameter (mm)
      14
    4. Min cable diameter (mm)
      7

  • Mounting

    1. Product mounting
      Ceiling Surface

  • Logistic Data

    1. Item gross weight (kg)
      13.80
More Information
Execution TEC
Manufacturer Nr. I35089788
Manufacturer Glamox
Country of Manufacture Germany
EAN 7054130897880
Lead time 4 weeks
Weight 13.800000
Colour 4000K
GPSR manufacturer information Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity Original product
Condition of article New
