Glamox I60087202. Industry Lighting i60-1200 LED 3600 HF SMR-SEN 840 OP

Glamox
Lead time
1 week
€252.00
Excl. 19% VAT , excl. Shipping Cost
Article
GL-I60087202

Manufacturer Nr.
I60087202
i60-1200 LED 3600 HF SMR-SEN 840 OP
Add to Wish List Add to Compare

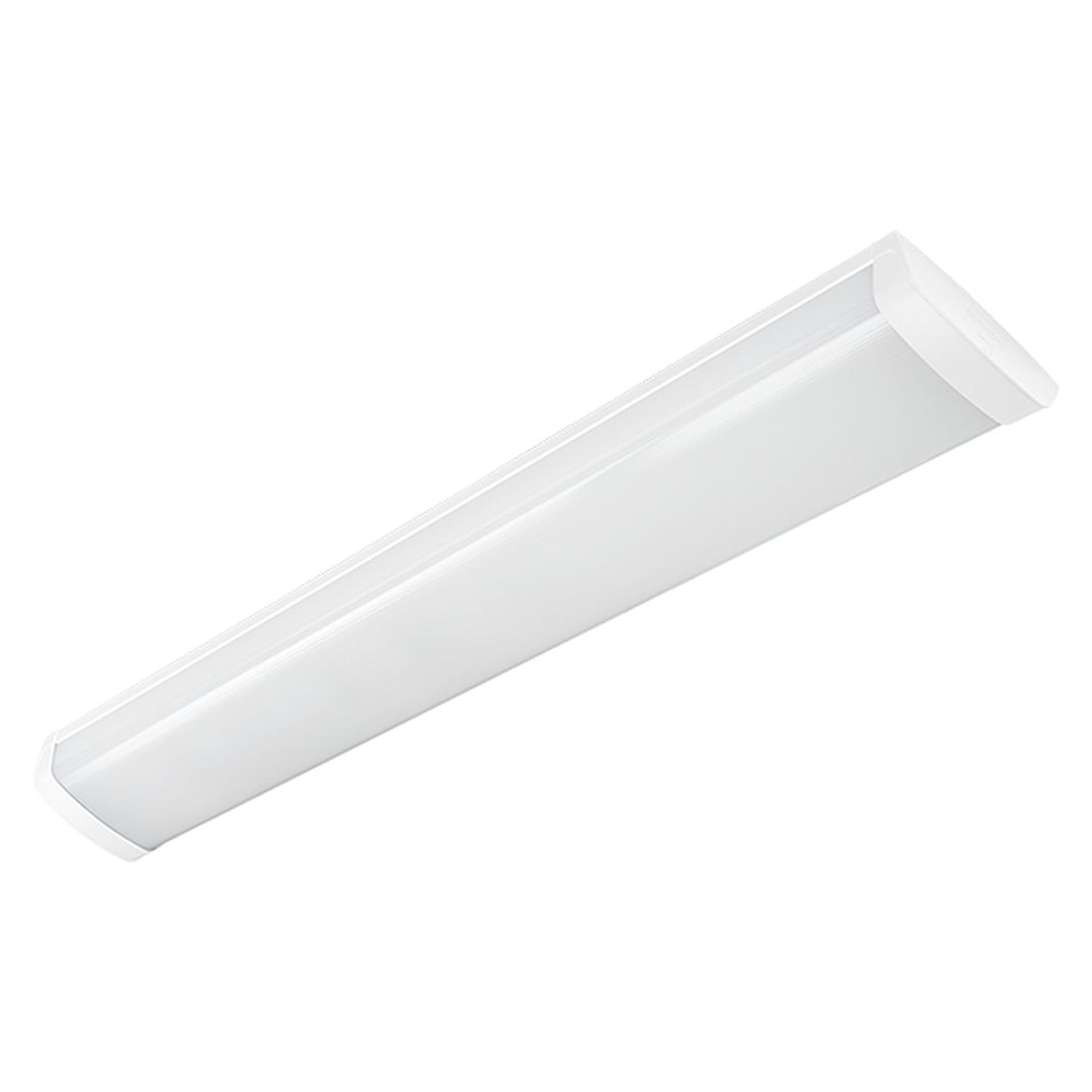

main product photo
The product may differ from the illustration
Frequently Bought Together
Total price

  • General

    1. Product shape
      Linear

  • Certificates

    1. Certification
      ENEC

  • Electrical Data

    1. Leakage current (mA)
      0.30
    2. Voltage from (V)
      220
    3. Maximum voltage (V)
      240
    4. Minimum frequency (Hz)
      50
    5. Maximum frequency (Hz)
      60
    6. Main Feed DC (V) Min
      180
    7. Main Feed DC (V) Max
      270
    8. Total consumption (W)
      27
    9. Number of luminaires on a 10A MCB type B (80% load)
      15
    10. Number of luminaires on a 10A MCB type C (80% load)
      25
    11. Number of luminaires on a 16A MCB type B (80% load)
      24
    12. Number of luminaires on a 16A MCB type C (80% load)
      40

  • Technical Data

    1. Minimum ambient temperature (ºC)
      -25
    2. Maximum ambient temperature (°C)
      50
    3. IK classification
      07
    4. IP classification
      44

  • Light Technical Data

    1. Light source
      LED
    2. Lumen out (lm)
      3,652
    3. Lumen per Watt (lm/W)
      140
    4. Lamp colour temp (K)
      4000
    5. CRI Colour rendering index
      80
    6. Light distribution up %
      5
    7. Light distribution down %
      95
    8. MacAdam step
      3
    9. Energy class light source
      C

  • Driver / Ballast

    1. Type of LED Driver
      HF: High Frequency
    2. Number of Driver
      1

  • Lifetime

    1. L80 Median useful life LED Ta25 (hr)
      100 000
    2. L80 Median useful life LED MaxTa (hr)
      100 000
    3. Median useful life driver Ta25 (hr)
      100,000
    4. Median useful life driver Ta45 (hr)
      50,000
    5. Luminous flux decline (LLMF) 50.000h Ta25
      0.90

  • Sensor

    1. Sensor type
      MICROWAVE
    2. Presence functionality
      Auto ON_OFF
    3. Max mounting height / detection range (metre)
      6
    4. Sensor max hold time
      30min
    5. Sensor min hold time
      5sec
    6. Max number of children per sensor
      4

  • Optic

    1. Material of diffuser
      Polycarbonate
    2. Diffuser material design
      Opal

  • Housing

    1. Main body material
      Steel
    2. Surface treatment
      Galvanised
    3. Body colour
      White
    4. Main body colour name
      White

  • Dimensions

    1. Length (mm)
      1,222
    2. Width (mm)
      165
    3. Height (mm)
      57
    4. Net weight (kg)
      3.00

  • Termination

    1. Termination
      5x2x2.5mm2 Push In

  • Mounting

    1. Product mounting
      Ceiling Surface,Wall Surface

  • Logistic Data

    1. Item gross weight (kg)
      3.26
More Information
Execution TEC
Manufacturer Nr. I60087202
Manufacturer Glamox
Country of Manufacture Germany
EAN 7054130872023
Lead time 1 week
Weight 3.260000
Colour 4000K
GPSR manufacturer information Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity Original product
Condition of article New
