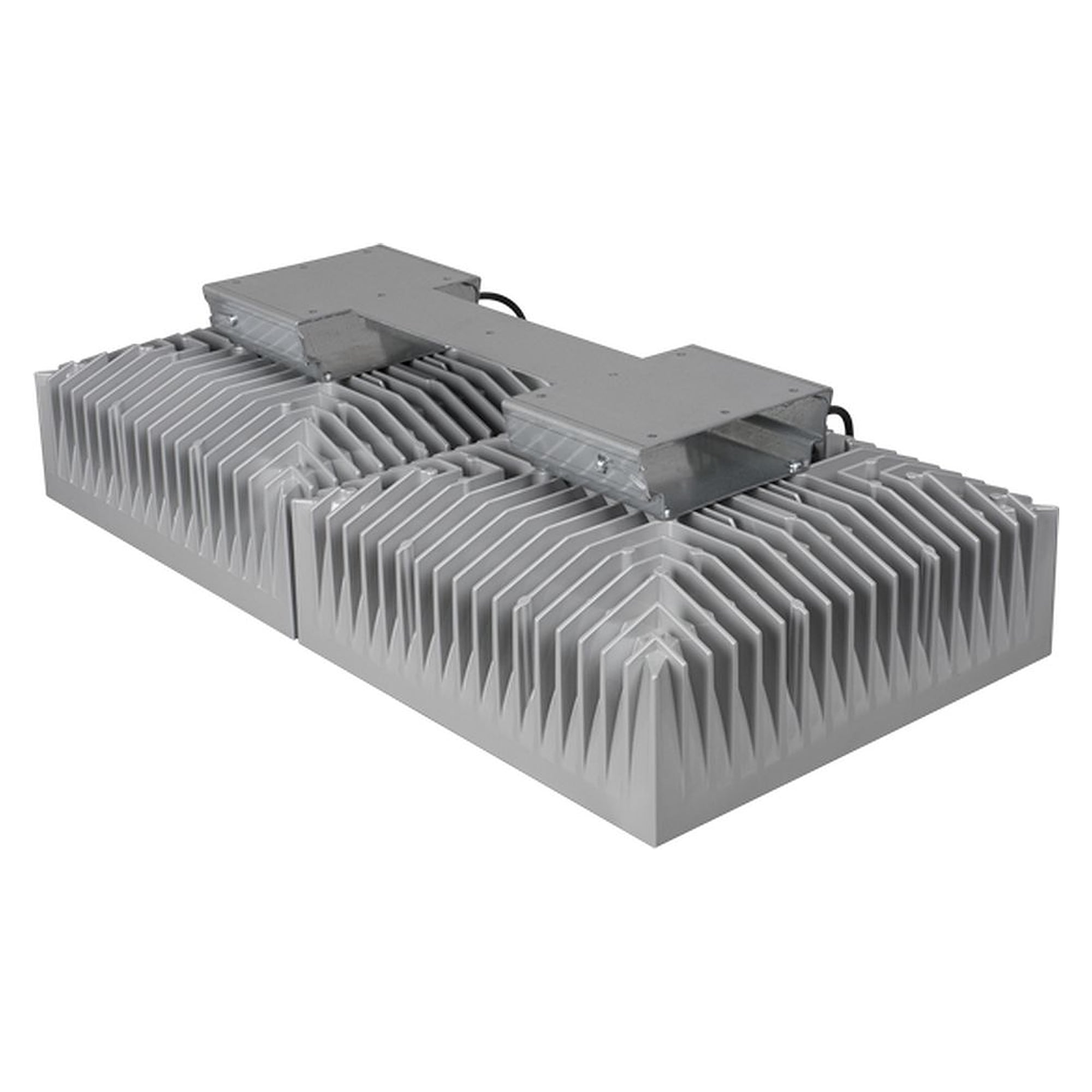

Glamox I80722200. Industry Lighting i80 LED 2x18000 DALI G2 840 NB CL
Lead time
4 weeks
€1,334.25
Excl. 19% VAT , excl. Shipping Cost
Article
GL-I80722200
Manufacturer Nr.
I80722200
i80 LED 2x18000 DALI G2 840 NB CL
Frequently Bought Together
- This Item: €1,334.25Excl. 19% VAT , excl. Shipping Cost
- Glamox I80612100. Industry Lighting i80 LED 18000 HF G2 840 NB HTG €648.00Excl. 19% VAT , excl. Shipping Cost
- Glamox I80512400. Industry Lighting i80 LED 2x14000 HF G2 840 MB CL €1,244.25Excl. 19% VAT , excl. Shipping Cost
Total price
General
- Product shapeSquare
- Product shape
Certificates
- CertificationBall test
- Certification
Electrical Data
- Leakage current (mA)0.80
- Voltage from (V)220
- Maximum voltage (V)240
- Minimum frequency (Hz)50
- Maximum frequency (Hz)60
- Main Feed DC (V) Min198
- Main Feed DC (V) Max250
- Total consumption (W)228
- Number of luminaires on a 10A MCB type B (80% load)2
- Number of luminaires on a 10A MCB type C (80% load)4
- Number of luminaires on a 16A MCB type B (80% load)4
- Number of luminaires on a 16A MCB type C (80% load)6
- Leakage current (mA)
LMS System
- Number of DALI addresses2
- LMS ProtocolDALI
- Number of DALI addresses
Completeness
- Item is not complete, missingQC
- Item is not complete, missing
Technical Data
- Minimum ambient temperature (ºC)-40
- Maximum ambient temperature (°C)45
- IK classification08
- IP classification66
- Corrosion classC4
- Minimum ambient temperature (ºC)
Light Technical Data
- Light sourceLED
- Lumen out (lm)37,552
- Lumen per Watt (lm/W)165
- Lamp colour temp (K)4000
- CRI Colour rendering index80
- MacAdam step3
- Energy class light sourceC
- Minimum dim level (%)10
- Light source
Driver / Ballast
- Type of LED DriverDALI: Dimming
- No Of Ballast2
- Type of LED Driver
Lifetime
- L80 Median useful life LED MaxTa (hr)100 000
- Luminous flux decline (LLMF) 50.000h Ta250.90
- L80 Median useful life LED MaxTa (hr)

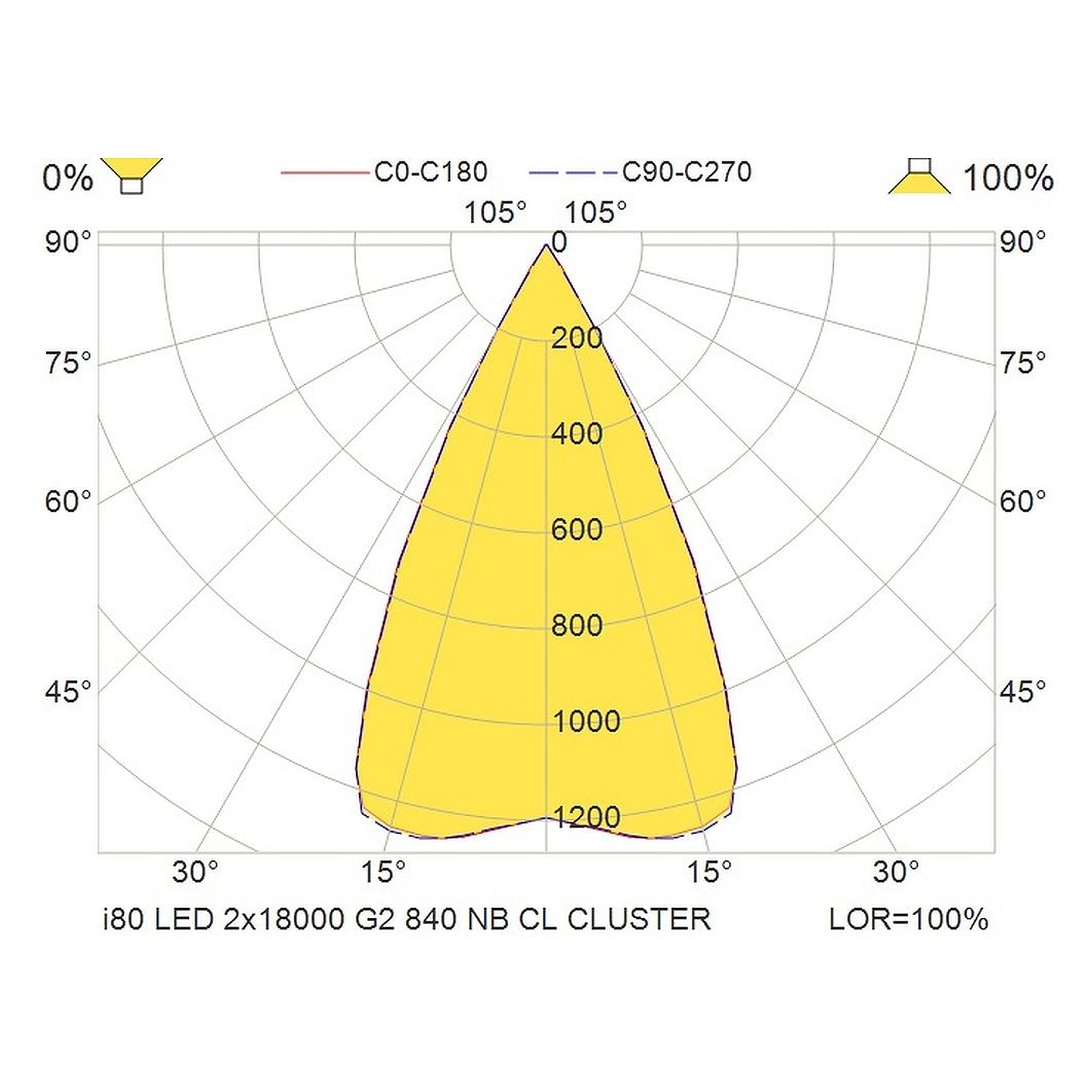

Optic
- OpticNB - Narrow beam
- Material of diffuserAcrylic
- Diffuser material designClear
- Optic
Housing
- Main body materialAluminium
- Body colourGrey
- Main body colour nameAluminium grey
- Main body material

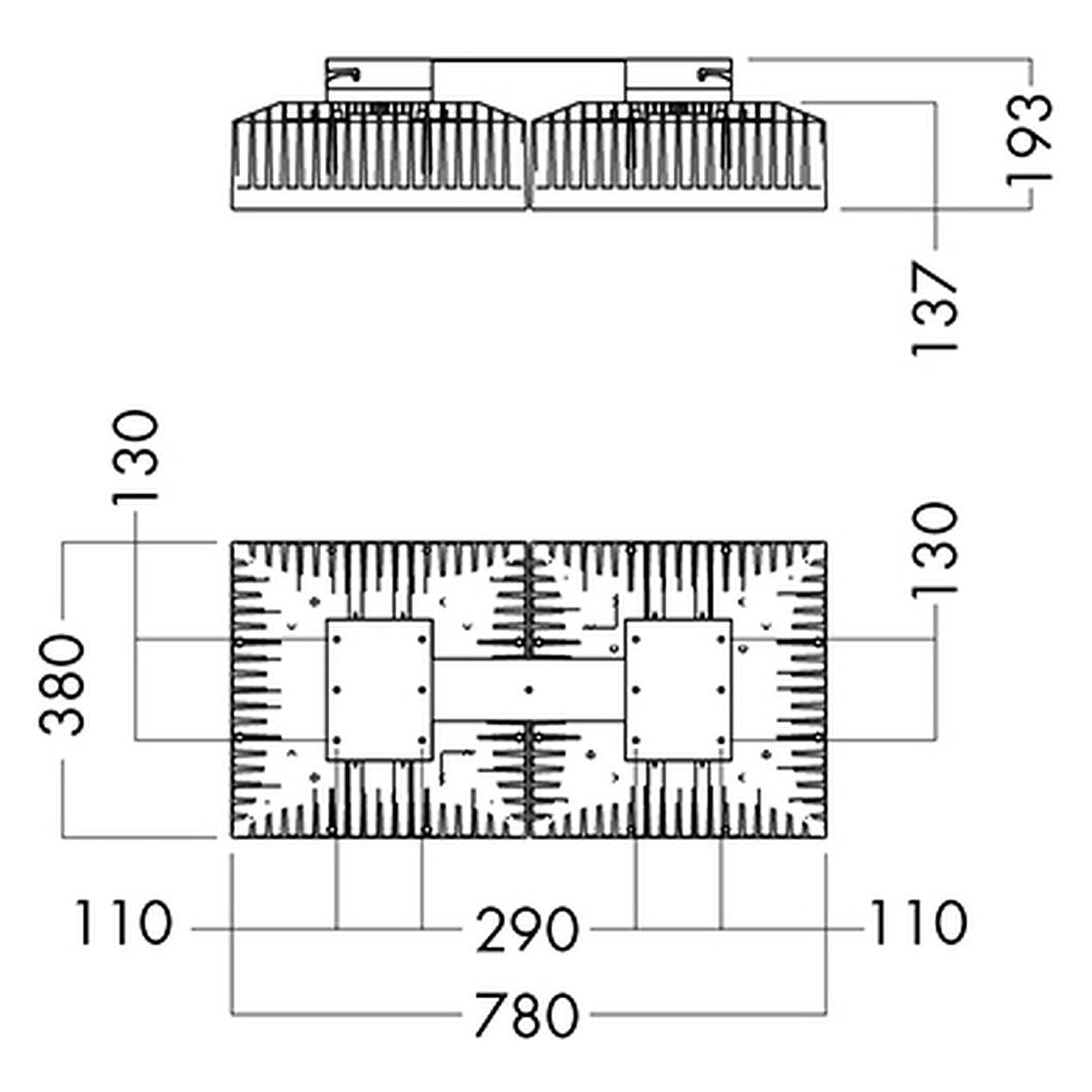

Dimensions
- Length (mm)780
- Width (mm)380
- Height (mm)193
- Net weight (kg)19.27
- Length (mm)
Termination
- Plug typeWieland M
- Plug type
Cable
- Cable Cross section (mm²)1.50
- Cable End / Plug NameQCW IP68 M
- Cable length (m)0.50
- Cable materialRUBBER
- No of leads5
- Cable diameter variation max (mm)12
- Cable Cross section (mm²)
Mounting
- Product mountingCeiling Surface
- Product mounting
Logistic Data
- Item gross weight (kg)20.95
- Item gross weight (kg)
| Execution | TEC |
|---|---|
| Manufacturer Nr. | I80722200 |
| Manufacturer | Glamox |
| Country of Manufacture | Germany |
| EAN | 4741145196475 |
| Lead time | 4 weeks |
| Weight | 20.950000 |
| Color | 4000K |
